XZU419L-TKFRDW3 (2009)

Toyota Dyna

Production Aug 2009 - Aug 2012
Engine N04C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

Click highlighted areas on diagram

24V 25A

diagram 27020 27036 27113 27212 27310 27310A 27310B 27310C 27310C 27313 27315 27330 27330B 27350 27350B 27351 27352 27357 27370 27371 27372 2737845020 2737854010 2737854010 2738354010 2738745090 2738754010 2738754010 2738756070 27410 27411 27441 27700A 9004179064 9009220604 9009900893 9009902208 9009904322 9009904948 9009905118 9009905118 9009905118 9009905118 9009905118 9009905118 9009905119 9009905185 9009914055 9010510041 9011908344 9017906158 9165140616 9331515012
Part # Description Qty Price
Common parts
27378-45020
27378-54010
27383-54010
27387-45090
27387-54010
27387-56070
90041-79064
90092-20604
90099-00893
90099-02208
90099-04322
90099-04948
90099-05118
90099-05119
90099-05185
90099-14055
90105-10041
90119-08344
90179-06158
91651-40616
93315-15012

(0010- )

Click highlighted areas on diagram

24V 85A

diagram 1107 27020 27020E 27036 27039 27310 27310B 27310E 27310E 27312 27315 27330 27330A 27350 27351 27353 27356 27371 27371 27372 27372 27373 27378 27378 27378A 27378A 27387 27387 27387B 27388 27410 27411 27441 27700A 9009900197 9009904568 9009904916 9009905118 9009905118 9009905118 9009905118 9009905118 9009905185 9009934013 9009934013 9017906158
Part # Description Qty Price
Common parts
90099-00197
90099-04568
90099-04916
90099-05118
90099-05185
90099-34013
90179-06158
Linked diagrams
1107

(0010- )

Click highlighted areas on diagram

24V 50A

diagram 27020 27020E 27039 27039A 27064 27310 27310B 27312 27330 27330A 27357 27359 27365 27370 27384 27387 27388 27389 27411 27443 27446 27700A 9009900195 9009900197 9009900197 9009900243 9009900246 9009904966 9009905119 9009905171 9009905172 9009905172 9009905267 9017906158 9331914025
Part # Description Qty Price
Common parts
90099-00195
90099-00197
90099-00243
90099-00246
90099-04966
90099-05119
90099-05171
90099-05172
90099-05267
90179-06158
93319-14025

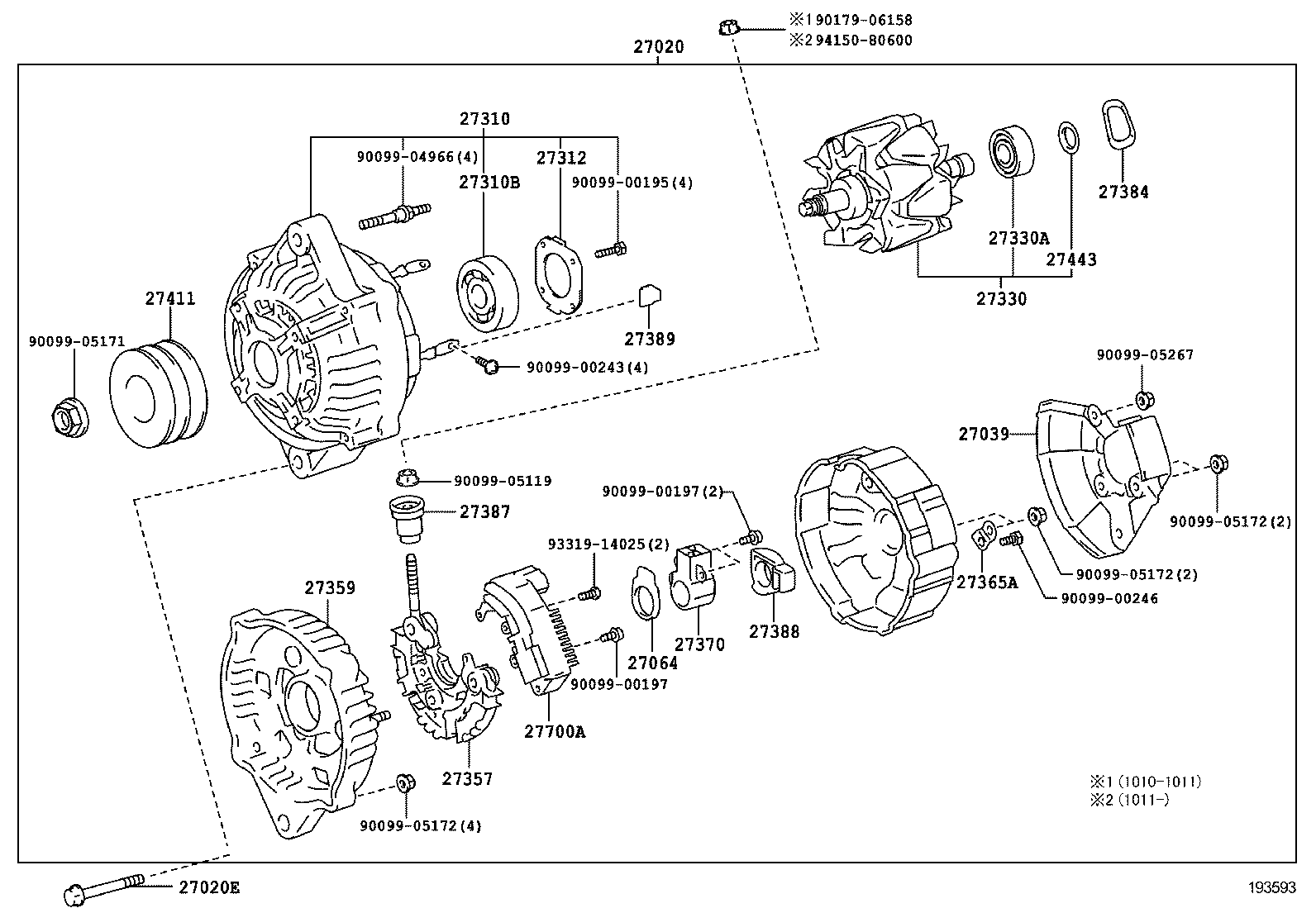

(1010- )N04C

Click highlighted areas on diagram

24V 60A

diagram 27020 27020E 27039 27064 27310 27310B 27312 27330 27330A 27357 27359 27365A 27370 27384 27387 27388 27389 27411 27443 27700A 9009900195 9009900197 9009900197 9009900243 9009900246 9009904966 9009905119 9009905171 9009905172 9009905172 9009905172 9009905267 9017906158 9331914025 9415080600
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-78190

N04C..XZU41#,42#,439

24V 60A

 1
27039 - COVER, ALTERNATOR REAR END
27039-58330

N04C..XZU41#,42#,439

 1
27064 - SEAL, ALTERNATOR PLATE
27064-42010

N04C..XZU41#,42#,439

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-78190

N04C..XZU41#,42#,439

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10219

N04C..XZU41#,42#,439

 1
27312 - PLATE, RETAINER
27312-42010

N04C..XZU41#,42#,439

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

N04C..XZU41#,42#,439

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-58050

N04C..XZU41#,42#,439

 1
27365A - PLATE, RECTIFIER
27365-55080

N04C..XZU41#,42#,439

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060

N04C..XZU41#,42#,439

 1
27384 - WASHER
27384-50030

N04C..XZU41#,42#,439

 1
27387 - INSULATOR, TERMINAL
27387-42021

N04C..XZU41#,42#,439

 1
27388 - COVER, ALTERNATOR BRUSH
27388-46220

N04C..XZU41#,42#,439

 1
27389 - INSULATOR, TERMINAL
27389-42010

N04C..XZU41#,42#,439

 4
27411 - PULLEY, ALTERNATOR
27411-89108

N04C..XZU41#,42#,439

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

N04C..XZU41#,42#,439

 1
Common parts
90099-00195
90099-00197
90099-00243
90099-00246
90099-04966
90099-05119
90099-05171
90099-05172
90099-05267
90179-06158
93319-14025
94150-80600
