XZU419L-TKFRDW3 (2009)
Toyota Dyna
Production
Aug 2009
-
Aug 2012
Engine
N04C
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

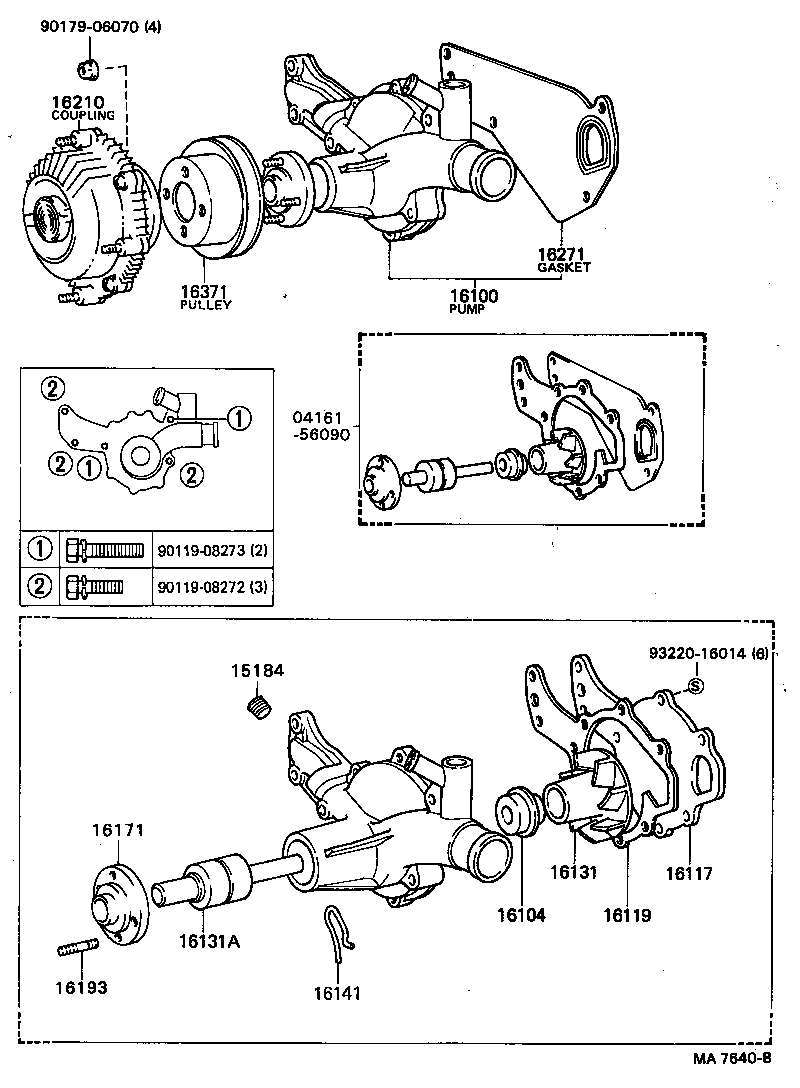

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 04161-56090 | ||||
| 90119-08272 | ||||
| 90119-08273 | ||||
| 90179-06070 | ||||
| 93220-16014 | ||||
(0010- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 16137-89101 | ||||
| 90031-05123 | ||||
| 90031-05125 | ||||
| 90031-05126 | ||||
| 90031-16067 | ||||
| 90031-75001 | ||||
| 90179-08025 | ||||
