Toyota Dyna XZU414 MIRROR - JDM Part Detective

XZU414R-TKMRW3 (2001)

Toyota Dyna

Production Oct 2001 - Oct 2006

Engine S05C

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0010-0206)

Click highlighted areas on diagram

INNER MIRROR

Part #	Description	Period	Qty	Price
Common parts
90152-60015

ILLUST NO. 2 OF 2(0010-0206)

Click highlighted areas on diagram

OUTER MIRROR

Part #	Description	Period	Qty	Price
Common parts
67771-12050
87929-37020
90119-08C00
90249-06132

ILLUST NO. 2 OF 2(0010-0206)

Click highlighted areas on diagram

OUTER MIRROR,AUSTRALIA SPEC

Part #	Description	Period	Qty	Price
Common parts
67118-37010
67771-12050
90119-08C00
90149-60079
90176-08053
90249-06132

ILLUST NO. 1 OF 3(0110- )

Click highlighted areas on diagram

INNER MIRROR

Part #	Description	Period	Qty
87810 - MIRROR ASSY, INNER REAR VIEW
87810-37061B0	XZU412,422..5F..GEN;WU410,XZU404,414,424,434..ARL,GEN MD.CHARCOAL,TRIM1#	06/2006 - 10/2006	1
87810-37060B0	BU410,420,WU410,XZU404,41#,422,424,434..ARL,GEN,TAIW MD.CHARCOAL,TRIM1#	10/2001 - 05/2006	1
87810B - BULB, INNER REAR VIEW MIRROR LAMP
90981-16019	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) 24V 10W	10/2001 - 10/2006	1
87819 - LENS, INNER RR VIEW MIRROR ROOM LAMP
87819-25010	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
Common parts
90152-60015

ILLUST NO. 3 OF 3(0110- )

Click highlighted areas on diagram

OUTER MIRROR COVER

Part #	Description	Period	Qty
87912 - PROTECTOR, OUTER MIRROR
87912-37080	WU410,XZU404,412,414,422,424..5F..GEN	10/2001 - 10/2006	2
87912 - PROTECTOR, OUTER MIRROR
87912-37080	WU410,XZU404,412,414,422,424..5F..GEN	10/2001 - 10/2006	2
87915 - COVER, OUTER MIRROR, RH
87915-37020A0	WU410,XZU404,412,414,422,424..5F..GEN WHITE,058	10/2001 - 10/2006	1
87915 - COVER, OUTER MIRROR, RH
87915-37020A0	WU410,XZU404,412,414,422,424..5F..GEN WHITE,058	10/2001 - 10/2006	1
87916 - BEZEL, OUTER MIRROR
87916-37040	WU410,XZU404,412,414,422,424..5F..GEN LH	10/2001 - 10/2006	1
87916-37010	WU410,XZU404,412,414,422,424..5F..GEN RH	10/2001 - 10/2006	1
87916 - BEZEL, OUTER MIRROR
87916-37040	WU410,XZU404,412,414,422,424..5F..GEN LH	10/2001 - 10/2006	1
87916-37010	WU410,XZU404,412,414,422,424..5F..GEN RH	10/2001 - 10/2006	1
87945 - COVER, OUTER MIRROR, LH
87945-37020A0	WU410,XZU404,412,414,422,424..5F..GEN WHITE,058	10/2001 - 10/2006	1
87945 - COVER, OUTER MIRROR, LH
87945-37020A0	WU410,XZU404,412,414,422,424..5F..GEN WHITE,058	10/2001 - 10/2006	1
87965 - GROMMET, OUTER MIRROR
87965-37010	WU410,XZU404,412,414,422,424..5F..GEN	10/2001 - 10/2006	2
87965 - GROMMET, OUTER MIRROR
87965-37010	WU410,XZU404,412,414,422,424..5F..GEN	10/2001 - 10/2006	2
87967 - HOLDER, MIRROR, OUTER RH
87967-37020	WU410,XZU404,412,414,422,424..5F..GEN	10/2001 - 10/2006	1
87968 - HOLDER, MIRROR, OUTER LH
87968-37020	WU410,XZU404,412,414,422,424..5F..GEN	10/2001 - 10/2006	1
Common parts
67771-12050
90119-08C00
90249-06132

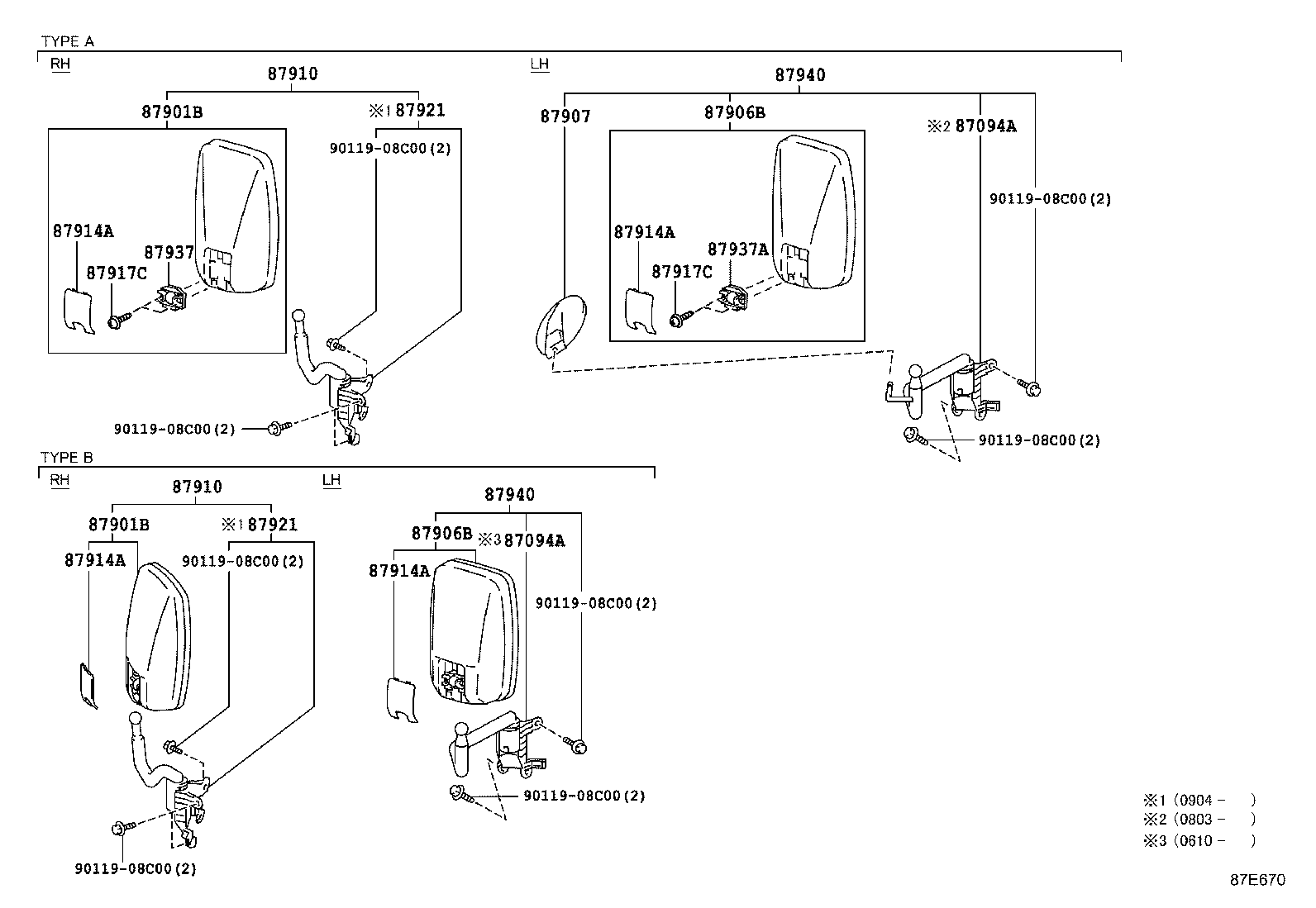

ILLUST NO. 2 OF 3(0110- )RHD..GEN

Click highlighted areas on diagram

OUTER MIRROR

Part #	Description	Period	Qty
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87901-37130	WU410,XZU404,412,414,422,424..5F..GEN TYPE A:REFER TO ILLUSTRATION	10/2001 - 10/2006	1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87901-37130	WU410,XZU404,412,414,422,424..5F..GEN TYPE A:REFER TO ILLUSTRATION	10/2001 - 10/2006	1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87901-37130	WU410,XZU404,412,414,422,424..5F..GEN TYPE A:REFER TO ILLUSTRATION	10/2001 - 10/2006	1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87901-37130	WU410,XZU404,412,414,422,424..5F..GEN TYPE A:REFER TO ILLUSTRATION	10/2001 - 10/2006	1
87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW
87907-37070	WU410,XZU404,412,414,422,424..5F..GEN	10/2001 - 10/2006	1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-37590	WU410,XZU404,412,414,422,424..RHD..GEN TYPE A:REFER TO ILLUSTRATION	11/2003 - 10/2006	1
87910-37400	WU410,XZU404,41#,422,424..RHD..GEN TYPE A:REFER TO ILLUSTRATION	10/2001 - 11/2003	1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-37590	WU410,XZU404,412,414,422,424..RHD..GEN TYPE A:REFER TO ILLUSTRATION	11/2003 - 10/2006	1
87910-37400	WU410,XZU404,41#,422,424..RHD..GEN TYPE A:REFER TO ILLUSTRATION	10/2001 - 11/2003	1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-37710	WU410,XZU404,412,414,422,424..RHD..GEN TYPE A:REFER TO ILLUSTRATION	10/2001 - 09/2006	1
87940-3V040	XZU404,414,424..GEN TYPE B:REFER TO ILLUSTRATION	10/2001 - 12/2002	1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-37710	WU410,XZU404,412,414,422,424..RHD..GEN TYPE A:REFER TO ILLUSTRATION	10/2001 - 09/2006	1
87940-3V040	XZU404,414,424..GEN TYPE B:REFER TO ILLUSTRATION	10/2001 - 12/2002	1
Common parts
90119-08C00
