XZU414R-TKMRW3 (2001)

Toyota Dyna

Production Oct 2001 - Oct 2006
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

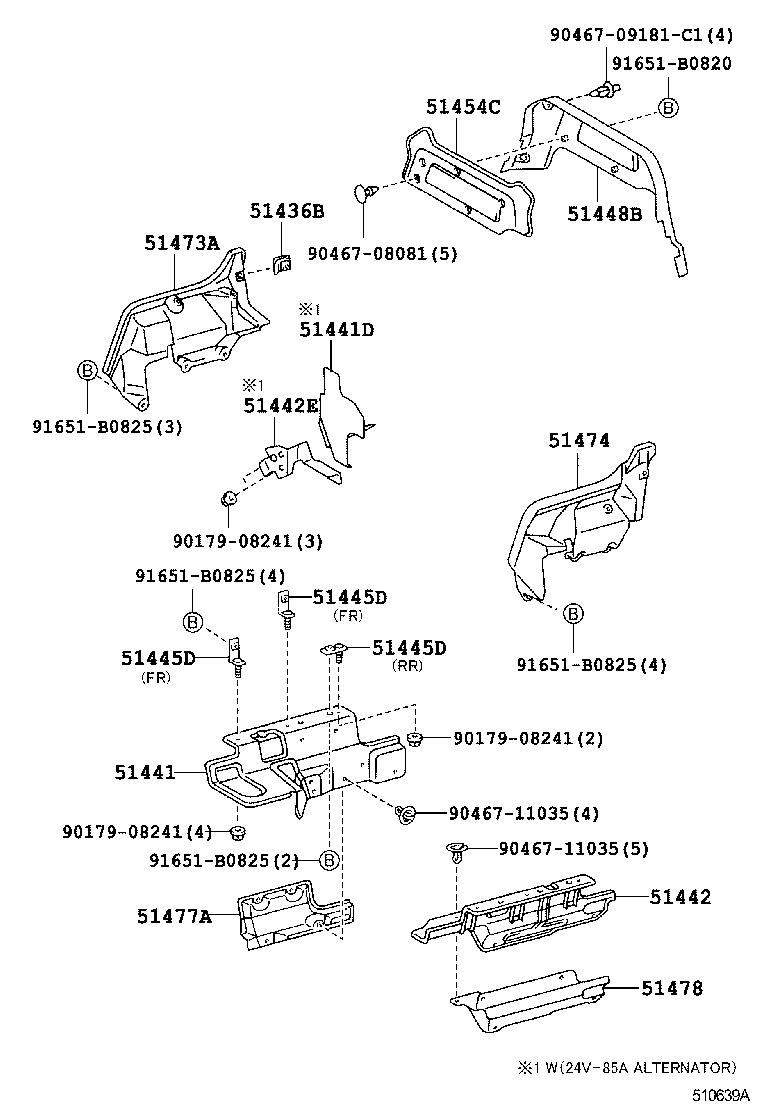

ILLUST NO. 1 OF 2(0010-0206)

Click highlighted areas on diagram

diagram 51436B 51441 51441D 51442 51442E 51445D 51445D 51445D 51448B 51454C 51473A 51474 51477A 51478 9017908241 9017908241 9017908241 9046708081 9046709181C1 9046711035 9046711035 91651B0820 91651B0825 91651B0825 91651B0825 91651B0825
Part # Description Qty Price
Common parts
90179-08241
90467-08081
90467-09181C1
90467-11035
91651-B0820
91651-B0825

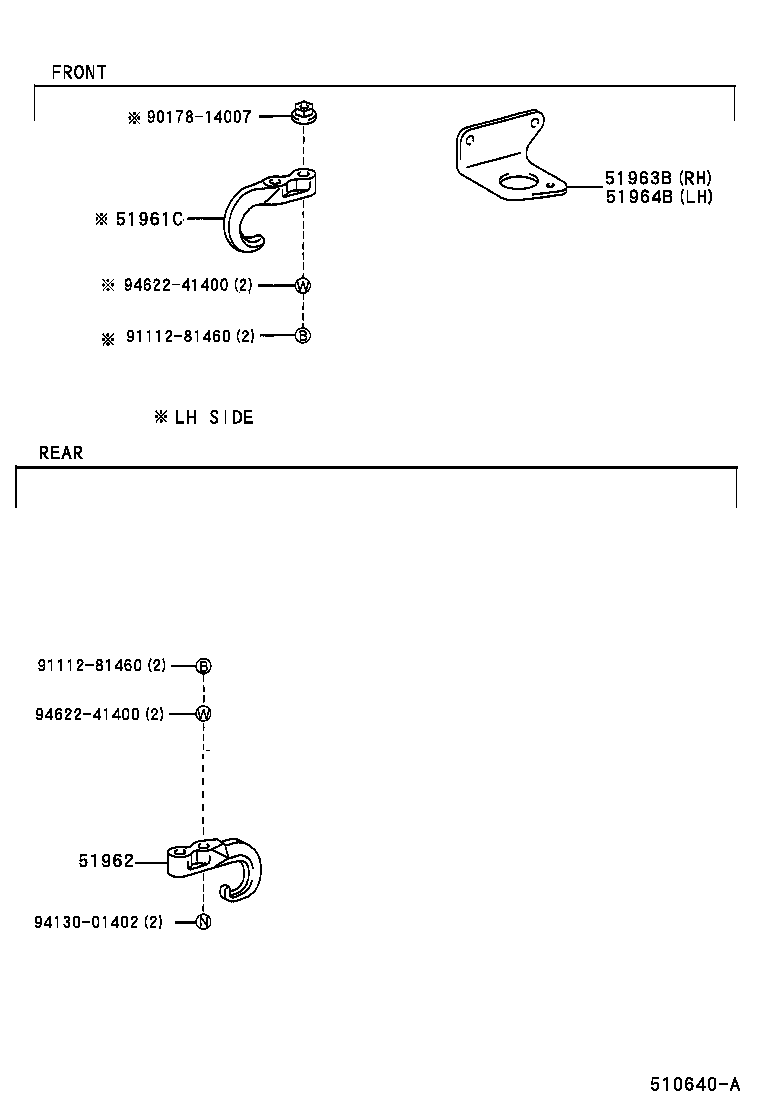

ILLUST NO. 2 OF 2(0010-0206)

Click highlighted areas on diagram

diagram 51961C 51962 51963B 51964B 9017814007 9111281460 9111281460 9413001402 9462241400 9462241400
Part # Description Qty Price
Common parts
90178-14007
91112-81460
94130-01402
94622-41400

(0110-0506)ARL,GEN,SA,TAIW ; (0506-0610)ARL,GEN,SA ; (0610- )WU41#,42#,XZU413,41

Click highlighted areas on diagram

diagram 51436B 51436B 51473A 51474 51961C 51962 51963B 51964B 9017814007 91651B0825 91651B0825 9167201460 9167201460 9413001402
Part # Description Qty Price
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 2
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-37160

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-37140

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
51961C - HOOK, FRONT
51961-37040

XZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)

 1
51962 - HOOK, NO.2
51965-37030

XZU415,425,435;BU410,420,WU410,420,XZU412,414,420,422,424,430,434..ARL,GCC,GEN,SA,TAIW

 1
51963B - HOOK, TRANSPORT, FRONT RH
51963-37030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
51964B - HOOK, TRANSPORT, FRONT LH
51964-37040

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
Common parts
90178-14007
91651-B0825
91672-01460
94130-01402
