XZU414R-TKMMW3 (2001)

Toyota Dyna

Production Oct 2001 - Oct 2006
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0212- )RHD..GEN

Click highlighted areas on diagram

NON-RETRACTOR TYPE SEAT BELT

diagram 73210 73220 73230 73240 9010511036 9010511036 9010511036 9017911010
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-37170B0

WU410,420,XZU404,41#,42#,43#

GRAY,TRIM1#

 1
73210-37250B0

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-37170B0

WU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA

GRAY,TRIM1#

 1
73210-37250B0

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-37110B0

XZU415,425,435..DCR;WU410,420,XZU404,412,414,420,422,424,430,434..RHD

DK.CHARCOAL,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-37180B0

WU410,420,XZU404,412,414,420,422,424,430,434..RHD

GRAY,TRIM1#

 1
Common parts
90105-11036
90179-11010

(0110- )RHD

Click highlighted areas on diagram

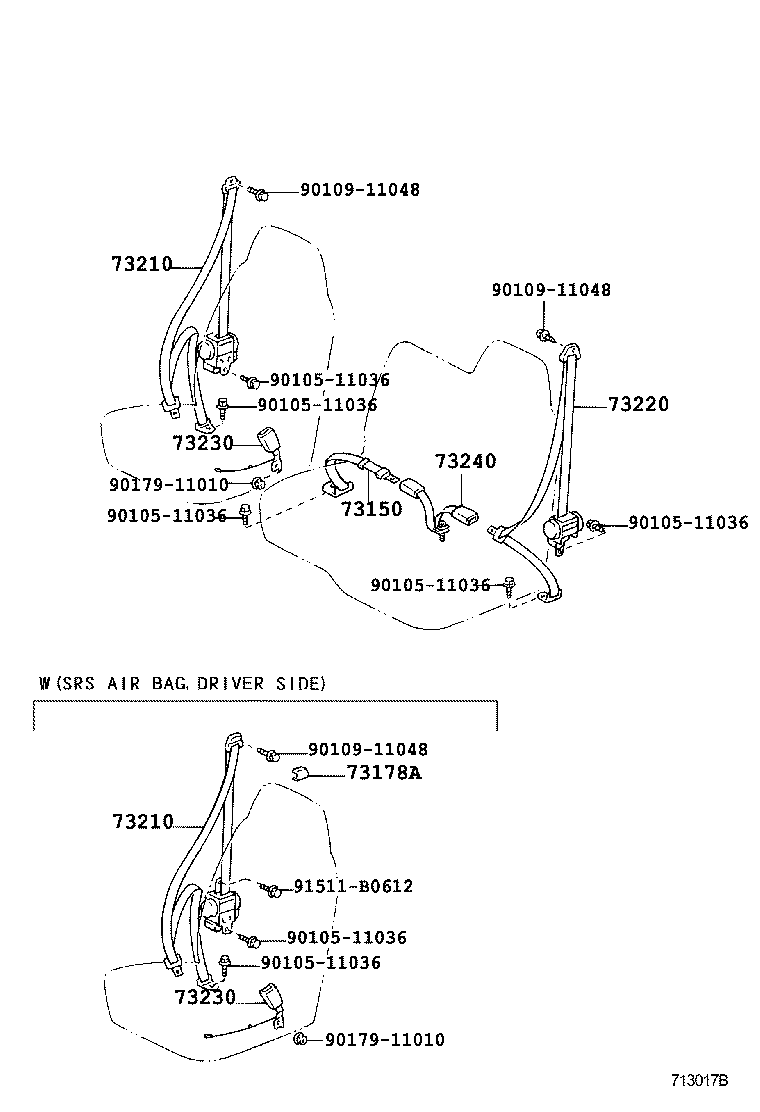

diagram 73150 73178A 73210 73210 73220 73230 73230 73240 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010911048 9010911048 9010911048 9017911010 9017911010 91511B0612
Part # Description Qty Price
73150 - BELT ASSY, FRONT SEAT LAP TYPE, CENTER
73150-37100B0

WU410,XZU412,422..GCC;WU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)

GRAY,TRIM1#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-37250B0

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

GRAY,TRIM1#

 1
73210-37170B0

WU410,420,XZU404,41#,42#,43#

GRAY,TRIM1#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-37170B0

WU410,420,XZU404,41#,42#,43#

GRAY,TRIM1#

 1
73210-37250B0

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-37170B0

WU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA

GRAY,TRIM1#

 1
73210-37250B0

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-37110B0

XZU415,425,435..DCR;WU410,420,XZU404,412,414,420,422,424,430,434..RHD

DK.CHARCOAL,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-37110B0

XZU415,425,435..DCR;WU410,420,XZU404,412,414,420,422,424,430,434..RHD

DK.CHARCOAL,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-37180B0

WU410,420,XZU404,412,414,420,422,424,430,434..RHD

GRAY,TRIM1#

 1
Common parts
90105-11036
90109-11048
90179-11010
91511-B0612

(0212- )RHD..GEN

Click highlighted areas on diagram

W/O(CENTER SEAT BELT)

diagram 73210 73220 73230 73240 9010511036 9010511036 9010511036 9010511036 9010511036 9010911048 9010911048 9017911010
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-37170B0

WU410,420,XZU404,41#,42#,43#

GRAY,TRIM1#

 1
73210-37250B0

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-37170B0

WU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA

GRAY,TRIM1#

 1
73210-37250B0

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-37110B0

XZU415,425,435..DCR;WU410,420,XZU404,412,414,420,422,424,430,434..RHD

DK.CHARCOAL,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-37180B0

WU410,420,XZU404,412,414,420,422,424,430,434..RHD

GRAY,TRIM1#

 1
Common parts
90105-11036
90109-11048
90179-11010
