XZU414R-TKMMW3 (2001)
Toyota Dyna

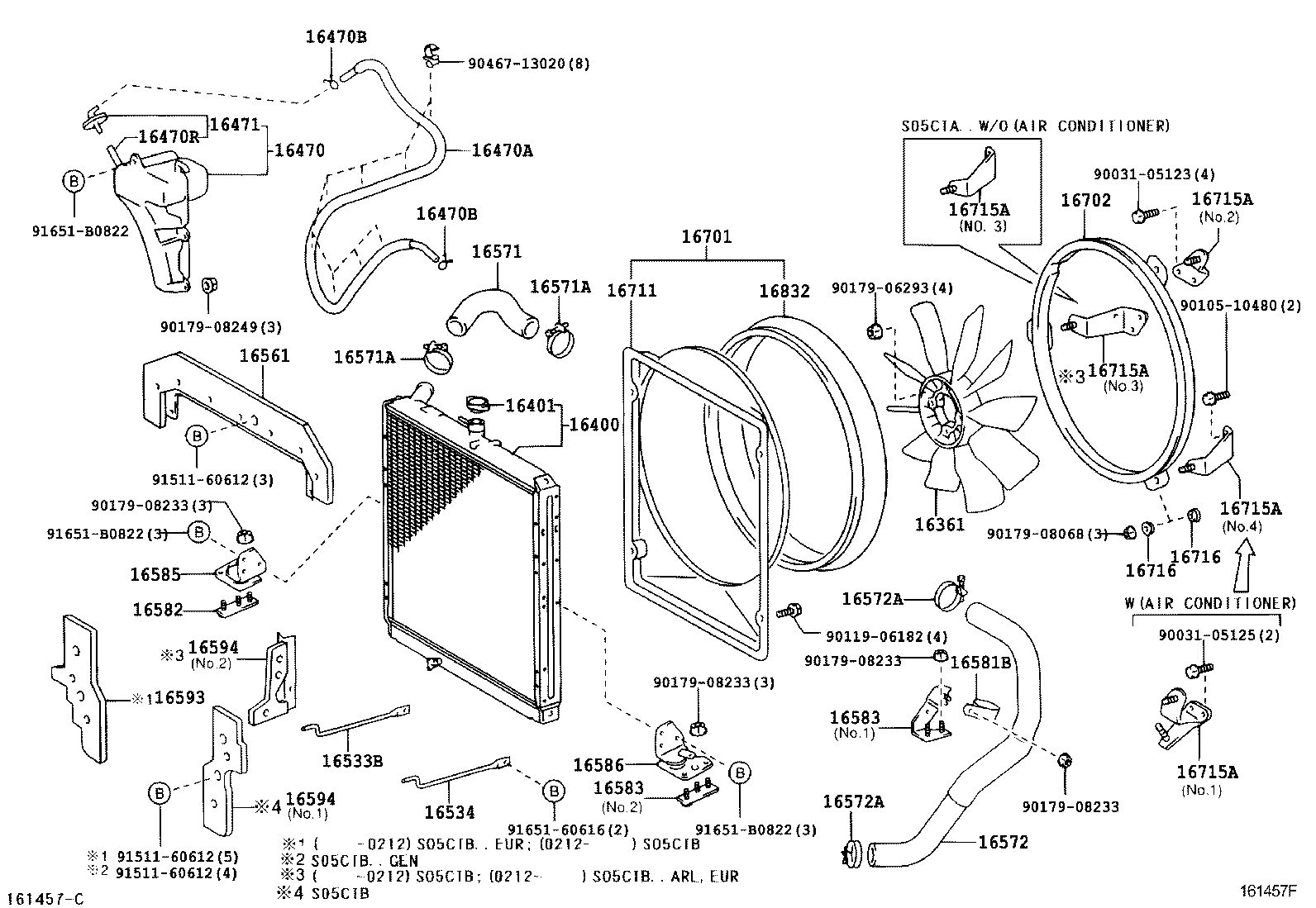

ILLUST NO. 1 OF 2(0110- )S05C..TD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-78060 |
S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-78130 |
S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-78100 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-78010 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-78130 |
S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN L=1840 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
2 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN L=315 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-78010 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
1 | ||
| 16533B - SUPPORT, RADIATOR, NO.1 | ||||
| 16533-78040 |
N04C..XZU415,425,435;S05C..XZU404,412,414,422,424,434..(ARL,GEN)..TD |
1 | ||
| 16534 - SUPPORT, RADIATOR, NO.2 | ||||
| 16534-78040 |
N04C..XZU415,425,435;S05C..XZU404,412,414,422,424,434..(ARL,GEN)..TD |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-78050 |
S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-78100 |
S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-52003 |
J05C,S05C..XZU404,41#,42#,43# |
2 | ||
| 16581-78050 |
J05C,S05C..XZU404,41#,42#,43# |
2 | ||
| 90460-55014 |
J05C,S05C..XZU404,41#,42#,43# |
2 | ||
| 16581-78140 |
S05C..XZU414,424,434;S05C..XZU404,412,422..5F |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-52003 |
J05C,S05C..XZU404,41#,42#,43# |
2 | ||
| 16581-78050 |
J05C,S05C..XZU404,41#,42#,43# |
2 | ||
| 90460-55014 |
J05C,S05C..XZU404,41#,42#,43# |
2 | ||
| 16581-78140 |
S05C..XZU414,424,434;S05C..XZU404,412,422..5F |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-78080 |
S05C..XZU404,414,424,434 |
1 | ||
| 16572-78130 |
S05C..XZU404,41#,422,424,434..TD |
1 | ||
| 16572-78131 |
S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 16581-78050 |
J05C,S05C..XZU404,41#,42#,43# |
2 | ||
| 90460-55014 |
J05C,S05C..XZU404,41#,42#,43# |
2 | ||
| 90460-52003 |
J05C,S05C..XZU404,41#,42#,43# |
2 | ||
| 16581-78140 |
S05C..XZU414,424,434;S05C..XZU404,412,422..5F |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 16581-78050 |
J05C,S05C..XZU404,41#,42#,43# |
2 | ||
| 90460-55014 |
J05C,S05C..XZU404,41#,42#,43# |
2 | ||
| 90460-52003 |
J05C,S05C..XZU404,41#,42#,43# |
2 | ||
| 16581-78140 |
S05C..XZU414,424,434;S05C..XZU404,412,422..5F |
2 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-78130 |
S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN |
1 | ||
| 16581-78020 |
S05C..XZU404,41#,422,424,434..TD |
1 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-78040 |
S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN |
1 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-78030 |
S05C..XZU404,414,424,434 NO.1 |
1 | ||
| 16583-78040 |
S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN NO.2 |
1 | ||
| 16583-78050 |
S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN NO.1 |
1 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-78030 |
S05C..XZU404,414,424,434 NO.1 |
1 | ||
| 16583-78040 |
S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN NO.2 |
1 | ||
| 16583-78050 |
S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN NO.1 |
1 | ||
| 16585 - BRACKET, RADIATOR, NO.3 | ||||
| 16585-78040 |
S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN |
1 | ||
| 16586 - BRACKET, RADIATOR, NO.4 | ||||
| 16586-78030 |
S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-78060 |
S05C..XZU404,414,424..RHD..GEN |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-78070 |
S05C..XZU404,414,424..GEN NO.2 |
1 | ||
| 16594-78060 |
S05C..XZU404,414,424..GEN |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-78070 |
S05C..XZU404,414,424..GEN NO.2 |
1 | ||
| 16594-78060 |
S05C..XZU404,414,424..GEN |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-78021 |
S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN |
1 | ||
| 16702 - SHROUD SUB-ASSY, FAN, NO.2 | ||||
| 16702-78030 |
S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-78040 |
S05C..XZU404,412,414,422,424..GEN..TD |
1 | ||
| 16715A - BRACKET, FAN SHROUD, NO.2 | ||||
| 16705-78010 |
S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN NO.1 |
1 | ||
| 16715-78090 |
S05C..XZU404,414,424,434..ARL,GEN NO.3 |
1 | ||
| 16715-78100 |
S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN NO.4 |
1 | ||
| 16715-78080 |
S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN NO.2 |
1 | ||
| 16715A - BRACKET, FAN SHROUD, NO.2 | ||||
| 16705-78010 |
S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN NO.1 |
1 | ||
| 16715-78090 |
S05C..XZU404,414,424,434..ARL,GEN NO.3 |
1 | ||
| 16715-78100 |
S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN NO.4 |
1 | ||
| 16715-78080 |
S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN NO.2 |
1 | ||
| 16715A - BRACKET, FAN SHROUD, NO.2 | ||||
| 16705-78010 |
S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN NO.1 |
1 | ||
| 16715-78090 |
S05C..XZU404,414,424,434..ARL,GEN NO.3 |
1 | ||
| 16715-78100 |
S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN NO.4 |
1 | ||
| 16715-78080 |
S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN NO.2 |
1 | ||
| 16715A - BRACKET, FAN SHROUD, NO.2 | ||||
| 16705-78010 |
S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN NO.1 |
1 | ||
| 16715-78090 |
S05C..XZU404,414,424,434..ARL,GEN NO.3 |
1 | ||
| 16715-78100 |
S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN NO.4 |
1 | ||
| 16715-78080 |
S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN NO.2 |
1 | ||
| 16715A - BRACKET, FAN SHROUD, NO.2 | ||||
| 16705-78010 |
S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN NO.1 |
1 | ||
| 16715-78090 |
S05C..XZU404,414,424,434..ARL,GEN NO.3 |
1 | ||
| 16715-78100 |
S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN NO.4 |
1 | ||
| 16715-78080 |
S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN NO.2 |
1 | ||
| 16716 - CUSHION, FAN SHROUD | ||||
| 16716-78010 |
S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN |
6 | ||
| 16716 - CUSHION, FAN SHROUD | ||||
| 16716-78010 |
S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN |
6 | ||
| 16832 - SEAL, FAN SHROUD | ||||
| 16832-78020 |
S05C..XZU404,414,424,434 |
1 | ||
| 16832-78021 |
S05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN |
1 | ||
| Common parts | ||||
| 90031-05123 | ||||
| 90031-05125 | ||||
| 90105-10480 | ||||
| 90119-06182 | ||||
| 90179-06293 | ||||
| 90179-08068 | ||||
| 90179-08233 | ||||
| 90179-08249 | ||||
| 90467-13020 | ||||
| 91511-60612 | ||||
| 91651-60616 | ||||
| 91651-B0822 | ||||

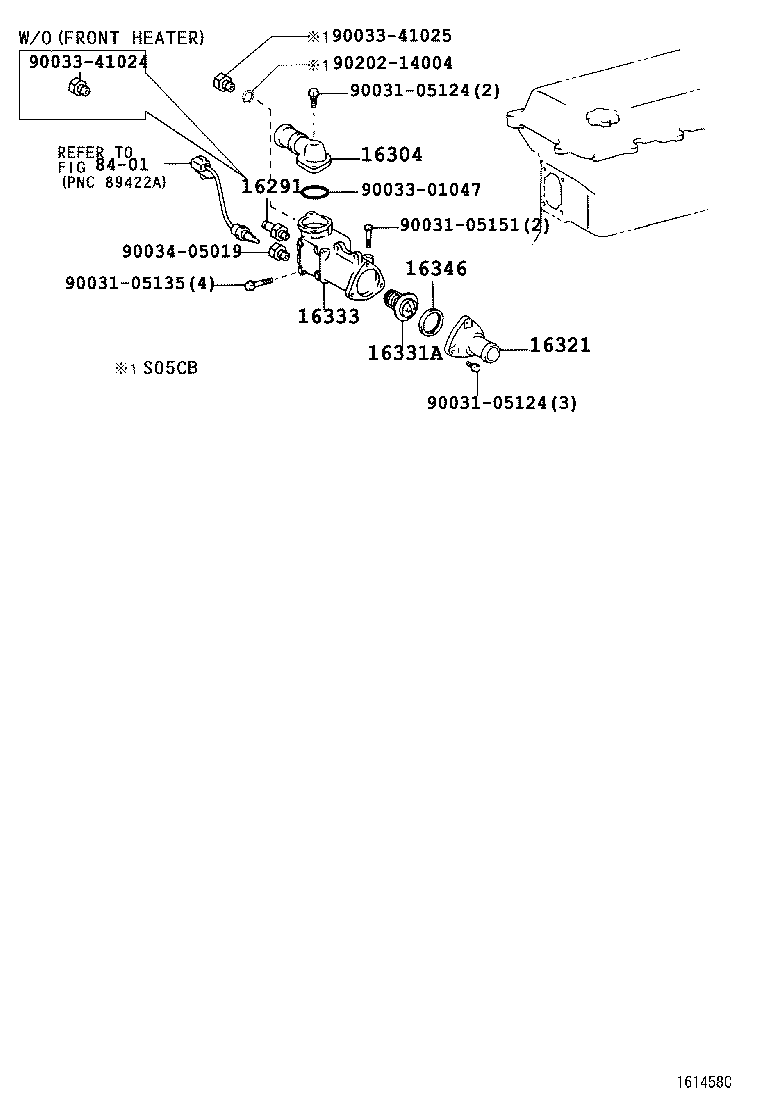

ILLUST NO. 2 OF 2(0110- )S05C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16291 - JOINT, WATER HOSE | ||||
| 87251-37050 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
1 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-78050 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-78010 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90038-33010 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN *WAX 76.5-90 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-78040 |
S05C..XZU404,41#,422,424,434 |
1 | ||
| 16333-78041 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-78020 |
S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN |
1 | ||
| Common parts | ||||
| 90031-05124 | ||||
| 90031-05135 | ||||
| 90031-05151 | ||||
| 90033-01047 | ||||
| 90033-41024 | ||||
| 90033-41025 | ||||
| 90034-05019 | ||||
| 90202-14004 | ||||
| Linked diagrams | ||||
| 8401 | ||||
