XZU414L-TKMMW3 (2002)
Toyota Dyna
(0212- )XZU412,413..55T ; (0212- )XZU414..LHD..GEN ; (0610- )WU410..GCC

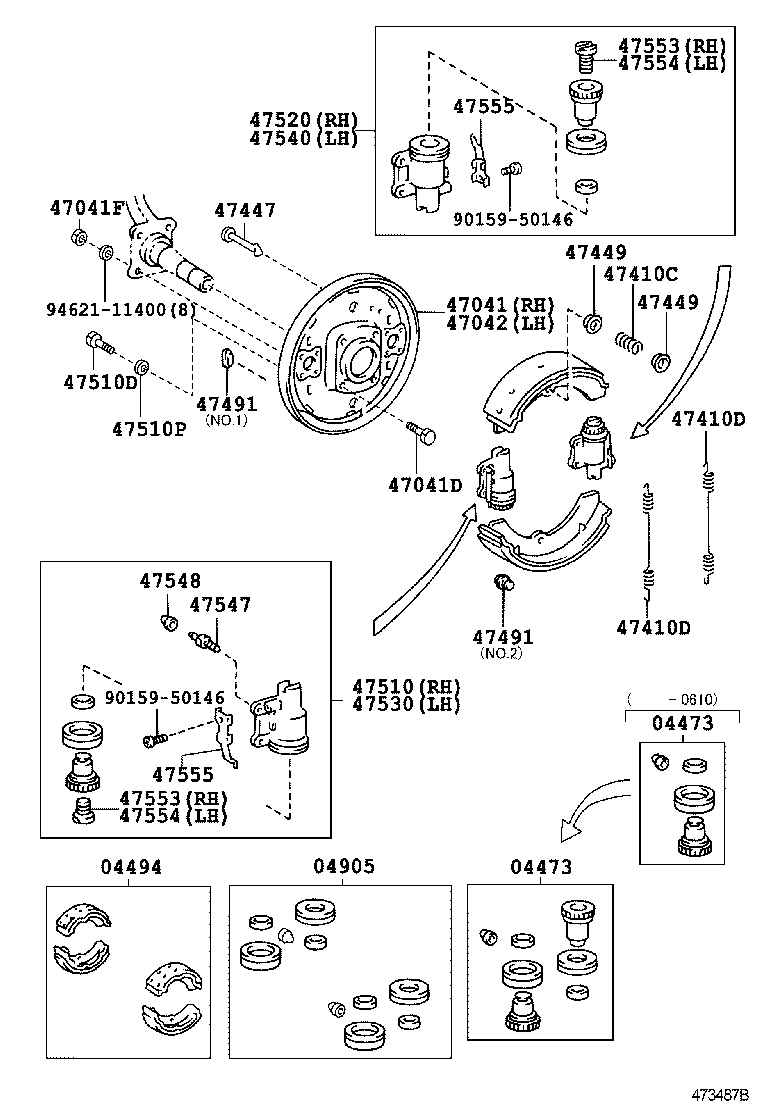

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04473 - CYLINDER KIT, FRONT WHEEL | ||||
| 04473-36030 |
XZU412..55T;XZU414..LHD..GEN RH |
2 | ||
| 04473-36040 |
XZU412..55T;XZU414..LHD..GEN LH |
2 | ||
| 04473 - CYLINDER KIT, FRONT WHEEL | ||||
| 04473-36030 |
XZU412..55T;XZU414..LHD..GEN RH |
2 | ||
| 04473-36040 |
XZU412..55T;XZU414..LHD..GEN LH |
2 | ||
| 04494 - SHOE KIT, FRONT BRAKE | ||||
| 04494-36290 |
XZU412..55T;XZU414..LHD..GEN MARK NBK LN519 |
2 | ||
| 04905 - CUP KIT, FRONT WHEEL CYLINDER | ||||
| 04905-36160 |
XZU412..55T;XZU414..LHD..GEN |
2 | ||
| 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH | ||||
| 47041-37101 |
XZU412..55T;XZU414..LHD..GEN |
1 | ||
| 47041D - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 90101-14001 |
XZU412..55T;XZU414..LHD..GEN |
8 | ||
| 47041F - NUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 94130-01441 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
8 | ||
| 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH | ||||
| 47042-37101 |
XZU412..55T;XZU414..LHD..GEN |
1 | ||
| 47410C - SPRING(FOR FRONT BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
XZU412..55T;XZU414..LHD..GEN |
4 | ||
| 47410D - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90507-29006 |
XZU412..55T;XZU414..LHD..GEN |
4 | ||
| 47410D - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90507-29006 |
XZU412..55T;XZU414..LHD..GEN |
4 | ||
| 47447 - PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47447-36020 |
XZU412..55T;XZU414..LHD..GEN |
4 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
XZU412..55T;XZU414..LHD..GEN |
8 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
XZU412..55T;XZU414..LHD..GEN |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-36020 |
XZU412..55T;XZU414..LHD..GEN NO.1 |
8 | ||
| 47492-28010 |
XZU412..55T;XZU414..LHD..GEN NO.2 |
4 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-36020 |
XZU412..55T;XZU414..LHD..GEN NO.1 |
8 | ||
| 47492-28010 |
XZU412..55T;XZU414..LHD..GEN NO.2 |
4 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47510-36170 |
XZU412..55T;XZU414..LHD..GEN |
1 | ||
| 47510D - BOLT(FOR FRONT WHEEL CYLINDER) | ||||
| 90101-10127 |
XZU412..55T;XZU414..LHD..GEN |
16 | ||
| 47510P - WASHER(FOR FRONT WHEEL CYLINDER) | ||||
| 90201-10287 |
XZU412..55T;XZU414..LHD..GEN |
16 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47520-36180 |
XZU412..55T;XZU414..LHD..GEN |
1 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47530-36170 |
XZU412..55T;XZU414..LHD..GEN |
1 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47540-36180 |
XZU412..55T;XZU414..LHD..GEN |
1 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-27020 |
XZU412..55T;XZU414..LHD..GEN |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-36060 |
XZU412..55T;XZU414..LHD..GEN |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-36060 |
XZU412..55T;XZU414..LHD..GEN |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-36060 |
XZU412..55T;XZU414..LHD..GEN |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-36060 |
XZU412..55T;XZU414..LHD..GEN |
2 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-36040 |
XZU412..55T;XZU414..LHD..GEN |
4 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-36040 |
XZU412..55T;XZU414..LHD..GEN |
4 | ||
| Common parts | ||||
| 90159-50146 | ||||
| 94621-11400 | ||||
(0212- )XZU414,424..RHD..65T,75T,85T ; (0212-)WU410,420,XZU420,423,430,433,4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04473 - CYLINDER KIT, FRONT WHEEL | ||||
| 04473-36030 |
XZU412..55T;XZU414..LHD..GEN RH |
2 | ||
| 04473-36040 |
XZU412..55T;XZU414..LHD..GEN LH |
2 | ||
| 04494 - SHOE KIT, FRONT BRAKE | ||||
| 04494-36290 |
XZU412..55T;XZU414..LHD..GEN MARK NBK LN519 |
2 | ||
| 04905 - CUP KIT, FRONT WHEEL CYLINDER | ||||
| 04905-36160 |
XZU412..55T;XZU414..LHD..GEN |
2 | ||
| 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH | ||||
| 47041-37101 |
XZU412..55T;XZU414..LHD..GEN |
1 | ||
| 47041F - NUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 94130-01441 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
8 | ||
| 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH | ||||
| 47042-37101 |
XZU412..55T;XZU414..LHD..GEN |
1 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-36020 |
XZU412..55T;XZU414..LHD..GEN NO.1 |
8 | ||
| 47492-28010 |
XZU412..55T;XZU414..LHD..GEN NO.2 |
4 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-36020 |
XZU412..55T;XZU414..LHD..GEN NO.1 |
8 | ||
| 47492-28010 |
XZU412..55T;XZU414..LHD..GEN NO.2 |
4 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-36020 |
XZU412..55T;XZU414..LHD..GEN NO.1 |
8 | ||
| 47492-28010 |
XZU412..55T;XZU414..LHD..GEN NO.2 |
4 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-36020 |
XZU412..55T;XZU414..LHD..GEN NO.1 |
8 | ||
| 47492-28010 |
XZU412..55T;XZU414..LHD..GEN NO.2 |
4 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47510-36170 |
XZU412..55T;XZU414..LHD..GEN |
1 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47520-36180 |
XZU412..55T;XZU414..LHD..GEN |
1 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47530-36170 |
XZU412..55T;XZU414..LHD..GEN |
1 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47540-36180 |
XZU412..55T;XZU414..LHD..GEN |
1 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-27020 |
XZU412..55T;XZU414..LHD..GEN |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-36060 |
XZU412..55T;XZU414..LHD..GEN |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-36060 |
XZU412..55T;XZU414..LHD..GEN |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-36060 |
XZU412..55T;XZU414..LHD..GEN |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-36060 |
XZU412..55T;XZU414..LHD..GEN |
2 | ||
| Common parts | ||||
| 90080-52049 | ||||
| 90901-19042 | ||||
| 90901-19043 | ||||
| 90905-07016 | ||||
| 94142-61000 | ||||
| 94621-11400 | ||||
| 95381-02520 | ||||
| 96751-19007 | ||||
(0212-0610)WU410..GCC ; (0212- )XZU424..LHD..GEN ; (0212- )WU412,422,XZU412,4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04473 - CYLINDER KIT, FRONT WHEEL | ||||
| 04473-36030 |
XZU412..55T;XZU414..LHD..GEN RH |
2 | ||
| 04473-36030 |
XZU412..55T;XZU414..LHD..GEN RH |
2 | ||
| 04473-36040 |
XZU412..55T;XZU414..LHD..GEN LH |
2 | ||
| 04473-36040 |
XZU412..55T;XZU414..LHD..GEN LH |
2 | ||
| 04494 - SHOE KIT, FRONT BRAKE | ||||
| 04494-36290 |
XZU412..55T;XZU414..LHD..GEN MARK NBK LN519 |
2 | ||
| 04494-36290 |
XZU412..55T;XZU414..LHD..GEN MARK NBK LN519 |
2 | ||
| 04905 - CUP KIT, FRONT WHEEL CYLINDER | ||||
| 04905-36160 |
XZU412..55T;XZU414..LHD..GEN |
2 | ||
| 04905-36160 |
XZU412..55T;XZU414..LHD..GEN |
2 | ||
| 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH | ||||
| 47041-37101 |
XZU412..55T;XZU414..LHD..GEN |
1 | ||
| 47041-37101 |
XZU412..55T;XZU414..LHD..GEN |
1 | ||
| 47041F - NUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 94130-01441 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
8 | ||
| 94130-01441 |
XZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN) |
8 | ||
| 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH | ||||
| 47042-37101 |
XZU412..55T;XZU414..LHD..GEN |
1 | ||
| 47042-37101 |
XZU412..55T;XZU414..LHD..GEN |
1 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-36020 |
XZU412..55T;XZU414..LHD..GEN NO.1 |
8 | ||
| 47491-36020 |
XZU412..55T;XZU414..LHD..GEN NO.1 |
8 | ||
| 47492-28010 |
XZU412..55T;XZU414..LHD..GEN NO.2 |
4 | ||
| 47492-28010 |
XZU412..55T;XZU414..LHD..GEN NO.2 |
4 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-36020 |
XZU412..55T;XZU414..LHD..GEN NO.1 |
8 | ||
| 47491-36020 |
XZU412..55T;XZU414..LHD..GEN NO.1 |
8 | ||
| 47492-28010 |
XZU412..55T;XZU414..LHD..GEN NO.2 |
4 | ||
| 47492-28010 |
XZU412..55T;XZU414..LHD..GEN NO.2 |
4 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-36020 |
XZU412..55T;XZU414..LHD..GEN NO.1 |
8 | ||
| 47491-36020 |
XZU412..55T;XZU414..LHD..GEN NO.1 |
8 | ||
| 47492-28010 |
XZU412..55T;XZU414..LHD..GEN NO.2 |
4 | ||
| 47492-28010 |
XZU412..55T;XZU414..LHD..GEN NO.2 |
4 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-36020 |
XZU412..55T;XZU414..LHD..GEN NO.1 |
8 | ||
| 47491-36020 |
XZU412..55T;XZU414..LHD..GEN NO.1 |
8 | ||
| 47492-28010 |
XZU412..55T;XZU414..LHD..GEN NO.2 |
4 | ||
| 47492-28010 |
XZU412..55T;XZU414..LHD..GEN NO.2 |
4 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47510-36170 |
XZU412..55T;XZU414..LHD..GEN |
1 | ||
| 47510-36170 |
XZU412..55T;XZU414..LHD..GEN |
1 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47520-36180 |
XZU412..55T;XZU414..LHD..GEN |
1 | ||
| 47520-36180 |
XZU412..55T;XZU414..LHD..GEN |
1 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47530-36170 |
XZU412..55T;XZU414..LHD..GEN |
1 | ||
| 47530-36170 |
XZU412..55T;XZU414..LHD..GEN |
1 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47540-36180 |
XZU412..55T;XZU414..LHD..GEN |
1 | ||
| 47540-36180 |
XZU412..55T;XZU414..LHD..GEN |
1 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-27020 |
XZU412..55T;XZU414..LHD..GEN |
2 | ||
| 47547-27020 |
XZU412..55T;XZU414..LHD..GEN |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-36060 |
XZU412..55T;XZU414..LHD..GEN |
2 | ||
| 47553-36060 |
XZU412..55T;XZU414..LHD..GEN |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-36060 |
XZU412..55T;XZU414..LHD..GEN |
2 | ||
| 47553-36060 |
XZU412..55T;XZU414..LHD..GEN |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-36060 |
XZU412..55T;XZU414..LHD..GEN |
2 | ||
| 47554-36060 |
XZU412..55T;XZU414..LHD..GEN |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-36060 |
XZU412..55T;XZU414..LHD..GEN |
2 | ||
| 47554-36060 |
XZU412..55T;XZU414..LHD..GEN |
2 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-36040 |
XZU412..55T;XZU414..LHD..GEN |
4 | ||
| 47555-36040 |
XZU412..55T;XZU414..LHD..GEN |
4 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-36040 |
XZU412..55T;XZU414..LHD..GEN |
4 | ||
| 47555-36040 |
XZU412..55T;XZU414..LHD..GEN |
4 | ||
| Common parts | ||||
| 90901-19042 | ||||
| 90901-19043 | ||||
| 90905-07016 | ||||
| 93319-15010 | ||||
| 94142-61000 | ||||
| 94621-11400 | ||||
| 95381-02520 | ||||
| 96751-19007 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
