XZU414L-TKFRWW3 (2001)
Toyota Dyna

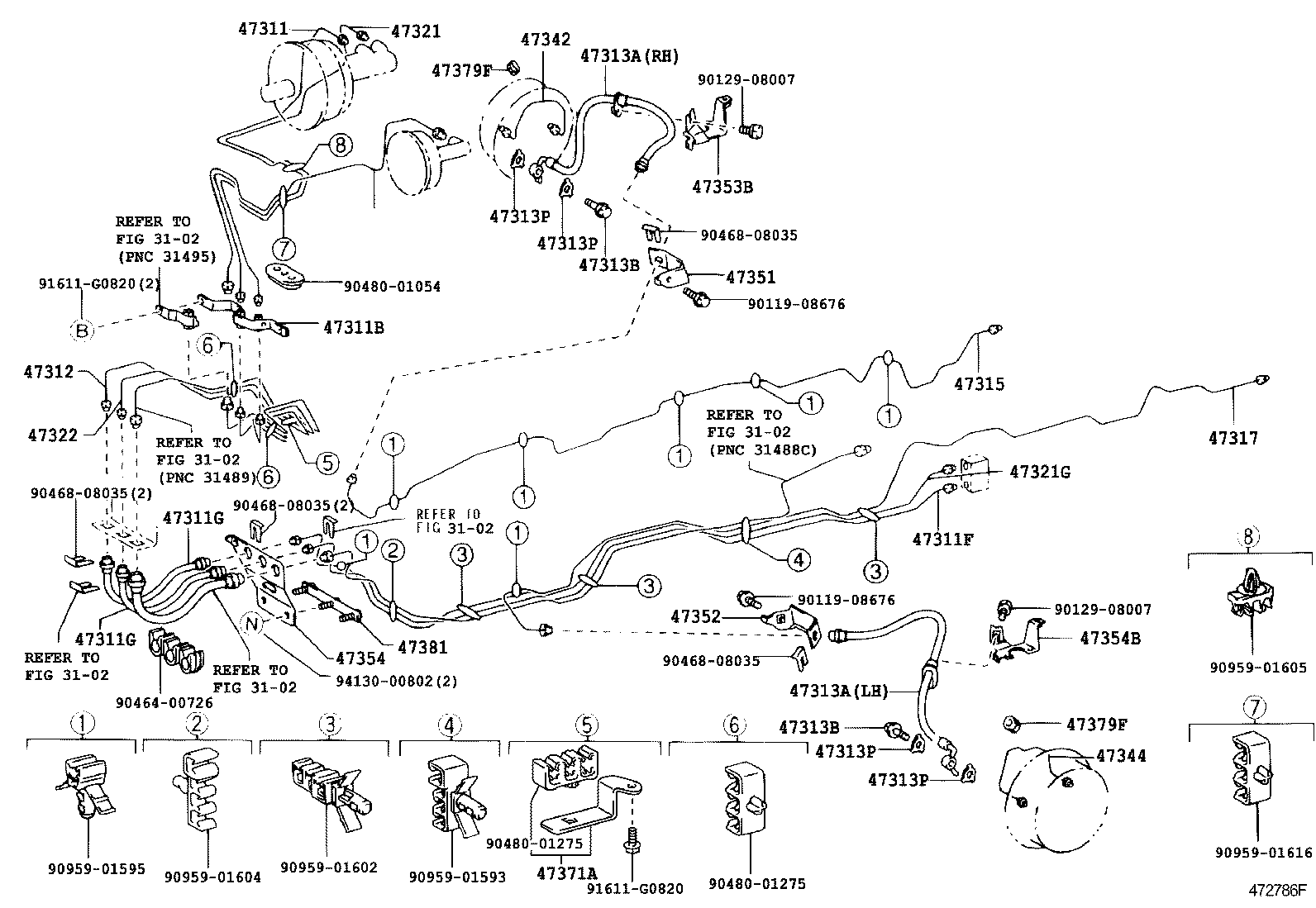

ILLUST NO. 1 OF 4(0110-0610)WU410,XZU412,414,422,424,434..LHD ; (0411- )BU410,420
W(ABS) & W/O(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37171 |
XZU414,424,434..EUR |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-37020 |
XZU414,424,434..EUR |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37350 |
XZU414,424,434..EUR |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02A79 |
XZU414,424,434..EUR |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02A79 |
XZU414,424,434..EUR |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37430 |
XZU414,424,434..EUR |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A77 |
XZU414,424,434..EUR RH |
1 | ||
| 90947-02B28 |
XZU414,424,434..EUR LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A77 |
XZU414,424,434..EUR RH |
1 | ||
| 90947-02B28 |
XZU414,424,434..EUR LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZU414,424,434..EUR |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZU414,424,434..EUR |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU414,424,434..EUR |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU414,424,434..EUR |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU414,424,434..EUR |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU414,424,434..EUR |
4 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-37240 |
XZU414,424,434..EUR |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-37300 |
XZU414,424,434..EUR |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37172 |
XZU414,424,434..EUR |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37340 |
XZU414,424,434..EUR |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37510 |
XZU414,424,434..EUR |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-37061 |
XZU414,424,434..EUR |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47342-37061 |
XZU414,424,434..EUR |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37300 |
XZU414,424,434..EUR |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37180 |
XZU414,424,434..EUR |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-37210 |
XZU414,424,434..EUR |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47354-37130 |
XZU414,424,434..EUR |
1 | ||
| 47354-37131 |
XZU414,424,434..EUR |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-37210 |
XZU414,424,434..EUR |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-37020 |
XZU414,424,434..EUR |
1 | ||
| 47379F - DAMPER, TUBE(FOR FRONT) | ||||
| 47379-37010 |
XZU414,424,434..EUR |
4 | ||
| 47379F - DAMPER, TUBE(FOR FRONT) | ||||
| 47379-37010 |
XZU414,424,434..EUR |
4 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-37280 |
XZU414,424,434..EUR |
1 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90129-08007 | ||||
| 90464-00726 | ||||
| 90468-08035 | ||||
| 90480-01054 | ||||
| 90480-01275 | ||||
| 90959-01593 | ||||
| 90959-01595 | ||||
| 90959-01602 | ||||
| 90959-01604 | ||||
| 90959-01605 | ||||
| 90959-01616 | ||||
| 91611-G0820 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 3102 | ||||
ILLUST NO. 2 OF 4(0110-0610)WU410,XZU404,412,414,422,424,434..EUR,GCC,GEN ; (0212-0801)WU420 ; (0212
W(ABS) & W/O(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-37130 |
XZU414,424,434..EUR |
1 | ||
| 44591-37130 |
XZU414,424,434..EUR |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-12060 |
XZU414,424,434..EUR |
3 | ||
| 90412-12060 |
XZU414,424,434..EUR |
3 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-12060 |
XZU414,424,434..EUR |
3 | ||
| 90412-12060 |
XZU414,424,434..EUR |
3 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-12060 |
XZU414,424,434..EUR |
3 | ||
| 90412-12060 |
XZU414,424,434..EUR |
3 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-12060 |
XZU414,424,434..EUR |
3 | ||
| 90412-12060 |
XZU414,424,434..EUR |
3 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-12060 |
XZU414,424,434..EUR |
3 | ||
| 90412-12060 |
XZU414,424,434..EUR |
3 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-12060 |
XZU414,424,434..EUR |
3 | ||
| 90412-12060 |
XZU414,424,434..EUR |
3 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-12060 |
XZU414,424,434..EUR |
3 | ||
| 90412-12060 |
XZU414,424,434..EUR |
3 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37240 |
XZU414..EUR |
1 | ||
| 47312-37240 |
XZU414..EUR |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37240 |
XZU414..EUR |
1 | ||
| 47312-37240 |
XZU414..EUR |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37240 |
XZU414..EUR |
1 | ||
| 47312-37240 |
XZU414..EUR |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37240 |
XZU414..EUR |
1 | ||
| 47312-37240 |
XZU414..EUR |
1 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90904-12076 |
XZU414,424,434..EUR |
1 | ||
| 90904-12076 |
XZU414,424,434..EUR |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37380 |
XZU414,424,434..EUR |
1 | ||
| 47314-37380 |
XZU414,424,434..EUR |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-37210 |
XZU414,424,434..EUR |
1 | ||
| 47316-37210 |
XZU414,424,434..EUR |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B78 |
XZU414,424,434..EUR W(ABS) |
2 | ||
| 90947-02B78 |
XZU414,424,434..EUR W(ABS) |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B78 |
XZU414,424,434..EUR W(ABS) |
2 | ||
| 90947-02B78 |
XZU414,424,434..EUR W(ABS) |
2 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-37260 |
XZU414,424,434..EUR W(ABS) |
1 | ||
| 47318-37260 |
XZU414,424,434..EUR W(ABS) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-12059 |
XZU414,424,434..EUR W(ABS) |
1 | ||
| 90412-12059 |
XZU414,424,434..EUR W(ABS) |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37330 |
XZU414..EUR |
1 | ||
| 47322-37330 |
XZU414..EUR |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37330 |
XZU414..EUR |
1 | ||
| 47322-37330 |
XZU414..EUR |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37330 |
XZU414..EUR |
1 | ||
| 47322-37330 |
XZU414..EUR |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37330 |
XZU414..EUR |
1 | ||
| 47322-37330 |
XZU414..EUR |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37230 |
XZU414,424,434..EUR W(ABS) & W/O(LSPV) |
1 | ||
| 47323-37230 |
XZU414,424,434..EUR W(ABS) & W/O(LSPV) |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 47391-37090 |
XZU414,424,434..EUR W(ABS) |
1 | ||
| 47391-37090 |
XZU414,424,434..EUR W(ABS) |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-37260 |
XZU414,424,434..EUR |
1 | ||
| 47326-37260 |
XZU414,424,434..EUR |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37390 |
XZU414,424,434..EUR |
1 | ||
| 47327-37390 |
XZU414,424,434..EUR |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-37110 |
XZU414,424,434..EUR |
1 | ||
| 47328-37110 |
XZU414,424,434..EUR |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-37250 |
XZU414,424,434..EUR |
1 | ||
| 47329-37250 |
XZU414,424,434..EUR |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-37060 |
XZU414,424,434..EUR |
1 | ||
| 47345-37060 |
XZU414,424,434..EUR |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-37060 |
XZU414,424,434..EUR |
1 | ||
| 47345-37060 |
XZU414,424,434..EUR |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47346-37020 |
XZU414,424,434..EUR |
1 | ||
| 47346-37020 |
XZU414,424,434..EUR |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47346-37020 |
XZU414,424,434..EUR |
1 | ||
| 47346-37020 |
XZU414,424,434..EUR |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-37250 |
XZU414,424,434..EUR |
1 | ||
| 47353-37250 |
XZU414,424,434..EUR |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47354-37230 |
XZU414,424,434..EUR |
1 | ||
| 47354-37230 |
XZU414,424,434..EUR |
1 | ||
| 47361A - TUBE, FRONT BRAKE, NO.10 | ||||
| 47361-37080 |
XZU414..EUR |
1 | ||
| 47361-37080 |
XZU414..EUR |
1 | ||
| 47361A - TUBE, FRONT BRAKE, NO.10 | ||||
| 47361-37080 |
XZU414..EUR |
1 | ||
| 47361-37080 |
XZU414..EUR |
1 | ||
| 47361A - TUBE, FRONT BRAKE, NO.10 | ||||
| 47361-37080 |
XZU414..EUR |
1 | ||
| 47361-37080 |
XZU414..EUR |
1 | ||
| 47362 - TUBE, FRONT BRAKE, NO.11 | ||||
| 47362-37030 |
XZU414..EUR |
1 | ||
| 47362-37030 |
XZU414..EUR |
1 | ||
| 47362 - TUBE, FRONT BRAKE, NO.11 | ||||
| 47362-37030 |
XZU414..EUR |
1 | ||
| 47362-37030 |
XZU414..EUR |
1 | ||
| 47362 - TUBE, FRONT BRAKE, NO.11 | ||||
| 47362-37030 |
XZU414..EUR |
1 | ||
| 47362-37030 |
XZU414..EUR |
1 | ||
| 47379R - DAMPER, TUBE(FOR REAR) | ||||
| 47379-37010 |
XZU414,424,434..EUR |
2 | ||
| 47379-37010 |
XZU414,424,434..EUR |
2 | ||
| Common parts | ||||
| 90034-61046 | ||||
| 90119-08676 | ||||
| 90119-08A46 | ||||
| 90129-08007 | ||||
| 90464-00778 | ||||
| 90467-14006 | ||||
| 90468-08035 | ||||
| 90480-01577 | ||||
| 90949-01006 | ||||
| 90949-01970 | ||||
| 90959-01593 | ||||
| 90959-01594 | ||||
| 90959-01595 | ||||
| 91612-B1020 | ||||
| 91641-K0816 | ||||
| 91651-60614 | ||||
| 94130-00802 | ||||
ILLUST NO. 3 OF 4(0110-0610)WU410,XZU404,412,414,422,424,434..EUR,GCC,GEN ; (0212-0801)WU420 ; (0212
W(ABS) & W/O(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44540 - ACTUATOR ASSY, ABS & TRACTION | ||||
| 44050-37010 |
XZU414,424,434..EUR |
1 | ||
| 44050-37010 |
XZU414,424,434..EUR |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-37010 |
XZU414,424,434..EUR |
1 | ||
| 44590-37010 |
XZU414,424,434..EUR |
1 | ||
| 44592 - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44591-37140 |
XZU404,414,424,434 |
1 | ||
| 44591-37140 |
XZU404,414,424,434 |
1 | ||
| 44591-37141 |
XZU414,424,434..EUR |
1 | ||
| 44591-37141 |
XZU414,424,434..EUR |
1 | ||
| Common parts | ||||
| 90099-05277 | ||||
| 90119-08676 | ||||
| 91641-C0814 | ||||
| 94130-00802 | ||||
ILLUST NO. 2 OF 4(0110-0610)WU410,XZU404,412,414,422,424,434..EUR,GCC,GEN ; (0212-0801)WU420 ; (0212
W/O(ABS & LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-37130 |
XZU414,424,434..EUR |
1 | ||
| 44591-37130 |
XZU414,424,434..EUR |
1 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90904-12076 |
XZU414,424,434..EUR |
1 | ||
| 90904-12076 |
XZU414,424,434..EUR |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B78 |
XZU414,424,434..EUR W(ABS) |
2 | ||
| 90947-02B78 |
XZU414,424,434..EUR W(ABS) |
2 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-12059 |
XZU414,424,434..EUR W(ABS) |
1 | ||
| 90412-12059 |
XZU414,424,434..EUR W(ABS) |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37330 |
XZU414..EUR |
1 | ||
| 47322-37330 |
XZU414..EUR |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37330 |
XZU414..EUR |
1 | ||
| 47322-37330 |
XZU414..EUR |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37230 |
XZU414,424,434..EUR W(ABS) & W/O(LSPV) |
1 | ||
| 47323-37230 |
XZU414,424,434..EUR W(ABS) & W/O(LSPV) |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 47391-37090 |
XZU414,424,434..EUR W(ABS) |
1 | ||
| 47391-37090 |
XZU414,424,434..EUR W(ABS) |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37390 |
XZU414,424,434..EUR |
1 | ||
| 47327-37390 |
XZU414,424,434..EUR |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-37250 |
XZU414,424,434..EUR |
1 | ||
| 47329-37250 |
XZU414,424,434..EUR |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-37060 |
XZU414,424,434..EUR |
1 | ||
| 47345-37060 |
XZU414,424,434..EUR |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-37060 |
XZU414,424,434..EUR |
1 | ||
| 47345-37060 |
XZU414,424,434..EUR |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47346-37020 |
XZU414,424,434..EUR |
1 | ||
| 47346-37020 |
XZU414,424,434..EUR |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47346-37020 |
XZU414,424,434..EUR |
1 | ||
| 47346-37020 |
XZU414,424,434..EUR |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-37250 |
XZU414,424,434..EUR |
1 | ||
| 47353-37250 |
XZU414,424,434..EUR |
1 | ||
| 47379R - DAMPER, TUBE(FOR REAR) | ||||
| 47379-37010 |
XZU414,424,434..EUR |
2 | ||
| 47379-37010 |
XZU414,424,434..EUR |
2 | ||
| Common parts | ||||
| 90034-61046 | ||||
| 90119-08676 | ||||
| 90119-08A46 | ||||
| 90129-08007 | ||||
| 90467-14006 | ||||
| 90468-08035 | ||||
| 90949-01006 | ||||
| 90959-01595 | ||||
| 91612-B1020 | ||||
| 91641-K0816 | ||||
| 91651-60614 | ||||
| 94130-00802 | ||||
ILLUST NO. 4 OF 4(0110-0610)XZU414,424..LHD..GEN ; (0110-0610)WU410,XZU412,422..GCC,GEN ; (0212-
W(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08A33 | ||||
| 90170-08016 | ||||
| 90179-08204 | ||||
| 90201-08062 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91611-B0816 | ||||
| 94130-00802 | ||||
| 94612-10800 | ||||
ILLUST NO. 2 OF 4(0110-0610)WU410,XZU404,412,414,422,424,434..EUR,GCC,GEN ; (0212-0801)WU420 ; (0212
W/O(ABS) & W(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-37130 |
XZU414,424,434..EUR |
1 | ||
| 44591-37130 |
XZU414,424,434..EUR |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37240 |
XZU414..EUR |
1 | ||
| 47312-37240 |
XZU414..EUR |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37240 |
XZU414..EUR |
1 | ||
| 47312-37240 |
XZU414..EUR |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37240 |
XZU414..EUR |
1 | ||
| 47312-37240 |
XZU414..EUR |
1 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90904-12076 |
XZU414,424,434..EUR |
1 | ||
| 90904-12076 |
XZU414,424,434..EUR |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B78 |
XZU414,424,434..EUR W(ABS) |
2 | ||
| 90947-02B78 |
XZU414,424,434..EUR W(ABS) |
2 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-37260 |
XZU414,424,434..EUR W(ABS) |
1 | ||
| 47318-37260 |
XZU414,424,434..EUR W(ABS) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-12059 |
XZU414,424,434..EUR W(ABS) |
1 | ||
| 90412-12059 |
XZU414,424,434..EUR W(ABS) |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37330 |
XZU414..EUR |
1 | ||
| 47322-37330 |
XZU414..EUR |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37330 |
XZU414..EUR |
1 | ||
| 47322-37330 |
XZU414..EUR |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37330 |
XZU414..EUR |
1 | ||
| 47322-37330 |
XZU414..EUR |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37230 |
XZU414,424,434..EUR W(ABS) & W/O(LSPV) |
1 | ||
| 47323-37230 |
XZU414,424,434..EUR W(ABS) & W/O(LSPV) |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 47391-37090 |
XZU414,424,434..EUR W(ABS) |
1 | ||
| 47391-37090 |
XZU414,424,434..EUR W(ABS) |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37390 |
XZU414,424,434..EUR |
1 | ||
| 47327-37390 |
XZU414,424,434..EUR |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-37250 |
XZU414,424,434..EUR |
1 | ||
| 47329-37250 |
XZU414,424,434..EUR |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-37060 |
XZU414,424,434..EUR |
1 | ||
| 47345-37060 |
XZU414,424,434..EUR |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-37060 |
XZU414,424,434..EUR |
1 | ||
| 47345-37060 |
XZU414,424,434..EUR |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47346-37020 |
XZU414,424,434..EUR |
1 | ||
| 47346-37020 |
XZU414,424,434..EUR |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47346-37020 |
XZU414,424,434..EUR |
1 | ||
| 47346-37020 |
XZU414,424,434..EUR |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-37250 |
XZU414,424,434..EUR |
1 | ||
| 47353-37250 |
XZU414,424,434..EUR |
1 | ||
| 47379R - DAMPER, TUBE(FOR REAR) | ||||
| 47379-37010 |
XZU414,424,434..EUR |
2 | ||
| 47379-37010 |
XZU414,424,434..EUR |
2 | ||
| Common parts | ||||
| 90034-61046 | ||||
| 90119-08676 | ||||
| 90119-08A46 | ||||
| 90129-08007 | ||||
| 90464-00778 | ||||
| 90468-08035 | ||||
| 90949-01006 | ||||
| 90949-01972 | ||||
| 90959-01594 | ||||
| 90959-01595 | ||||
| 91612-B1020 | ||||
| 91641-K0816 | ||||
| 91651-60614 | ||||
| 94130-00802 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
