XZU414L-TKFRWW3 (2001)

Toyota Dyna

Production Oct 2001 - Aug 2006
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0110- )J05C,S05C

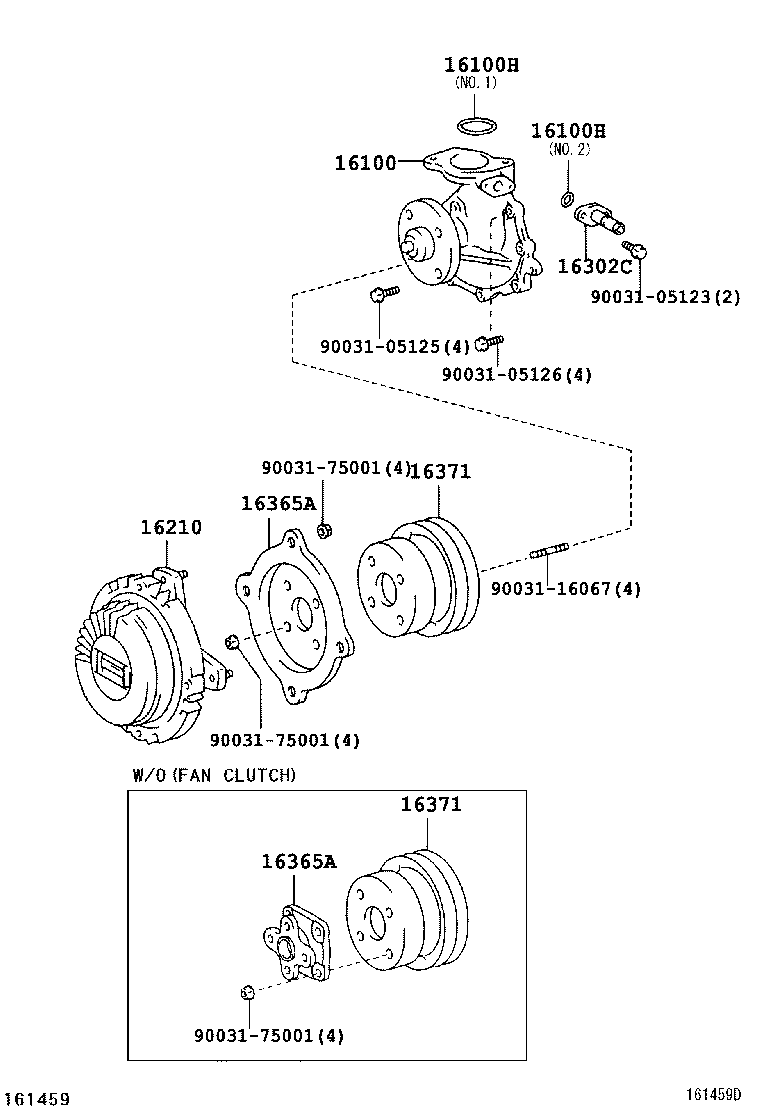

Click highlighted areas on diagram

diagram 16100 16100H 16100H 16210 16302C 16365A 16365A 16371 16371 9003105123 9003105125 9003105126 9003116067 9003175001 9003175001 9003175001
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-78050

S05C..XZU414,424,434..EUR

W(FRONT HEATER)

 1
16100H - RING, O(FOR WATER PUMP)
90033-01060

S05C..XZU414,424,434..EUR

NO.2

 1
90033-01047

S05C..XZU414,424,434..EUR

NO.1

 1
16100H - RING, O(FOR WATER PUMP)
90033-01060

S05C..XZU414,424,434..EUR

NO.2

 1
90033-01047

S05C..XZU414,424,434..EUR

NO.1

 1
16210 - COUPLING ASSY, FLUID
16250-78100

S05C..XZU414,424,434..EUR

 1
16250-78120

S05C..XZU404,414,424,434

 1
16302C - PIPE SUB-ASSY, WATER INLET
16302-78010

S05C..XZU414,424,434..EUR

 1
16365A - SPACER, FAN
16365-78070

S05C..XZU414,424,434..EUR

 1
16365A - SPACER, FAN
16365-78070

S05C..XZU414,424,434..EUR

 1
16371 - PULLEY, FAN
16308-78020

S05C..XZU414,424,434..EUR

 1
16371 - PULLEY, FAN
16308-78020

S05C..XZU414,424,434..EUR

 1
Common parts
90031-05123
90031-05125
90031-05126
90031-16067
90031-75001
