XZU412L-TKMTW3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0212- )S05C..XZU412,422

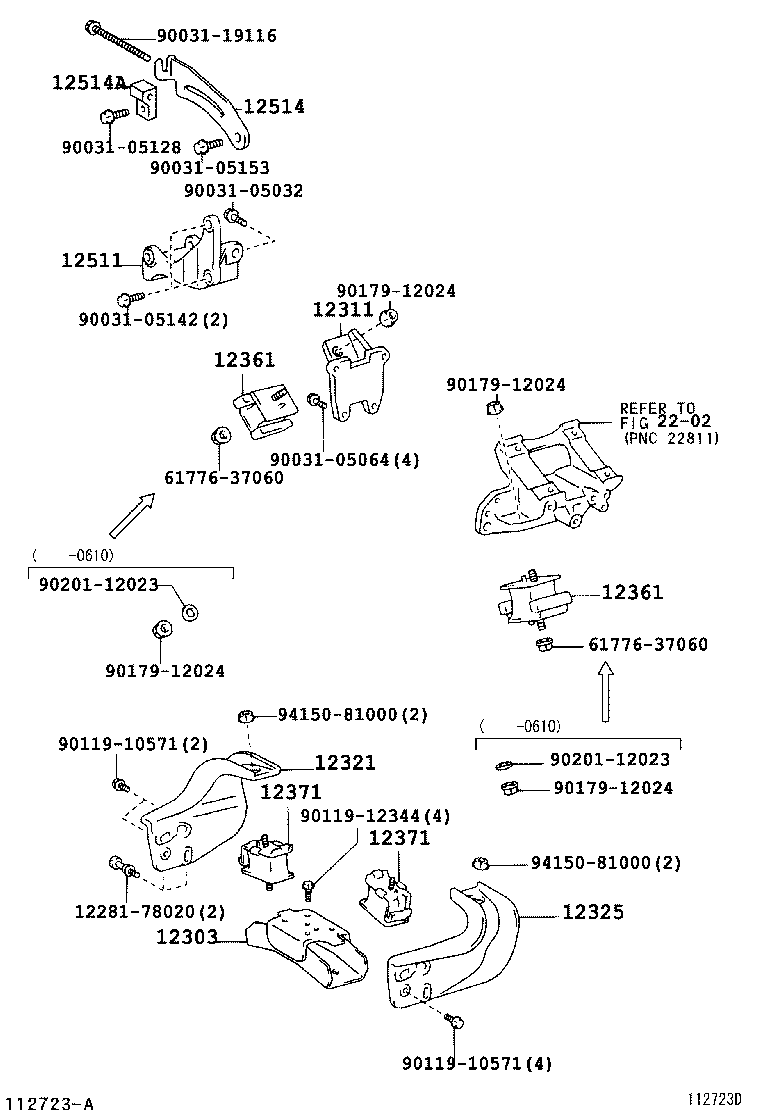

Click highlighted areas on diagram

diagram 1228178020 12303 12311 12321 12325 12361 12361 12371 12371 12511 12514 12514A 2202 6177637060 6177637060 9003105032 9003105064 9003105128 9003105142 9003105153 9003119116 9011910571 9011910571 9011912344 9017912024 9017912024 9017912024 9017912024 9020112023 9020112023 9415081000 9415081000
Part # Description Qty Price
12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR
12303-78030

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

 1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-78030

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-78140

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

 1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-78120

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12362-78010

S05C..XZU412,422..5F

LH

 1
12361-78100

S05C..XZU412,422..5F

RH

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12362-78010

S05C..XZU412,422..5F

LH

 1
12361-78100

S05C..XZU412,422..5F

RH

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-78010

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-78010

S05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN

 2
12511 - BRACKET, ALTERNATOR, NO.1
12501-78040

S05C..XZU412,422..5F

 1
12514 - BAR, ALTERNATOR BELT ADJUSTING
12514-78060

S05C..XZU412,422..5F

 1
12514A - SLIDER, FAN BELT ADJUSTING
12519-78010

S05C..XZU412,422..5F

 1
Common parts
12281-78020
61776-37060
90031-05032
90031-05064
90031-05128
90031-05142
90031-05153
90031-19116
90119-10571
90119-12344
90179-12024
90201-12023
94150-81000
Linked diagrams
2202
