XZU412L-TKMTSV3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

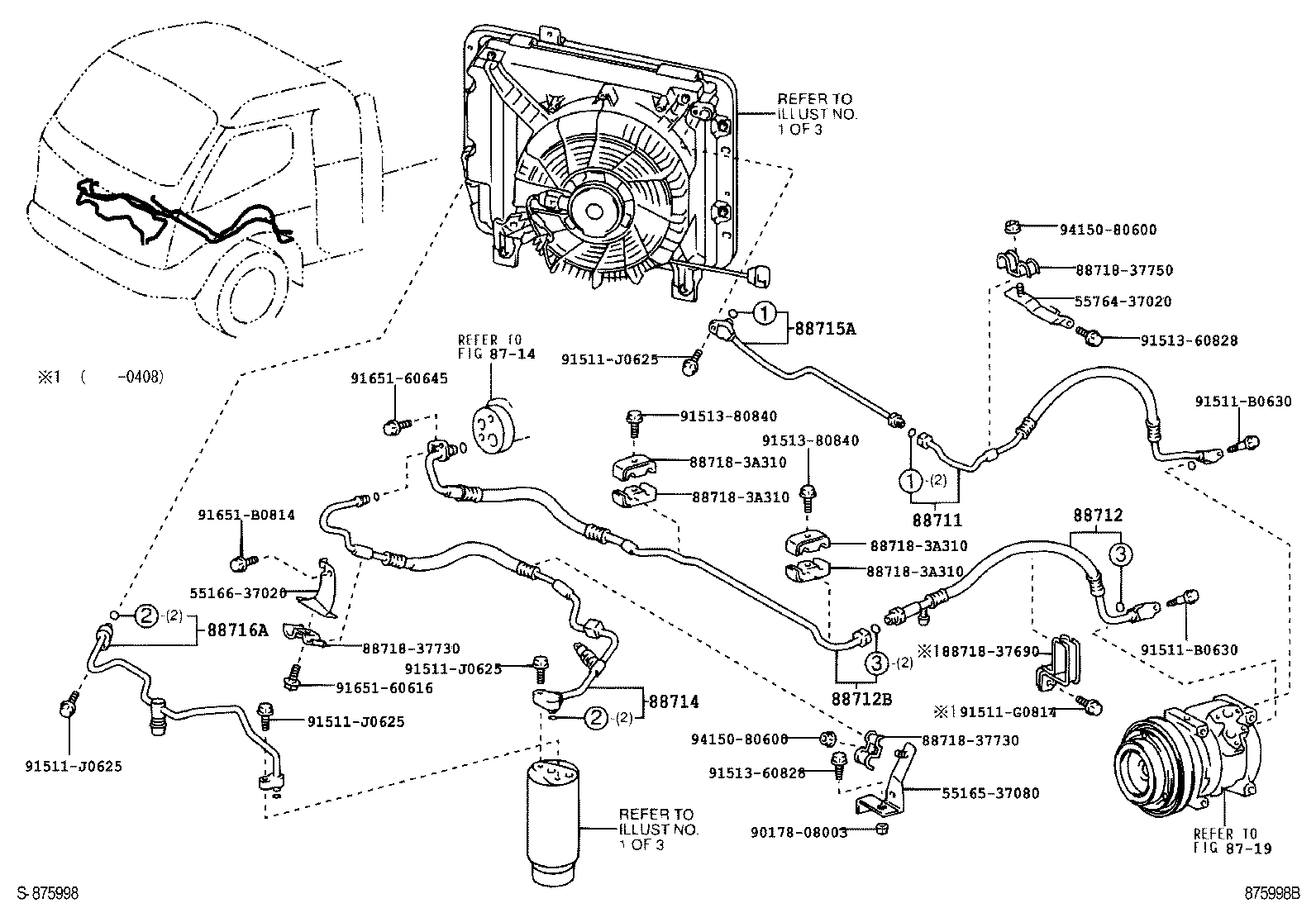

ILLUST NO. 2 OF 3(0212-0610)XZU412,422..LHD..DSL

Click highlighted areas on diagram

PIPING

diagram 5516537080 5516637020 5576437020 8714 8719 88711 88712 88712B 88714 88715A 88716A 8871837690 8871837730 8871837730 8871837750 887183A310 887183A310 887183A310 887183A310 9017808003 91511B0630 91511B0630 91511G0814 91511J0625 91511J0625 91511J0625 91511J0625 9151360828 9151360828 9151380840 9151380840 9165160616 9165160645 91651B0814 9415080600 9415080600
Part # Description Qty Price
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37840

XZU412,422..LHD..DSL

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-37860

XZU412,422..LHD..DSL

 1
88712B - HOSE, COOLER REFRIGERANT SUCTION
88712-3V370

XZU412,422..LHD..DSL

 1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-37590

WU410,XZU412,414,422,424..LHD..5F

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-37380

XZU412,422..LHD..DSL

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-37850

WU410,XZU412,414,422,424..LHD..5F

 1
Common parts
55165-37080
55166-37020
55764-37020
88718-37690
88718-37730
88718-37750
88718-3A310
90178-08003
91511-B0630
91511-G0814
91511-J0625
91513-60828
91513-80840
91651-60616
91651-60645
91651-B0814
94150-80600
