Toyota Dyna XZU412 ACCELERATOR LINK

XZU412L-TKMTSV3 (2002)

Toyota Dyna

Production Dec 2002 - Oct 2006

Engine S05C

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

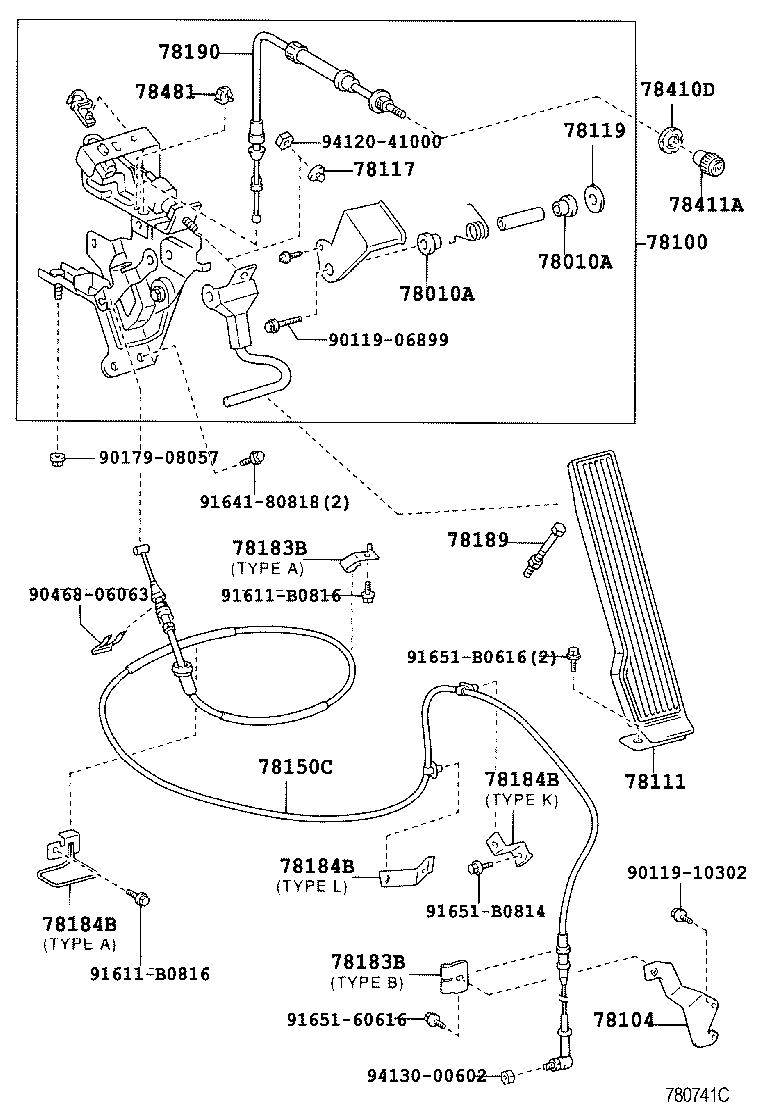

(0212-0610)XZU412,422..LHD..DSL

Click highlighted areas on diagram

Part #	Description	Period	Qty
78010A - BUSH (FOR ACCELERATOR LINK)
90386-08065	WU410,XZU412,422..LHD..5F	02/2003 - 10/2006	2
78010A - BUSH (FOR ACCELERATOR LINK)
90386-08065	WU410,XZU412,422..LHD..5F	02/2003 - 10/2006	2
78100 - LINK ASSY, ACCELERATOR
78100-37721	WU410,XZU412,422..LHD..5F	02/2003 - 10/2006	1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
26608-78050	XZU412,422..DSL	12/2002 - 10/2006	1
78111 - PEDAL, ACCELERATOR
78110-95410	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
78117 - CUSHION (FOR ACCELERATOR ROD)
90541-06038	WU410,XZU412,422..LHD..5F	02/2003 - 10/2006	1
78119 - STOPPER, ACCELERATOR PEDAL ROD
78119-95J00	WU410,XZU412,422..LHD..5F	02/2003 - 10/2006	1
78150C - WIRE ASSY, ACCELERATOR FLEXIBLE
78150-37580	XZU412,422..LHD..DSL	02/2003 - 10/2006	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-37260	XZU412,422..LHD..DSL TYPE A:REFER ILLUST.	02/2003 - 10/2006	1
78183-37330	XZU412,422..LHD..DSL TYPE B:REFER ILLUST.	02/2003 - 10/2006	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-37260	XZU412,422..LHD..DSL TYPE A:REFER ILLUST.	02/2003 - 10/2006	1
78183-37330	XZU412,422..LHD..DSL TYPE B:REFER ILLUST.	02/2003 - 10/2006	1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-37310	XZU412,422..LHD..DSL TYPE L:REFER ILLUST.	02/2003 - 10/2006	1
78184-37140	XZU412,422..LHD..DSL TYPE A:REFER ILLUST.	02/2003 - 10/2006	1
78184-37300	XZU412,422..LHD..DSL TYPE K:REFER ILLUST.	02/2003 - 10/2006	1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-37310	XZU412,422..LHD..DSL TYPE L:REFER ILLUST.	02/2003 - 10/2006	1
78184-37140	XZU412,422..LHD..DSL TYPE A:REFER ILLUST.	02/2003 - 10/2006	1
78184-37300	XZU412,422..LHD..DSL TYPE K:REFER ILLUST.	02/2003 - 10/2006	1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-37310	XZU412,422..LHD..DSL TYPE L:REFER ILLUST.	02/2003 - 10/2006	1
78184-37140	XZU412,422..LHD..DSL TYPE A:REFER ILLUST.	02/2003 - 10/2006	1
78184-37300	XZU412,422..LHD..DSL TYPE K:REFER ILLUST.	02/2003 - 10/2006	1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-37100	WU410,XZU412,422..LHD..5F	02/2003 - 10/2006	1
78190 - CABLE ASSY, ACCEL CONTROL W/THROTTLE
78190-37020	WU410,XZU412,422..LHD..5F	02/2003 - 10/2006	1
78410D - NUT, THROTTLE
78314-95010	WU410,XZU412,422..5F..(GCC,GEN)	02/2003 - 10/2006	1
78411A - KNOB, THROTTLE CONTROL CABLE
78411-95J01	WU410,XZU412,422..5F..(GCC,GEN)	02/2003 - 10/2006	1
78481 - CLAMP, THROTTLE WIRE
78481-37010	WU410,XZU412,422..LHD..5F	02/2003 - 10/2006	1
Common parts
90119-06899
90119-10302
90179-08057
90468-06063
91611-B0816
91641-80818
91651-60616
91651-B0616
91651-B0814
94120-41000
94130-00602

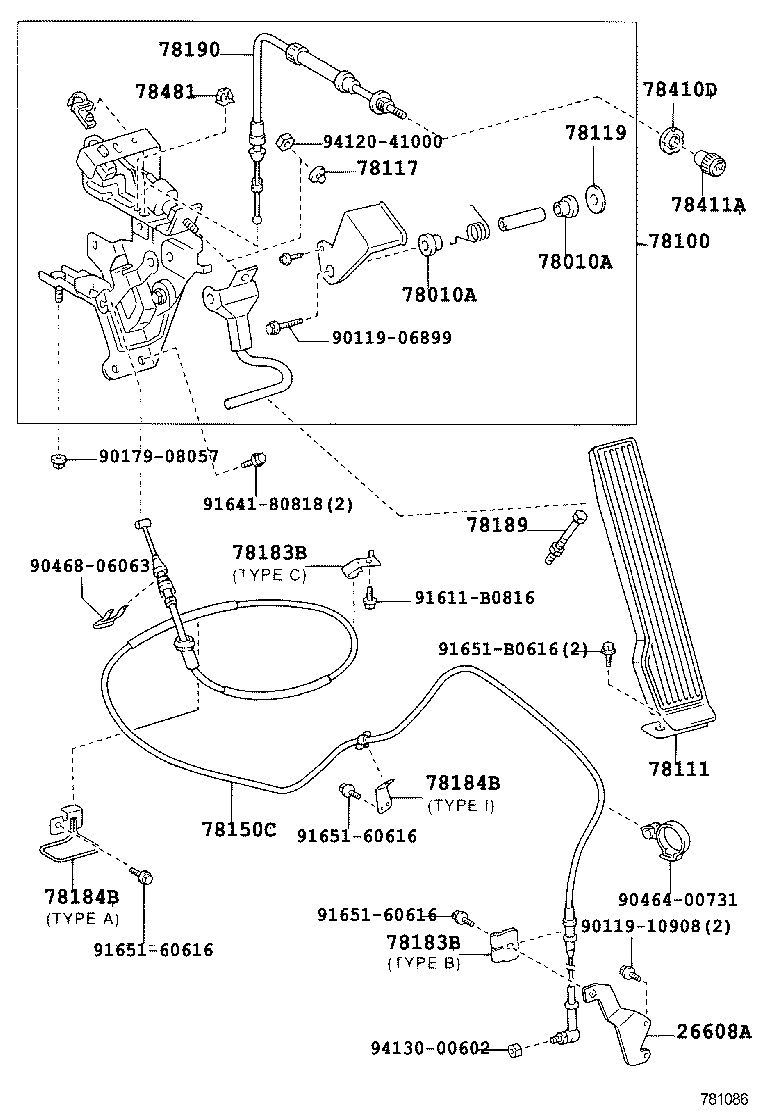

(0212-0610)XZU412,422..LHD..TD ; (0610- )XZU412,422

Click highlighted areas on diagram

Part #	Description	Period	Qty
78010A - BUSH (FOR ACCELERATOR LINK)
90386-08065	WU410,XZU412,422..LHD..5F	02/2003 - 10/2006	2
78010A - BUSH (FOR ACCELERATOR LINK)
90386-08065	WU410,XZU412,422..LHD..5F	02/2003 - 10/2006	2
78100 - LINK ASSY, ACCELERATOR
78100-37721	WU410,XZU412,422..LHD..5F	02/2003 - 10/2006	1
78111 - PEDAL, ACCELERATOR
78110-95410	XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)	10/2001 - 10/2006	1
78117 - CUSHION (FOR ACCELERATOR ROD)
90541-06038	WU410,XZU412,422..LHD..5F	02/2003 - 10/2006	1
78119 - STOPPER, ACCELERATOR PEDAL ROD
78119-95J00	WU410,XZU412,422..LHD..5F	02/2003 - 10/2006	1
78150C - WIRE ASSY, ACCELERATOR FLEXIBLE
78150-37580	XZU412,422..LHD..DSL	02/2003 - 10/2006	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-37260	XZU412,422..LHD..DSL TYPE A:REFER ILLUST.	02/2003 - 10/2006	1
78183-37330	XZU412,422..LHD..DSL TYPE B:REFER ILLUST.	02/2003 - 10/2006	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-37260	XZU412,422..LHD..DSL TYPE A:REFER ILLUST.	02/2003 - 10/2006	1
78183-37330	XZU412,422..LHD..DSL TYPE B:REFER ILLUST.	02/2003 - 10/2006	1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-37310	XZU412,422..LHD..DSL TYPE L:REFER ILLUST.	02/2003 - 10/2006	1
78184-37140	XZU412,422..LHD..DSL TYPE A:REFER ILLUST.	02/2003 - 10/2006	1
78184-37300	XZU412,422..LHD..DSL TYPE K:REFER ILLUST.	02/2003 - 10/2006	1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-37310	XZU412,422..LHD..DSL TYPE L:REFER ILLUST.	02/2003 - 10/2006	1
78184-37140	XZU412,422..LHD..DSL TYPE A:REFER ILLUST.	02/2003 - 10/2006	1
78184-37300	XZU412,422..LHD..DSL TYPE K:REFER ILLUST.	02/2003 - 10/2006	1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-37100	WU410,XZU412,422..LHD..5F	02/2003 - 10/2006	1
78190 - CABLE ASSY, ACCEL CONTROL W/THROTTLE
78190-37020	WU410,XZU412,422..LHD..5F	02/2003 - 10/2006	1
78410D - NUT, THROTTLE
78314-95010	WU410,XZU412,422..5F..(GCC,GEN)	02/2003 - 10/2006	1
78411A - KNOB, THROTTLE CONTROL CABLE
78411-95J01	WU410,XZU412,422..5F..(GCC,GEN)	02/2003 - 10/2006	1
78481 - CLAMP, THROTTLE WIRE
78481-37010	WU410,XZU412,422..LHD..5F	02/2003 - 10/2006	1
Common parts
90119-06899
90119-10908
90179-08057
90464-00731
90468-06063
91611-B0816
91641-80818
91651-60616
91651-B0616
94120-41000
94130-00602
