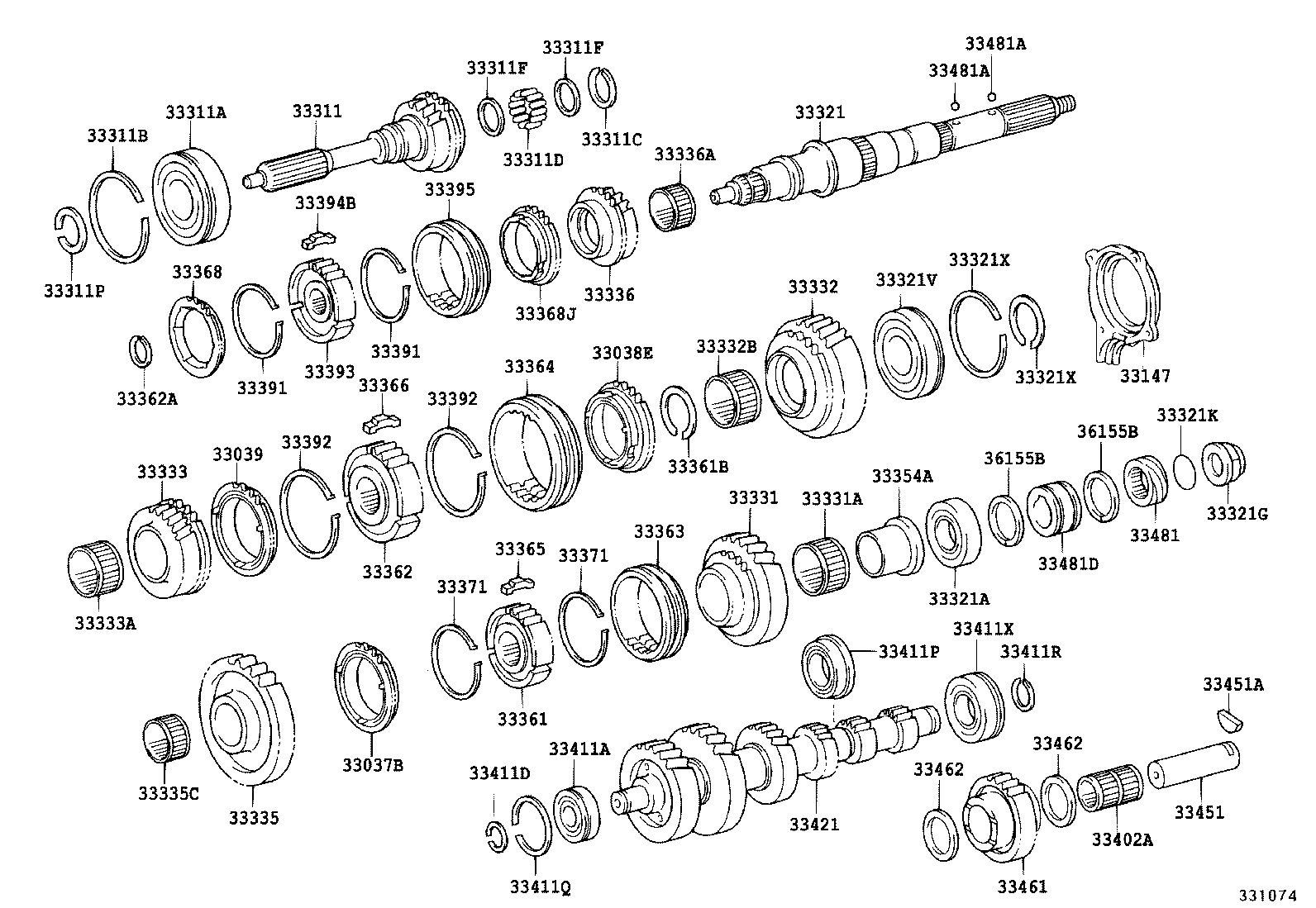

XZU412L-TKMMW3 (2002)
Toyota Dyna
(0110-0610)XZU404,412,414,422,424..5F
H350
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33037B - RING SET, SYNCHRONIZER, NO.1 | ||||
| 33037-37030 |
XZU404,412,414,422,424..5F |
1 | ||
| 33038E - RING SET, SYNCHRONIZER, NO.2 | ||||
| 33037-37021 |
XZU404,41#,42#..5F |
1 | ||
| 33037-37022 |
XZU404,412,414,422,424..5F |
1 | ||
| 33039 - RING SET, SYNCHRONIZER, NO.3 | ||||
| 33038-37011 |
XZU404,41#,42#..5F |
1 | ||
| 33038-37012 |
XZU404,412,414,422,424..5F |
1 | ||
| 33147 - RETAINER, BEARING, CENTER | ||||
| 33147-37011 |
XZU404,412,422;XZU414,424..GEN |
1 | ||
| 33311 - SHAFT, INPUT | ||||
| 33301-37200 |
XZU412,422..5F;XZU404,414..55T..ARL |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-50007 |
XZU404,412,422..5F;XZU414,424,434..ARL,GEN |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-99010 |
XZU404,412,422..5F;XZU414,424,434..ARL,GEN T=2.36-2.46 |
1 | ||
| 33311C - RING, HOLE SNAP (FOR NEEDLE ROLLER) | ||||
| 96151-04500 |
WU410,XZU404,412,414,422,424..5F..(ARL,GCC,GEN) |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-09002 |
WU410,XZU404,412,414,422,424..5F..(ARL,GCC,GEN) |
12 | ||
| 33311F - SPACER (FOR INPUT SHAFT) | ||||
| 90560-38004 |
WU410,XZU404,412,414,422,424..5F..(ARL,GCC,GEN) |
2 | ||
| 33311F - SPACER (FOR INPUT SHAFT) | ||||
| 90560-38004 |
WU410,XZU404,412,414,422,424..5F..(ARL,GCC,GEN) |
2 | ||
| 33311P - RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) | ||||
| 90520-45003 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=2.50-2.55,MARK A |
1 | ||
| 90520-45004 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=2.55-2.60,MARK B |
1 | ||
| 90520-45005 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=2.60-2.65,MARK C |
1 | ||
| 90520-45007 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=2.70-2.75,MARK E |
1 | ||
| 90520-45006 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=2.65-2.70,MARK D |
1 | ||
| 90520-45008 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=2.75-2.80,MARK F |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-37060 |
XZU404,412,414,422,424..5F |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90363-38007 |
XZU404,412,422..5F;XZU414,424,434..ARL,GEN |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 90179-24008 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 33321K - RING, O(FOR MANUAL TRANSMISSON OUTPUT SHAFT REAR SET NU | ||||
| 90301-31003 |
XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 90363-45019 |
XZU404,412,422..5F;XZU414,424,434..ARL,GEN |
1 | ||
| 33321X - RING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING) | ||||
| 90520-41006 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=2.40-2.45,MARK A |
1 | ||
| 90520-41008 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=2.50-2.55,MARK C |
1 | ||
| 90520-41007 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=2.45-2.50,MARK B |
1 | ||
| 90520-41009 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=2.55-2.60,MARK D |
1 | ||
| 90520-41012 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=2.70,MARK G |
1 | ||
| 90520-41011 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=2.65,MARK F |
1 | ||
| 90520-41013 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=2.75,MARK H |
1 | ||
| 90520-99009 |
XZU404,412,422..5F;XZU414,424,434..ARL,GEN ID=106.1,OD=115.64 |
1 | ||
| 90520-41010 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=2.60,MARK E |
1 | ||
| 33321X - RING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING) | ||||
| 90520-41006 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=2.40-2.45,MARK A |
1 | ||
| 90520-41008 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=2.50-2.55,MARK C |
1 | ||
| 90520-41007 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=2.45-2.50,MARK B |
1 | ||
| 90520-41009 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=2.55-2.60,MARK D |
1 | ||
| 90520-41012 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=2.70,MARK G |
1 | ||
| 90520-41011 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=2.65,MARK F |
1 | ||
| 90520-41013 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=2.75,MARK H |
1 | ||
| 90520-99009 |
XZU404,412,422..5F;XZU414,424,434..ARL,GEN ID=106.1,OD=115.64 |
1 | ||
| 90520-41010 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=2.60,MARK E |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-37050 |
XZU404,412,414,422,424..5F |
1 | ||
| 33331A - BEARING (FOR REVERSE GEAR) | ||||
| 90364-47008 |
XZU404,412,422..5F;XZU414,424,434..ARL,GEN |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-37030 |
XZU404,412,414,422,424..5F |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-50003 |
XZU404,412,414,422,424..5F |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-37050 |
XZU412,422..5F;XZU404,414..55T..ARL |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-58007 |
XZU404,412,414,422,424..5F |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33335-37080 |
XZU404,412,414,422,424..5F |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-44004 |
XZU404,412,414,422,424..5F |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33036-37050 |
XZU412,422..5F;XZU404,414..55T..ARL |
1 | ||
| 33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR) | ||||
| 90364-38020 |
XZU404,412,414,422,424..5F |
1 | ||
| 33354A - RACE, REVERSE GEAR BEARING, INNER | ||||
| 33354-37010 |
XZU404,412,422..5F;XZU414,424,434..ARL,GEN |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-37030 |
XZU404,412,414,422,424..5F |
1 | ||
| 33361B - RING, SHAFT SNAP (FOR CLUTCH HUB NO.1) | ||||
| 90520-46006 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=3.00-3.05,MARK C |
1 | ||
| 90520-46004 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=2.90-2.95,MARK A |
1 | ||
| 90520-46008 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=3.10-3.15,MARK E |
1 | ||
| 90520-46007 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=3.05-3.10,MARK D |
1 | ||
| 90520-46005 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=2.95-3.00,MARK B |
1 | ||
| 90520-46009 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=3.15-3.20,MARK F |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33361-37040 |
XZU404,412,414,422,424..5F |
1 | ||
| 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) | ||||
| 90520-28057 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=2.05-2.10,MARK 7 |
1 | ||
| 90520-28054 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=1.90-1.95,MARK 4 |
1 | ||
| 90520-28059 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=2.15-2.20,MARK 9 |
1 | ||
| 90520-28058 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=2.10-2.15,MARK 8 |
1 | ||
| 90520-28056 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=2.00-2.05,MARK 6 |
1 | ||
| 90520-28055 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=1.95-2.00,MARK 5 |
1 | ||
| 33363 - SLEEVE, TRANSMISSION HUB, NO.1 | ||||
| 33363-37040 |
XZU404,412,414,422,424..5F |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-37030 |
XZU404,41#,42#..5F |
1 | ||
| 33364-37031 |
XZU404,412,414,422,424..5F |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-37030 |
XZU404,412,414,422,424..5F |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33365-60010 |
XZU404,412,414,422,424..5F |
3 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-60022 |
XZU404,412,414,422,424..5F |
1 | ||
| 33368J - RING, SYNCHRONIZER (FOR 5TH GEAR) | ||||
| 33368-60043 |
XZU404,412,414,422,424..5F |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-37030 |
XZU412,422..5F;XZU414..LHD..GEN;XZU404,414..55T..ARL;XZU414,424..(75T,85T)..GEN |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-37030 |
XZU412,422..5F;XZU414..LHD..GEN;XZU404,414..55T..ARL;XZU414,424..(75T,85T)..GEN |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-60010 |
XZU412,422..5F;XZU414..LHD..GEN;XZU404,414..55T..ARL;XZU414,424..(75T,85T)..GEN |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-60010 |
XZU412,422..5F;XZU414..LHD..GEN;XZU404,414..55T..ARL;XZU414,424..(75T,85T)..GEN |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33371-37030 |
XZU404,412,414,422,424..5F |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33371-37030 |
XZU404,412,414,422,424..5F |
2 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-37020 |
XZU404,412,414,422,424..5F |
1 | ||
| 33394B - KEY, SYNCHROMESH SHIFTING, NO.3 | ||||
| 33394-37010 |
XZU404,412,414,422,424..5F |
3 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-37020 |
XZU404,412,414,422,424..5F |
1 | ||
| 33402A - BUSH OR BEARING (FOR REVERSE IDLER GEAR) | ||||
| 90364-28010 |
XZU404,412,422..5F;XZU414,424,434..ARL,GEN |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-30030 |
XZU404,412,422..5F;XZU414,424,434..ARL,GEN |
1 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-27056 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=2.60-2.65,MARK D |
1 | ||
| 90520-27055 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=2.55-2.60,MARK C |
1 | ||
| 90520-27058 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=2.70-2.75,MARK F |
1 | ||
| 90520-27053 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=2.45-2.50,MARK A |
1 | ||
| 90520-27057 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=2.65-2.70,MARK E |
1 | ||
| 90520-27054 |
XZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F T=2.50-2.55,MARK B |
1 | ||
| 33411P - BEARING, COUNTER SHAFT CENTER | ||||
| 90365-36004 |
XZU404,412,422..5F;XZU414,424,434..ARL,GEN |
1 | ||
| 33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2 | ||||
| 90520-63001 |
XZU404,412,414,422,424,434..ARL,GCC,GEN T=1.60-1.70 |
1 | ||
| 33411R - RING, SNAP, COUNTER GEAR REAR BEARING | ||||
| 90520-29032 |
XZU414..5F;XZU424..55T,85T;XZU424..75T..GEN;XZU404,412,422,434..ARL,GCC,GEN T=2.40-2.45,MARK A |
1 | ||
| 90520-29033 |
XZU414..5F;XZU424..55T,85T;XZU424..75T..GEN;XZU404,412,422,434..ARL,GCC,GEN T=2.45-2.50,MARK B |
1 | ||
| 90520-29038 |
XZU414..5F;XZU424..55T,85T;XZU424..75T..GEN;XZU404,412,422,434..ARL,GCC,GEN T=2.70-2.75,MARK G |
1 | ||
| 90520-29034 |
XZU414..5F;XZU424..55T,85T;XZU424..75T..GEN;XZU404,412,422,434..ARL,GCC,GEN T=2.50-2.55,MARK C |
1 | ||
| 90520-29035 |
XZU414..5F;XZU424..55T,85T;XZU424..75T..GEN;XZU404,412,422,434..ARL,GCC,GEN T=2.55-2.60,MARK D |
1 | ||
| 90520-29036 |
XZU414..5F;XZU424..55T,85T;XZU424..75T..GEN;XZU404,412,422,434..ARL,GCC,GEN T=2.60-2.65,MARK E |
1 | ||
| 90520-29037 |
XZU414..5F;XZU424..55T,85T;XZU424..75T..GEN;XZU404,412,422,434..ARL,GCC,GEN T=2.65-2.70,MARK F |
1 | ||
| 33411X - BEARING, RADIAL BALL | ||||
| 90363-32038 |
XZU404,412,422..5F;XZU414,424,434..ARL,GEN |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-37120 |
XZU412,422..5F;XZU404,414..55T..ARL |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-37020 |
XZU404,412,422..5F;XZU414,424,434..ARL,GEN |
1 | ||
| 33451A - KEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90280-03002 |
WU410,XZU404,412,414,422,424,434..ARL,GCC,GEN |
1 | ||
| 33461 - GEAR, REVERSE IDLER | ||||
| 33461-37030 |
XZU404,412,422..5F;XZU414,424,434..ARL,GEN |
1 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-60020 |
XZU404,412,414,422,424,434..ARL,GCC,GEN |
2 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-60020 |
XZU404,412,414,422,424,434..ARL,GCC,GEN |
2 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-36160 |
XZU424..85T;WU410,XZU434..ARL,GEN;XZU412..LHD..(55T,65T);XZU412,422..5F..(75T,85T) N=6,MARK 6X23-25 |
1 | ||
| 33481-36150 |
XZU422..DSL;XZU424..ARL,GEN;XZU404,414,434..RHD;XZU422..5F..75T..TD;XZU412..5F..(55T,65T,75T);WU410,XZU412..(65T,85T)..(GCC,GEN)..DSL N=6,MARK 6X20-22 |
1 | ||
| 33481A - KEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM) | ||||
| 90360-06004 |
XZU404,412,422..5F;XZU414,424,434..ARL,GEN |
2 | ||
| 33481A - KEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM) | ||||
| 90360-06004 |
XZU404,412,422..5F;XZU414,424,434..ARL,GEN |
2 | ||
| 33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR) | ||||
| 33487-37020 |
XZU404,412,422..5F;XZU414,424,434..ARL,GEN |
1 | ||
| 36155B - RING, TRANSFER OIL SEAL | ||||
| 36155-36020 |
XZU404,412,422..5F;XZU414,424,434..ARL,GEN |
2 | ||
| 36155B - RING, TRANSFER OIL SEAL | ||||
| 36155-36020 |
XZU404,412,422..5F;XZU414,424,434..ARL,GEN |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
