XZU412L-TKFRW3 (2004)

Toyota Dyna

Production Jan 2004 - Feb 2008
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

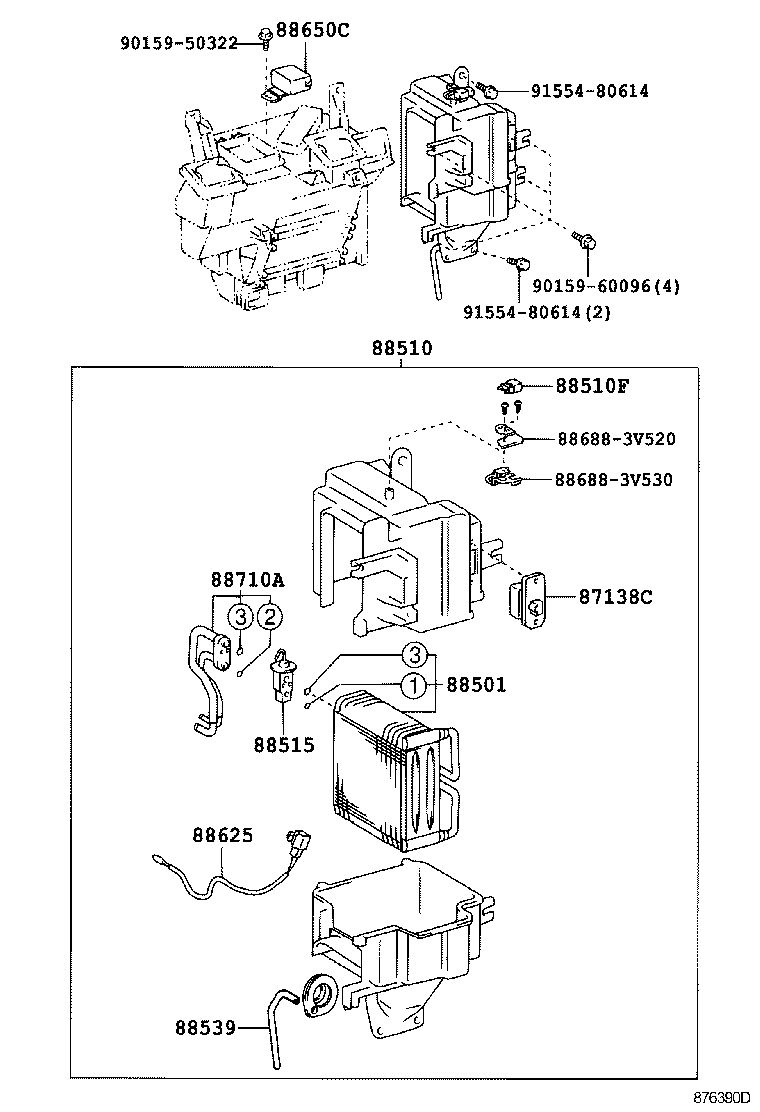

ILLUST NO. 1 OF 2(0401- )XZU412,422..6F ; (0411-0701)BU410,420

Click highlighted areas on diagram

diagram 87138C 88501 88510 88510F 88515 88539 88625 88650C 886883V520 886883V530 88710A 9015950322 9015960096 9155480614 9155480614
Part # Description Qty Price
88510F - HOLDER, FUSE
82630-95J03

XZU412,422..6F

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-37070

XZU412,422..6F

 1
88625 - THERMISTOR, COOLER, NO.1
88625-20460

XZU412,422..6F

 1
88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER
88650-37120

XZU412,422..6F

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-37460

XZU412,422..6F

 1
Common parts
88688-3V520
88688-3V530
90159-50322
90159-60096
91554-80614
