XZU411-TQPQS3 (2000)
Toyota Dyna
Production
Oct 2000
-
Jun 2002
Engine
S05D
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 3(0010- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88263M - RELAY, ABS SOLENOID | ||||
| 88263-36050 |
XZU402,41#,420,430 |
1 | ||
| 88263N - RELAY, ABS MOTOR | ||||
| 88263-36040 |
XZU402,41#,420,430 |
1 | ||
| 89421F - SENSOR, VACUUM (FOR SKID CONTROL) | ||||
| 89421-37010 |
XZU402,41#,420,430 |
2 | ||
| 89421F - SENSOR, VACUUM (FOR SKID CONTROL) | ||||
| 89421-37010 |
XZU402,41#,420,430 |
2 | ||
| 89540 - COMPUTER ASSY, SKID CONTROL | ||||
| 89540-37080 |
XZU410,411,420,430 |
1 | ||
| 89540-37081 |
XZU410,411,420,430 |
1 | ||
| Common parts | ||||
| 91621-40616 | ||||
| 93567-55016 | ||||
ILLUST NO. 3 OF 3(0010- )
Click highlighted areas on diagram
REAR SPEED SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42141A - ATTACHMENT, SKID CONTROL WIRE, NO.1 | ||||
| 42141-37050 |
XZU410,411,420,430 |
2 | ||
| 42141A - ATTACHMENT, SKID CONTROL WIRE, NO.1 | ||||
| 42141-37050 |
XZU410,411,420,430 |
2 | ||
| 42141A - ATTACHMENT, SKID CONTROL WIRE, NO.1 | ||||
| 42141-37050 |
XZU410,411,420,430 |
2 | ||
| 42141A - ATTACHMENT, SKID CONTROL WIRE, NO.1 | ||||
| 42141-37050 |
XZU410,411,420,430 |
2 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-37020 |
XZU411 |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-37020 |
XZU411 |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-37020 |
XZU411 |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-37020 |
XZU411 |
1 | ||
| Common parts | ||||
| 42141-37010 | ||||
| 42141-37030 | ||||
| 82716-37200 | ||||
| 90119-08587 | ||||
| 91511-B0816 | ||||
| 91651-B0620 | ||||
| 94130-00802 | ||||
ILLUST NO. 2 OF 3(0010- )
Click highlighted areas on diagram
FRONT SPEED SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-37080 |
XZU410,411,420,430 |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-37080 |
XZU410,411,420,430 |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-37080 |
XZU410,411,420,430 |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-37080 |
XZU410,411,420,430 |
1 | ||
| Common parts | ||||
| 90119-08587 | ||||
| 91651-B0616 | ||||
| 91651-B0620 | ||||
| 91651-B0825 | ||||
| 94130-00802 | ||||
ILLUST NO. 1 OF 3(0110-0608)EUR ; (0110-0610)XZU404,414,424,434..RHD ; (0110- )XZU413,423 ; (0110
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91621-40616 | ||||
| 93568-55016 | ||||
ILLUST NO. 2 OF 3(0110-0608)EUR ; (0110-0610)XZU404,414,424,434..RHD ; (0110- )WU410,420,XZU415,4
Click highlighted areas on diagram
FRONT SPEED SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90129-08007 | ||||
| 91551-80614 | ||||
| 91651-B0616 | ||||
| 91651-B0620 | ||||
| 91651-B0825 | ||||
| 94130-00802 | ||||

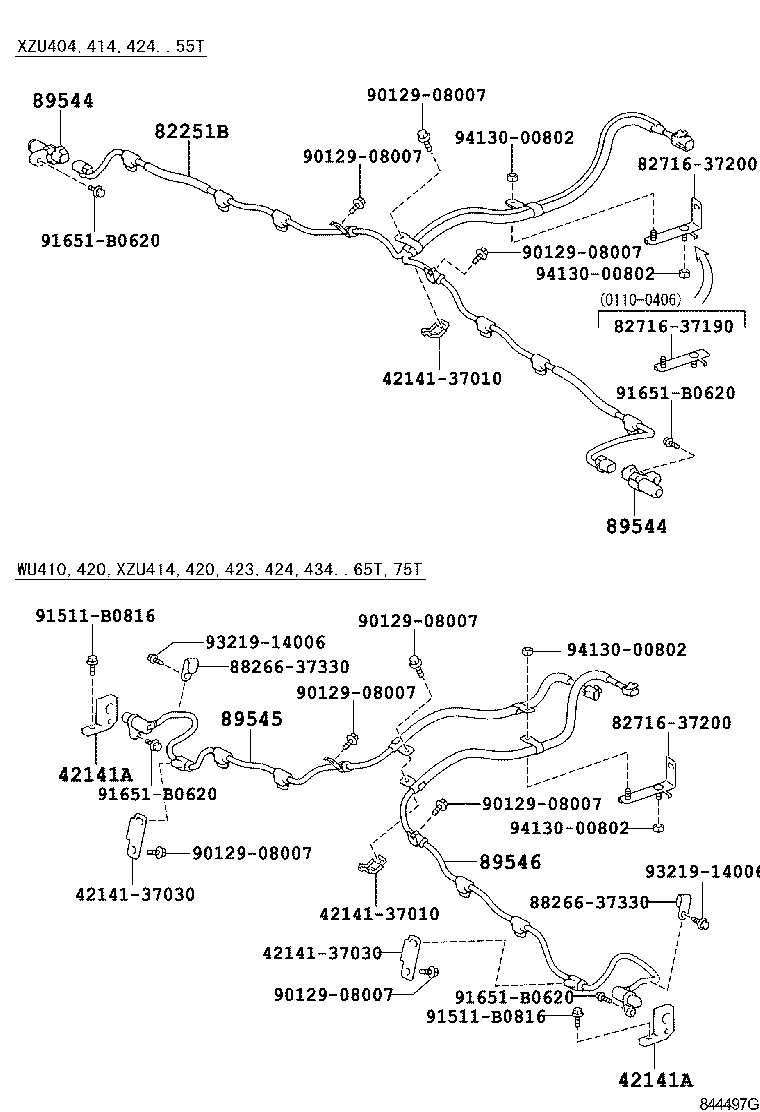

ILLUST NO. 3 OF 3(0110- )XZU404,414,424..RHD..55T,65T,75T ; (0110- )WU410,420,XZU414,420,423,4
Click highlighted areas on diagram
REAR SPEED SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 42141-37010 | ||||
| 42141-37030 | ||||
| 82716-37190 | ||||
| 82716-37200 | ||||
| 88266-37330 | ||||
| 90129-08007 | ||||
| 91511-B0816 | ||||
| 91651-B0620 | ||||
| 93219-14006 | ||||
| 94130-00802 | ||||
