XZU411-TQFQS3 (2000)
Toyota Dyna
Production
Oct 2000
-
Jun 2002
Engine
S05D
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0010-0206)

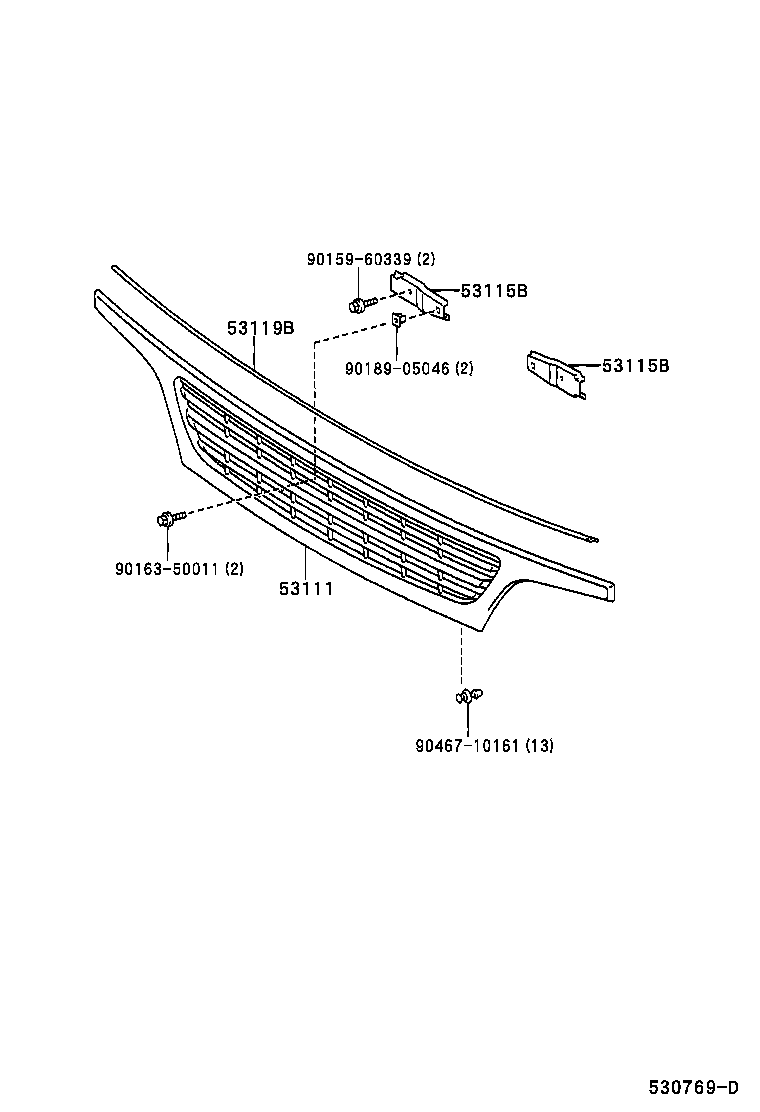

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53111-37241A0 |
XZU402,41#,420,430 WHITE,058 |
1 | ||
| 53111-37241B0 |
XZU402,41#,420,430 SILVER ME.,199 |
1 | ||
| 53111-37241H0 |
XZU402,41#,420,430 TURQUOISE,766 |
1 | ||
| 53111-37251 |
XZU402,41#,420,430 CHROME PLATED |
1 | ||
| 53111-37241J0 |
XZU402,41#,420,430 BLUE,8P0 |
1 | ||
| 53115B - BRACKET, RADIATOR GRILLE | ||||
| 53115-37050 |
XZU402,41#,420,430 |
2 | ||
| 53115B - BRACKET, RADIATOR GRILLE | ||||
| 53115-37050 |
XZU402,41#,420,430 |
2 | ||
| 53119B - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-37040 |
XZU402,41#,420,430 |
1 | ||
| Common parts | ||||
| 90159-60339 | ||||
| 90163-50011 | ||||
| 90189-05046 | ||||
| 90467-10161 | ||||

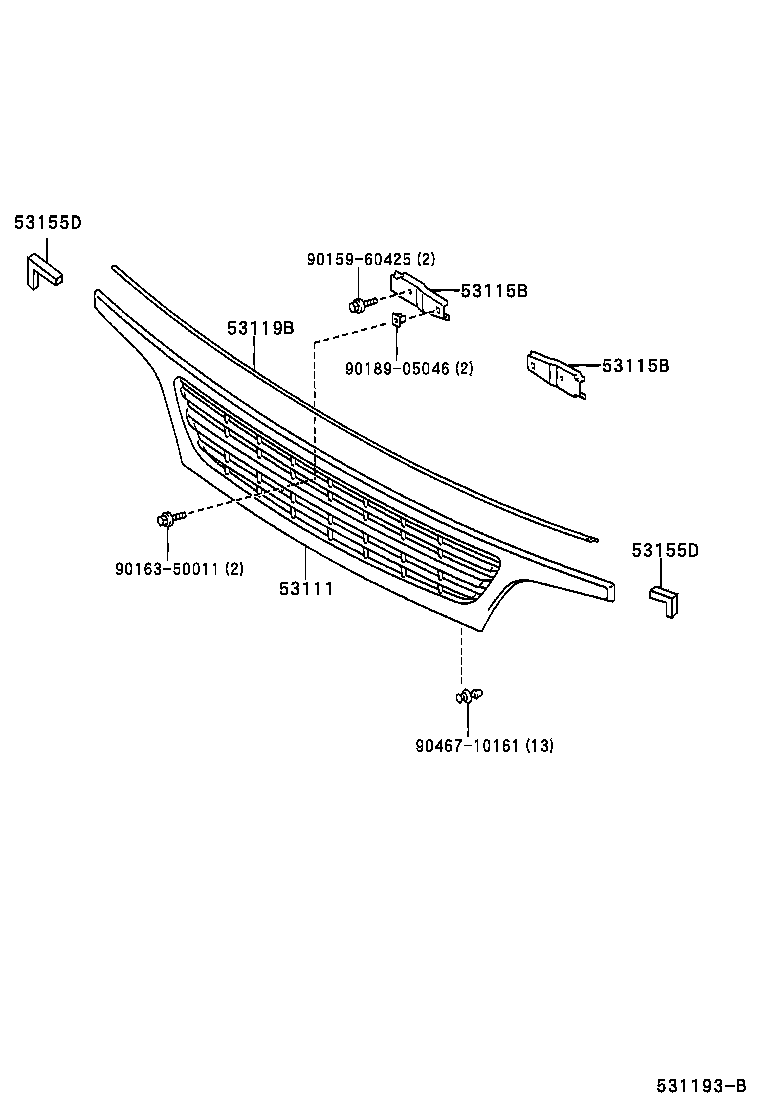

(0110-0212) ; (0212-0401)EUR
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60425 | ||||
| 90163-50011 | ||||
| 90189-05046 | ||||
| 90467-10161 | ||||
