XZU404R-TKMMW3 (2001)

Toyota Dyna

Production Oct 2001 - Oct 2006
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0110-0610)XZU404,412,414,420,422,424,430,434 ;(0610- )XZU412,420,422,430

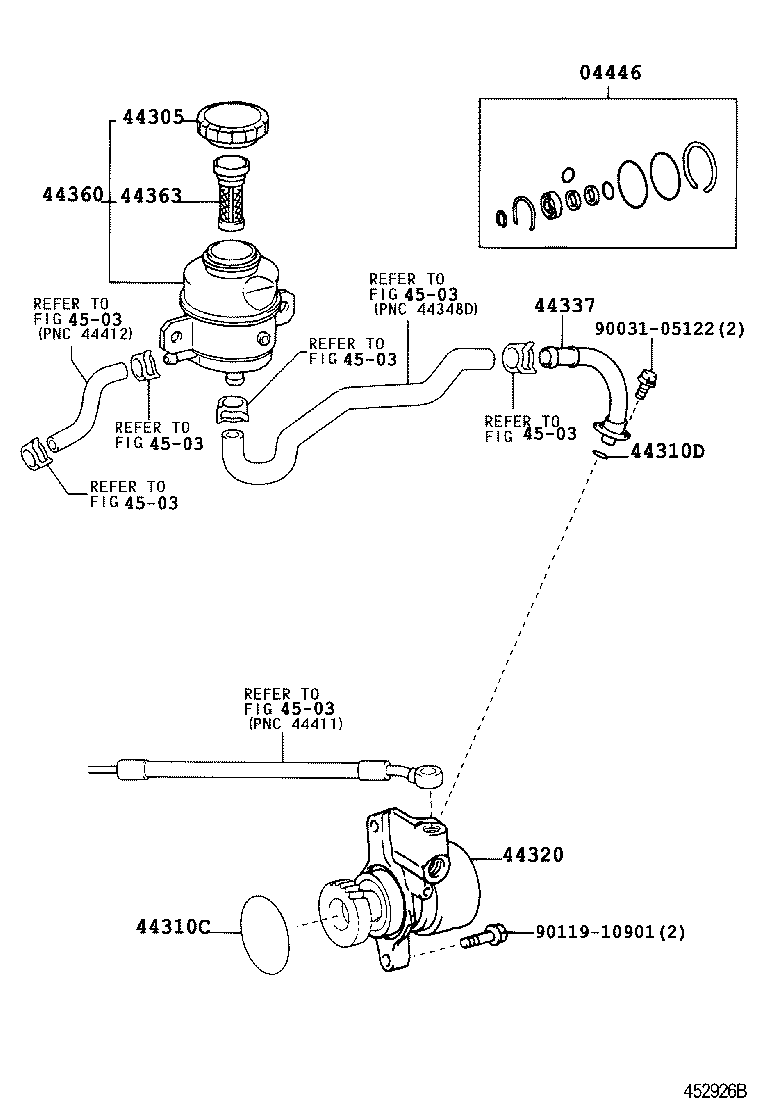

Click highlighted areas on diagram

diagram 04446 44305 44310C 44310D 44320 44337 44360 44363 4503 4503 4503 4503 4503 4503 4503 9003105122 9011910901
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-37010

XZU404,412,422..5F;XZU414,424,434..ARL,GEN

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-12030

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
44310C - RING, O(FOR VANE PUMP)
90301-60002

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
44310D - RING, O(FOR VANE PUMP UNION)
90301-15019

XZU404,412,422..5F;XZU414,424,434..ARL,GEN

 1
44320 - PUMP ASSY, VANE
44310-37060

XZU404,412,414,424..55T

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-37080

XZU404,41#,42#,43#

 1
44337-37080

XZU404,412,422..5F;XZU414,424,434..ARL,GEN

 1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-37140

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
44363 - STRAINER, OIL(FOR VANE PUMP)
44363-37130

XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)

 1
Common parts
90031-05122
90119-10901
Linked diagrams
4503
