XZU340L-TKMSWR3 (1999)

Toyota Dyna

Production Jul 1999 - Dec 2002
Engine 15BFTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )XZU34#

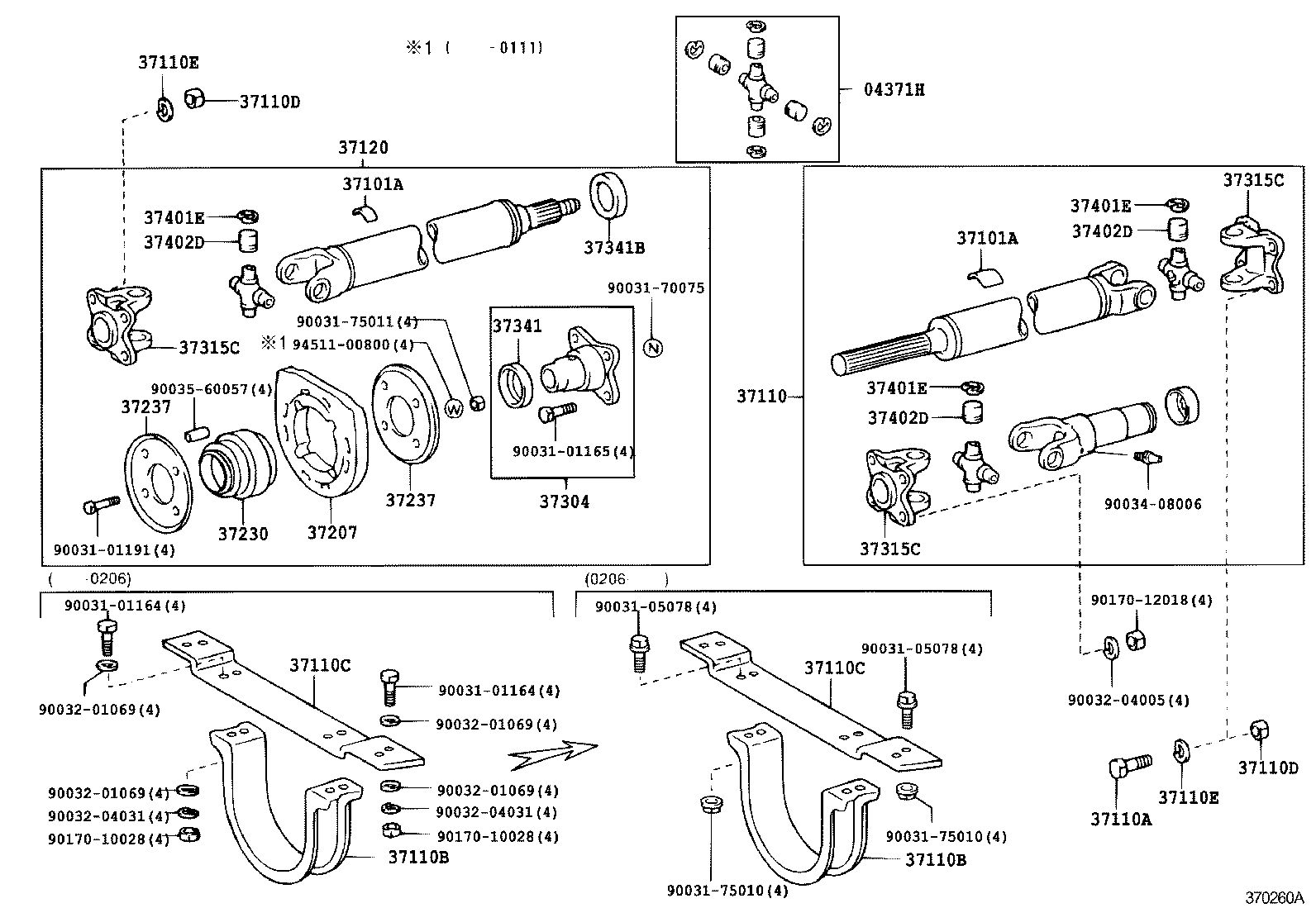

Click highlighted areas on diagram

diagram 04371H 37101A 37101A 37110 37110A 37110B 37110B 37110C 37110C 37110D 37110D 37110E 37110E 37120 37207 37230 37237 37237 37304 37315C 37315C 37315C 37341 37341B 37401E 37401E 37401E 37402D 37402D 37402D 9003101164 9003101164 9003101165 9003101191 9003105078 9003105078 9003170075 9003175010 9003175010 9003175011 9003201069 9003201069 9003201069 9003201069 9003204005 9003204031 9003204031 9003408006 9003560057 9017010028 9017010028 9017012018 9451100800
Part # Description Qty Price
04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT
04371-37011

XZU34#

 3
37110 - SHAFT ASSY, PROPELLER
37110-37170

XZU34#

 1
37110A - BOLT (FOR PROPELLER SHAFT)
90031-01165

XZU300,320,330,34#

*12-1.25PX35-17

 4
37110B - GUARD, PROPELLER SHAFT
37231-37020

XZU34#

 1
37110B - GUARD, PROPELLER SHAFT
37231-37020

XZU34#

 1
37110C - BRACKET, PROPELLER SHAFT GUARD
51241-37060

XZU340

 1
37110C - BRACKET, PROPELLER SHAFT GUARD
51241-37060

XZU340

 1
37110D - NUT (FOR PROPELLER SHAFT)
90170-12018

XZU300,320,330,34#

 8
37110D - NUT (FOR PROPELLER SHAFT)
90170-12018

XZU300,320,330,34#

 8
37110E - WASHER (FOR PROPELLER SHAFT)
90032-04005

XZU300,320,330,34#

 8
37110E - WASHER (FOR PROPELLER SHAFT)
90032-04005

XZU300,320,330,34#

 8
37120 - SHAFT ASSY, PROPELLER INTERMEDIATE
37120-37110

XZU340

 1
37207 - CUSHION SUB-ASSY, CENTER SUPPORT BEARING, NO.1
37235-37020

XZU34#

 1
37230 - BEARING ASSY, CENTER SUPPORT, NO.1
37201-37010

XZU34#

 1
37237 - PLATE, CENTER SUPPORT BEARING, NO.1
37237-37010

XZU34#

T=3.0

 2
37237 - PLATE, CENTER SUPPORT BEARING, NO.1
37237-37010

XZU34#

T=3.0

 2
37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT
37304-37020

XZU34#

 1
37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE
37315-37020

XZU34#

 3
37315-37021

XZU34#

 3
37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE
37315-37020

XZU34#

 3
37315-37021

XZU34#

 3
37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE
37315-37020

XZU34#

 3
37315-37021

XZU34#

 3
37341 - DEFLECTOR, PROPELLER SHAFT DUST, NO.1
37341-37020

XZU34#

 1
37341B - DEFLECTOR, PROPELLER SHAFT DUST, NO.5
37341-37020

XZU34#

 1
Common parts
90031-01164
90031-01165
90031-01191
90031-05078
90031-70075
90031-75010
90031-75011
90032-01069
90032-04005
90032-04031
90034-08006
90035-60057
90170-10028
90170-12018
94511-00800
