XZU340L-TKMSWR3 (1999)

Toyota Dyna

Production Jul 1999 - Dec 2002
Engine 15BFTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )15BFTE..XZU340

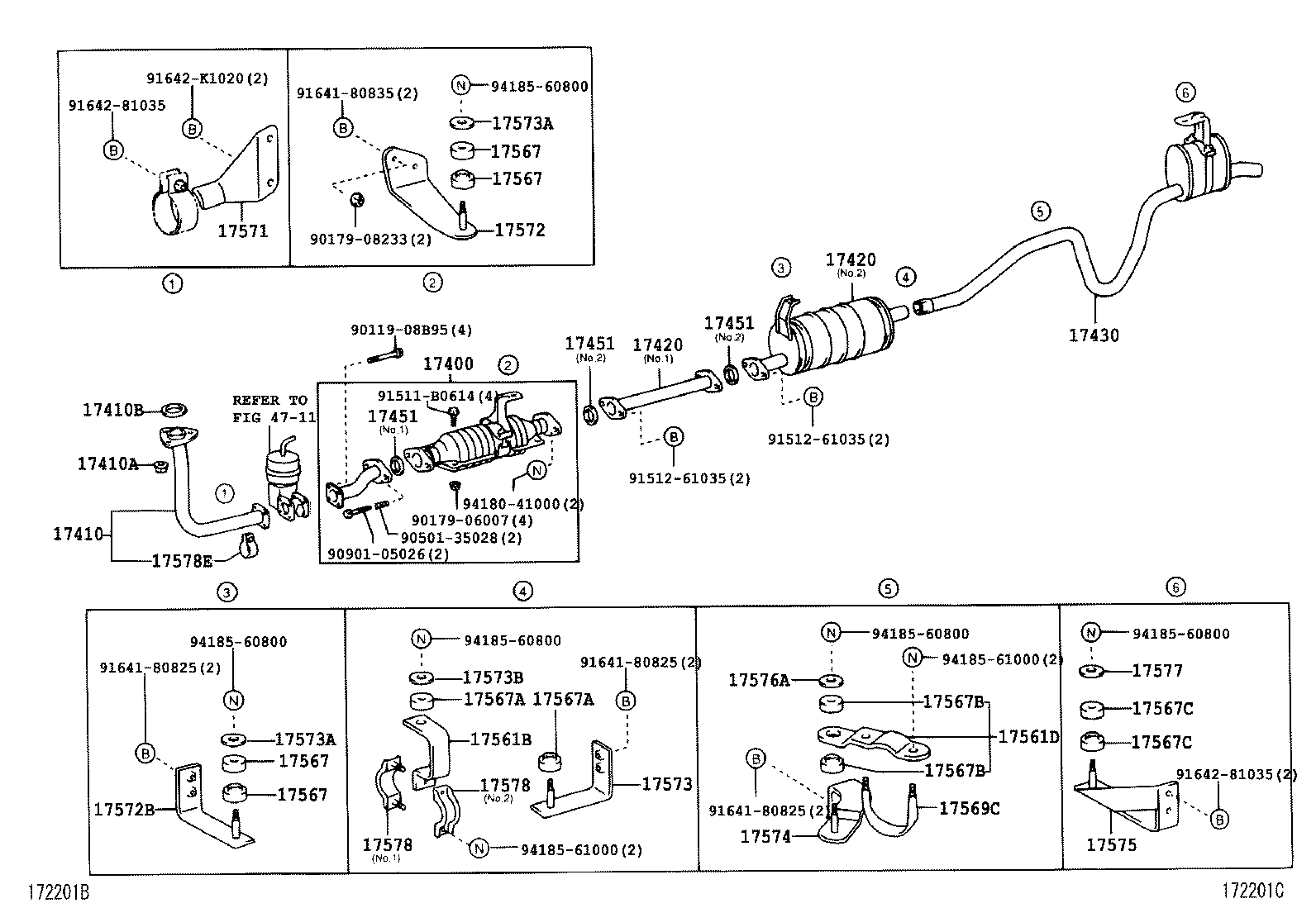

Click highlighted areas on diagram

diagram 17400 17410 17410A 17410B 17420 17420 17430 17451 17451 17451 17561B 17561D 17567 17567 17567 17567 17567A 17567A 17567B 17567B 17567C 17567C 17569C 17571 17572 17572B 17573 17573A 17573A 17573B 17574 17575 17576A 17577 17578 17578 17578E 4711 9011908B95 9017906007 9017908233 9050135028 9090105026 91511B0614 9151261035 9151261035 9164180825 9164180825 9164180825 9164180835 9164281035 9164281035 91642K1020 9418041000 9418560800 9418560800 9418560800 9418560800 9418560800 9418561000 9418561000
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
17406-58010

15BFTE..XZU300,320,330,340

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-58320

15BFTE..XZU300,320,330,340

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

S05C,15BFTE..XZU30#,320,330,34#

 3
17410B - GASKET, EXHAUST PIPE
90917-06067

15BFTE..XZU300,320,330,340

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17403-58520

15BFTE..XZU300,330,340

 1
17403-58500

15BFTE..XZU340

NO.1

 1
17403-58521

15BFTE..XZU300,330,340

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17403-58520

15BFTE..XZU300,330,340

 1
17403-58500

15BFTE..XZU340

NO.1

 1
17403-58521

15BFTE..XZU300,330,340

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-58620

15BFTE..XZU330,340

 1
17451 - GASKET, EXHAUST PIPE
17451-67010

15BFTE..XZU300,320,330,340

NO.1

 1
90917-06076

15BFTE..XZU340

NO.2

 2
17451 - GASKET, EXHAUST PIPE
17451-67010

15BFTE..XZU300,320,330,340

NO.1

 1
90917-06076

15BFTE..XZU340

NO.2

 2
17451 - GASKET, EXHAUST PIPE
17451-67010

15BFTE..XZU300,320,330,340

NO.1

 1
90917-06076

15BFTE..XZU340

NO.2

 2
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-78010

15BFTE..XZU300,320,330,340

 1
17561D - SUPPORT, EXHAUST PIPE, NO.1
17561-78030

S05C,15BFTE..XZU30#,330,34#

NO.1

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78010

15BFTE..XZU300,320,330,340

 4
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78010

15BFTE..XZU300,320,330,340

 4
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78010

15BFTE..XZU300,320,330,340

 4
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78010

15BFTE..XZU300,320,330,340

 4
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-78010

15BFTE..XZU300,320,330,340

 2
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-78010

15BFTE..XZU300,320,330,340

 2
17567B - CUSHION, EXHAUST PIPE SUPPORT, NO.3
17567-78010

15BFTE..XZU300,320,330,340

 2
17567B - CUSHION, EXHAUST PIPE SUPPORT, NO.3
17567-78010

15BFTE..XZU300,320,330,340

 2
17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4
17567-78010

15BFTE..XZU300,320,330,340

 2
17567C - CUSHION, EXHAUST PIPE SUPPORT, NO.4
17567-78010

15BFTE..XZU300,320,330,340

 2
17569C - BOLT, EXHAUST PIPE SUPPORT
17569-78010

15BFTE..XZU300,320,330,340

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-58390

15BFTE..XZU300,320,330,340

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572-58170

15BFTE..XZU300,330,340

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-58220

15BFTE..XZU340

 1
17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17573-58160

15BFTE..XZU330,340

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
16721-78010

15BFTE..XZU300,320,330,340

 2
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
16721-78010

15BFTE..XZU300,320,330,340

 2
17573B - BRACKET, EXHAUST PIPE SUPPORT, NO.5
16721-78010

15BFTE..XZU300,320,330,340

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-78010

15BFTE..XZU300,330,340

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-58060

15BFTE..XZU300,330,340

 1
17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6
16721-78010

15BFTE..XZU300,320,330,340

 1
17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7
16721-78010

15BFTE..XZU300,320,330,340

 1
17578 - CLAMP, PIPE
17578-78030

15BFTE..XZU300,320,330,340

NO.1

 1
17578-78040

15BFTE..XZU300,320,330,340

NO.2

 1
17578 - CLAMP, PIPE
17578-78030

15BFTE..XZU300,320,330,340

NO.1

 1
17578-78040

15BFTE..XZU300,320,330,340

NO.2

 1
17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE)
17578-78010

15BFTE..XZU300,320,330,340

 1
Common parts
90119-08B95
90179-06007
90179-08233
90501-35028
90901-05026
91511-B0614
91512-61035
91641-80825
91641-80835
91642-81035
91642-K1020
94180-41000
94185-60800
94185-61000
Linked diagrams
4711
