XZU330L-TKMSWR3 (1999)

Toyota Dyna

Production Jul 1999 - Dec 2002
Engine 15BFTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9907-0212)XZU300,320,330,340

Click highlighted areas on diagram

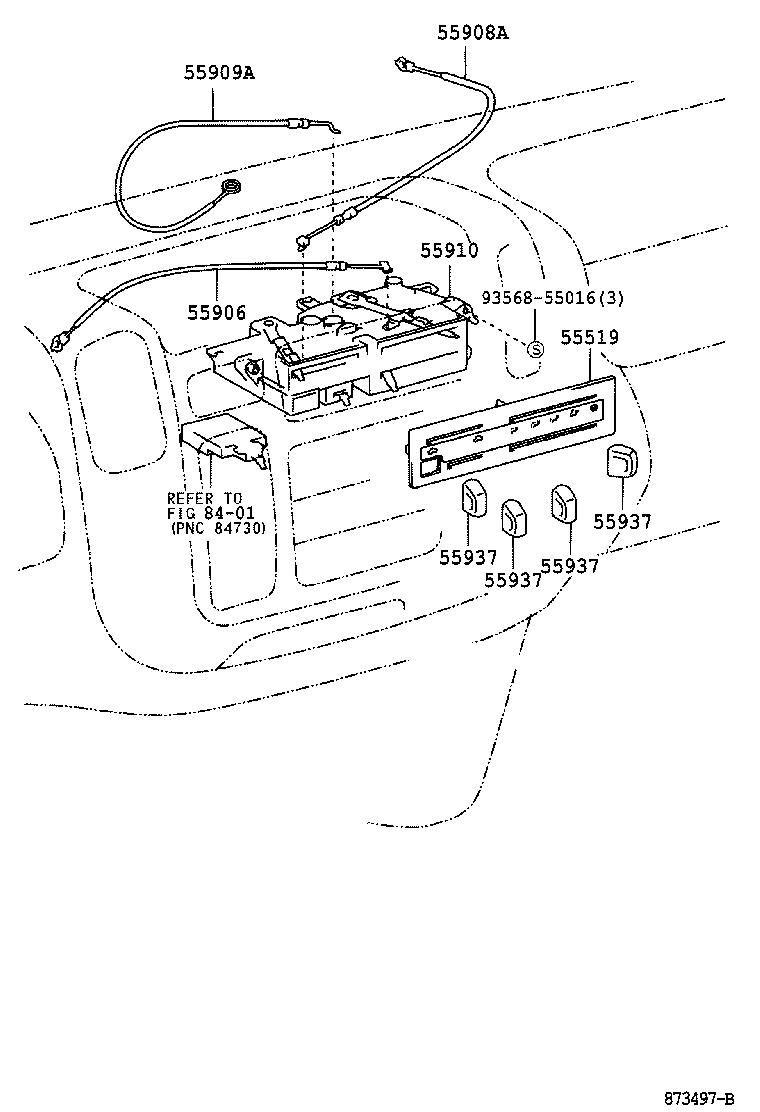

CONTROL

diagram 55519 55906 55908A 55909A 55910 55937 55937 55937 55937 8401 9356855016
Part # Description Qty Price
55519 - PLATE, HEATER CONTROL NAME
55519-37100

XZU300,320,330,340

 1
55906 - CABLE SUB-ASSY, HEATER CONTROL
55906-37050

XZU30#,320,330,34#

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-37060

XZU300,320,330,340

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-37070

XZU300,320,330,340

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-37070

XZU300,320,330,340

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-89115

XZU30#,320,330,34#

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-89115

XZU30#,320,330,34#

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-89115

XZU30#,320,330,34#

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-89115

XZU30#,320,330,34#

 4
Common parts
93568-55016
Linked diagrams
8401

ILLUST NO. 2 OF 3(9907-0212)XZU300,320,330,340

Click highlighted areas on diagram

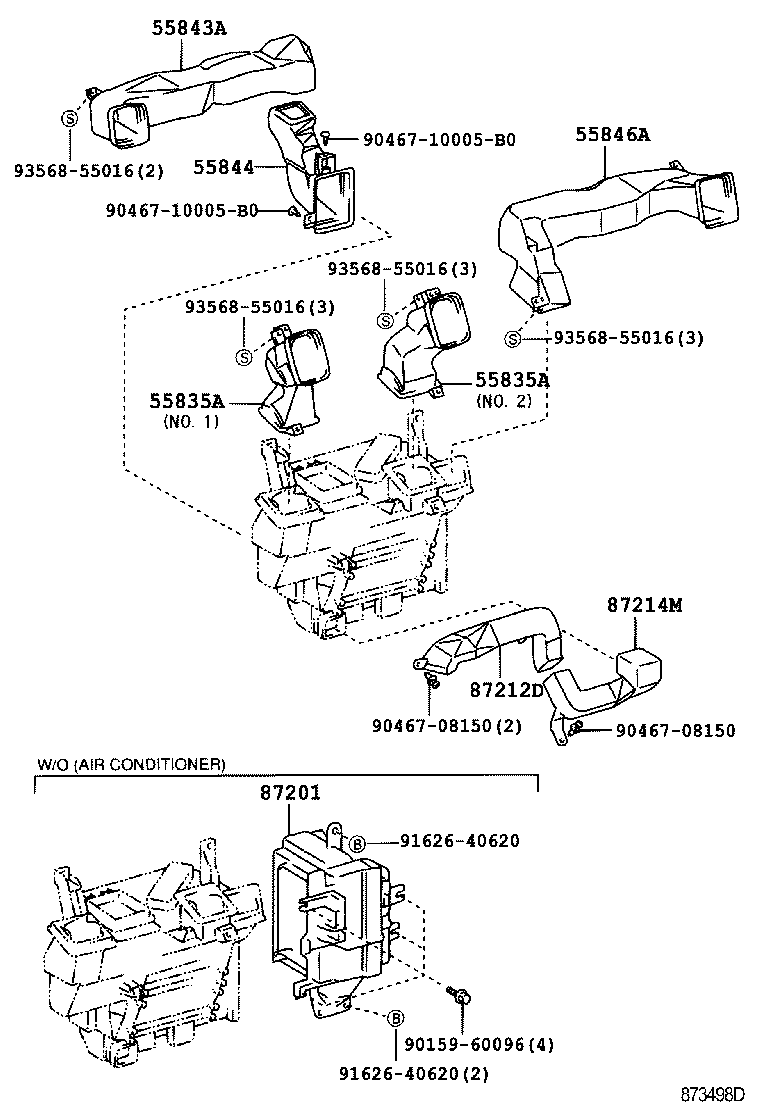

AIR DUCT

diagram 55835A 55835A 55843A 55844 55846A 87201 87212D 87214M 9015960096 9046708150 9046708150 9046710005B0 9046710005B0 9162640620 9162640620 9356855016 9356855016 9356855016 9356855016
Part # Description Qty Price
55835A - DUCT, HEATER TO REGISTER, CENTER
55835-37050

XZU300,320,330,340

NO.1

 1
55835-37060

XZU300,320,330,340

NO.2

 1
55835A - DUCT, HEATER TO REGISTER, CENTER
55835-37050

XZU300,320,330,340

NO.1

 1
55835-37060

XZU300,320,330,340

NO.2

 1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-37061

XZU300,320,330,340

 1
55843-37060

XZU300,320,330,340

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-37040

XZU300,320,330,340

 1
55846A - DUCT, HEATER TO REGISTER, NO.4
55846-37060

XZU300,320,330,340

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87211-37110

XZU300,320,330,340

 1
87212D - DUCT, HEATER TO FOOT, NO.1
87212-37030

XZU300,320,330,340

 1
87214M - DUCT, HEATER TO FOOT, NO.3
87214-37010

XZU300,320,330,340

 1
Common parts
90159-60096
90467-08150
90467-10005B0
91626-40620
93568-55016
