XZU330L-TKMSWR3 (1999)

Toyota Dyna

Production Jul 1999 - Dec 2002
Engine 15BFTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(9907- )XZU300,330,340

Click highlighted areas on diagram

FUEL TUBE

diagram 2302 77205 77206C 77242A 77243A 77243A 77243A 77278A 77278B 9046713007 9046713007 9046718002 9046718002 9046718002 9046718002
Part # Description Qty Price
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37330

XZU300,330

 1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37280

XZU300,330,340

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12022

XZU30#,320,330

*H,L=220,ID=12

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12032

XZU300,330,340

*H,L=320,ID=12

 1
95332-12020

XZU300,330,340

*H,L=200,ID=12

 1
95332-12038

XZU300,330,340

*H,L=380,ID=12

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12032

XZU300,330,340

*H,L=320,ID=12

 1
95332-12020

XZU300,330,340

*H,L=200,ID=12

 1
95332-12038

XZU300,330,340

*H,L=380,ID=12

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12032

XZU300,330,340

*H,L=320,ID=12

 1
95332-12020

XZU300,330,340

*H,L=200,ID=12

 1
95332-12038

XZU300,330,340

*H,L=380,ID=12

 1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95333-08030

XZU30#,330

*H,L=240,ID=7.6

 1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95333-08020

XZU30#,320,330,34#

*H,L=200,ID=7.6

 1
Common parts
90467-13007
90467-18002
Linked diagrams
2302

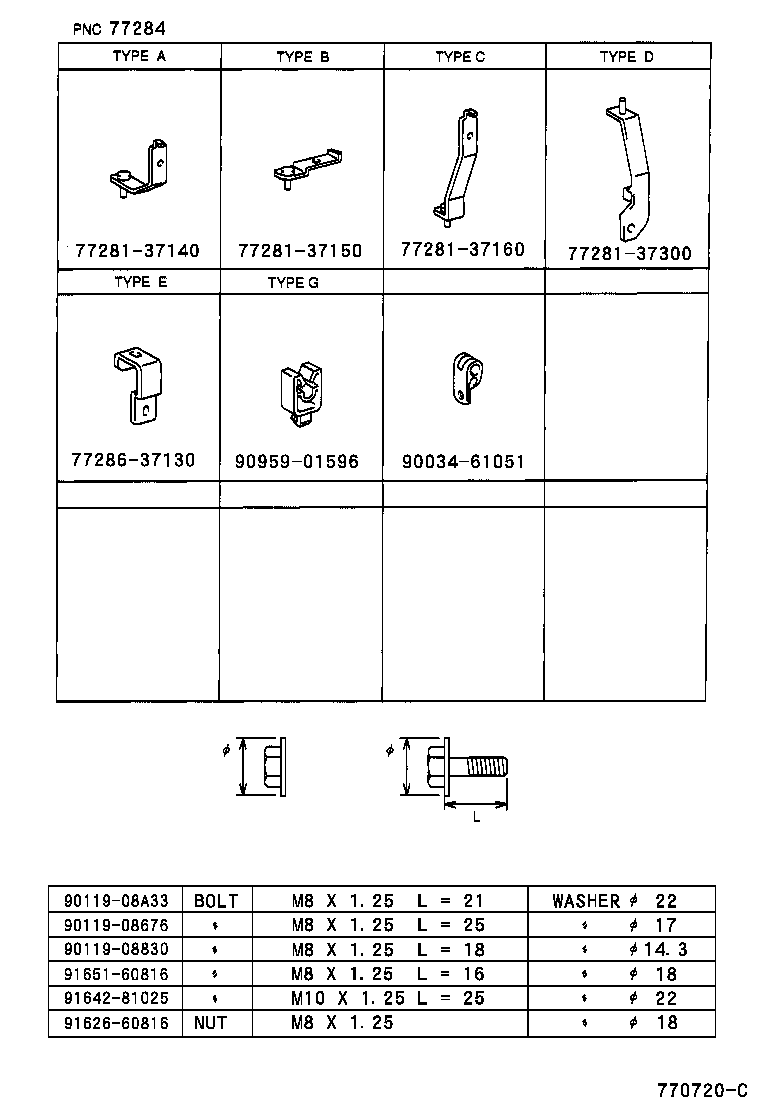

ILLUST NO. 3 OF 3(9907- )30T,40T ; (9907- )XZU302,307,342

Click highlighted areas on diagram

CLAMP

diagram 77284 9011908676 9011908830 9011908A33 9162660816 9164281025 9165160816
Part # Description Qty Price
Common parts
90119-08676
90119-08830
90119-08A33
91626-60816
91642-81025
91651-60816

ILLUST NO. 1 OF 3(9907- )

Click highlighted areas on diagram

FUEL TANK

diagram 77017B 77018 77022A 77022A 77100A 77100B 77100U 77135A 77197 77244C 77275B 77601A 77611A 77616C 77633 77644 77701U 9017910015 9017910015 9017910015 9017910015 9046713007 91611B0616 9162640616 9164281035 9164281040 91645C1032 91645C1032 93319A4010 9413000802 9413000802 9613251100
Part # Description Qty Price
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-37010

XZU30#,320,330,34#

 1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-37050

XZU30#,320,330,34#

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

XZU30#,320,330,34#

*H,L=280,ID=7.6

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

XZU30#,320,330,34#

*H,L=280,ID=7.6

 2
77100A - PLUG(FOR FUEL TANK)
90105-12116

XZU300,320,330,340

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

XZU300,320,330,340

 1
77100U - TANK SUB-ASSY, FUEL
77001-37220

XZU330,34#

960X310X385

 1
77135A - PROTECTOR, FUEL TANK SIDE
77135-37020

XZU330

 1
77197 - ORIFICE, FUEL VAPOR
90977-02001

XZU30#,320,330,34#

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36150

XZU30#,320,330,34#

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

XZU30#,320,330,34#

 2
77616C - SEAT, FUEL TANK BAND
77616-36030

XZU30#,320,330,34#

 2
77633 - STAY, FUEL TANK
77501-37080

XZU30#,320,330,34#

 2
77701U - HOSE, FUEL (FOR CHECK VALVE)
95333-06040

XZU30#,320,330,34#

*H,L=400

 1
Common parts
90179-10015
90467-13007
91611-B0616
91626-40616
91642-81035
91642-81040
91645-C1032
93319-A4010
94130-00802
96132-51100

ILLUST NO. 1 OF 3(9907- )XZU300,320,330,34#

Click highlighted areas on diagram

FUEL TANK W(SUB TANK)

diagram 77017B 77018 77018H 77022A 77022A 77022C 77022C 77100A 77100B 77100U 77100V 77100V 77100Z 77135A 77135A 77168A 77168A 77169A 77169A 77197 77197C 77244C 77601A 77601E 77611 77611A 77611E 77616C 77633 77633B 77701U 77701V 77710 77712 77713 77714 9017910015 9017910015 9017910015 9017910015 9020209047 9025003031 9038608164 9040112007 9040112007 9040510008 9040510008 9046107033 9046713007 9046715012 9048014006 9162640616 9164281035 9164281040 91645C1032 91645C1032 9331915010 93319A4010 93319A4010 9413000802 9413000802 9413000802 9413000802 9413000802 9613251100 9671319017 9671319017 9671319017 9671324011
Part # Description Qty Price
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-37010

XZU30#,320,330,34#

 1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-37050

XZU30#,320,330,34#

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

XZU30#,320,330,34#

*H,L=280,ID=7.6

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

XZU30#,320,330,34#

*H,L=280,ID=7.6

 2
77100A - PLUG(FOR FUEL TANK)
90105-12116

XZU300,320,330,340

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

XZU300,320,330,340

 1
77100U - TANK SUB-ASSY, FUEL
77001-37220

XZU330,34#

960X310X385

 1
77135A - PROTECTOR, FUEL TANK SIDE
77135-37020

XZU330

 1
77135A - PROTECTOR, FUEL TANK SIDE
77135-37020

XZU330

 1
77197 - ORIFICE, FUEL VAPOR
90977-02001

XZU30#,320,330,34#

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36150

XZU30#,320,330,34#

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

XZU30#,320,330,34#

 2
77616C - SEAT, FUEL TANK BAND
77616-36030

XZU30#,320,330,34#

 2
77633 - STAY, FUEL TANK
77501-37080

XZU30#,320,330,34#

 2
77701U - HOSE, FUEL (FOR CHECK VALVE)
95333-06040

XZU30#,320,330,34#

*H,L=400

 1
Common parts
90179-10015
90202-09047
90250-03031
90386-08164
90401-12007
90405-10008
90461-07033
90467-13007
90467-15012
90480-14006
91626-40616
91642-81035
91642-81040
91645-C1032
93319-15010
93319-A4010
94130-00802
96132-51100
96713-19017
96713-24011
