Toyota Dyna XZU330 FRONT FLOOR PANEL & FRONT FLOOR MEMBER

Manufacturers Home
Toyota
EU
DYNA
XZU330L-TKMSWR3 (1999)
5851 - FRONT FLOOR PANEL & FRONT FLOOR MEMBER

XZU330L-TKMSWR3 (1999)

Toyota Dyna

Production Jul 1999 - Dec 2002

Engine 15BFTE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

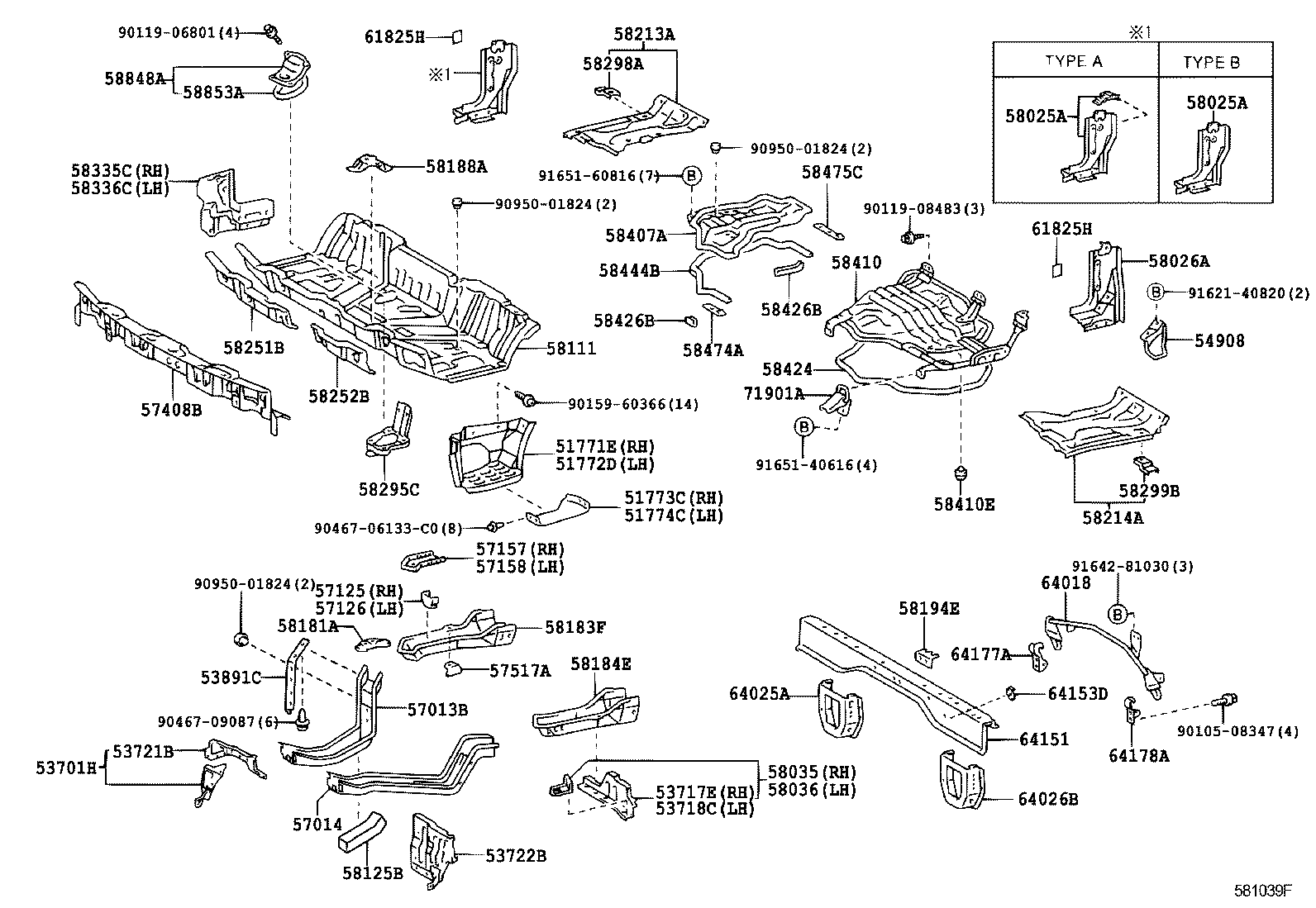

ILLUST NO. 1 OF 3(9907-0212)XZU300,320,330,340

Click highlighted areas on diagram

Part #	Description	Period	Qty
51771E - PLATE, STEP, RH
51083-37020	XZU330,340..40T	07/1999 - 07/2001	1
51083-37021	XZU330,340..40T	07/2001 - 12/2002	1
51772D - PLATE, STEP, LH
51084-37020	XZU330,340..40T	07/1999 - 12/2002	1
51773C - COVER, STEP PLATE, RH
51773-37030	XZU300,320,330,340	07/1999 - 06/2002	1
51774C - COVER, STEP PLATE, LH
51773-37030	XZU300,320,330,340	07/1999 - 06/2002	1
53701H - APRON SUB-ASSY, FRONT FENDER, RH
53701-37022	XZU300,320,330,340 TYPE A:REFER TO ILLUSTRATION	03/2000 - 12/2002	1
53701-37020	XZU300,320,330,340 TYPE A:REFER TO ILLUSTRATION	07/1999 - 10/1999	1
53701-37021	XZU300,320,330,340 TYPE A:REFER TO ILLUSTRATION	10/1999 - 03/2000	1
53717E - APRON, FRONT FENDER, NO.2 RH
53717-37130	XZU30#,320,330,34#	07/1999 - 12/2002	1
53718C - APRON, FRONT FENDER, NO.2 LH
53718-37110	XZU30#,320,330,34#	07/1999 - 12/2002	1
53721B - APRON SUB-ASSY, FENDER SIDE, RH
53721-37052	XZU30#,320,330,34#	03/2000 - 12/2002	1
53721-37051	XZU300,320,330,340	10/1999 - 03/2000	1
53721-37050	XZU300,320,330,340	07/1999 - 10/1999	1
53722B - APRON SUB-ASSY, FENDER SIDE, LH
53702-37030	XZU300,320,330,340	07/1999 - 06/2002	1
53702-37031	XZU300,320,330,340	06/2002 - 12/2002	1
53891C - SEAL, FRONT FENDER SPLASH SHEILD, FRONT
53891-37030	XZU30#,320,330,34#	07/1999 - 12/2002	1
54908 - BRACKET SUB-ASSY, TILT CAB GRIP
54908-37010	XZU30#,320,330,34#	07/1999 - 12/2002	1
57013B - MEMBER SUB-ASSY, FLOOR, FRONT RH
57013-37150	XZU30#,320,330,34#	07/1999 - 12/2002	1
57014 - MEMBER SUB-ASSY, FLOOR, FRONT LH
57014-37070	XZU30#,320,330,34#	07/1999 - 12/2002	1
57125 - BRACKET, FRONT SIDE MEMBER, RH
57125-37010	XZU30#,320,330,34#	07/1999 - 12/2002	1
57126 - BRACKET, FRONT SIDE MEMBER, LH
57126-37020	XZU30#,320,330,34#	07/1999 - 12/2002	1
57157 - REINFORCEMENT, FRONT SIDE MEMBER, NO.4 RH
57157-37030	XZU30#,320,330,34#	07/1999 - 12/2002	1
57158 - REINFORCEMENT, FRONT SIDE MEMBER, NO.4 LH
57158-37030	XZU30#,320,330,34#	07/1999 - 12/2002	1
57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS
57408-37270	XZU300,320,330,340	07/1999 - 06/2002	1
57408-37271	XZU300,320,330,340	06/2002 - 12/2002	1
57517A - RETAINER, FRONT FLOOR REINFORCEMENT, REAR
57517-37020	XZU300,320,330,340	07/1999 - 12/2002	1
58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH
58043-37060	XZU300,320,330,340 TYPE A:REFER TO ILLUSTRATION	07/1999 - 12/2002	1
58043-37080	XZU300,320,330,340 TYPE B:REFER TO ILLUSTRATION	06/2002 - 12/2002	1
58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH
58043-37060	XZU300,320,330,340 TYPE A:REFER TO ILLUSTRATION	07/1999 - 12/2002	1
58043-37080	XZU300,320,330,340 TYPE B:REFER TO ILLUSTRATION	06/2002 - 12/2002	1
58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH
58044-37070	XZU30#,320,330,34#	07/1999 - 12/2002	1
58035 - PANEL SUB-ASSY, REAR FLOOR SIDE, RH
58035-37030	XZU330,340..40T	07/1999 - 12/2002	1
58036 - PANEL SUB-ASSY, REAR FLOOR SIDE, LH
58036-37030	XZU330,340..40T	07/1999 - 12/2002	1
58111 - PAN, FRONT FLOOR
58111-37260	XZU300,320,330,340	07/1999 - 08/2000	1
58111-37261	XZU300,320,330,340	08/2000 - 12/2002	1
58125B - SEAL, FRONT FLOOR TO FRAME
58125-37020	XZU30#,320,330,34#	11/2000 - 12/2002	1
58181A - RETAINER, SEAT RAIL, FRONT
58181-37050	XZU300,320,330,340	07/1999 - 12/2002	1
58183F - REINFORCEMENT, REAR MOUNTING, RH
58183-37060	XZU30#,320,330,34#	07/1999 - 12/2002	1
58184E - REINFORCEMENT, REAR MOUNTING, LH
58184-37070	XZU300,320,330,340	07/1999 - 09/2000	1
58184-37071	XZU30#,320,330,34#	09/2000 - 12/2000	1
58184-37072	XZU30#,320,330,34#	12/2000 - 12/2002	1
58188A - BRACKET, ACCELERATOR PEDAL STOPPER
58188-37010	XZU300,320,330,340	07/1999 - 12/2002	1
58194E - RETAINER, ENGINE COVER HINGE
58194-37010	XZU300,320,330,340	07/1999 - 12/2002	1
58213A - PANEL, SEAT FLOOR, RH
58201-37100	XZU300,320,330,340	07/1999 - 12/2002	1
58214A - PANEL, SEAT FLOOR, LH
58202-37080	XZU300,320,330,340	07/1999 - 12/2002	1
58251B - BRACE, FLOOR PANEL, FRONT
58251-37050	XZU300,320,330,340	07/1999 - 08/2000	1
58251-37051	XZU300,320,330,340	08/2000 - 12/2002	1
58252B - BRACE, FLOOR PANEL, FRONT LH
58252-37060	XZU300,320,330,340	07/1999 - 12/2002	1
58295C - BRACKET, FLOOR SHIFT LEVER, NO.1
58295-37070	XZU300,320,330,340	07/1999 - 12/2002	1
58298A - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH
58298-37010	XZU30#,320,330,34#	07/1999 - 12/2002	1
58299B - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, LH
58298-37010	XZU30#,320,330,34#	07/1999 - 12/2002	1
58335C - PLATE, FLOOR SIDE, FRONT RH
58335-37040	XZU30#,320,330,34#	07/1999 - 12/2002	1
58336C - PLATE, FLOOR SIDE, FRONT LH
58336-37030	XZU30#,320,330,34#	07/1999 - 01/2001	1
58336-37031	XZU30#,320,330,34#	01/2001 - 12/2002	1
58407A - COVER SUB-ASSY, ENGINE SERVICE HOLE SUB
58407-37110	XZU300,320,330,340	07/1999 - 12/2002	1
58410 - COVER, ENGINE SERVICE HOLE
59208-37171	XZU300,320,330,340	02/2001 - 12/2002	1
59208-37170	XZU300,320,330,340	07/1999 - 02/2001	1
58410E - CUSHION, NO.3
90541-09046	XZU300,320,330,340	07/1999 - 12/2002	4
58424 - PACKING, ENGINE SERVICE HOLE COVER, NO.1
58424-37020	XZU300,320,330,340	07/1999 - 12/2002	1
58426B - PROTECTOR, ENGINE SUB COVER
58426-95405	XZU300,320,330,340	07/1999 - 12/2002	2
58426B - PROTECTOR, ENGINE SUB COVER
58426-95405	XZU300,320,330,340	07/1999 - 12/2002	2
58444B - PACKING, ENGINE SUB COVER
58444-37030	XZU300,320,330,340	07/1999 - 12/2002	1
58474A - PACKING, ENGINE SUB COVER, NO.2
58474-37010	XZU300,320,330,340	07/1999 - 12/2002	1
58475C - PACKING, ENGIN SUB COVER, NO.3
58475-37030	XZU300,320,330,340	07/1999 - 12/2002	1
58848A - COVER, SHIFT LEVER HOLE
58840-37020	XZU300,320,330,340	07/1999 - 12/2002	1
58853A - PACKING, SHIFT LEVER HOLE
58853-37020	XZU30#,320,330,34#	07/1999 - 12/2002	1
61825H - PAD, NOISE SHUTTER, NO.2
61825-34010	XZU30#,320,330,34#	07/1999 - 12/2002	2
61825H - PAD, NOISE SHUTTER, NO.2
61825-34010	XZU30#,320,330,34#	07/1999 - 12/2002	2
64018 - BAR SUB-ASSY, BODY
64018-37080	XZU300,320,330,340	07/1999 - 12/2002	1
64025A - BRACKET SUB-ASSY, REAR MOUNTING, RH
64171-37010	XZU30#,320,330,34#	07/1999 - 12/2002	1
64026B - BRACKET SUB-ASSY, REAR MOUNTING, LH
64026-37090	XZU300,320,330,340	07/1999 - 12/2002	1
64151 - FRAME, BACK
64151-37220	XZU300,320,330,340	07/1999 - 09/2001	1
64151-37221	XZU300,320,330,340	09/2001 - 12/2002	1
64153D - REINFORCEMENT, BACK FRAME
64153-37020	XZU30#,320,330,34#	07/1999 - 11/2001	1
52123-32040	XZU30#,320,330,34#	11/2001 - 12/2002	1
64177A - STOPPER, REAR MOUNTING BRACKET, RH
64177-37030	XZU30#,320,330,34#	07/1999 - 12/2002	1
64178A - STOPPER, REAR MOUNTING BRACKET, LH
64178-37030	XZU30#,320,330,34#	07/1999 - 12/2002	1
71901A - CATCH SUB-ASSY, CENTER SEAT CUSHION, FRONT
71902-37010	XZU300,320,330,340	07/1999 - 12/2002	2
Common parts
90105-08347
90119-06801
90119-08483
90159-60366
90467-06133C0
90467-09087
90950-01824
91621-40820
91642-81030
91651-40616
91651-60816

ILLUST NO. 2 OF 3(9907-0212)

Click highlighted areas on diagram

Part #	Description	Period	Qty
53089A - MUDGUARD SUB-ASSY, FRONT
53737-37020	XZU330,340..40T LH	07/1999 - 12/2002	1
53736-37020	XZU330,340..40T RH	07/1999 - 12/2002	1
53089B - CLIP, FRONT MUDGUARD
67868-95401	XZU330,340..40T	07/1999 - 12/2002	12
53702H - APRON SUB-ASSY, FENDER, LH
53702-37020	XZU330,340..40T	07/1999 - 12/2002	1
53706C - BRACE SUB-ASSY, FENDER APRON, LH
53706-37030	XZU330,340..40T	01/2001 - 12/2002	1
53707B - APRON SUB-ASSY, FENDER SIDE, RH
53715-37170	XZU330,340..40T	07/1999 - 12/2002	1
53708B - APRON SUB-ASSY, FENDER SIDE, LH
53716-37190	XZU330,340..40T	07/1999 - 12/2002	1
53719A - BRACE, FENDER APRON
53719-37110	XZU300,320,330,340	07/1999 - 12/2002	1
53881D - MUDGUARD, FRONT RH
53881-37060	XZU330,340..40T	07/1999 - 12/2002	1
53882D - MUDGUARD, FRONT LH
53881-37060	XZU330,340..40T	07/1999 - 12/2002	1
53887E - PLATE, FRONT MUDGUARD
53887-37040	XZU330,340..40T	07/1999 - 12/2002	2
53892C - SEAL, FRONT FENDER SPLASH SHIELD, FRONT LH
53892-37030	XZU30#,330,34#..20T,40T	07/1999 - 12/2002	1
58142A - APRON, FRONT FLOOR SIDE, NO.1 LH
58142-37010	XZU30#,330,34#..20T,40T	07/1999 - 12/2002	1
58153D - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-37010	XZU30#,320,330,34#	07/1999 - 07/2001	1
76623D - MUDGUARD, FRONT FENDER, FRONT RH
76623-37061	XZU300,320,330,340	10/2002 - 12/2002	1
76623-37060	XZU300,320,330,340	07/1999 - 10/2002	1
Common parts
90119-08539
90179-08233
90467-05021B6
90467-0604601
90467-09087
91651-60816
91651-B0616
91651-B0820
91651-B0825

ILLUST NO. 3 OF 3(9907-0212)

Click highlighted areas on diagram

PLUG HOLE

Part #	Description	Period	Qty	Price
Common parts
58137-37020
90333-20001
90333-25001
90950-01112
90950-01759
90950-01808
90950-01824
90950-01945
90950-06060

XZU330L-TKMSWR3 (1999)

ILLUST NO. 1 OF 3(9907-0212)XZU300,320,330,340

ILLUST NO. 2 OF 3(9907-0212)

ILLUST NO. 3 OF 3(9907-0212)
