XZU330L-TKMSWR3 (1999)
Toyota Dyna

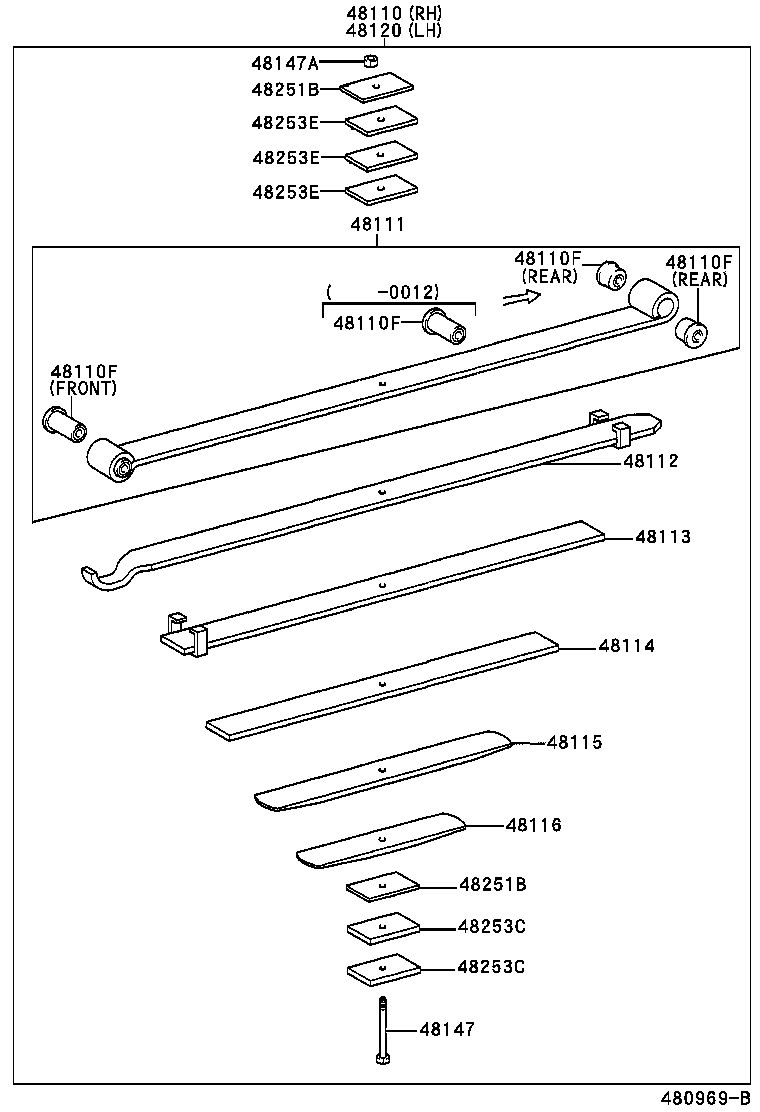

ILLUST NO. 2 OF 3(9907- )40T
6-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-37472 |
XZU330,340..40T 6-LEAF |
1 | ||
| 48110-37470 |
XZU330,340..40T 6-LEAF |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU300,302,320,330,34#..WT REAR |
4 | ||
| 90389-16025 |
XZU300,302,320,330,34#..WT |
4 | ||
| 90389-16025 |
XZU300,302,320,330,34#..WT FRONT |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU300,302,320,330,34#..WT REAR |
4 | ||
| 90389-16025 |
XZU300,302,320,330,34#..WT |
4 | ||
| 90389-16025 |
XZU300,302,320,330,34#..WT FRONT |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU300,302,320,330,34#..WT REAR |
4 | ||
| 90389-16025 |
XZU300,302,320,330,34#..WT |
4 | ||
| 90389-16025 |
XZU300,302,320,330,34#..WT FRONT |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU300,302,320,330,34#..WT REAR |
4 | ||
| 90389-16025 |
XZU300,302,320,330,34#..WT |
4 | ||
| 90389-16025 |
XZU300,302,320,330,34#..WT FRONT |
2 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-37470 |
XZU330,340..40T PASSENGER SIDE |
1 | ||
| 48101-37472 |
XZU330,340..40T PASSENGER SIDE |
1 | ||
| 48101-37480 |
XZU330,340..40T DRIVER SIDE |
1 | ||
| 48101-37482 |
XZU330,340..40T DRIVER SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48103-37470 |
XZU330,340..40T PASSENGER SIDE |
1 | ||
| 48103-37480 |
XZU330,340..40T DRIVER SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48104-37470 |
XZU330,340..40T PASSENGER SIDE |
1 | ||
| 48104-37480 |
XZU330,340..40T DRIVER SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-37470 |
XZU330,340..40T PASSENGER SIDE |
1 | ||
| 48114-37480 |
XZU330,340..40T DRIVER SIDE |
1 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-37480 |
XZU330,340..40T DRIVER SIDE |
1 | ||
| 48115-37470 |
XZU330,340..40T PASSENGER SIDE |
1 | ||
| 48116 - LEAF, FRONT SPRING, NO.6 | ||||
| 48116-37470 |
XZU330,340..40T PASSENGER SIDE |
1 | ||
| 48116-37480 |
XZU330,340..40T DRIVER SIDE |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-37482 |
XZU330,340..40T 6-LEAF |
1 | ||
| 48110-37480 |
XZU330,340..40T 6-LEAF |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-37270 |
XZU330,340..40T |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48155-3B470 |
XZU330,340..40T |
2 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48117-37470 |
XZU330,340..40T LOWER |
2 | ||
| 48117-37270 |
XZU330,340..40T UPPER |
2 | ||
| 48117-37470 |
XZU330,340..40T |
2 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48117-37470 |
XZU330,340..40T LOWER |
2 | ||
| 48117-37270 |
XZU330,340..40T UPPER |
2 | ||
| 48117-37470 |
XZU330,340..40T |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48115-37510 |
XZU330,340..40T |
4 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48115-37510 |
XZU330,340..40T |
4 | ||
| 48253E - SPACER, FRONT SPRING, NO.3 | ||||
| 48116-37270 |
XZU330,340..40T |
6 | ||
| 48253E - SPACER, FRONT SPRING, NO.3 | ||||
| 48116-37270 |
XZU330,340..40T |
6 | ||
| 48253E - SPACER, FRONT SPRING, NO.3 | ||||
| 48116-37270 |
XZU330,340..40T |
6 | ||

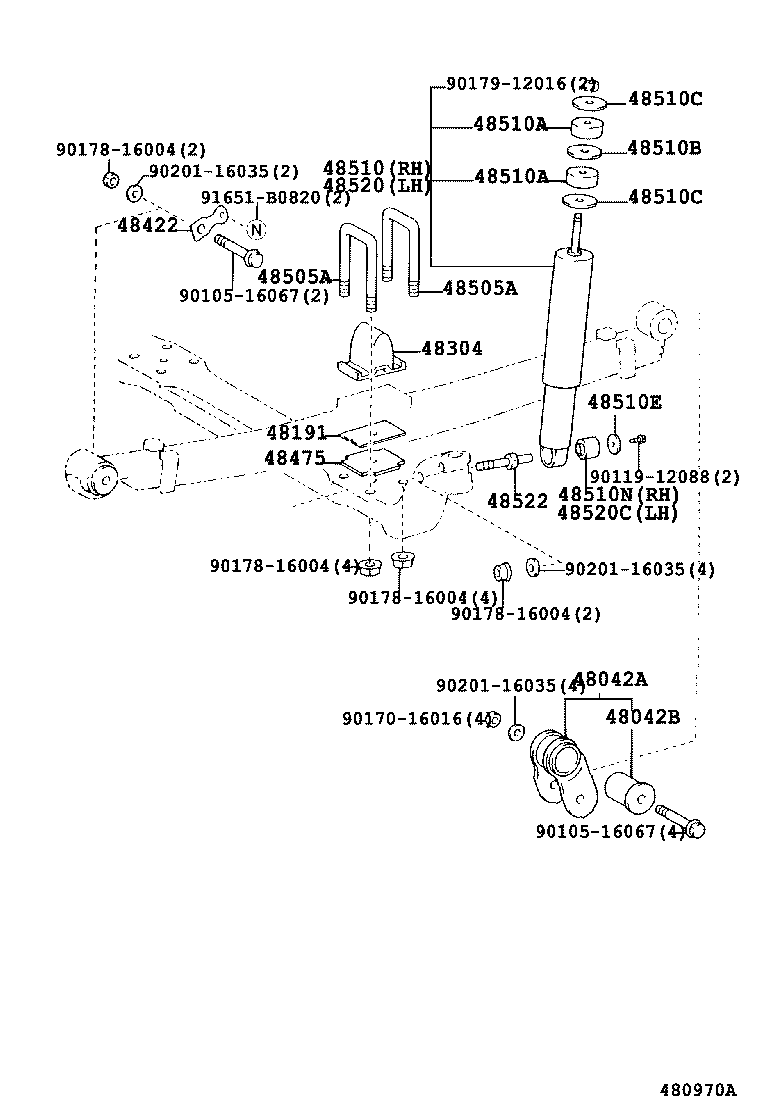

ILLUST NO. 1 OF 3(9907-0212)XZU300,320,330,340
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042A - SHACKLE SUB-ASSY, FRONT SPRING, NO.2 | ||||
| 48042-37030 |
XZU300,302,320,330,34# |
2 | ||
| 48042-37020 |
XZU300,302,320,330,34# |
2 | ||
| 48042B - BUSH, FRONT SPRING NO.2 SHACKLE | ||||
| 90389-16025 |
XZU300,302,320,330,34# |
2 | ||
| 90389-16026 |
XZU300,302,320,330,34# |
4 | ||
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48191-37060 |
XZU300,302,320,330,34# |
2 | ||
| 48191-37110 |
XZU300,320,330,340 |
2 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-37040 |
XZU300,302,320,330,34# |
2 | ||
| 48422 - SUPPORT, FRONT SPRING PIN | ||||
| 48422-37010 |
XZU300,302,320,330,34# |
2 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-36070 |
XZU300,302,320,330,34# |
1 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16073 |
XZU330,340..40T L=160 |
1 | ||
| 90117-16065 |
XZU330,340..40T L=150 |
4 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16073 |
XZU330,340..40T L=160 |
1 | ||
| 90117-16065 |
XZU330,340..40T L=150 |
4 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-80079 |
XZU300,320,330,340 MARK 48511-37060 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01071 |
XZU300,302,320,330,34# |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01071 |
XZU300,302,320,330,34# |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02054 |
XZU300,302,320,330,34# |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02009 |
XZU300,302,320,330,34# |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02009 |
XZU300,302,320,330,34# |
4 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03011 |
XZU300,302,320,330,34# |
2 | ||
| 48510N - BUSH(FOR FRONT SHOCK ABSORBER RH) | ||||
| 90385-19011 |
XZU300,302,320,330,34# |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-80079 |
XZU300,320,330,340 MARK 48511-37060 |
1 | ||
| 48520C - BUSH(FOR FRONT SHOCK ABSORBER LH) | ||||
| 90385-19011 |
XZU300,302,320,330,34# |
1 | ||
| 48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT | ||||
| 48522-37030 |
XZU300,302,320,330,34# |
2 | ||
| Common parts | ||||
| 90105-16067 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90178-16004 | ||||
| 90179-12016 | ||||
| 90201-16035 | ||||
| 91651-B0820 | ||||
ILLUST NO. 3 OF 3(9907- )
