XZU330L-TKMSWR3 (1999)

Toyota Dyna

Production Jul 1999 - Dec 2002
Engine 15BFTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 4 OF 4(9907-0011) ; (0011- )ST ; (0011- )XZU300,320,330,340

Click highlighted areas on diagram

W(LSPV)

diagram 04477 47910 47920 47920A 47920A 47920B 47920C 47920C 47924 47924 47931 47933 47935 47935A 47936 47937 9011908A33 9017008016 9017908204 9017908204 9017908204 9020108062 9020123360 9020123360 9020123360 9113150840 9113150840 91611B0816 9411040800 9411040800 9461210800
Part # Description Qty Price
04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-37010

XZU302..ST;XZU300,320,330,340

 1
04477-37010

XZU30#,320,330,34#

 1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-37090

XZU302..ST;XZU300,320,330,340

 1
47910-37090

XZU30#,320,330,34#

 1
47920 - SPRING ASSY, LOAD SENSING
47920-37070

XZU30#,330,34#..WT

 1
47920-37070

XZU300,330,340

 1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

XZU30#,320,330,34#

 2
90387-08099

XZU302..ST;XZU300,320,330,340

 2
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

XZU30#,320,330,34#

 2
90387-08099

XZU302..ST;XZU300,320,330,340

 2
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110

XZU30#,320,330,34#

 1
90467-31110

XZU302..ST;XZU300,320,330,340

 1
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

XZU302..ST;XZU300,320,330,340

 2
90202-10103

XZU30#,320,330,34#

 2
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

XZU302..ST;XZU300,320,330,340

 2
90202-10103

XZU30#,320,330,34#

 2
47924 - BUSH, LOAD SENSING VALVE
47924-35010

XZU30#,320,330,34#

 2
47924-35010

XZU302..ST;XZU300,320,330,340

 2
47924 - BUSH, LOAD SENSING VALVE
47924-35010

XZU30#,320,330,34#

 2
47924-35010

XZU302..ST;XZU300,320,330,340

 2
47931 - BRACKET, LOAD SENSING VALVE
47931-37020

XZU302..ST;XZU300,330,340

 1
47931-37020

XZU30#,330,34#

 1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-37060

XZU302..ST;XZU300,330,340

 1
47933-37060

XZU30#,330,34#

 1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-35030

XZU302..ST;XZU300,320,330,340

 1
47935-35030

XZU30#,320,330,34#

 1
47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE)
90387-08099

XZU30#,320,330,34#

 1
90387-08099

XZU302..ST;XZU300,320,330,340

 1
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-26020

XZU30#,320,330,34#

 1
47936-26020

XZU302..ST;XZU300,320,330,340

 1
47937 - PLATE, LOAD SENSING VALVE SET
47937-60010

XZU30#,320,330,34#

 1
47937-60010

XZU302..ST;XZU300,320,330,340

 1
Common parts
90119-08A33
90170-08016
90179-08204
90201-08062
90201-23360
91131-50840
91611-B0816
94110-40800
94612-10800

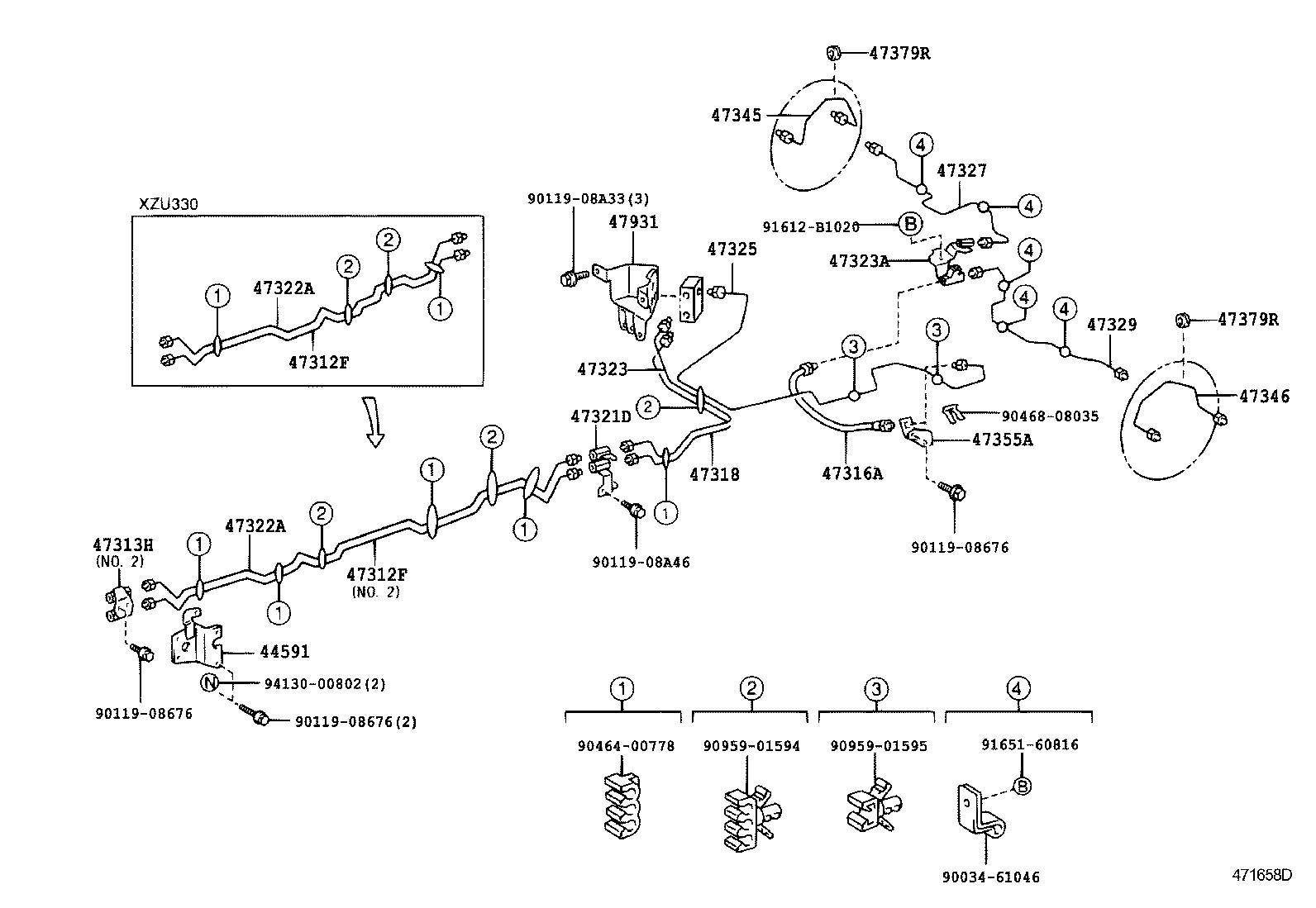

ILLUST NO. 2 OF 4(9907- )40T

Click highlighted areas on diagram

diagram 44591 47312F 47312F 47313H 47316A 47318 47321D 47322A 47322A 47323 47323A 47325 47327 47329 47345 47346 47355A 47379R 47379R 47931 9003461046 9011908676 9011908676 9011908676 9011908A33 9011908A46 9046400778 9046808035 9095901594 9095901595 91612B1020 9165160816 9413000802
Part # Description Qty Price
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44501-37010

XZU300,330,340

 1
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37130

XZU330

NO.2

 1
47312-37220

XZU300,320,330,340

NO.1

 1
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37130

XZU330

NO.2

 1
47312-37220

XZU300,320,330,340

NO.1

 1
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90904-13053

XZU300,320,330,340

NO.1

 1
90904-12076

XZU300,320,330,340

NO.2

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02B29

XZU300,330,340

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-37180

XZU300,330,340

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10229

XZU300,330,340

 1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37180

XZU330

 1
47322A - TUBE, REAR BRAKE, FRAME NO.2
47322-37180

XZU330

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-37200

XZU300,330,340

 1
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
90904-13052

XZU300,330,340

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-37210

XZU300,330,340

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-37470

XZU330,340..40T

 1
47329 - TUBE, REAR BRAKE, NO.9
47329-37330

XZU330,340..40T

 1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-37060

XZU330,340..40T

 1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47346-37020

XZU330,340..40T

 1
47355A - BRACKET, FLEXIBLE HOSE, NO.5
47353-37240

XZU30#,330,34#..WT

 1
47379R - DAMPER, TUBE(FOR REAR)
47379-37010

XZU330,340..40T

 2
47379R - DAMPER, TUBE(FOR REAR)
47379-37010

XZU330,340..40T

 2
47931 - BRACKET, LOAD SENSING VALVE
47931-37020

XZU302..ST;XZU300,330,340

 1
47931-37020

XZU30#,330,34#

 1
Common parts
90034-61046
90119-08676
90119-08A33
90119-08A46
90464-00778
90468-08035
90959-01594
90959-01595
91612-B1020
91651-60816
94130-00802

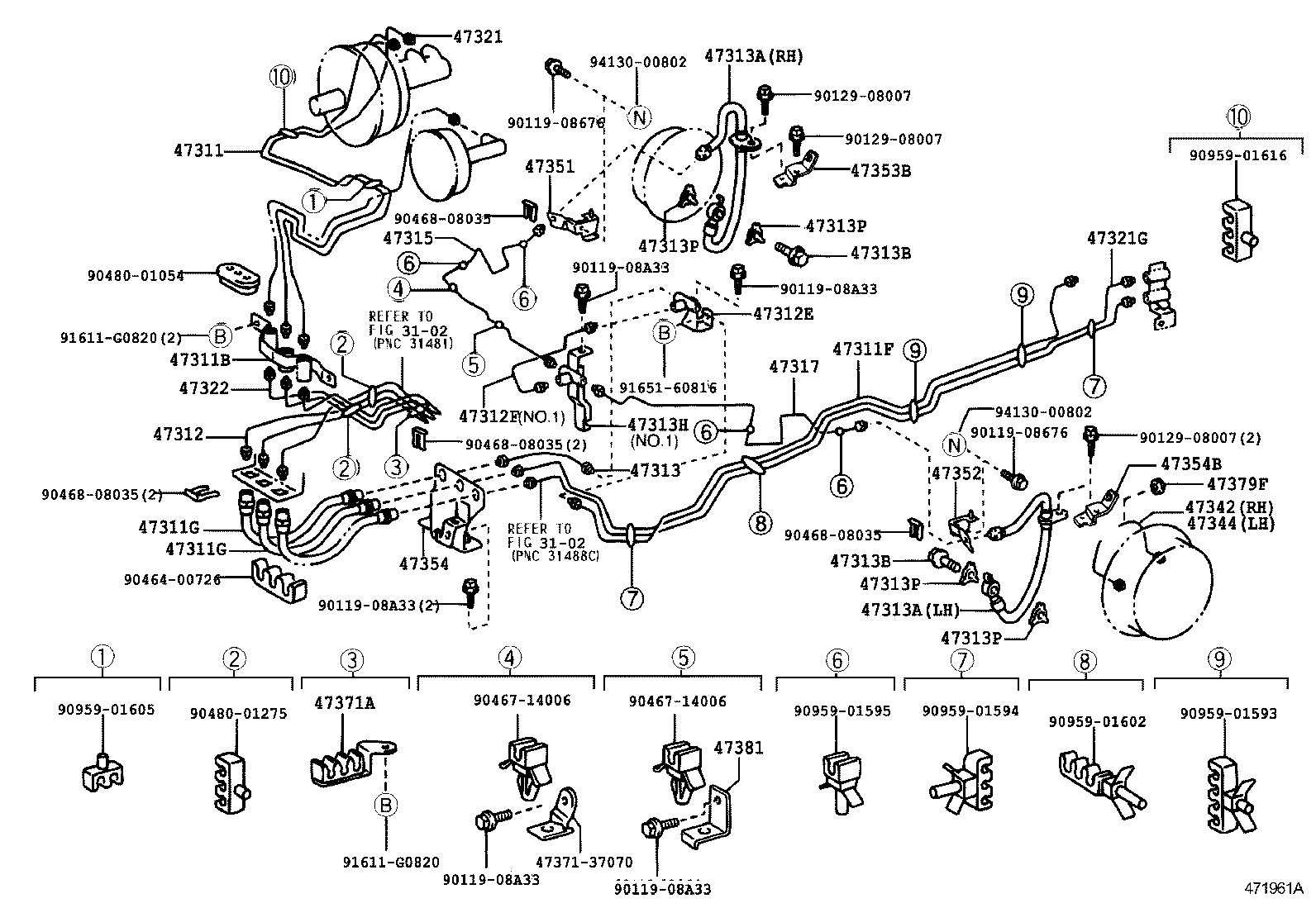

ILLUST NO. 1 OF 4(9907- )40T

Click highlighted areas on diagram

diagram 3102 3102 47311 47311B 47311F 47311G 47311G 47312 47312E 47312F 47313 47313A 47313A 47313B 47313B 47313H 47313P 47313P 47313P 47313P 47315 47317 47321 47321G 47322 47342 47344 47351 47352 47353B 47354 47354B 4737137070 47371A 47379F 47381 9011908676 9011908676 9011908A33 9011908A33 9011908A33 9011908A33 9011908A33 9012908007 9012908007 9012908007 9046400726 9046714006 9046714006 9046808035 9046808035 9046808035 9046808035 9048001054 9048001275 9095901593 9095901594 9095901595 9095901602 9095901605 9095901616 91611G0820 91611G0820 9165160816 9413000802 9413000802
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-37170

XZU300,320,330,340

 1
47311-37171

XZU300,320,330,340

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
47391-37010

XZU30#,320,330,34#

 1
47311F - TUBE, FRONT BRAKE, FRAME NO.1
47311-37210

XZU300,330,340

 1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02A79

XZU30#,320,330,34#

 2
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02A79

XZU30#,320,330,34#

 2
47312 - TUBE, FRONT BRAKE, NO.2
47312-37070

XZU300,320,330,340

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90413-12007

XZU300,320,330,340

 1
47312F - TUBE, FRONT BRAKE, FRAME, NO.2
47312-37130

XZU330

NO.2

 1
47312-37220

XZU300,320,330,340

NO.1

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-37250

XZU300,320,330,340

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02A71

XZU330,340..40T

LH

 1
90947-02A70

XZU330,340..40T

RH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02A71

XZU330,340..40T

LH

 1
90947-02A70

XZU330,340..40T

RH

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

XZU30#,320,330,34#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

XZU30#,320,330,34#

 2
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90904-13053

XZU300,320,330,340

NO.1

 1
90904-12076

XZU300,320,330,340

NO.2

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

XZU30#,320,330,34#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

XZU30#,320,330,34#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

XZU30#,320,330,34#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

XZU30#,320,330,34#

 4
47315 - TUBE, FRONT BRAKE, NO.5
47315-37250

XZU330,340..40T

 1
47315-37251

XZU330,340..40T

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-37310

XZU330,340..40T

 1
47317-37311

XZU330,340..40T

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-37171

XZU300,320,330,340

 1
47321-37170

XZU300,320,330,340

 1
47321-37172

XZU300,320,330,340

 1
47321G - TUBE, REAR BRAKE, FRAME NO.1
47321-37210

XZU300,330,340

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-37210

XZU300,320,330,340

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47342-37061

XZU330,340..40T

 1
47342-37060

XZU330,340..40T

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47342-37061

XZU330,340..40T

 1
47342-37060

XZU330,340..40T

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-37230

XZU330,340..40T

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-37140

XZU330,340..40T

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-37010

XZU330,340..40T

 1
47354 - BRACKET, FRONT FLEXIBLE HOSE
47351-37260

XZU300,320,330,340

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-37050

XZU330,340..40T

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-37020

XZU300,320,330,340

 1
47379F - DAMPER, TUBE(FOR FRONT)
47379-37010

XZU330,340..40T

 4
Common parts
47371-37070
90119-08676
90119-08A33
90129-08007
90464-00726
90467-14006
90468-08035
90480-01054
90480-01275
90959-01593
90959-01594
90959-01595
90959-01602
90959-01605
90959-01616
91611-G0820
91651-60816
94130-00802
Linked diagrams
3102
