XZU330L-TKMSWR3 (1999)
Toyota Dyna

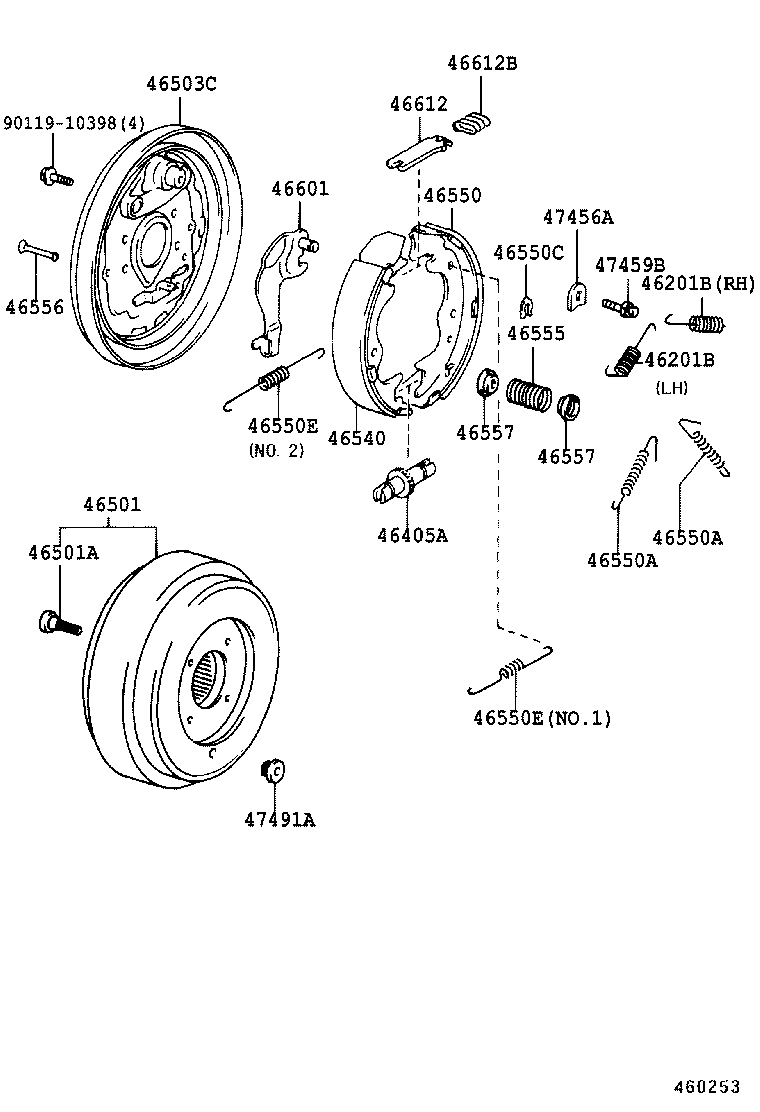

ILLUST NO. 2 OF 2(9907- )40T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201B - SPRING, TENSION | ||||
| 90507-20021 |
XZU330,340..40T LH |
1 | ||
| 90507-20020 |
XZU330,340..40T RH |
1 | ||
| 46201B - SPRING, TENSION | ||||
| 90507-20021 |
XZU330,340..40T LH |
1 | ||
| 90507-20020 |
XZU330,340..40T RH |
1 | ||
| 46405A - SCREW SET, SHOE ADJUSTING, RH | ||||
| 47405-36010 |
XZU330,340..40T |
1 | ||
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46501-37050 |
XZU330,340..40T |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| 90031-01170 |
XZU300,320,330,34# |
4 | ||
| 46503C - PLATE SUB-ASSY, PARKING BRAKE | ||||
| 46503-36060 |
XZU330,340..40T |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-37030 |
XZU330,340..40T |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-37030 |
XZU330,340..40T |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90905-06020 |
XZU330,340..40T |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90905-06020 |
XZU330,340..40T |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-06003 |
XZU330,340..40T |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14054 |
XZU330,340..40T NO.2 |
1 | ||
| 90506-23049 |
XZU330,340..40T NO.1 |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14054 |
XZU330,340..40T NO.2 |
1 | ||
| 90506-23049 |
XZU330,340..40T NO.1 |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 90501-16108 |
XZU330,340..40T |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 47447-20030 |
XZU330,340..40T |
2 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
XZU320,330,340 |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
XZU320,330,340 |
4 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46601-36051 |
XZU330,340..40T |
1 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| 46612-36050 |
XZU330,340..40T |
1 | ||
| 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-10010 |
XZU330,340..40T |
1 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-20030 |
XZU330,340..40T |
1 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
XZU330,340..40T |
1 | ||
| 47491A - PLUG, SHOE ADJUSTING HOLE(FOR PARKING BRAKE SHOE) | ||||
| 47491-22020 |
XZU330,340..40T |
1 | ||
| Common parts | ||||
| 90119-10398 | ||||

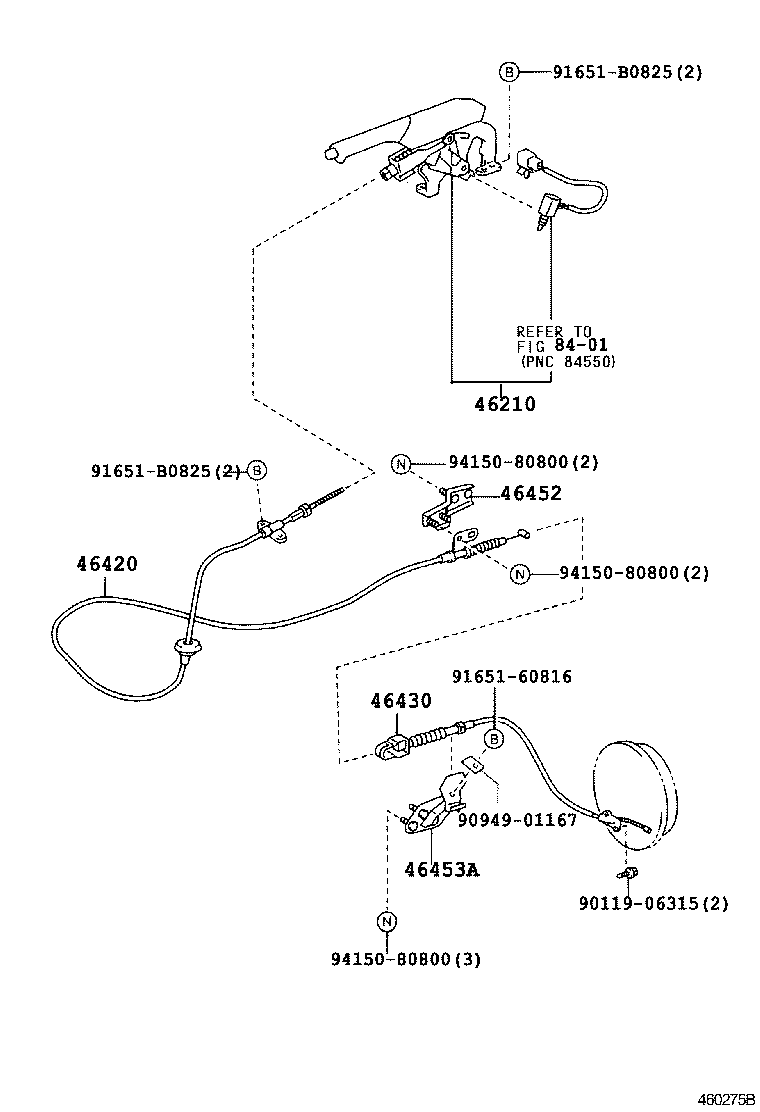

ILLUST NO. 1 OF 2(9907- )40T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-37030B0 |
XZU300,320,330,340 DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37032 |
XZU300,320,330,340 |
1 | ||
| 46210-37031B0 |
XZU300,320,330,340 DK.CHARCOAL,TRIM1# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-37180 |
XZU300,330,340 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-37320 |
XZU330,340..40T |
1 | ||
| 46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2 | ||||
| 46452-37020 |
XZU30#,330,34# |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37070 |
XZU30#,330,34# |
1 | ||
| Common parts | ||||
| 90119-06315 | ||||
| 90949-01167 | ||||
| 91651-60816 | ||||
| 91651-B0825 | ||||
| 94150-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
