XZU320L-TMMQWR3 (1999)

Toyota Dyna

Production Jul 1999 - Dec 2002
Engine 15BFTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9907-0212)

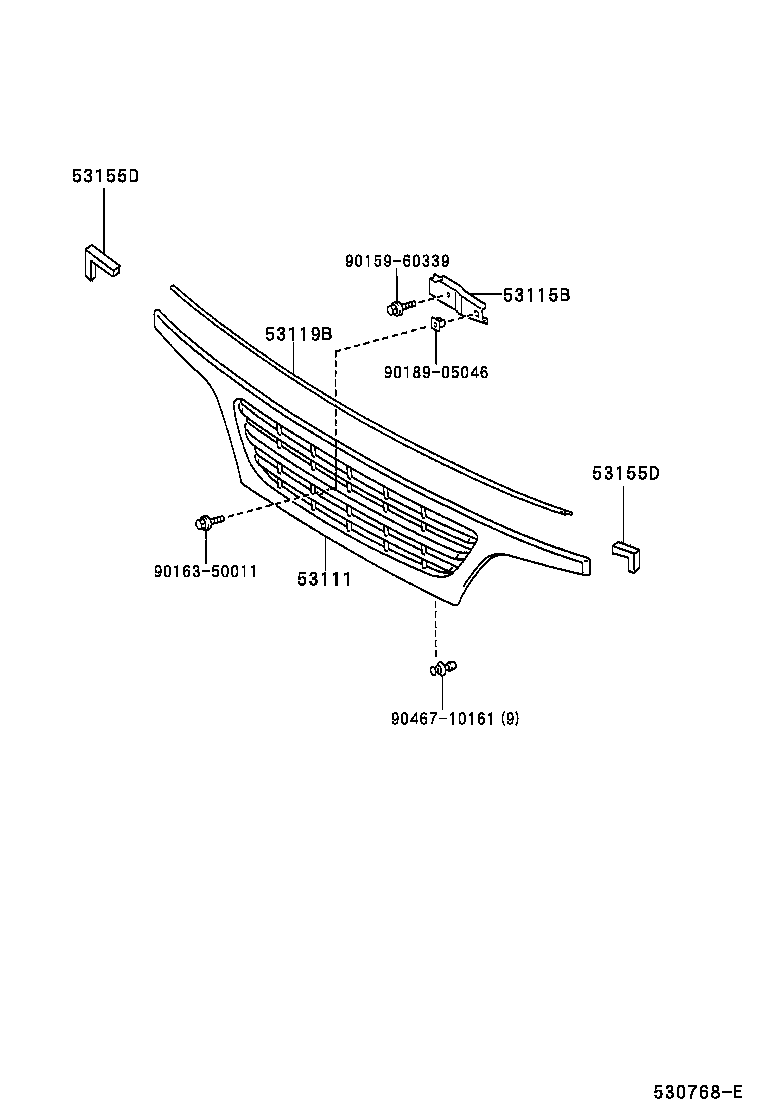

Click highlighted areas on diagram

diagram 53111 53115B 53119B 53155D 53155D 9015960339 9016350011 9018905046 9046710161
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-37220J1

XZU30#,320,330,34#

BLUE,8P0

 1
53111-37220A0

XZU30#,320,330,34#

WHITE,058

 1
53115B - BRACKET, RADIATOR GRILLE
53115-37050

XZU30#,320,330,34#

 1
53119B - PROTECTOR, RADIATOR GRILLE
53119-37020

XZU30#,320,330,34#

 1
53155D - SEAL, RADIATOR GRILLE, NO.1
53155-37010

XZU30#,320,330,34#

 2
53155D - SEAL, RADIATOR GRILLE, NO.1
53155-37010

XZU30#,320,330,34#

 2
Common parts
90159-60339
90163-50011
90189-05046
90467-10161
