XZU302-TPMMS3 (2000)
Toyota Dyna
Production
Oct 2000
-
Jun 2002
Engine
S05C
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

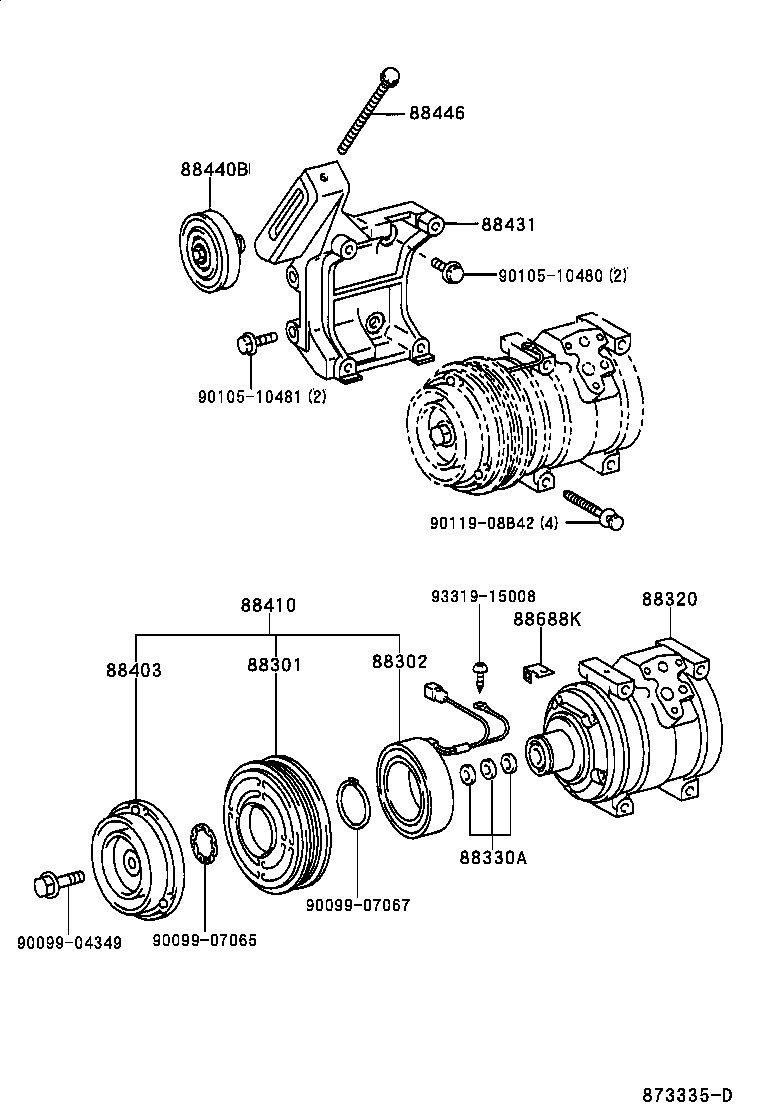

(0010- )XZU302,307,342
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-60090 |
XZU30#,320,330,34# |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
XZU30#,320,330,34# |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16011 |
XZU30#,320,330,34# |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-37080 |
XZU30#,320,330,34# |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88345-37020 |
XZU302,307,342 REFRIGERATOR CAR |
1 | ||
| 88345-37090 |
XZU302,307,342 |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| 88440-37020 |
XZU302,307,342 |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 90105-08099 |
XZU302,307,342 |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07067 | ||||
| 90105-10480 | ||||
| 90105-10481 | ||||
| 90119-08B42 | ||||
| 93319-15008 | ||||

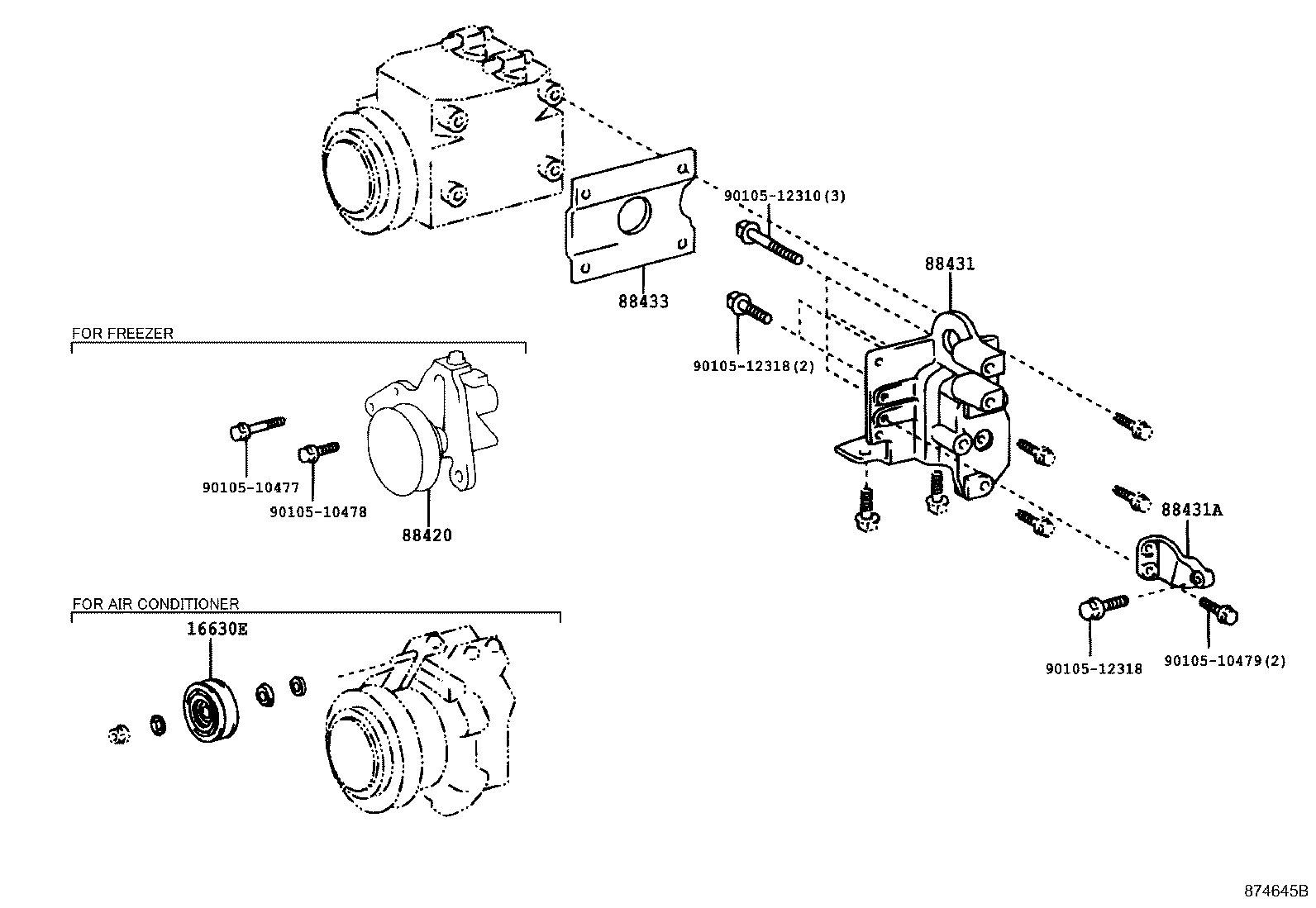

(0010- )XZU302,307,342
Click highlighted areas on diagram
REFRIGERATOR CAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16630E - PULLEY ASSY, IDLER | ||||
| 16630-78030 |
S05C..XZU302,307,342 |
1 | ||
| 88420 - PULLEY ASSY, IDLE, W/BRACKET | ||||
| 88420-37141 |
XZU302,307,342 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88345-37020 |
XZU302,307,342 REFRIGERATOR CAR |
1 | ||
| 88345-37090 |
XZU302,307,342 |
1 | ||
| 88431A - BRACKET, COMPRESSOR MOUNTING, NO.2 | ||||
| 88345-37060 |
XZU302,307,342 |
1 | ||
| 88433 - BRACKET, COMPRESSOR MOUNTING, NO.3 | ||||
| 88345-37120 |
XZU302,307,342 |
1 | ||
| Common parts | ||||
| 90105-10477 | ||||
| 90105-10478 | ||||
| 90105-10479 | ||||
| 90105-12310 | ||||
| 90105-12318 | ||||
