XZU302-TPMMS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

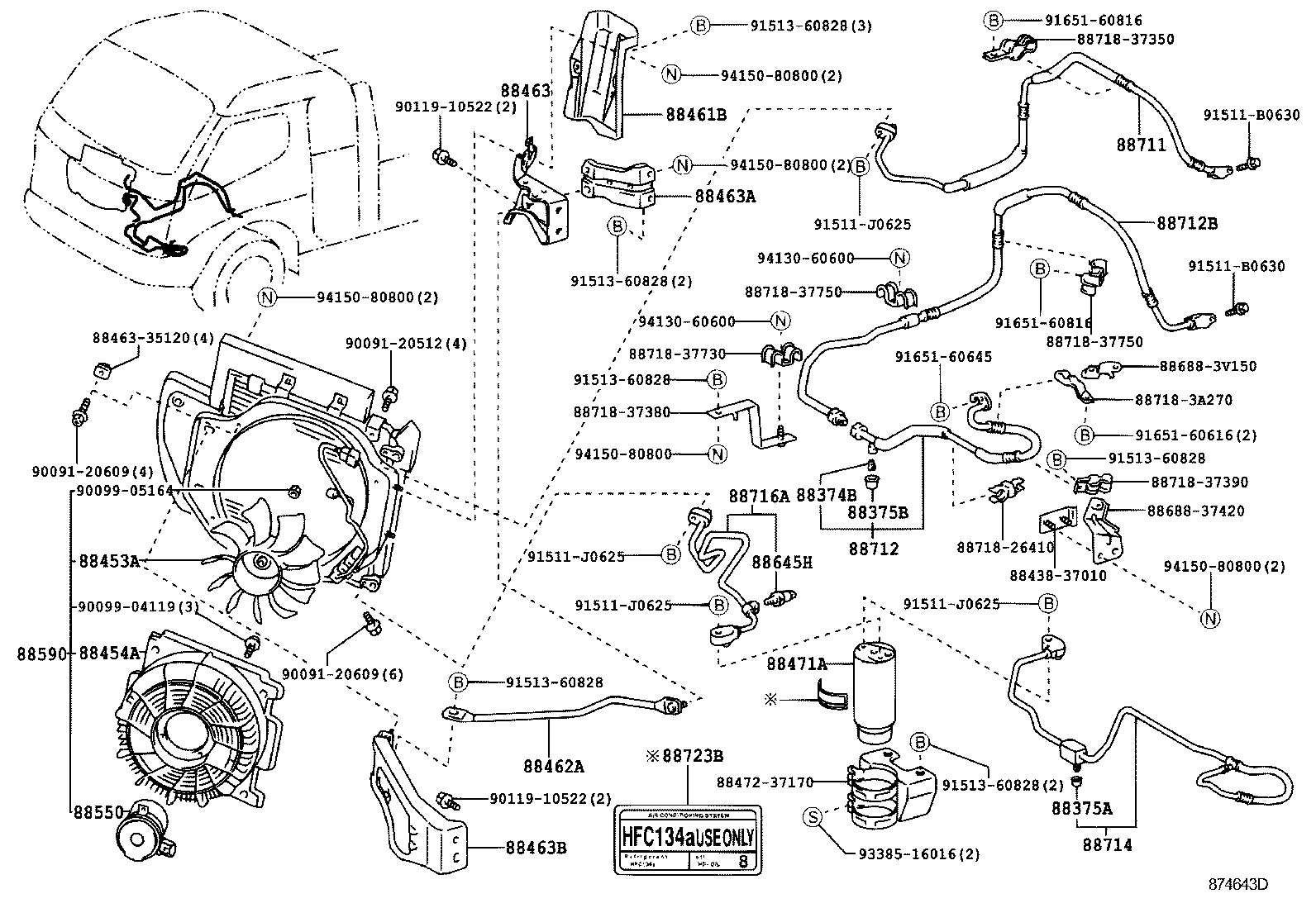

ILLUST NO. 1 OF 2(0010-0105)XZU302,307,342

Click highlighted areas on diagram

diagram 88374B 88375A 88375B 8843837010 88453A 88454A 88461B 88462A 88463 8846335120 88463A 88463B 88471A 8847237170 88550 88590 88645H 8868837420 886883V150 88711 88712 88712B 88714 88716A 8871826410 8871837350 8871837380 8871837390 8871837730 8871837750 8871837750 887183A270 88723B 9009120512 9009120609 9009120609 9009904119 9009905164 9011910522 9011910522 91511B0630 91511B0630 91511J0625 91511J0625 91511J0625 91511J0625 9151360828 9151360828 9151360828 9151360828 9151360828 9151360828 9165160616 9165160645 9165160816 9165160816 9338516016 9413060600 9413060600 9415080800 9415080800 9415080800 9415080800 9415080800
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

XZU302,307,342

 2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

XZU302,307,342

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

XZU302,307,342

 1
88453A - FAN, COOLING
88453-37010

XZU302,307,342

 1
88454A - SHROUD, FAN
88454-37031

XZU302,307,342

 1
88461B - COVER, COOLER CONDENSER
53715-37180

XZU30#,320,330,34#

 1
88462A - HOLDER, CONDENSER
88462-37070

XZU302,307,342

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37140

XZU302,307,342

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-37150

XZU302,342

 1
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-37160

XZU302,307,342

 1
88471A - TANK, RECEIVER
88471-34010

XZU30#,320,330,34#

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-37060

XZU302,307,342

 1
88550-37060

XZU302,307,342

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

XZU302,307,342

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37420

XZU302,307,342

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-37670

XZU302,307,342

 1
88712B - HOSE, COOLER REFRIGERANT SUCTION
88712-37660

XZU302,307,342

 1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-37360

XZU302,307,342

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-37840

XZU302,307,342

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20030

XZU30#,320,330,34#

 1
88733-27010

XZU302,307,342

 1
88723-20040

XZU302,307,342

AUSTRALIA SPEC

 1
Common parts
88438-37010
88463-35120
88472-37170
88688-37420
88688-3V150
88718-26410
88718-37350
88718-37380
88718-37390
88718-37730
88718-37750
88718-3A270
90091-20512
90091-20609
90099-04119
90099-05164
90119-10522
91511-B0630
91511-J0625
91513-60828
91651-60616
91651-60645
91651-60816
93385-16016
94130-60600
94150-80800

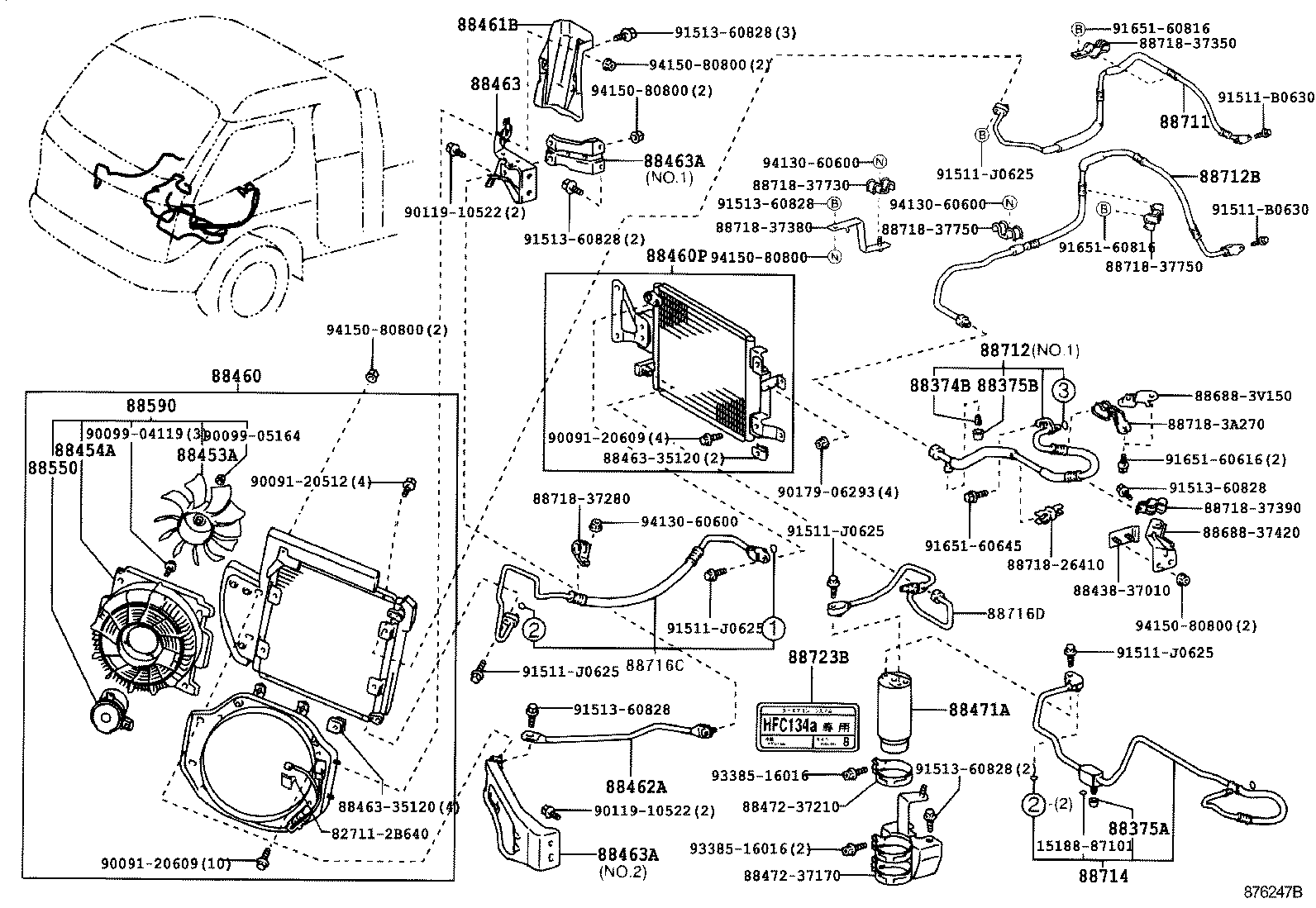

ILLUST NO. 1 OF 2(0105- )XZU302,307,342

Click highlighted areas on diagram

diagram 1518887101 827112B640 88374B 88375A 88375B 8843837010 88453A 88454A 88460 88460P 88461B 88462A 88463 8846335120 8846335120 88463A 88463A 88471A 8847237170 8847237210 88550 88590 8868837420 886883V150 88711 88712 88712B 88714 8871826410 8871837280 8871837350 8871837380 8871837390 8871837730 8871837750 8871837750 887183A270 88723B 9009120512 9009120609 9009120609 9009904119 9009905164 9011910522 9011910522 9017906293 91511B0630 91511B0630 91511J0625 91511J0625 91511J0625 91511J0625 91511J0625 9151360828 9151360828 9151360828 9151360828 9151360828 9151360828 9165160616 9165160645 9165160816 9165160816 9338516016 9338516016 9413060600 9413060600 9413060600 9415080800 9415080800 9415080800 9415080800 9415080800
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

XZU302,307,342

 2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

XZU302,307,342

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

XZU302,307,342

 1
88453A - FAN, COOLING
88453-37010

XZU302,307,342

 1
88454A - SHROUD, FAN
88454-37031

XZU302,307,342

 1
88460 - CONDENSER ASSY, COOLER
88460-37510

XZU302,307,342

 1
88460-37511

XZU302,307,342

 1
88460-37324

XZU302,307,342

 1
88460P - CONDENSER ASSY, COOLER NO.2
88460-37500

XZU302,307,342

 1
88461B - COVER, COOLER CONDENSER
53715-37180

XZU30#,320,330,34#

 1
88462A - HOLDER, CONDENSER
88462-37070

XZU302,307,342

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37140

XZU302,307,342

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-37150

XZU302,342

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-37150

XZU302,342

 1
88471A - TANK, RECEIVER
88471-34010

XZU30#,320,330,34#

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-37060

XZU302,307,342

 1
88550-37060

XZU302,307,342

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37420

XZU302,307,342

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-37670

XZU302,307,342

 1
88712B - HOSE, COOLER REFRIGERANT SUCTION
88712-37660

XZU302,307,342

 1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-37360

XZU302,307,342

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20030

XZU30#,320,330,34#

 1
88733-27010

XZU302,307,342

 1
88723-20040

XZU302,307,342

AUSTRALIA SPEC

 1
Common parts
15188-87101
82711-2B640
88438-37010
88463-35120
88472-37170
88472-37210
88688-37420
88688-3V150
88718-26410
88718-37280
88718-37350
88718-37380
88718-37390
88718-37730
88718-37750
88718-3A270
90091-20512
90091-20609
90099-04119
90099-05164
90119-10522
90179-06293
91511-B0630
91511-J0625
91513-60828
91651-60616
91651-60645
91651-60816
93385-16016
94130-60600
94150-80800
