XZU302-TPMMS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )XZU302,307,342

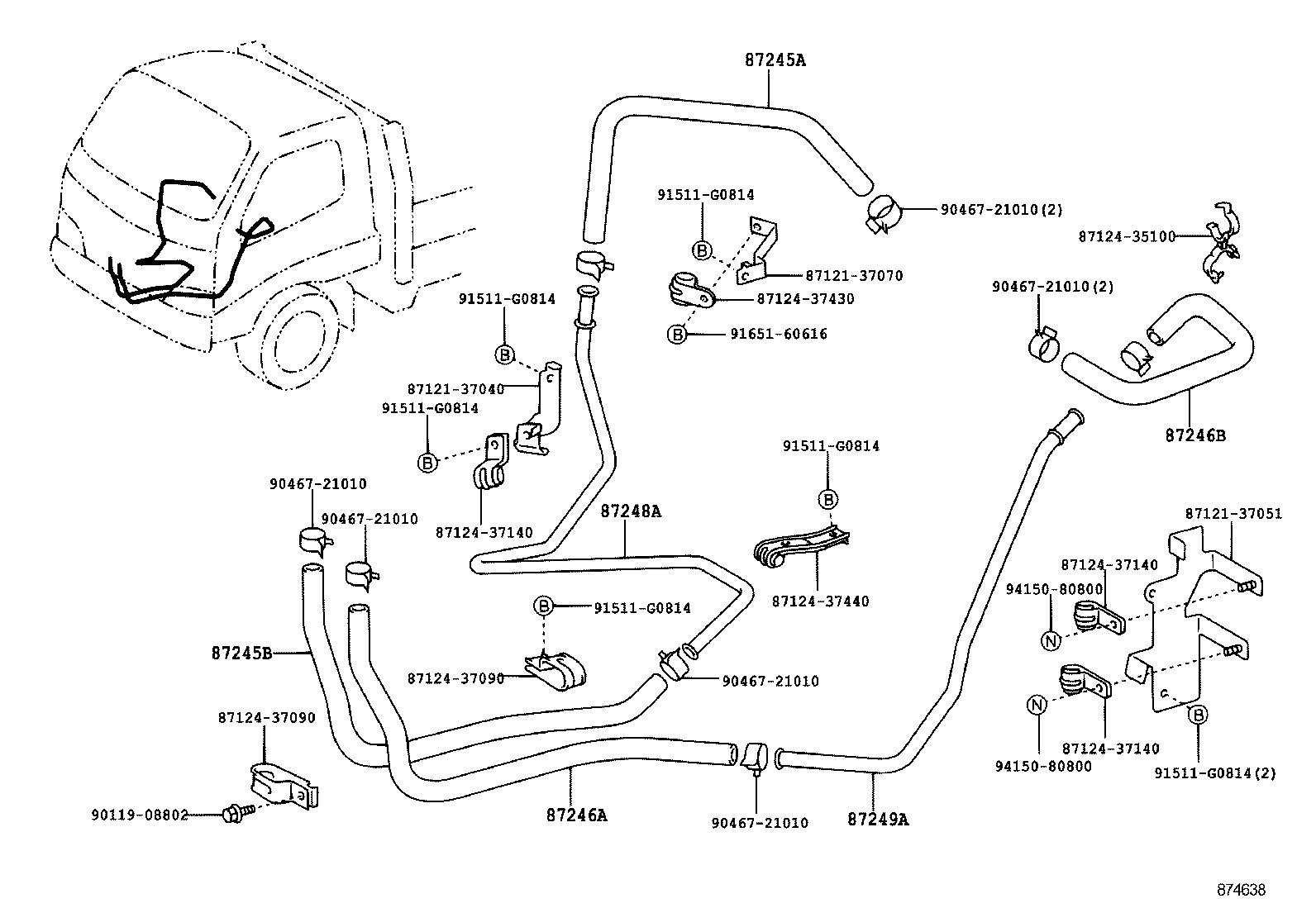

Click highlighted areas on diagram

diagram 8712137040 8712137051 8712137070 8712435100 8712437090 8712437090 8712437140 8712437140 8712437140 8712437430 8712437440 87245A 87245B 87246A 87246B 87248A 87249A 9011908802 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 91511G0814 91511G0814 91511G0814 91511G0814 91511G0814 91511G0814 9165160616 9415080800 9415080800
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-37661

XZU302,307,342

 1
87245B - HOSE, HEATER WATER, INLET B
87245-37840

XZU302,307,342

 1
87246A - HOSE, HEATER WATER, OUTLET A
87246-37091

XZU302,307,342

 1
87246B - HOSE, HEATER WATER, OUTLET B
87246-37300

XZU302,307,342

 1
87248A - PIPE, HEATER WATER INLET, A
87248-37091

XZU302,307,342

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-37102

XZU302,307,342

 1
Common parts
87121-37040
87121-37051
87121-37070
87124-35100
87124-37090
87124-37140
87124-37430
87124-37440
90119-08802
90467-21010
91511-G0814
91651-60616
94150-80800
