XZU302-TPMMS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(0010-0206)XZU302,307,342

Click highlighted areas on diagram

SENSOR

diagram 8271135280 88625H 88625P 88625Q 88626B
Part # Description Qty Price
88625H - THERMISTOR, COOLER (SOLAR SENSOR)
88625-32160

XZU302,307,342

 1
88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR)
88625-32170

XZU302,307,342

 1
88625-32171

XZU302,307,342

 1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021

XZU302,307,342

 1
88626B - HOLDER, THERMISTOR
88626-35020B0

XZU302,307,342

MD.CHARCOAL,TRIM1#

 1
Common parts
82711-35280

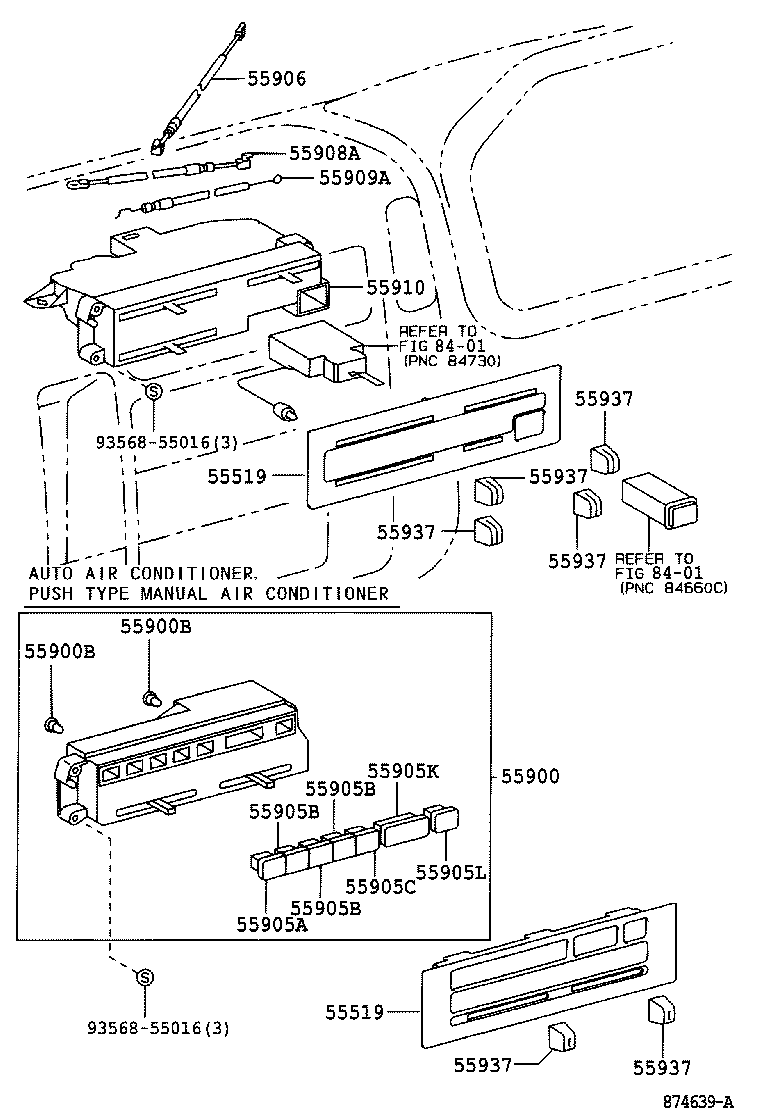

ILLUST NO. 1 OF 3(0010-0206)XZU302,307,342

Click highlighted areas on diagram

CONTROL

diagram 55519 55519 55900 55900B 55900B 55905A 55905B 55905B 55905B 55905C 55905K 55905L 55906 55908A 55909A 55910 55937 55937 55937 55937 55937 55937 8401 8401 9356855016 9356855016
Part # Description Qty Price
55519 - PLATE, HEATER CONTROL NAME
55519-37080

XZU302,307,342

W/O(AIR CONDITIONER)

 1
55519-37120

XZU302,307,342

W(PUSH TYPE MANUAL AIR CONDITIONER)

 1
55519-37070

XZU302,307,342

 1
55519-37110

XZU302,307,342

W(AUTO AIR CONDITIONER)

 1
55519 - PLATE, HEATER CONTROL NAME
55519-37080

XZU302,307,342

W/O(AIR CONDITIONER)

 1
55519-37120

XZU302,307,342

W(PUSH TYPE MANUAL AIR CONDITIONER)

 1
55519-37070

XZU302,307,342

 1
55519-37110

XZU302,307,342

W(AUTO AIR CONDITIONER)

 1
55900 - CONTROL ASSY, AIR CONDITIONER
55900-37250

XZU302,307,342

W(AUTO AIR CONDITIONER)

 1
55900-37260

XZU302,307,342

W(PUSH TYPE MANUAL AIR CONDITIONER)

 1
55900B - BULB, AIR CONDITIONER CONTROL
81850-35020

XZU302,307,342

14V 80MA

 2
55900B - BULB, AIR CONDITIONER CONTROL
81850-35020

XZU302,307,342

14V 80MA

 2
55905A - KNOB, HEATER CONTROL
55905-35110

XZU302,307,342

 1
55905B - KNOB, HEATER CONTROL, NO.2
55905-35120

XZU302,307,342

 3
55905B - KNOB, HEATER CONTROL, NO.2
55905-35120

XZU302,307,342

 3
55905B - KNOB, HEATER CONTROL, NO.2
55905-35120

XZU302,307,342

 3
55905C - KNOB, HEATER CONTROL, NO.3
55905-35130

XZU302,307,342

 1
55905K - KNOB, HEATER CONTROL, NO.4
55905-35140

XZU302,307,342

 1
55905L - KNOB, HEATER CONTROL, NO.5
55905-35150

XZU302,307,342

 1
55906 - CABLE SUB-ASSY, HEATER CONTROL
55906-37050

XZU30#,320,330,34#

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-37030

XZU302,307,342

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-37040

XZU302,307,342

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-37061

XZU302,307,342

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-35100

XZU302,307,342

W(AUTO AIR CONDITIONER) OR W(PUSH TYPE MANUAL AIR CONDITIONER)

 2
55905-89115

XZU30#,320,330,34#

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-35100

XZU302,307,342

W(AUTO AIR CONDITIONER) OR W(PUSH TYPE MANUAL AIR CONDITIONER)

 2
55905-89115

XZU30#,320,330,34#

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-35100

XZU302,307,342

W(AUTO AIR CONDITIONER) OR W(PUSH TYPE MANUAL AIR CONDITIONER)

 2
55905-89115

XZU30#,320,330,34#

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-35100

XZU302,307,342

W(AUTO AIR CONDITIONER) OR W(PUSH TYPE MANUAL AIR CONDITIONER)

 2
55905-89115

XZU30#,320,330,34#

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-35100

XZU302,307,342

W(AUTO AIR CONDITIONER) OR W(PUSH TYPE MANUAL AIR CONDITIONER)

 2
55905-89115

XZU30#,320,330,34#

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-35100

XZU302,307,342

W(AUTO AIR CONDITIONER) OR W(PUSH TYPE MANUAL AIR CONDITIONER)

 2
55905-89115

XZU30#,320,330,34#

 4
Common parts
93568-55016
Linked diagrams
8401

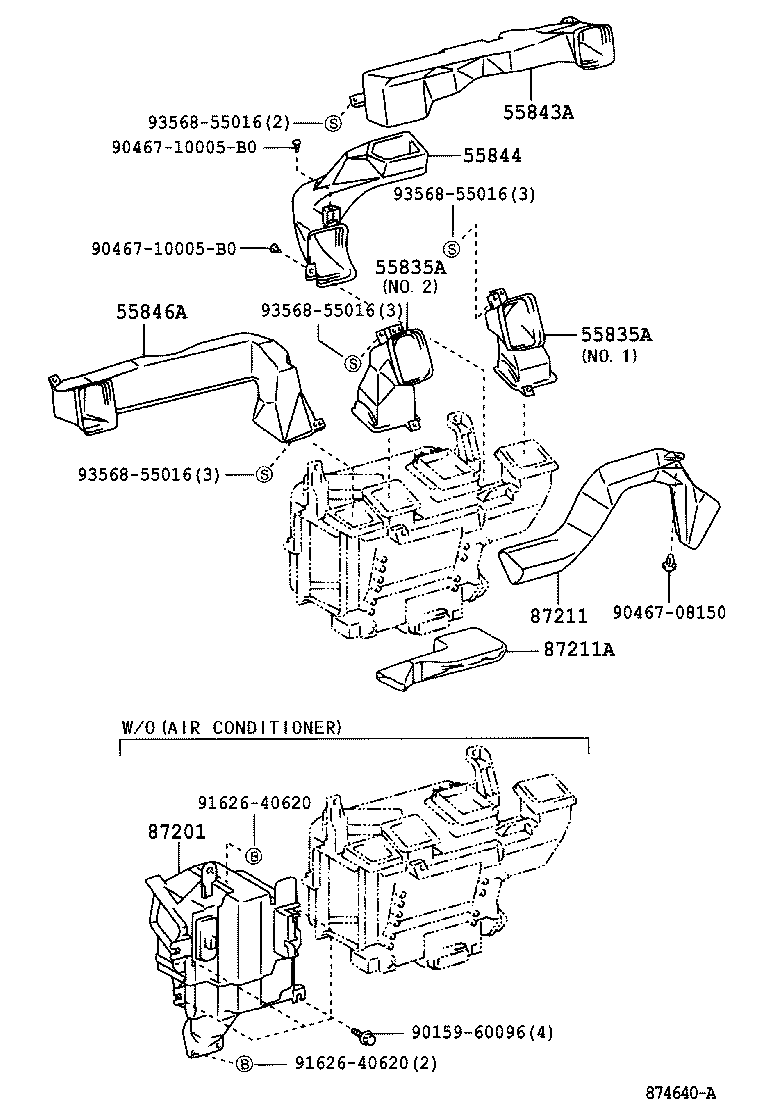

ILLUST NO. 2 OF 3(0010-0206)XZU302,307,342

Click highlighted areas on diagram

AIR DUCT

diagram 55835A 55835A 55843A 55844 55846A 87201 87211 87211A 9015960096 9046708150 9046710005B0 9046710005B0 9162640620 9162640620 9356855016 9356855016 9356855016 9356855016
Part # Description Qty Price
55835A - DUCT, HEATER TO REGISTER, CENTER
55835-37010

XZU302,307,342

NO.1

 1
55835-37020

XZU302,307,342

NO.2

 1
55835A - DUCT, HEATER TO REGISTER, CENTER
55835-37010

XZU302,307,342

NO.1

 1
55835-37020

XZU302,307,342

NO.2

 1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-25020

XZU302,307,342

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-37030

XZU302,307,342

 1
55846A - DUCT, HEATER TO REGISTER, NO.4
55846-37050

XZU302,307,342

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87211-37120

XZU302,307,342

 1
87211 - DUCT, AIR, NO.1
87212-37010

XZU302,307,342

 1
87211A - DUCT, AIR, NO.2
87213-37010

XZU302,307,342

 1
Common parts
90159-60096
90467-08150
90467-10005B0
91626-40620
93568-55016
