XZU302-TPMMS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0010- )XZU302,307,342

Click highlighted areas on diagram

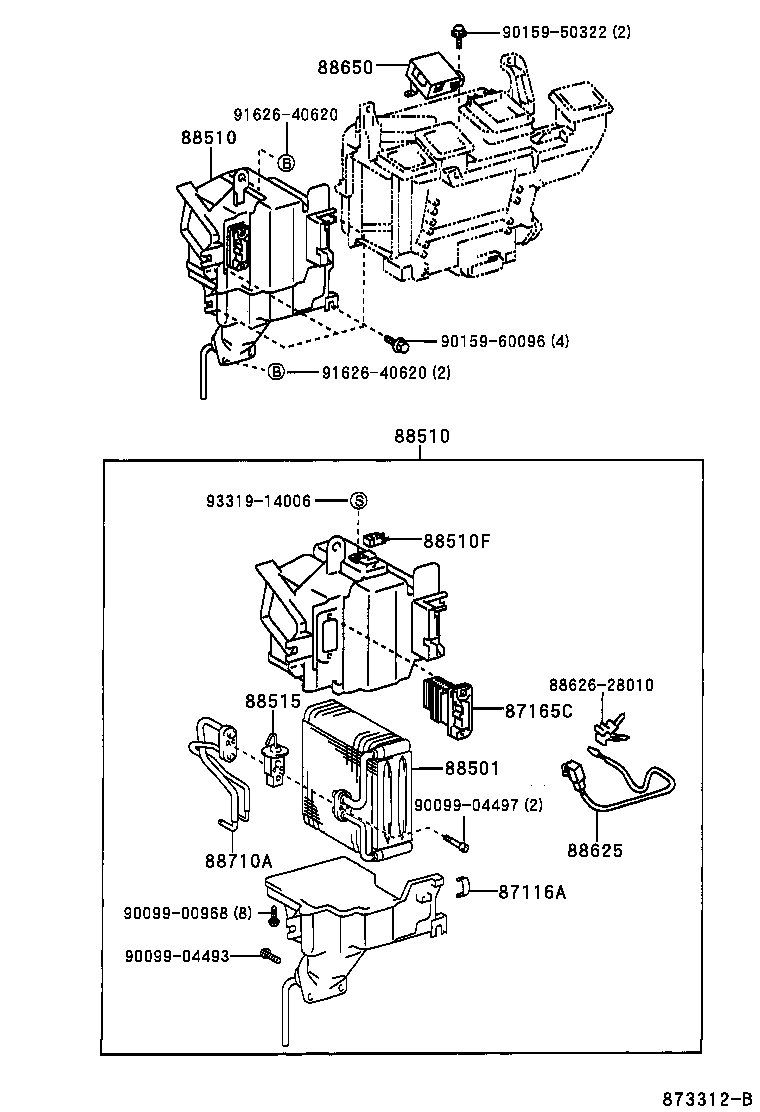

AUTO A/C,PUSH TYPE MANUAL A/C

diagram 87116A 87165C 88501 88510 88510 88510F 88515 88625 8862628010 88650 88710A 9009900968 9009904493 9009904497 9015950322 9015960096 9162640620 9162640620 9331914006
Part # Description Qty Price
87165C - CONTROL, BLOWER MOTOR
87165-37010

XZU302,307,342

 1
88510 - UNIT ASSY, COOLER
88510-37120

XZU302,307,342

 1
88510-37150

XZU302,307,342

W(PUSH TYPE MANUAL AIR CONDITIONER) OR W(AUTO AIR CONDITIONER)

 1
88510 - UNIT ASSY, COOLER
88510-37120

XZU302,307,342

 1
88510-37150

XZU302,307,342

W(PUSH TYPE MANUAL AIR CONDITIONER) OR W(AUTO AIR CONDITIONER)

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-37150

XZU302,307,342

W(AUTO AIR CONDITIONER)

 1
88650-37170

XZU302,307,342

W(PUSH TYPE MANUAL AIR CONDITIONER)

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-37340

XZU302,307,342

 1
Common parts
88626-28010
90099-00968
90099-04493
90099-04497
90159-50322
90159-60096
91626-40620
93319-14006

ILLUST NO. 1 OF 2(0010- )XZU302,307,342

Click highlighted areas on diagram

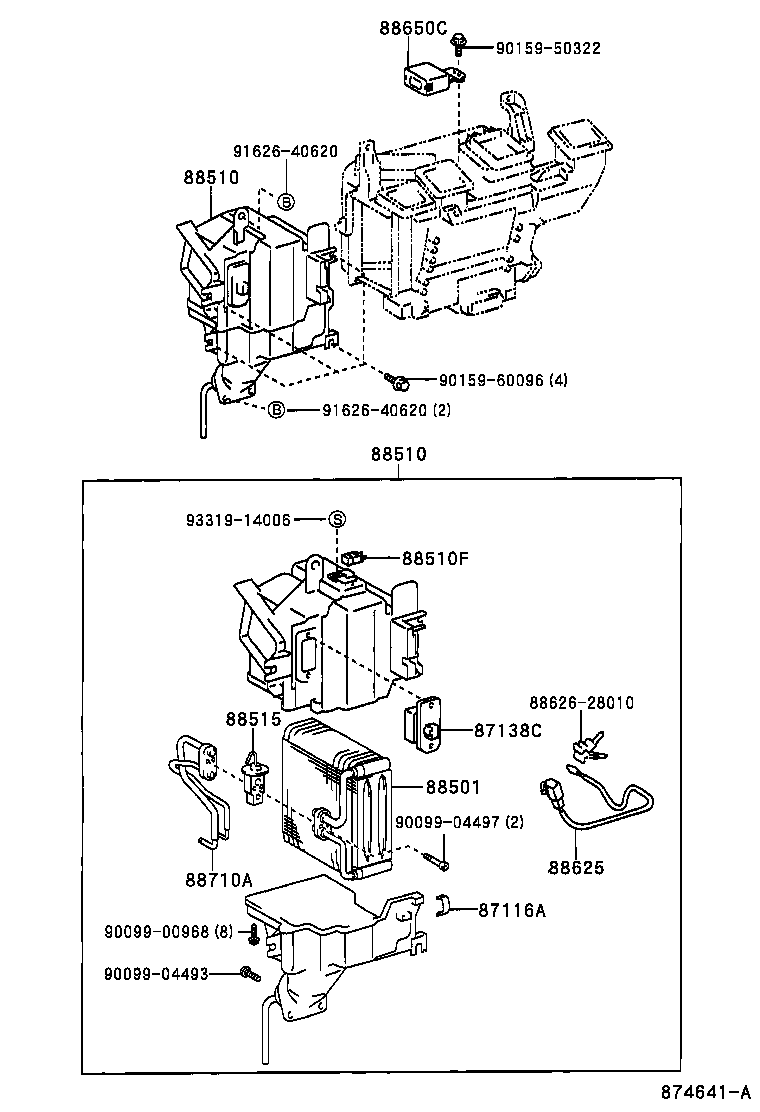

LEVER TYPE MANUAL AIR CONDITIONER

diagram 87116A 87138C 88501 88510 88510 88510F 88515 88625 8862628010 88650C 88710A 9009900968 9009904493 9009904497 9015950322 9015960096 9162640620 9162640620 9331914006
Part # Description Qty Price
88510 - UNIT ASSY, COOLER
88510-37120

XZU302,307,342

 1
88510-37150

XZU302,307,342

W(PUSH TYPE MANUAL AIR CONDITIONER) OR W(AUTO AIR CONDITIONER)

 1
88510 - UNIT ASSY, COOLER
88510-37120

XZU302,307,342

 1
88510-37150

XZU302,307,342

W(PUSH TYPE MANUAL AIR CONDITIONER) OR W(AUTO AIR CONDITIONER)

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-37340

XZU302,307,342

 1
Common parts
88626-28010
90099-00968
90099-04493
90099-04497
90159-50322
90159-60096
91626-40620
93319-14006
