XZU302-TPMMS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )XZU302,307,342

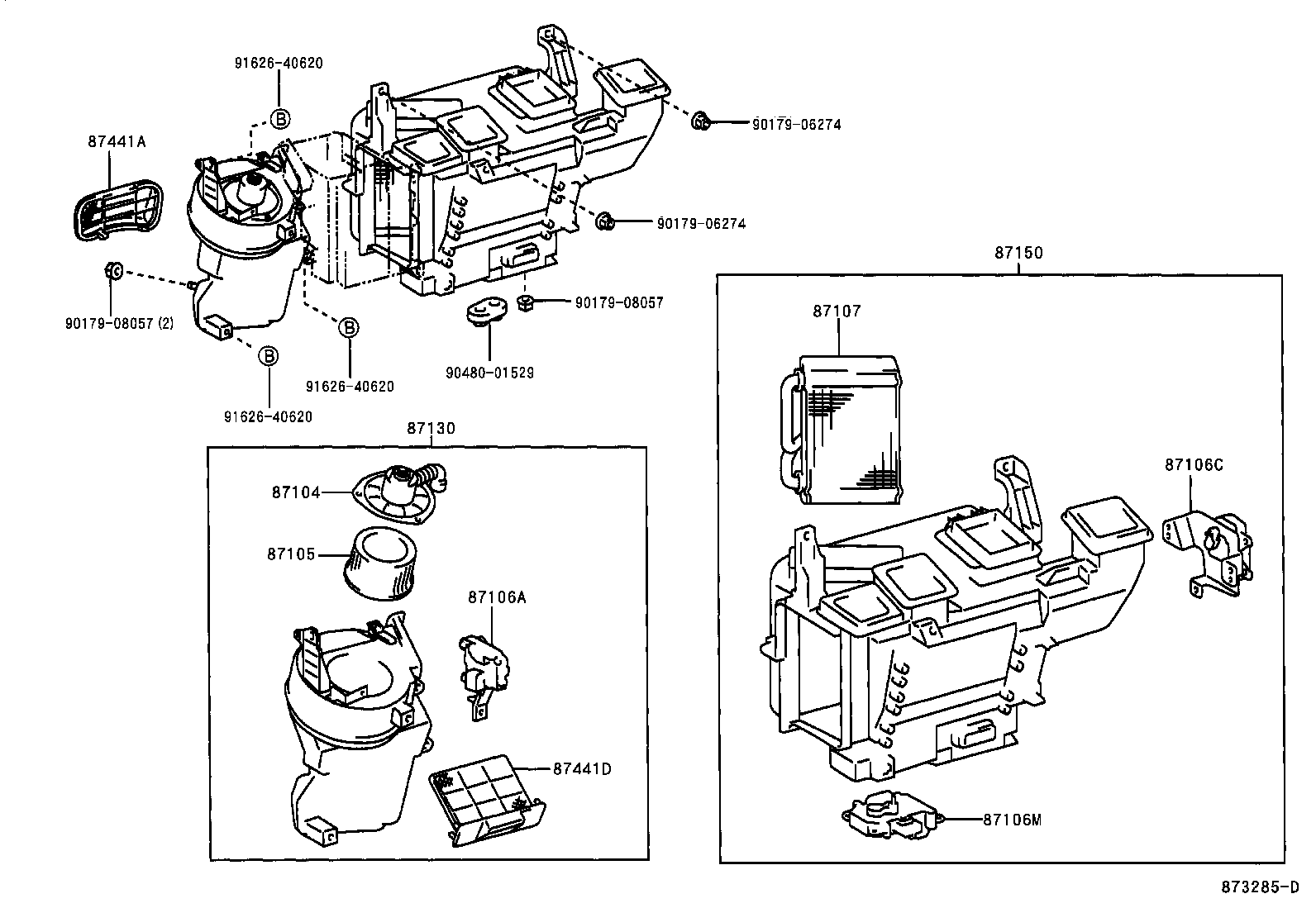

Click highlighted areas on diagram

diagram 87104 87105 87106A 87106C 87106M 87107 87130 87150 87441A 87441D 9017906274 9017906274 9017908057 9017908057 9048001529 9162640620 9162640620 9162640620
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-37140

XZU302,307,342

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-37030

XZU302,307,342

 1
87106A - SERVO SUB-ASSY, DAMPER
87106-37010

XZU302,307,342

 1
87106C - SERVO SUB-ASSY, DAMPER(FOR BLOWER)
87106-37020

XZU302,307,342

 1
87106M - SERVO SUB-ASSY, DAMPER, NO.2
87106-37030

XZU302,307,342

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-37040

XZU302,307,342

MARK = A OR W,MARK = C,MARK = D

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-37100

XZU302,307,342

MANUAL AIR CONDITIONER OR MANUAL HEATER

 1
87130-37120

XZU302,307,342

AUTO AIR CONDITIONER

 1
87150 - RADIATOR ASSY, HEATER
87150-37250

XZU302,307,342

MARK = D

 1
87150-37200

XZU302,307,342

MARK = A OR W

 1
87150-37210

XZU302,307,342

MARK = C

 1
87441A - FILTER, HEATER AIR
87441-37010

XZU302,307,342

 1
87441D - FILTER, HEATER AIR, NO.2
87441-37030

XZU30#,320,330,34#

 1
Common parts
90179-06274
90179-08057
90480-01529
91626-40620
