XZU302-TPMMS3 (2000)
Toyota Dyna
Production
Oct 2000
-
Jun 2002
Engine
S05C
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0010- )XZU302,307,342

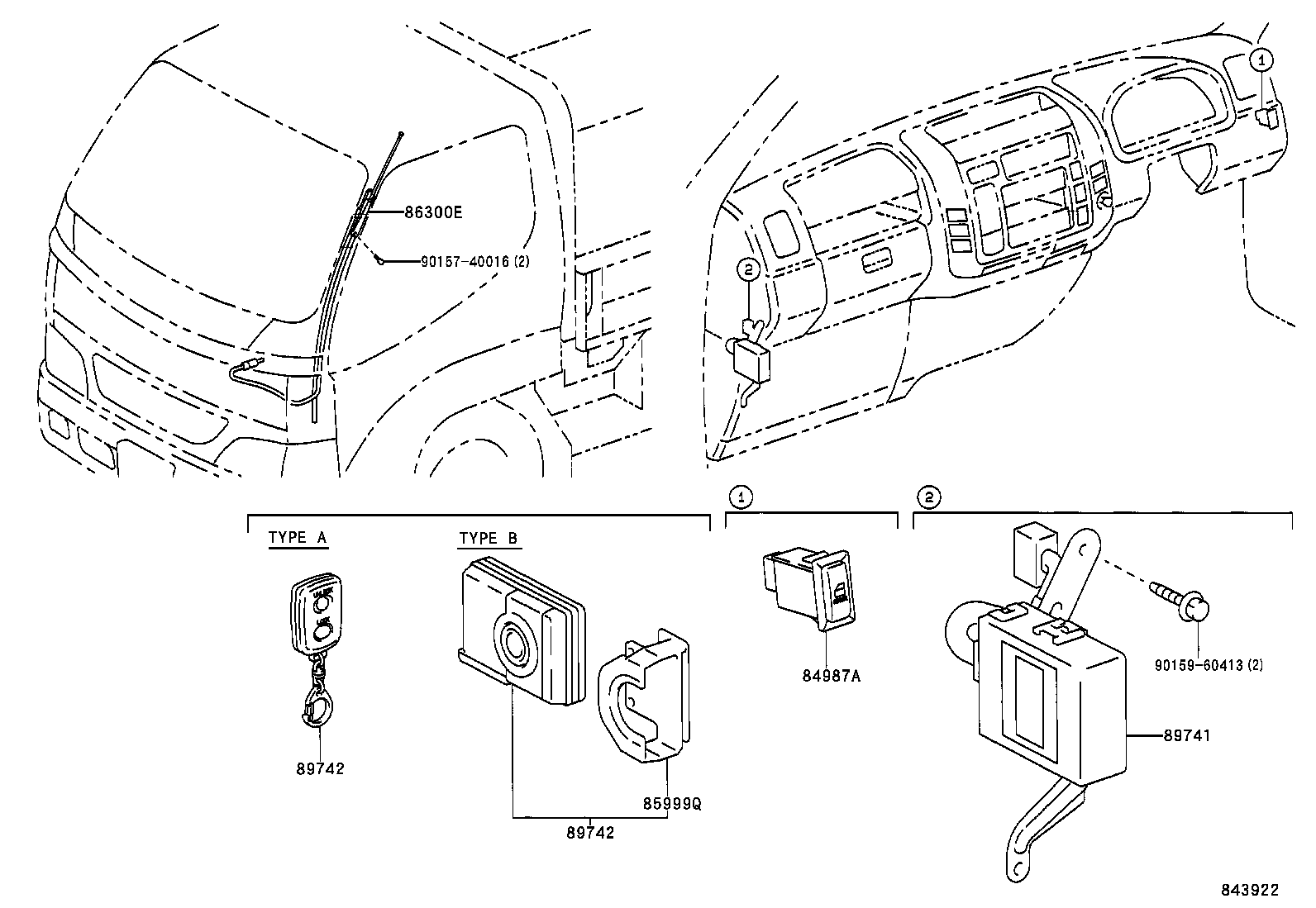

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84987A - SWITCH, KEYLESS ENTRY CANCEL | ||||
| 84987-37010 |
XZU302,307,342 |
1 | ||
| 85999Q - BRACKET, DOOR CONTROL TRANSMITTER | ||||
| 85999-36040 |
XZU302,307,342 |
1 | ||
| 86300E - ANTENNA ASSY, WIRELESS DOOR LOCK | ||||
| 86300-37070 |
XZU302,307,342 |
1 | ||
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89741-37040 |
XZU302,307,342 TOKAIRIKA |
1 | ||
| 89741-37050 |
XZU302,307,342 DENSO |
1 | ||
| 89742 - TRANSMITTER, DOOR CONTROL | ||||
| 89742-37050 |
XZU302,307,342 TYPE A:REFER TO ILLUSTRATION,DAIHATSU |
1 | ||
| 89742-37020 |
XZU302,307,342 TYPE A:REFER TO ILLUSTRATION,HINO |
1 | ||
| 89742-37010 |
XZU302,307,342 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 89742-37040 |
XZU302,307,342 TYPE A:REFER TO ILLUSTRATION,TOYOTA |
1 | ||
| 89742 - TRANSMITTER, DOOR CONTROL | ||||
| 89742-37050 |
XZU302,307,342 TYPE A:REFER TO ILLUSTRATION,DAIHATSU |
1 | ||
| 89742-37020 |
XZU302,307,342 TYPE A:REFER TO ILLUSTRATION,HINO |
1 | ||
| 89742-37010 |
XZU302,307,342 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 89742-37040 |
XZU302,307,342 TYPE A:REFER TO ILLUSTRATION,TOYOTA |
1 | ||
| Common parts | ||||
| 90157-40016 | ||||
| 90159-60413 | ||||
