XZU302-TPMMS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

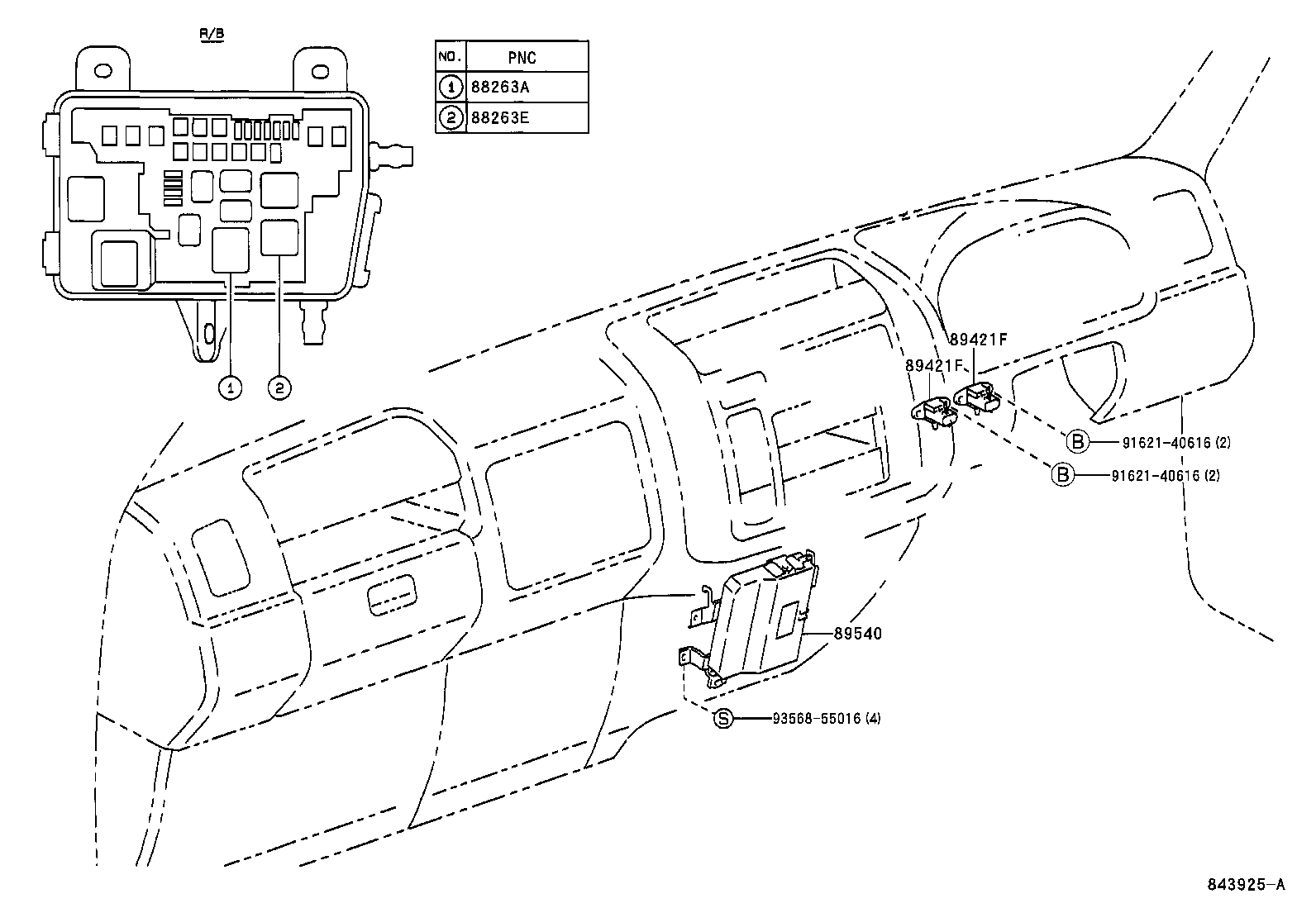

ILLUST NO. 1 OF 3(0010- )

Click highlighted areas on diagram

diagram 88263A 88263E 89421F 89421F 89540 9162140616 9162140616 9356855016
Part # Description Qty Price
88263A - RELAY, SKID CONTROL
88263-36040

XZU302,307,342

 1
88263E - RELAY, SKID CONTROL NO.2
88263-36050

XZU302,307,342

 1
89421F - SENSOR, VACUUM (FOR SKID CONTROL)
89421-37010

XZU302,307,342

 2
89421F - SENSOR, VACUUM (FOR SKID CONTROL)
89421-37010

XZU302,307,342

 2
89540 - COMPUTER ASSY, SKID CONTROL
89540-37031

XZU302,307

 1
89540-37030

XZU302,307

 1
Common parts
91621-40616
93568-55016

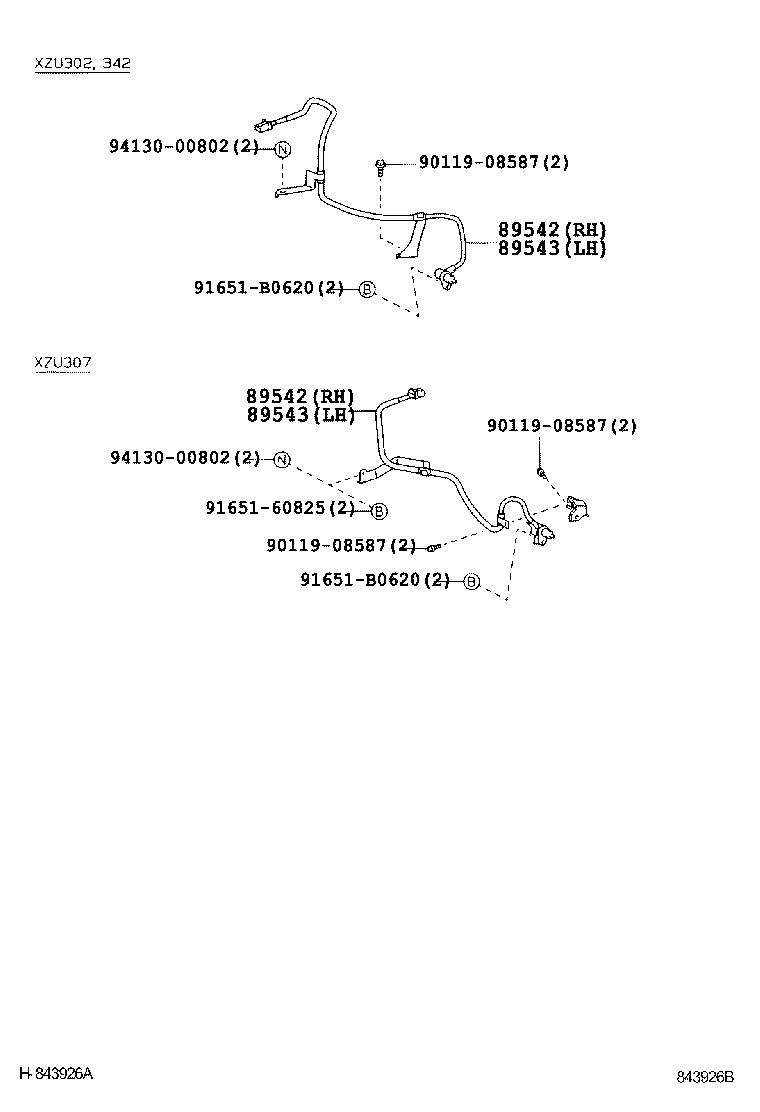

ILLUST NO. 2 OF 3(0010- )

Click highlighted areas on diagram

FRONT SPEED SENSOR

diagram 89542 89542 89543 89543 9011908587 9011908587 9011908587 9165160825 91651B0620 91651B0620 9413000802 9413000802
Part # Description Qty Price
89542 - SENSOR, SPEED, FRONT RH
89542-37070

XZU302,342

 1
89542 - SENSOR, SPEED, FRONT RH
89542-37070

XZU302,342

 1
89543 - SENSOR, SPEED, FRONT LH
89543-37070

XZU302,342

 1
89543 - SENSOR, SPEED, FRONT LH
89543-37070

XZU302,342

 1
Common parts
90119-08587
91651-60825
91651-B0620
94130-00802
