XZU302-TPMMS3 (2000)
Toyota Dyna

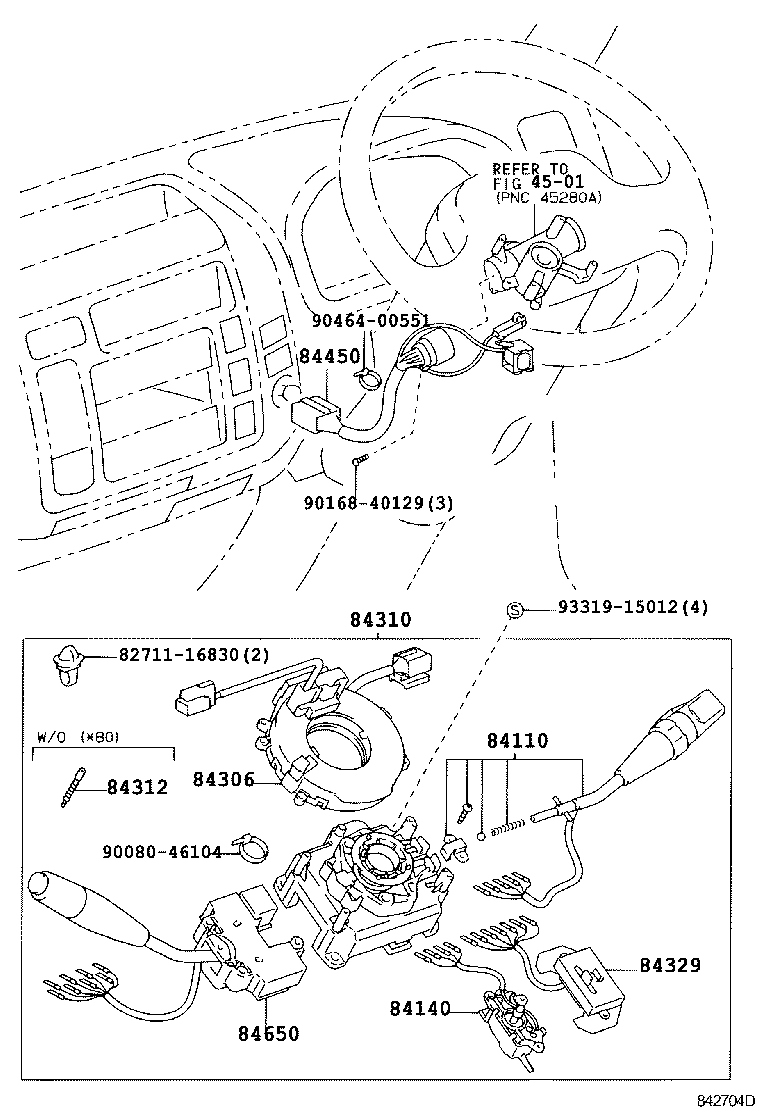

ILLUST NO. 7 OF10(0010- )XZU302,307,342
IGNISION SW. & CONBINATION SW.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80222 |
XZU302,307,342 W/O(FOG LAMP) |
1 | ||
| 84112-80221 |
XZU302,307,342 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-37050 |
XZU302,307,342 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-37020 |
XZU302,307,342 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-37160 |
XZU302,307,342 W(SRS AIR BAG & FOG LAMP) |
1 | ||
| 84310-37180 |
XZU302,307,342 W(SRS AIR BAG) & W/O(FOG LAMP) |
1 | ||
| 84310-37170 |
XZU302,307,342 W(FOG LAMP) |
1 | ||
| 84310-37200 |
XZU302,307,342 W(SRS AIR BAG & FOG LAMP & VARIABLE INTERMITTENT WIPER) |
1 | ||
| 84310-37190 |
XZU302,307,342 W/O(FOG LAMP) |
1 | ||
| 84310-37210 |
XZU302,307,342 W(FOG LAMP & VARIABLE INTERMITTENT WIPER) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
XZU30#,320,330,34# |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-37070 |
XZU302,307,342 |
1 | ||
| 84329-37060 |
XZU302,307,342 W(SRS AIR BAG) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-37160 |
XZU30#,320,330,34# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-37010 |
XZU302,307,342 W/O(REAR WIPER) |
1 | ||
| 84652-37160 |
XZU302,307,342 W(VARIABLE INTERMITTENT WIPER) |
1 | ||
| Common parts | ||||
| 82711-16830 | ||||
| 90080-46104 | ||||
| 90168-40129 | ||||
| 90464-00551 | ||||
| 93319-15012 | ||||
| Linked diagrams | ||||
| 4501 | ||||

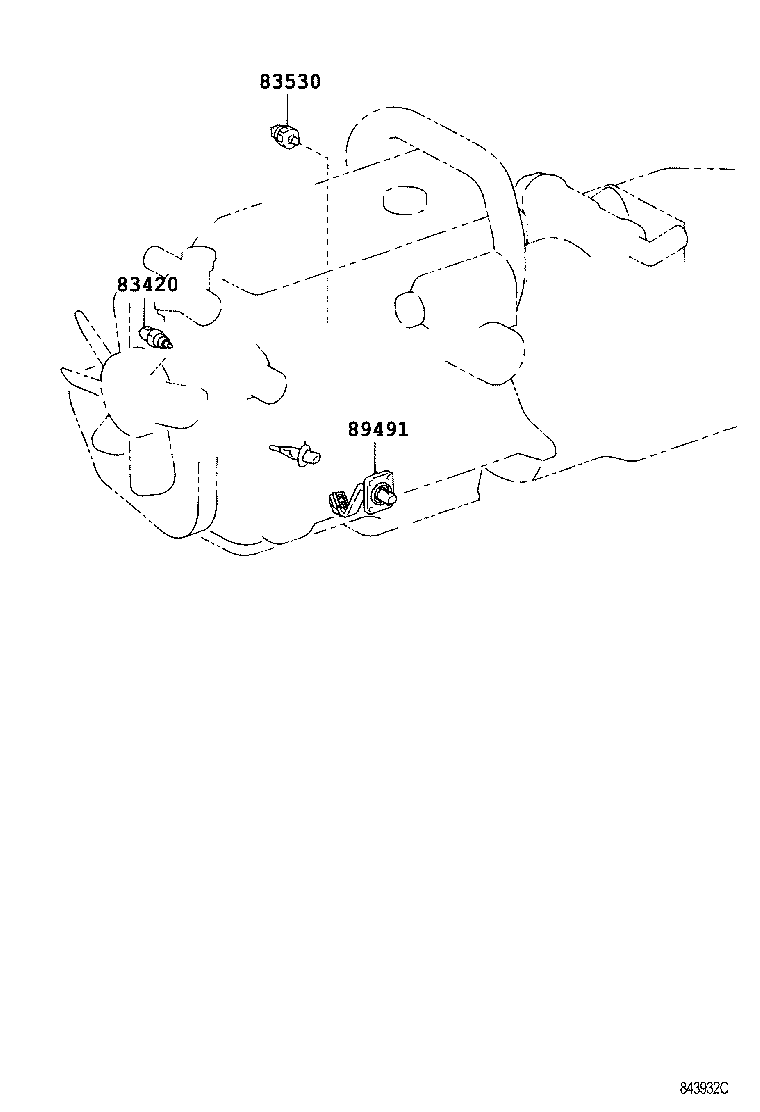

ILLUST NO. 1 OF10(0010- )XZU302,307,342
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-37020 |
XZU302,307,342 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-37030 |
XZU302,307,342 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-37040 |
XZU302,307,342 |
1 | ||

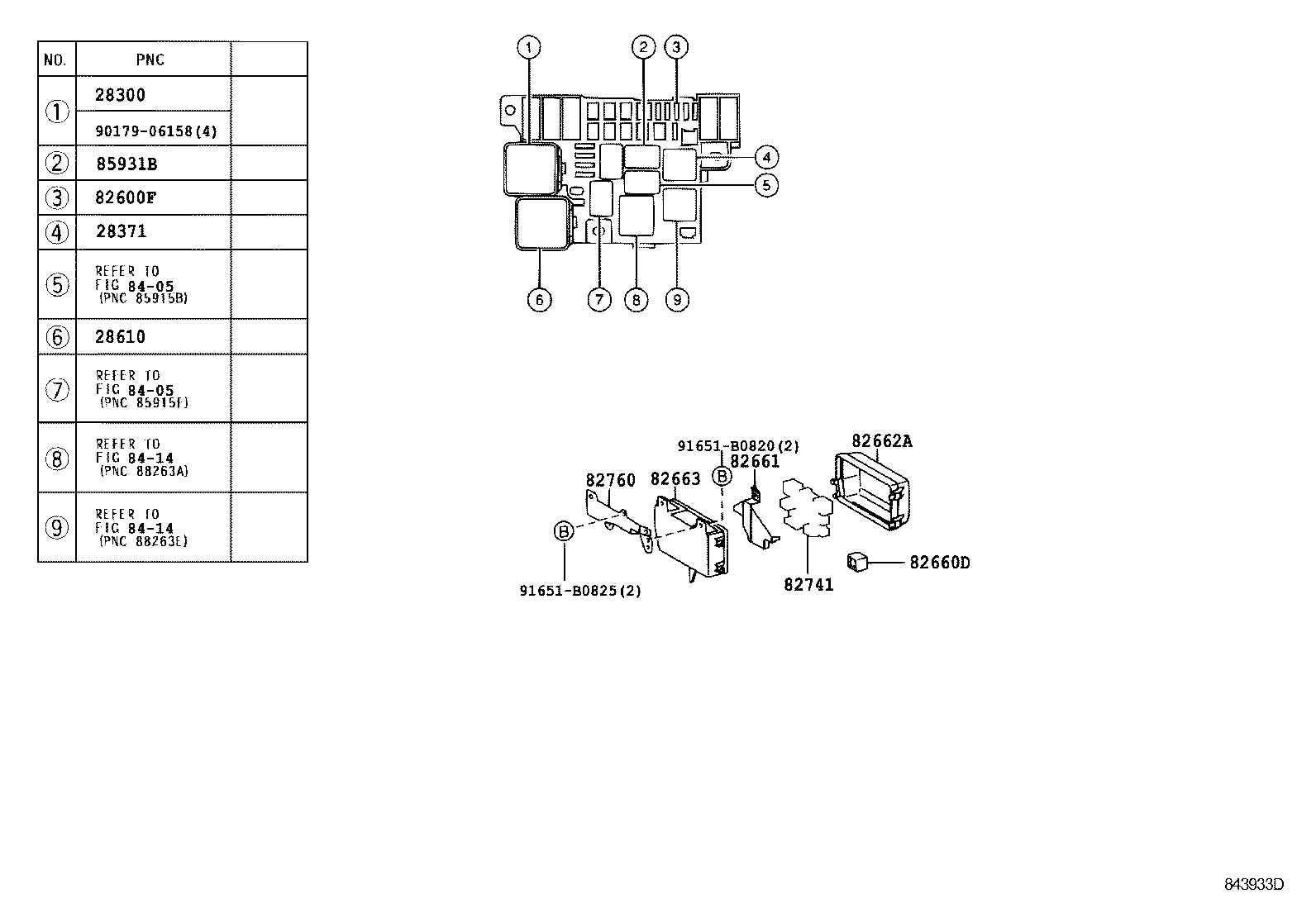

ILLUST NO. 4 OF10(0010- )XZU302,307,342
R/B NO.2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-78020 |
S05C..XZU302,307,342 |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02018 |
S05C,15BFTE..XZU30#,320,330,34# |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-58230 |
S05C..XZU302,307,342 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
XZU30#,320,330,34# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09011 |
XZU30#,320,330,34# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09009 |
XZU30#,320,330,34# 10A,MINI FUSE,RED |
1 | ||
| 90982-09010 |
XZU30#,320,330,34# 15A,MINI FUSE,BLUE |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-37070 |
XZU302,307,342 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-37020 |
XZU30#,320,330,34# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-37070 |
XZU302,307,342 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-37040 |
XZU302,307,342 |
1 | ||
| 82760 - BRACKET ASSY, RELAY BLOCK | ||||
| 82760-37010 |
XZU302,307,342 |
1 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 90987-02017 |
XZU302,307,342 |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| Linked diagrams | ||||
| 8405 | ||||
| 8414 | ||||

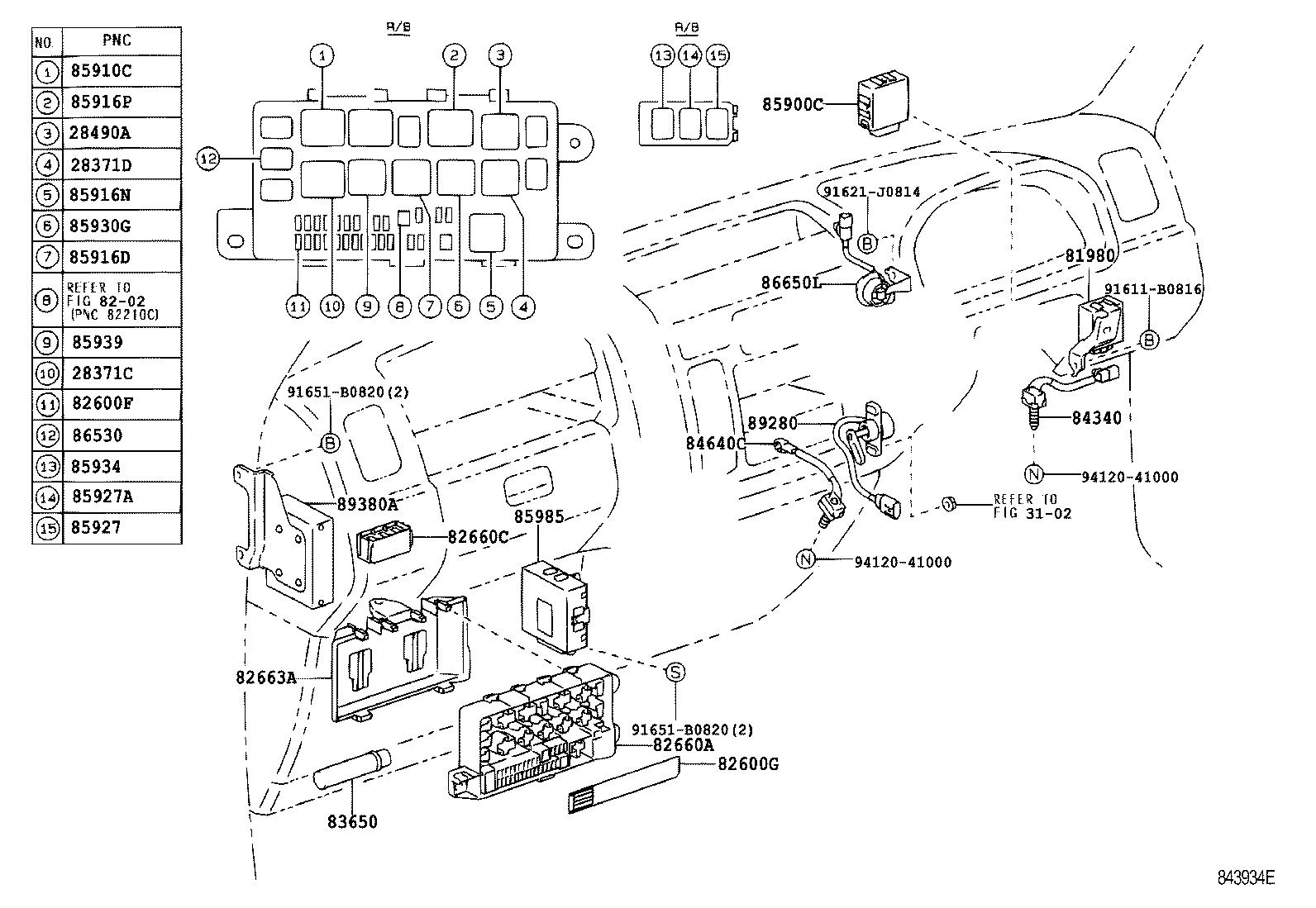

ILLUST NO. 5 OF10(0010- )XZU302,307,342
INSTRUMENT PANEL & COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02019 |
S05C,15BFTE..XZU30#,320,330,34# |
1 | ||
| 28371D - RELAY, IGNITION, NO.3 | ||||
| 90987-02018 |
S05C,15BFTE..XZU30#,320,330,34# |
1 | ||
| 28490A - RELAY ASSY, EXHAUST RETARDER | ||||
| 28490-78010 |
S05C..XZU302,307,342 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-37090 |
XZU302,307,342 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
XZU30#,320,330,34# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09011 |
XZU30#,320,330,34# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09009 |
XZU30#,320,330,34# 10A,MINI FUSE,RED |
1 | ||
| 90982-09010 |
XZU30#,320,330,34# 15A,MINI FUSE,BLUE |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-37170 |
XZU30#,320,330,34# |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-37030 |
XZU302,307,342 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-26150 |
XZU30#,320,330,34# |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-37030 |
XZU30#,320,330,34# |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
XZU302,307,342 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-37020 |
XZU30#,320,330,34# |
1 | ||
| 84640C - SWITCH ASSY, EXHAUST RETARDER | ||||
| 84640-37050 |
XZU30#,320,330,34# |
1 | ||
| 85900C - RELAY ASSY, CONTROL UNIT (FOR BRAKE LOCK) | ||||
| 85900-37020 |
XZU302..WT |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04007 |
XZU30#,320,330,34# |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02018 |
XZU30#,320,330,34# |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02018 |
XZU30#,320,330,34# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02019 |
XZU30#,320,330,34# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02017 |
XZU30#,320,330,34# |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-02017 |
XZU30#,320,330,34# |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02018 |
XZU30#,320,330,34# |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02017 |
XZU30#,320,330,34# |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02018 |
XZU30#,320,330,34# |
1 | ||
| 85985 - RELAY, KEY REMINDER | ||||
| 80590-37030 |
XZU302,307,342 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02017 |
XZU30#,320,330,34# |
1 | ||
| 86650L - BUZZER ASSY, VACUUM WARNING | ||||
| 86650-37060 |
XZU30#,320,330,34# |
1 | ||
| 89280 - SENSOR ASSY, CLUTCH PEDAL STROKE | ||||
| 89280-37010 |
XZU302,307,342 |
1 | ||
| 89380A - COMPUTER ASSY, ES START | ||||
| 89380-37011 |
XZU302,307,342 |
1 | ||
| Common parts | ||||
| 91611-B0816 | ||||
| 91621-J0814 | ||||
| 91651-B0820 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 3102 | ||||
| 8202 | ||||

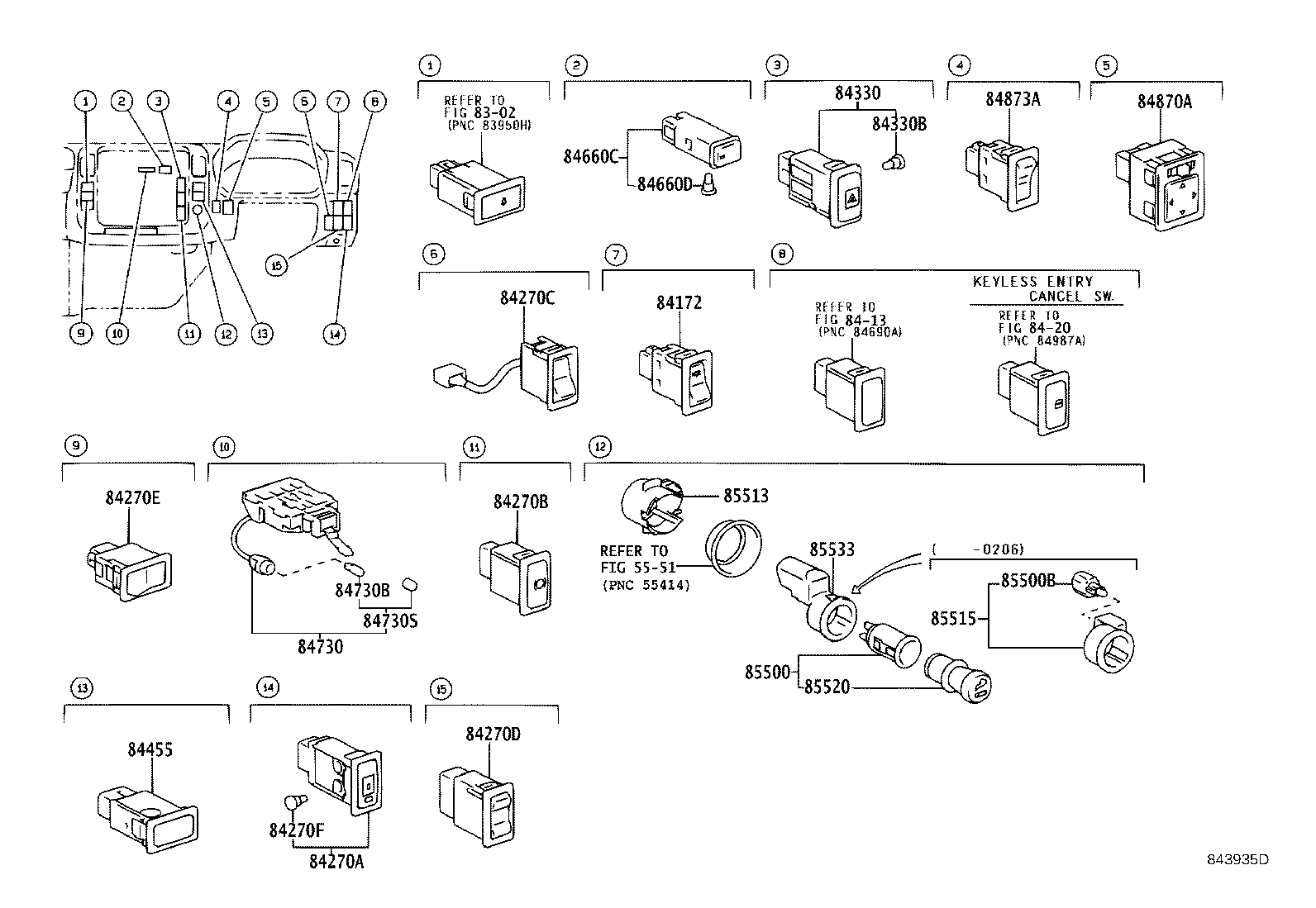

ILLUST NO. 6 OF10(0010- )XZU302,307,342
INSTRUMENT PANEL SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84172 - SWITCH, ROOM LAMP | ||||
| 84270-37010 |
XZU302,307,342 |
1 | ||
| 84270A - SWITCH ASSY, MIRROR HEATER | ||||
| 84270-37030 |
XZU302,307,342 |
1 | ||
| 84270B - SWITCH ASSY, BRAKE LOCK | ||||
| 84270-37040 |
XZU302..WT |
1 | ||
| 84270C - SWITCH ASSY, ES START MAIN | ||||
| 84270-37080 |
XZU302,307,342 AUSTRALIA SPEC |
1 | ||
| 84270D - SWITCH ASSY, ES START TIMING | ||||
| 84270-37090 |
XZU302,307,342 AUSTRALIA SPEC |
1 | ||
| 84270E - SWITCH ASSY, TIRE LAMP | ||||
| 84270-37020 |
XZU302,307,342 |
1 | ||
| 84270F - BULB, MIRROR HEATER SWITCH ASSY | ||||
| 84999-10570 |
XZU302,307,342 28V 0.024A |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-37070 |
XZU30#,320,330,34# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10570 |
XZU30#,320,330,34# 28V 0.024A |
1 | ||
| 84455 - SWITCH, WARM UP | ||||
| 84455-37050 |
XZU302,307,342 |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-37010 |
XZU30#,320,330,34# |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-37010 |
XZU30#,320,330,34# 28V 0.87W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-37050 |
XZU30#,320,330,34# |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-16020 |
XZU30#,320,330,34# 24V 1.8W |
1 | ||
| 84730S - BULB, HEATER BLOWER SWITCH | ||||
| 90010-01153 |
XZU302,307,342 24V 1.8W,W(CAP) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-22200 |
XZU302,307,342 |
1 | ||
| 84873A - SWITCH, RETRACTABLE OUTER MIRROR | ||||
| 84873-37020 |
XZU302,307,342 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-36020 |
XZU30#,320,330,34# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-36010 |
XZU30#,320,330,34# 28V 1.8W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
XZU30#,320,330,34# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-36010 |
XZU30#,320,330,34# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-95400 |
XZU30#,320,330,34# |
1 | ||
| Linked diagrams | ||||
| 5551 | ||||
| 8302 | ||||
| 8413 | ||||
| 8420 | ||||

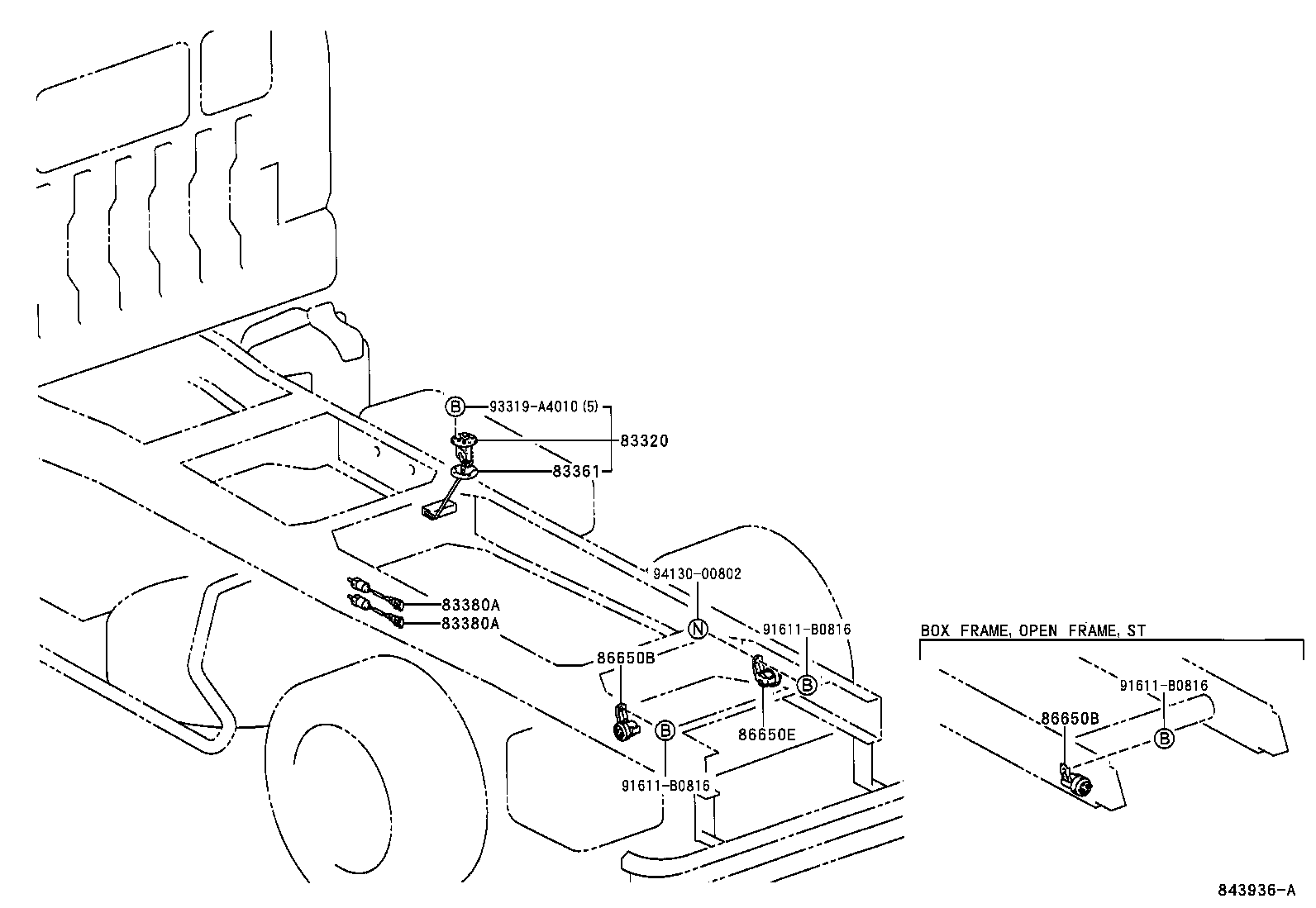

ILLUST NO.10 OF10(0010- )XZU302,307,342
REAR BODY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80374 |
XZU30#,320,330,34# |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
XZU30#,320,330,34# |
1 | ||
| 83380A - SWITCH ASSY, PRESSURE | ||||
| 83380-37010 |
XZU302..WT |
2 | ||
| 83380A - SWITCH ASSY, PRESSURE | ||||
| 83380-37010 |
XZU302..WT |
2 | ||
| 86650B - BUZZER ASSY, REVERSE WARNING | ||||
| 86650-37050 |
XZU30#,320,330,34# |
1 | ||
| 86650B - BUZZER ASSY, REVERSE WARNING | ||||
| 86650-37050 |
XZU30#,320,330,34# |
1 | ||
| 86650E - BUZZER ASSY | ||||
| 86650-37070 |
XZU302..WT |
1 | ||
| Common parts | ||||
| 91611-B0816 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||

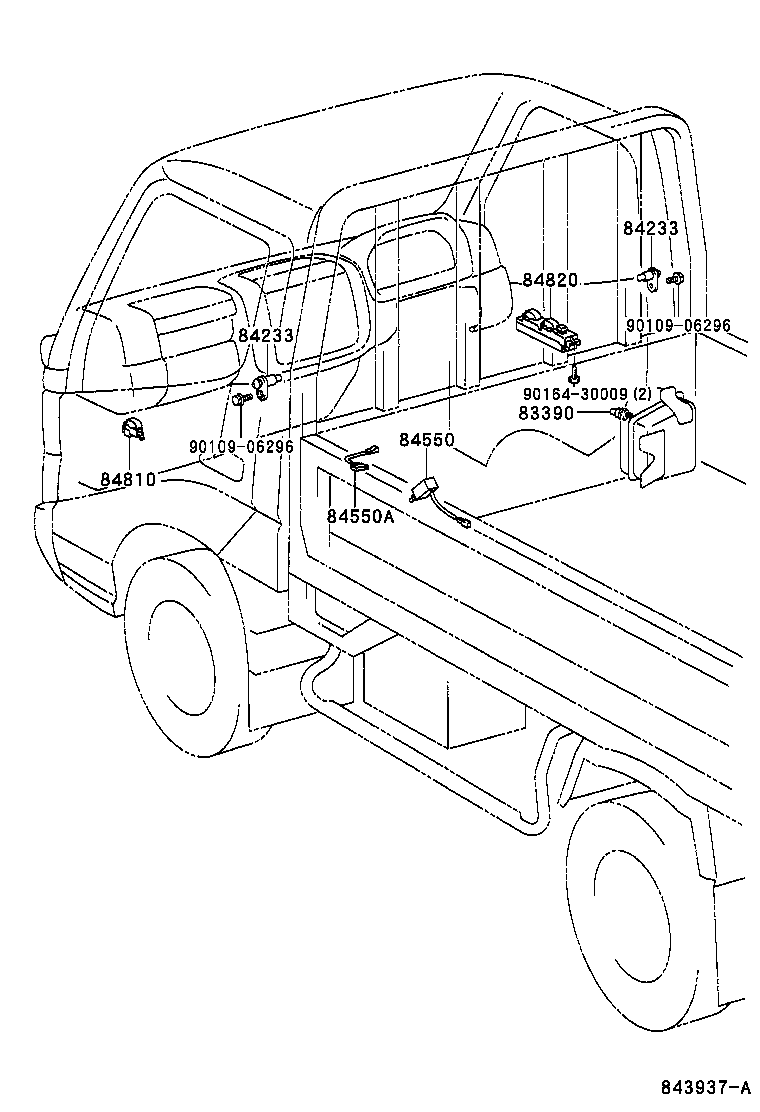

ILLUST NO. 8 OF 1(0010- )XZU302,307,342
DOOR,ROOF & FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-12340 |
XZU30#,320,330,34# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
XZU302,307,342 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
XZU302,307,342 |
2 | ||
| 84550A - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-37040 |
XZU302..WT |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-37050 |
XZU30#,320,330,34# |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-37030 |
XZU30#,320,330,34# |
1 | ||
| 84820-37031 |
XZU30#,320,330,34# |
1 | ||
| Common parts | ||||
| 90109-06296 | ||||
| 90164-30009 | ||||
