XZU302-TPMMS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

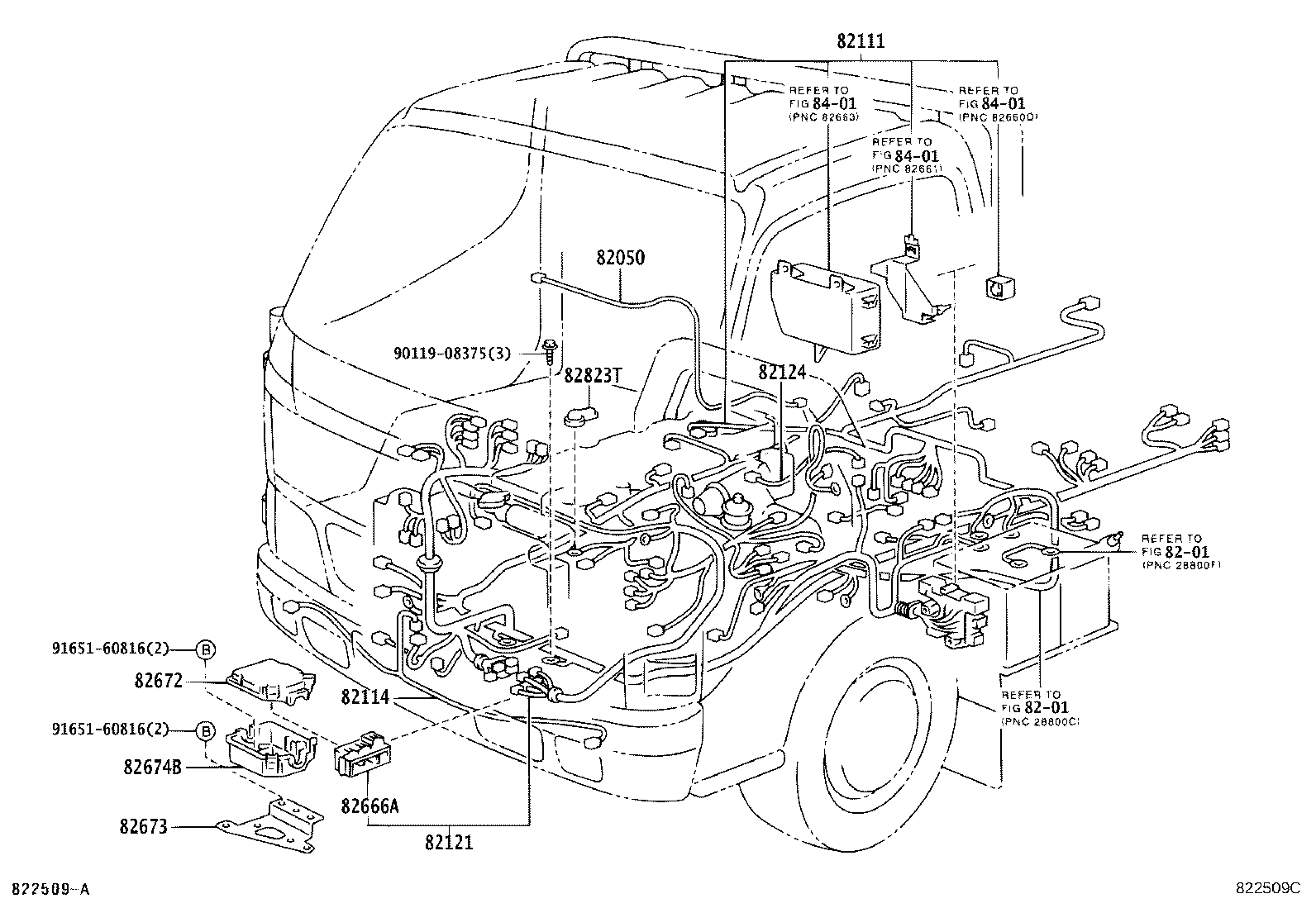

ILLUST NO. 1 OF 5(0010- )XZU302,307,342

Click highlighted areas on diagram

ENGINE ROOM

diagram 8201 8201 82050 82111 82114 82121 82124 82666A 82672 82673 82674B 82823T 8401 8401 8401 9011908375 9165160816 9165160816
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82115-37640

XZU302

AUSTRALIA SPEC

 1
82111-37762

XZU302

 1
82115-37780

XZU302

W(BATTERY=95D31L X 2)

 1
82111-37763

XZU302

 1
82114 - WIRE, ENGINE ROOM, NO.4
82114-37010

XZU30#,320,330,34#

 1
82124 - WIRE, ENGINE, NO.4
82124-37180

XZU302,307,342

 1
82673 - BRACKET, JUNCTION BLOCK
82670-37010

XZU302,307,342

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

XZU30#,320,330,34#

 1
Common parts
90119-08375
91651-60816
Linked diagrams
8201
8401

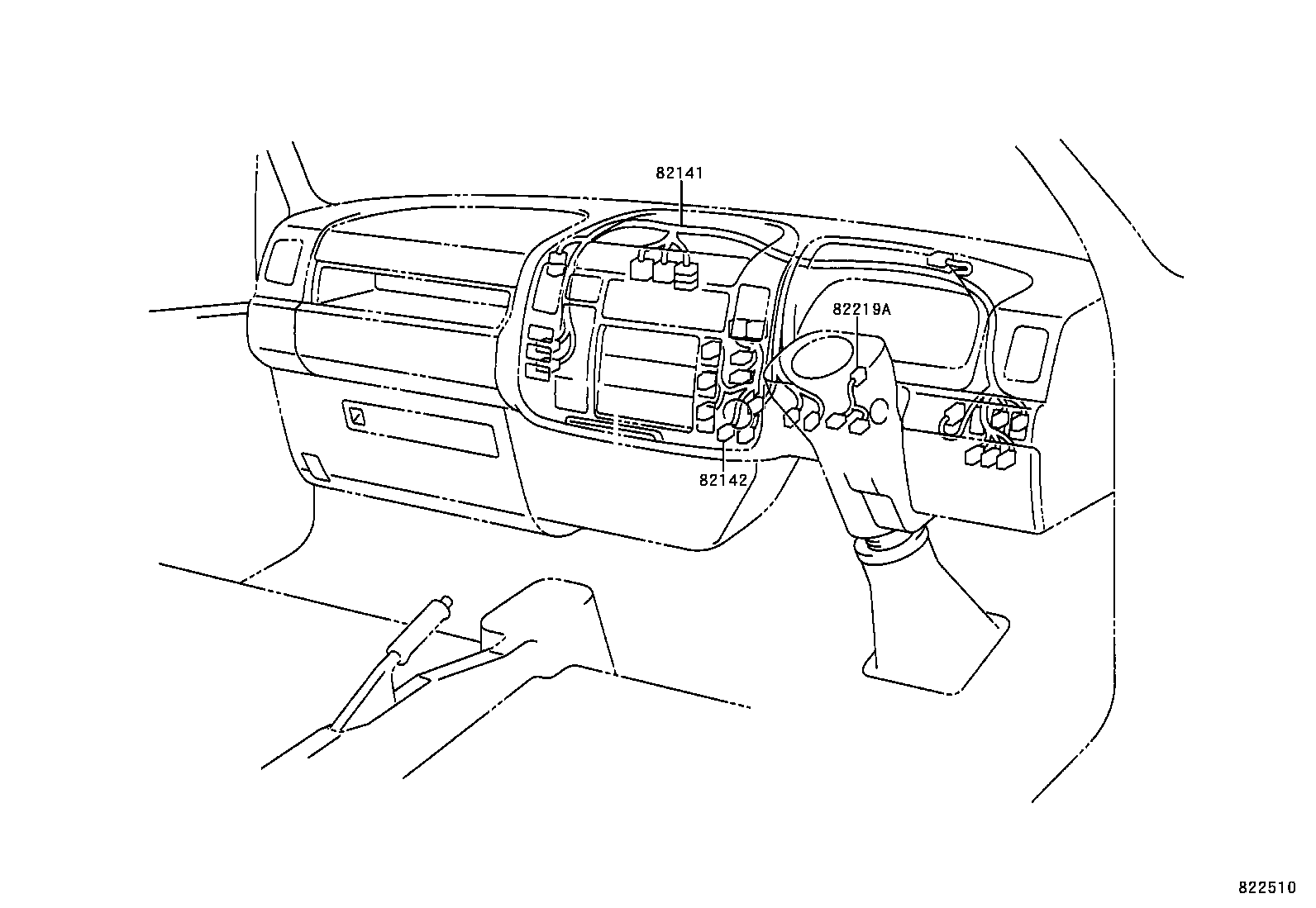

ILLUST NO. 2 OF 5(0010- )XZU302,307,342

Click highlighted areas on diagram

INSTRUMENT PANEL

diagram 82141 82142 82219A
Part # Description Qty Price
82141 - WIRE, INSTRUMENT PANEL
82141-37610

XZU302,307,342

AUSTRALIA SPEC

 1
82141-37420

XZU302,307,342

 1
82141-37430

XZU302,307,342

W/O(POWER WINDOW)

 1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-37120

XZU30#,320,330,34#

 1
82142-37130

XZU302..WT

W(BRAKE LOCK LAMP)

 1
82142-37210

XZU302,307,342

AUSTRALIA SPEC

 1
82219A - WIRE, SENSOR
82219-37010

XZU302,307,342

 1

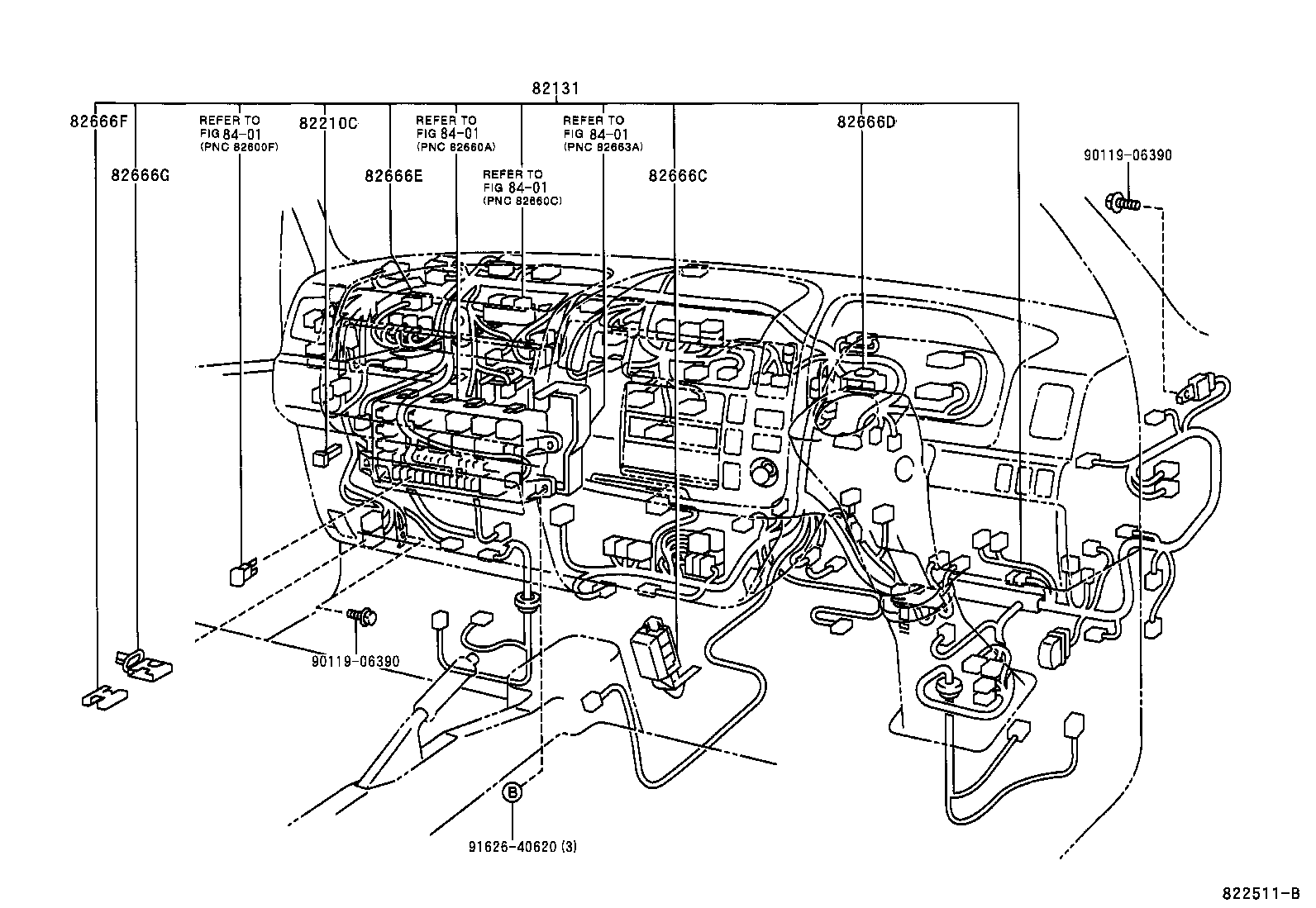

ILLUST NO. 3 OF 5(0010- )XZU302,307,342

Click highlighted areas on diagram

COWL

diagram 82131 82210C 82666C 82666D 82666E 82666F 82666G 8401 8401 8401 8401 9011906390 9011906390 9162640620
Part # Description Qty Price
82131 - WIRE, COWL
82129-37391

XZU302,307,342

W(AUTO AIR CONDITIONER) OR W(PUSH TYPE MANUAL AIR CONDITIONER)

 1
82129-37400

XZU302,307,342

 1
82129-37411

XZU302,307,342

W(*80) OR W(KEYLESS ENTRY)

 1
82148-37700

XZU302,307,342

AUSTRALIA SPEC

 1
82666C - HOLDER, CONNECTOR NO.4
82666-37080

XZU302,307,342

 1
82666D - HOLDER, CONNECTOR NO.5
82666-37090

XZU302,307,342

 1
82666E - HOLDER, CONNECTOR NO.6
82666-37120

XZU30#,320,330,34#

 1
82666F - HOLDER, CONNECTOR NO.7
82666-21040

XZU302,307,342

 1
82666G - HOLDER, CONNECTOR NO.8
82666-35040

XZU302,307,342

 3
Common parts
90119-06390
91626-40620
Linked diagrams
8401
