XZU302-TPMMS3 (2000)
Toyota Dyna
Production
Oct 2000
-
Jun 2002
Engine
S05C
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

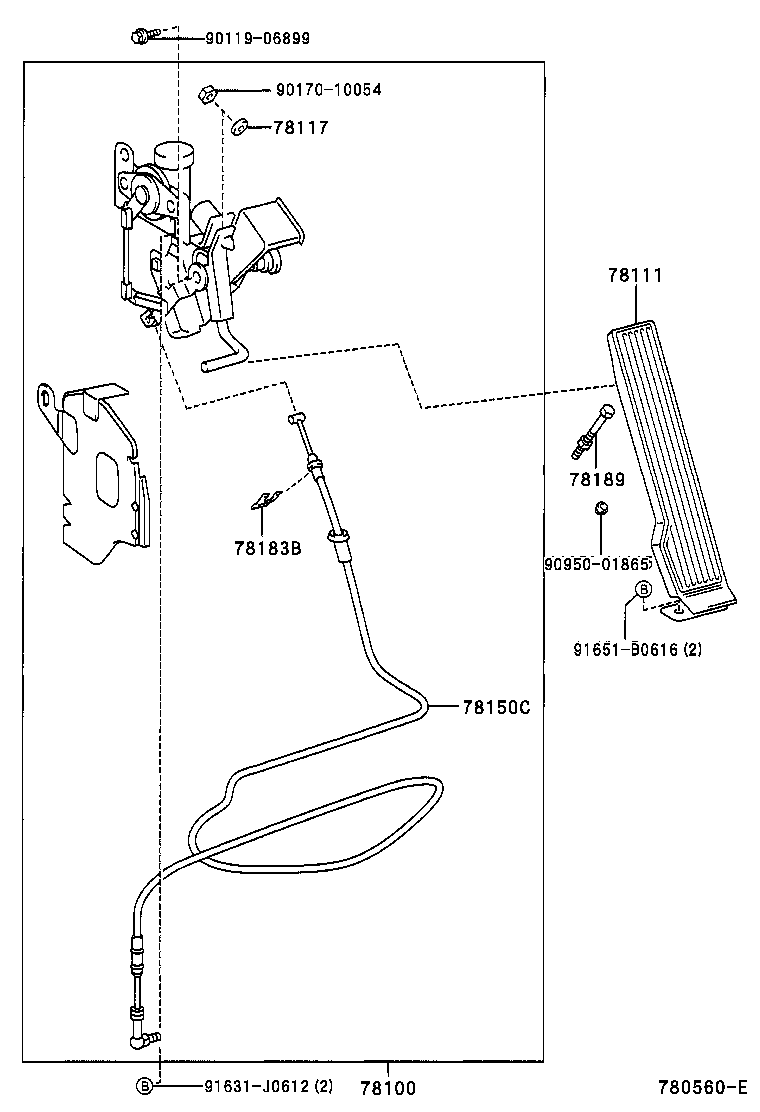

ILLUST NO. 1 OF 2(0010- )XZU302,307,342
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-37611 |
XZU302,307,342 |
1 | ||
| 78100-37612 |
XZU302,307,342 |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78110-95410 |
XZU302,307,342 |
1 | ||
| 78150C - WIRE ASSY, ACCELERATOR FLEXIBLE | ||||
| 78150-37482 |
XZU302,307,342 |
1 | ||
| 78150-37481 |
XZU302,307,342 |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-26170 |
XZU30#,320,330,34# |
1 | ||
| 78189 - BOLT, ACCELERATOR PEDAL STOPPER | ||||
| 78208-37080 |
XZU302,307,342 |
1 | ||
| Common parts | ||||
| 90119-06899 | ||||
| 90170-10054 | ||||
| 90950-01865 | ||||
| 91631-J0612 | ||||
| 91651-B0616 | ||||

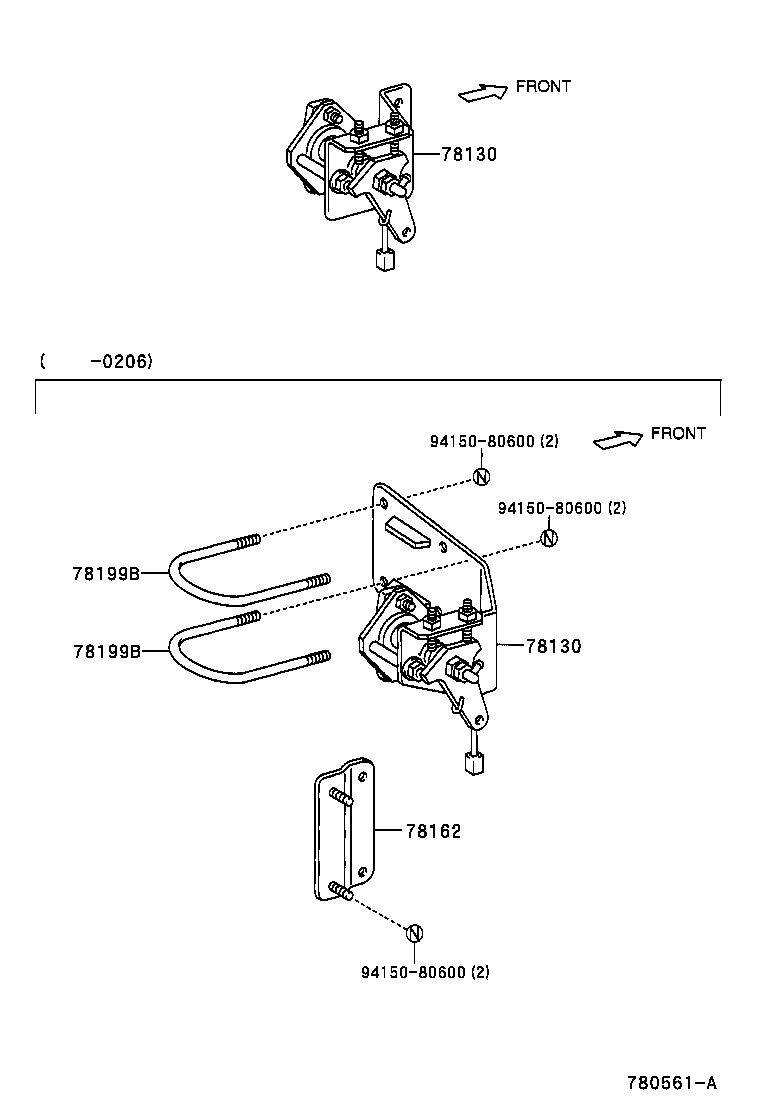

ILLUST NO. 2 OF 2(0010- )XZU302,307,342
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78130 - BELLCRANK ASSY, ACCELERATOR | ||||
| 78130-37081 |
XZU302,307,342 |
1 | ||
| 78162 - BRACKET, CONTROL BELLCRANK | ||||
| 78162-37051 |
XZU302,307,342 |
1 | ||
| 78199B - PIN, ACCELERATOR CONTROL ROD JOINT | ||||
| 78199-37030 |
XZU30#,320,330,34# |
2 | ||
| 78199B - PIN, ACCELERATOR CONTROL ROD JOINT | ||||
| 78199-37030 |
XZU30#,320,330,34# |
2 | ||
| Common parts | ||||
| 94150-80600 | ||||
