XZU302-TPMMS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

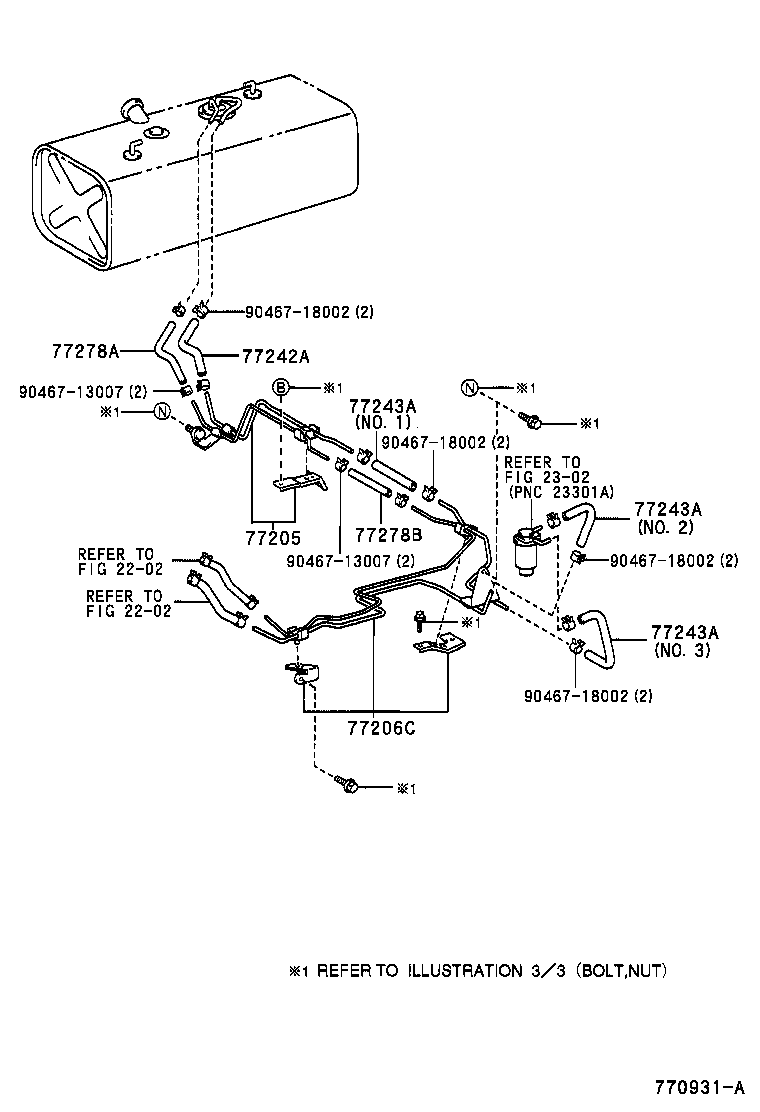

ILLUST NO. 2 OF 3(0010- )XZU302

Click highlighted areas on diagram

FUEL TUBE

diagram 2202 2202 2302 77205 77206C 77242A 77243A 77243A 77243A 77278A 77278B 9046713007 9046713007 9046718002 9046718002 9046718002 9046718002
Part # Description Qty Price
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37310

XZU302,307

 1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37470

XZU302

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-12022

XZU30#,320,330

*H,L=220,ID=12

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12020

XZU302

*H,L=200,ID=12

 2
95332-12018

XZU302

*H,L=180,ID=12

 1
95332-12030

XZU302

*H,L=300,ID=12

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12020

XZU302

*H,L=200,ID=12

 2
95332-12018

XZU302

*H,L=180,ID=12

 1
95332-12030

XZU302

*H,L=300,ID=12

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12020

XZU302

*H,L=200,ID=12

 2
95332-12018

XZU302

*H,L=180,ID=12

 1
95332-12030

XZU302

*H,L=300,ID=12

 1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95333-08030

XZU30#,330

*H,L=240,ID=7.6

 1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95333-08020

XZU30#,320,330,34#

*H,L=200,ID=7.6

 1
Common parts
90467-13007
90467-18002
