XZU302-TPMMS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0010-0206)XZU302,307,342

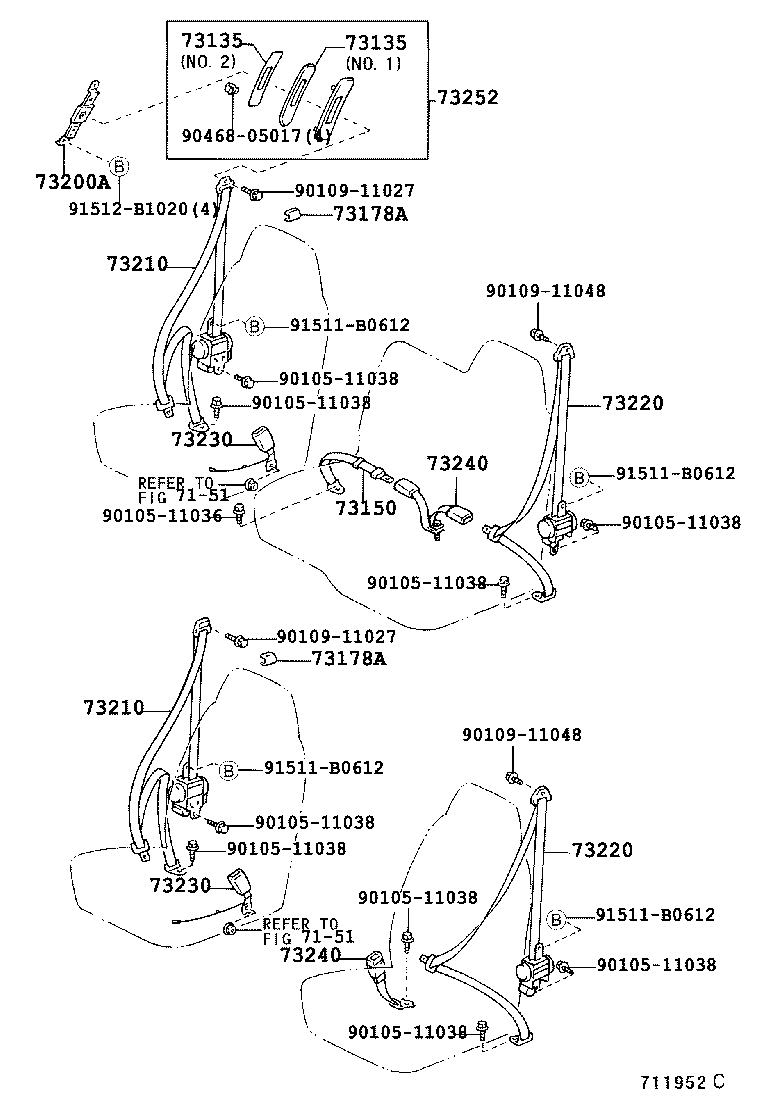

Click highlighted areas on diagram

diagram 7151 7151 73135 73135 73150 73178A 73178A 73200A 73210 73210 73220 73220 73230 73230 73240 73240 73252 9010511036 9010511038 9010511038 9010511038 9010511038 9010511038 9010511038 9010511038 9010511038 9010511038 9010911027 9010911027 9010911048 9010911048 9046805017 91511B0612 91511B0612 91511B0612 91511B0612 91512B1020
Part # Description Qty Price
73135 - COVER, SHOULDER BELT ANCHORAGE PLATE
73135-35010B1

XZU302,307,342

MD.CHARCOAL,TRIM1#,NO.1

 1
73135-35020B1

XZU302,307,342

MD.CHARCOAL,TRIM1#,NO.2

 1
73135 - COVER, SHOULDER BELT ANCHORAGE PLATE
73135-35010B1

XZU302,307,342

MD.CHARCOAL,TRIM1#,NO.1

 1
73135-35020B1

XZU302,307,342

MD.CHARCOAL,TRIM1#,NO.2

 1
73150 - BELT ASSY, FRONT SEAT LAP TYPE, CENTER
73150-37030B0

XZU302,307,342

GRAY,TRIM1#

 1
73150-37070B0

XZU302,307,342

AUSTRALIA SPEC,GRAY,TRIM1#

 1
73178A - CAP, SEAT BELT ANCHOR COVER
73178-12040B4

XZU302,307,342

MD.CHARCOAL,TRIM1#

 1
73178-33020B1

XZU302,307,342

AUSTRALIA SPEC,MD.CHARCOAL,TRIM1#

 1
73178A - CAP, SEAT BELT ANCHOR COVER
73178-12040B4

XZU302,307,342

MD.CHARCOAL,TRIM1#

 1
73178-33020B1

XZU302,307,342

AUSTRALIA SPEC,MD.CHARCOAL,TRIM1#

 1
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-34030

XZU302,307,342

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-37120B0

XZU302,307,342

W(PRETENSIONER SEAT BELT),GRAY,TRIM1#

 1
73210-37160B0

XZU302,307,342

AUSTRALIA SPEC & W(PRETENSIONER SEAT BELT),GRAY,TRIM1#

 1
73210-37110B0

XZU302,307,342

GRAY,TRIM1#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-37120B0

XZU302,307,342

W(PRETENSIONER SEAT BELT),GRAY,TRIM1#

 1
73210-37160B0

XZU302,307,342

AUSTRALIA SPEC & W(PRETENSIONER SEAT BELT),GRAY,TRIM1#

 1
73210-37110B0

XZU302,307,342

GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-37130B0

XZU30#,320,330,34#

GRAY,TRIM1#

 1
73210-37140B0

XZU302,307,342

W(PRETENSIONER SEAT BELT),GRAY,TRIM1#

 1
73210-37170B0

XZU302,307,342

AUSTRALIA SPEC,GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73210-37130B0

XZU30#,320,330,34#

GRAY,TRIM1#

 1
73210-37140B0

XZU302,307,342

W(PRETENSIONER SEAT BELT),GRAY,TRIM1#

 1
73210-37170B0

XZU302,307,342

AUSTRALIA SPEC,GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-37090B0

XZU302,307,342

DK.CHARCOAL,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-37090B0

XZU302,307,342

DK.CHARCOAL,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-37180B0

XZU302,307,342

W(FRONT TWO PERSONS SEAT),DK.CHARCOAL,TRIM1#

 1
73240-37190B0

XZU302,307,342

W(FRONT TWO PERSONS SEAT & SRS AIR BAG,PASSENGER SIDE),DK.CHARCOAL,TRIM1#

 1
73240-37170B0

XZU302,307,342

W(FRONT THREE PERSONS SEAT & SRS AIR BAG,PASSENGER SIDE),GRAY,TRIM1#

 1
73240-37160B1

XZU302,307,342

W(FRONT THREE PERSONS SEAT),GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-37180B0

XZU302,307,342

W(FRONT TWO PERSONS SEAT),DK.CHARCOAL,TRIM1#

 1
73240-37190B0

XZU302,307,342

W(FRONT TWO PERSONS SEAT & SRS AIR BAG,PASSENGER SIDE),DK.CHARCOAL,TRIM1#

 1
73240-37170B0

XZU302,307,342

W(FRONT THREE PERSONS SEAT & SRS AIR BAG,PASSENGER SIDE),GRAY,TRIM1#

 1
73240-37160B1

XZU302,307,342

W(FRONT THREE PERSONS SEAT),GRAY,TRIM1#

 1
73252 - COVER, SHOULDER BELT ANCHOR ADJUST, RH
73252-37010B0

XZU302,307,342

MD.CHARCOAL,TRIM1#

 1
Common parts
90105-11036
90105-11038
90109-11027
90109-11048
90468-05017
91511-B0612
91512-B1020
Linked diagrams
7151
