XZU302-TPMMS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )XZU302,307,342

Click highlighted areas on diagram

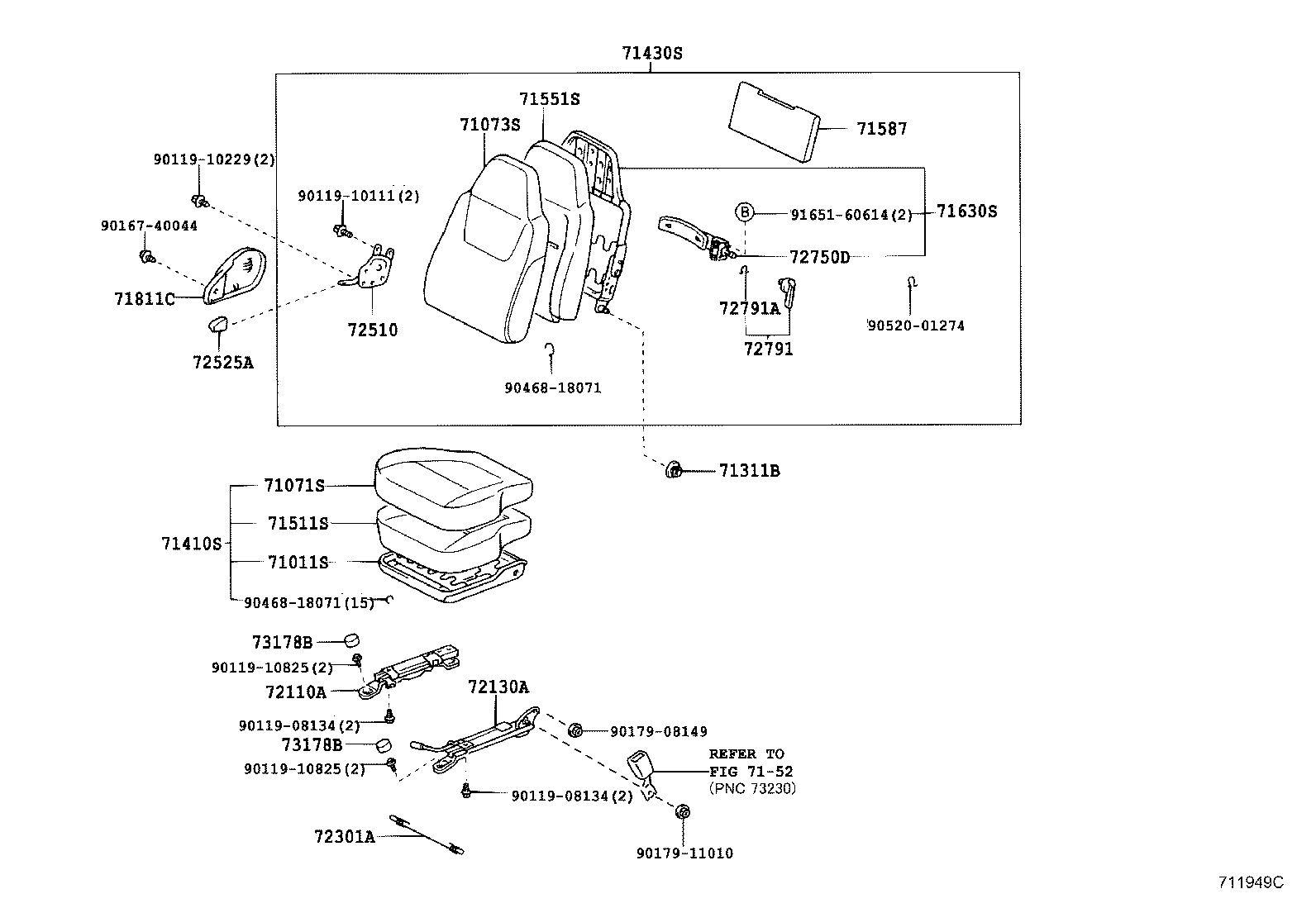

DRIVER SEAT

diagram 71011S 71071S 71073S 71311B 71410S 71430S 71511S 7152 71551S 71587 71630S 71811C 72110A 72130A 72301A 72510 72525A 72750D 72791 72791A 73178B 73178B 9011908134 9011908134 9011910111 9011910229 9011910825 9011910825 9016740044 9017908149 9017911010 9046818071 9046818071 9052001274 9165160614
Part # Description Qty Price
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71610-37030

XZU302,307,342

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-37510B0

XZU302,307,342

SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

 1
71071-37550B2

XZU302,307,342

SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71071-37440B0

XZU302,307,342

PLANT NO.C11,C21-C26,E11 & SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#

 1
71071-37510B3

XZU302,307,342..WT

SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

 1
71071-37530B0

XZU302,307,342..WT

PLANT NO.P11 & SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#

 1
71071-37550B4

XZU302,307,342..WT

SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-37640B3

XZU302,307,342

SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

 1
71073-37650B2

XZU302,307,342

SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#

 1
71073-37630B4

XZU302,307,342

SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71311B - BUSH (FOR FRONT SEAT HINGE PIN)
90386-12053

XZU30#,320,330,34#

PLANT NO.C11,C21-C26,E11

 1
90386-12051

XZU30#,330,342..(20T,30T)..WT

PLANT NO.P11

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-37610B0

XZU302,307,342

PLANT NO.C11,C21-C26,E11 & SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#

 1
71410-37710B6

XZU302,307,342..WT

SEAT = TYPE B-*104,XXXX,TRIM1#

 1
71410-37710B3

XZU302,307,342

SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71410-37730B0

XZU302,307,342..WT

PLANT NO.P11 & SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71040-37050B0

XZU302,307,342

SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

 1
71430-37780B2

XZU302,307,342

***,PLANT NO.C11,C21-C26,E11 & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71040-37060B0

XZU302,307,342..WT

***,SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#

 1
71430-37890B0

XZU302,307,342..WT

PLANT NO.P11 & W(SEAT BACK SUSPENSION) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71430-37890B2

XZU302,307,342..WT

PLANT NO.P11 & W(SEAT BACK SUSPENSION) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71040-37040B2

XZU302,307,342..WT

***,PLANT NO.P11 & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-37080

XZU302,307,342

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-37100

XZU302,307,342

W(FRONT TWO PERSONS SEAT & SEAT BACK SUSPENSION)

 1
71551-37160

XZU302,307,342..WT

W(FRONT TWO PERSONS SEAT)

 1
71551-37170

XZU302,307,342..WT

W(LUMBAR SUPPORT)

 1
71551-37110

XZU302,307,342

W(FRONT THREE PERSONS SEAT)

 1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-37020

XZU30#,320,330,34#

PLANT NO.C11,C21-C26,E11

 1
71587-37030

XZU30#,330,342..(20T,30T)..WT

PLANT NO.P11

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-37090

XZU302,307,342..WT

PLANT NO.P11 & W(LUMBER SUPPORT)

 1
71630-37060

XZU302,307,342

 1
71630-37030

XZU302,307,342

PLANT NO.C11,C21-C26,E11 & W(LUMBER SUPPORT)

 1
71630-37050

XZU302,307,342

W(SEAT BACK SUSPENSION)

 1
71811C - COVER, RECLINING ADJUSTER, RH
71811-37010B0

XZU302,307,342

MD.CHARCOAL,TRIM1#

 1
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-37020

XZU302,307,342

 1
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-37020

XZU302,307,342

 1
72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH
72301-37030

XZU30#,320,330,34#

 1
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72510-37020

XZU302,307,342

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-37010B0

XZU302,307,342

MD.CHARCOAL,TRIM1#

 1
72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH
72750-37030

XZU302,307,342

 1
72791 - LEVER, LUMBAR SUPPORT
72791-12010B9

XZU302,307,342

MD.CHARCOAL,TRIM1#

 1
72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)
90520-01006

XZU302,307,342

 1
73178B - CAP, SEAT BELT ANCHOR COVER
72137-37010B0

XZU302,307,342

DK.CHARCOAL,TRIM1#

 1
73178B - CAP, SEAT BELT ANCHOR COVER
72137-37010B0

XZU302,307,342

DK.CHARCOAL,TRIM1#

 1
Common parts
90119-08134
90119-10111
90119-10229
90119-10825
90167-40044
90179-08149
90179-11010
90468-18071
90520-01274
91651-60614
Linked diagrams
7152

(0010- )XZU302,307,342

Click highlighted areas on diagram

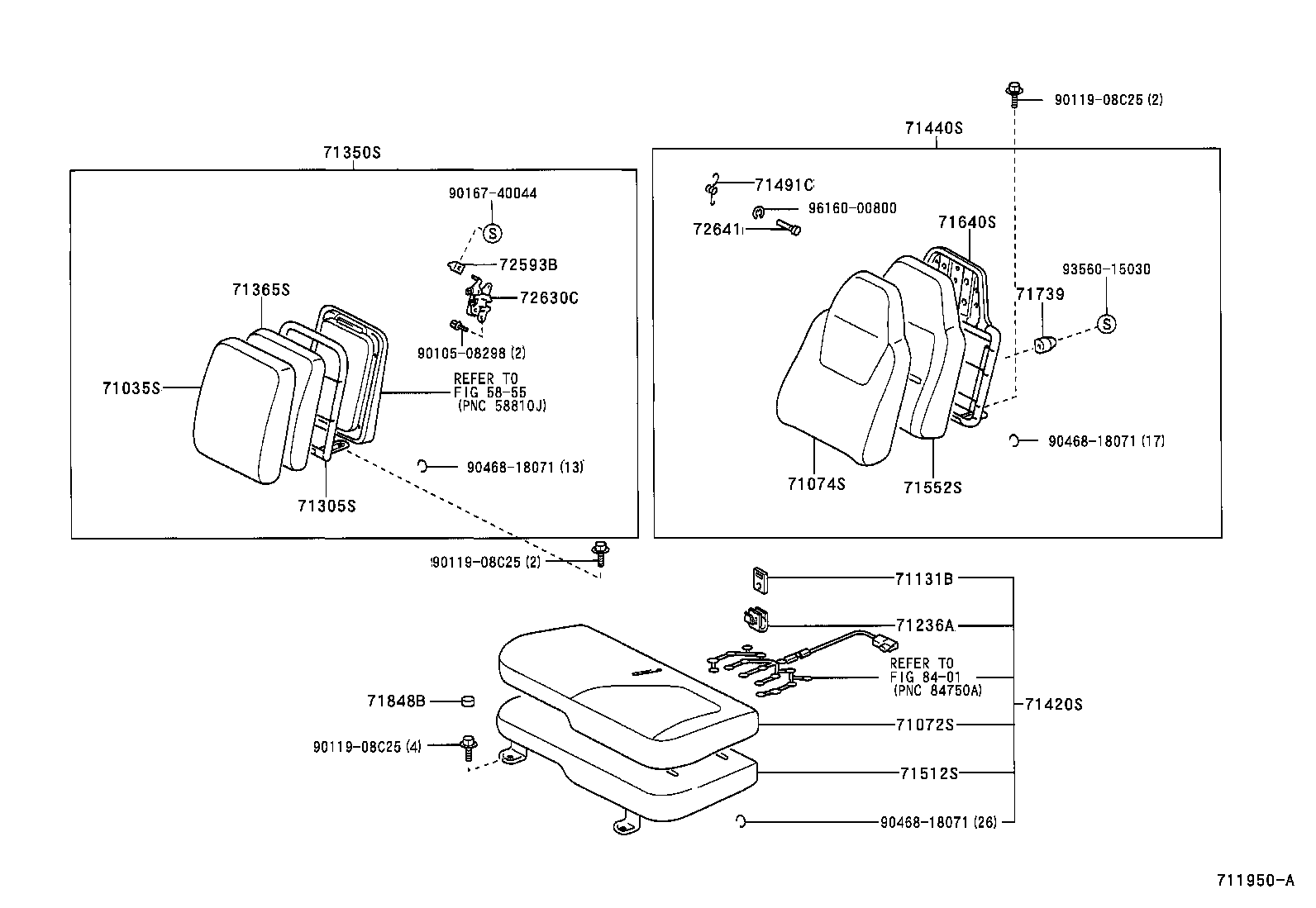

PASSENGER SEAT (SEPARATE TYPE)

diagram 5855 71035S 71072S 71074S 71131B 71236A 71305S 71350S 71365S 71420S 71440S 71491C 71512S 71552S 71640S 71739 71848B 72593B 72630C 72641 8401 9010508298 9011908C25 9011908C25 9011908C25 9016740044 9046818071 9046818071 9046818071 9356015030 9616000800
Part # Description Qty Price
71035S - COVER, FRONT SEAT BACK, CENTER
71095-37200B0

XZU302,307,342..WT

PLANT NO.P11 & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71095-37300B0

XZU302,307,342

SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

 1
71095-37310B0

XZU302,307,342

SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#

 1
71095-37170B1

XZU302,307,342

PLANT NO.C11,C21-C26,E11 & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-37820B0

XZU302,307,342

SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#

 1
71072-37830B0

XZU302,307,342

W(FRONT TWO PERSONS SEAT) & SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

 1
71072-37800B0

XZU302,307,342

W(FRONT THREE PERSONS SEAT) & SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

 1
71072-37840B1

XZU302,307,342

W(FRONT TWO PERSONS SEAT) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71072-37790B1

XZU302,307,342

SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-37850B2

XZU302,307,342

W(PASSENGER SEAT SEPARATE TYPE) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71074-37810B2

XZU302,307,342

W(PASSENGER SEAT BENCH TYPE) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71074-37840B0

XZU302,307,342

SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#

 1
71074-37850B4

XZU302,307,342..WT

W(PASSENGER SEAT SEPARATE TYPE) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71074-37660B0

XZU302,307,342

SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

 1
71131B - PLATE, FRONT SEAT CUSHION, NO.1
71131-37030

XZU302,307,342

 1
71236A - CLAMP, REAR SEAT CUSHION SPRING
71236-37010

XZU302,307,342

 1
71305S - FRAME SUB-ASSY, CENTER SEAT BACK
71305-37090

XZU302,307,342

 1
71350S - BACK ASSY, FRONT SEAT, CENTER
71350-37350B0

XZU302,307,342

SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#

 1
71350-37240B0

XZU302,307,342..WT

PLANT NO.P11 & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71350-37210B2

XZU302,307,342

PLANT NO.C11,C21-C26,E11 & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71350-37340B0

XZU302,307,342

SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

 1
71365S - PAD, CENTER SEAT BACK
71365-37060

XZU302,307,342

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-3V190B0

XZU302,307,342

W(FRONT THREE PERSONS SEAT) & SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

 1
71420-3V170B1

XZU302,307,342

W(FRONT THREE PERSONS SEAT) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71420-3V240B0

XZU302,307,342

W(FRONT TWO PERSONS SEAT & PASSENGER SEAT BELT WARNING) & SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

 1
71420-3V260B1

XZU302,307,342

W(FRONT TWO PERSONS SEAT & PASSENGER SEAT BELT WARNING) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71420-3V250B1

XZU302,307,342

W(FRONT TWO PERSONS SEAT) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71420-3V210B0

XZU302,307,342

SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#

 1
71420-3V200B0

XZU302,307,342

W(FRONT THREE PERSONS SEAT & PASSENGER SEAT BELT WARNING) & SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

 1
71420-3V230B0

XZU302,307,342

W(FRONT TWO PERSONS SEAT) & SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

 1
71420-3V220B0

XZU302,307,342

W(PASSENGER SEAT BELT WARNING) & SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#

 1
71420-3V180B1

XZU302,307,342

W(FRONT THREE PERSONS SEAT & PASSENGER SEAT BELT WARNING) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71491C - SPRING, REAR SEAT SET
71491-89101

XZU302,307,342

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71052-37040

XZU302,307,342..WT

W(FRONT TWO PERSONS SEAT & PASSENGER SEAT BELT WARNING)

 1
71052-37030

XZU302,307,342..WT

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-37100

XZU302,307,342

 1
71552-37090

XZU302,307,342

W(PASSENGER SEAT BENCH TYPE)

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71014-37100

XZU302,307,342

W(FRONT TWO PERSONS SEAT)

 1
71630-37080

XZU302,307,342..WT

PLANT NO.P11 & W(FRONT THREE PERSONS SEAT)

 1
71014-37070

XZU302,307,342

PLANT NO.C11,C21-C26,E11 & W(FRONT THREE PERSONS SEAT)

 1
71739 - CUSHION, SEAT SUPPORT
71739-37010

XZU30#,320,330,34#

 2
71848B - CAP, SEAT ADJUSTER COVER, RH
72137-35050B1

XZU302,307,342

DK.CHARCOAL,TRIM1#

 1
72593B - KNOB, RECLINING REMOTE CONTROL LEVER, RH
72593-37020B0

XZU302,307,342

MD.CHARCOAL,TRIM1#

 1
72630C - LOCK ASSY, REAR SEAT BACK, RH
72630-37020

XZU302,307,342

 1
72641 - PIN, REAR SEAT BACK LOCK
72641-37010

XZU30#,320,330,34#

 1
Common parts
90105-08298
90119-08C25
90167-40044
90468-18071
93560-15030
96160-00800
Linked diagrams
5855
8401

(0010- )XZU302,307,342

Click highlighted areas on diagram

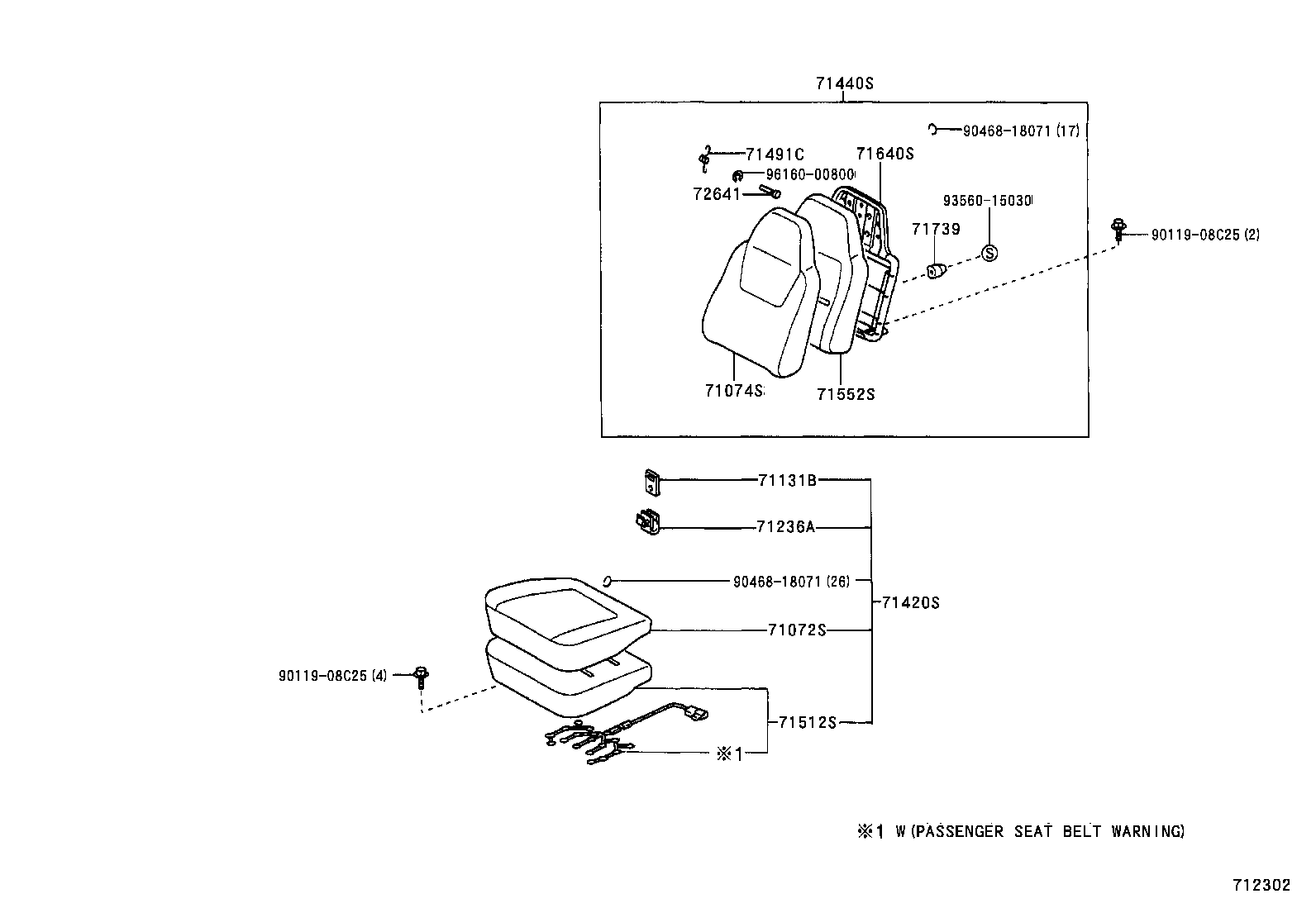

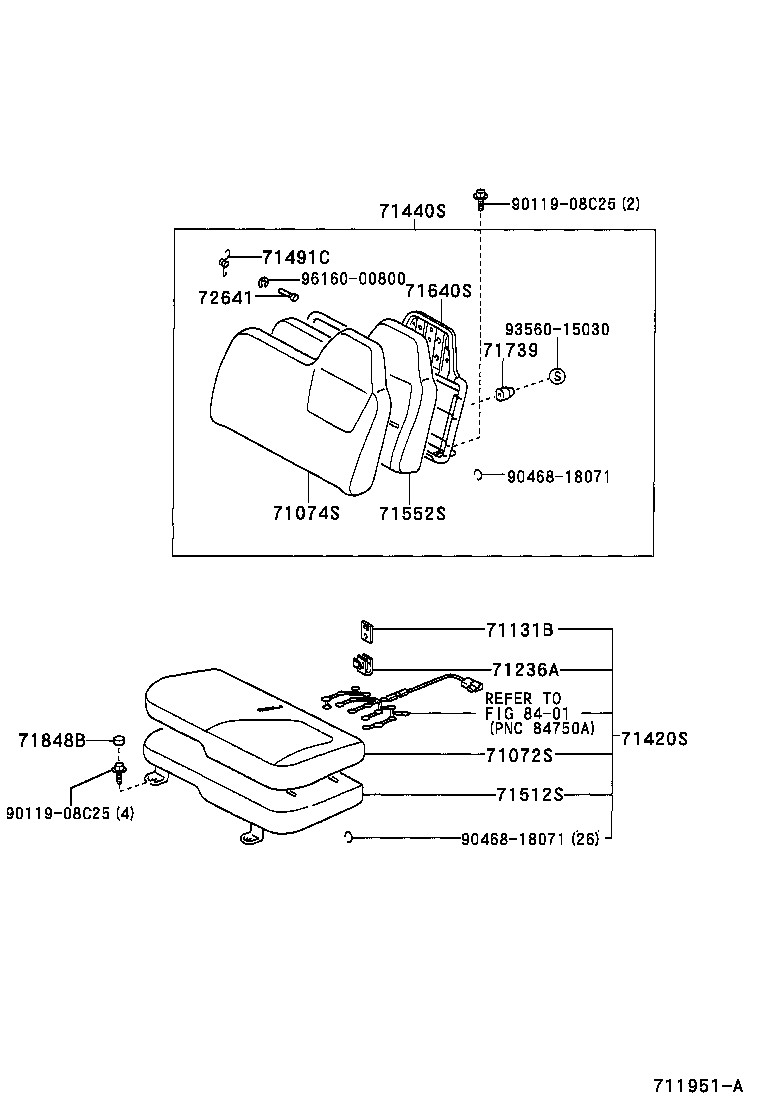

PASSENGER SEAT (BENCH TYPE)

diagram 71072S 71074S 71131B 71236A 71420S 71440S 71491C 71512S 71552S 71640S 71739 71848B 72641 8401 9011908C25 9011908C25 9046818071 9046818071 9356015030 9616000800
Part # Description Qty Price
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-37820B0

XZU302,307,342

SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#

 1
71072-37830B0

XZU302,307,342

W(FRONT TWO PERSONS SEAT) & SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

 1
71072-37800B0

XZU302,307,342

W(FRONT THREE PERSONS SEAT) & SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

 1
71072-37840B1

XZU302,307,342

W(FRONT TWO PERSONS SEAT) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71072-37790B1

XZU302,307,342

SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-37850B2

XZU302,307,342

W(PASSENGER SEAT SEPARATE TYPE) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71074-37810B2

XZU302,307,342

W(PASSENGER SEAT BENCH TYPE) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71074-37840B0

XZU302,307,342

SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#

 1
71074-37850B4

XZU302,307,342..WT

W(PASSENGER SEAT SEPARATE TYPE) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71074-37660B0

XZU302,307,342

SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

 1
71131B - PLATE, FRONT SEAT CUSHION, NO.1
71131-37030

XZU302,307,342

 1
71236A - CLAMP, REAR SEAT CUSHION SPRING
71236-37010

XZU302,307,342

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-3V190B0

XZU302,307,342

W(FRONT THREE PERSONS SEAT) & SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

 1
71420-3V170B1

XZU302,307,342

W(FRONT THREE PERSONS SEAT) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71420-3V240B0

XZU302,307,342

W(FRONT TWO PERSONS SEAT & PASSENGER SEAT BELT WARNING) & SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

 1
71420-3V260B1

XZU302,307,342

W(FRONT TWO PERSONS SEAT & PASSENGER SEAT BELT WARNING) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71420-3V250B1

XZU302,307,342

W(FRONT TWO PERSONS SEAT) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71420-3V210B0

XZU302,307,342

SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#

 1
71420-3V200B0

XZU302,307,342

W(FRONT THREE PERSONS SEAT & PASSENGER SEAT BELT WARNING) & SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

 1
71420-3V230B0

XZU302,307,342

W(FRONT TWO PERSONS SEAT) & SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

 1
71420-3V220B0

XZU302,307,342

W(PASSENGER SEAT BELT WARNING) & SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#

 1
71420-3V180B1

XZU302,307,342

W(FRONT THREE PERSONS SEAT & PASSENGER SEAT BELT WARNING) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71491C - SPRING, REAR SEAT SET
71491-89101

XZU302,307,342

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71052-37040

XZU302,307,342..WT

W(FRONT TWO PERSONS SEAT & PASSENGER SEAT BELT WARNING)

 1
71052-37030

XZU302,307,342..WT

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-37100

XZU302,307,342

 1
71552-37090

XZU302,307,342

W(PASSENGER SEAT BENCH TYPE)

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71014-37100

XZU302,307,342

W(FRONT TWO PERSONS SEAT)

 1
71630-37080

XZU302,307,342..WT

PLANT NO.P11 & W(FRONT THREE PERSONS SEAT)

 1
71014-37070

XZU302,307,342

PLANT NO.C11,C21-C26,E11 & W(FRONT THREE PERSONS SEAT)

 1
71739 - CUSHION, SEAT SUPPORT
71739-37010

XZU30#,320,330,34#

 2
71848B - CAP, SEAT ADJUSTER COVER, RH
72137-35050B1

XZU302,307,342

DK.CHARCOAL,TRIM1#

 1
72641 - PIN, REAR SEAT BACK LOCK
72641-37010

XZU30#,320,330,34#

 1
Common parts
90119-08C25
90468-18071
93560-15030
96160-00800
Linked diagrams
8401

(0010- )XZU302,307,342

Click highlighted areas on diagram

PASSENGER SEAT (FIXED TYPE)

diagram 71072S 71074S 71131B 71236A 71420S 71440S 71491C 71512S 71552S 71640S 71739 72641 9011908C25 9011908C25 9046818071 9046818071 9356015030 9616000800
Part # Description Qty Price
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-37820B0

XZU302,307,342

SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#

 1
71072-37830B0

XZU302,307,342

W(FRONT TWO PERSONS SEAT) & SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

 1
71072-37800B0

XZU302,307,342

W(FRONT THREE PERSONS SEAT) & SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

 1
71072-37840B1

XZU302,307,342

W(FRONT TWO PERSONS SEAT) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71072-37790B1

XZU302,307,342

SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-37850B2

XZU302,307,342

W(PASSENGER SEAT SEPARATE TYPE) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71074-37810B2

XZU302,307,342

W(PASSENGER SEAT BENCH TYPE) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71074-37840B0

XZU302,307,342

SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#

 1
71074-37850B4

XZU302,307,342..WT

W(PASSENGER SEAT SEPARATE TYPE) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71074-37660B0

XZU302,307,342

SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

 1
71131B - PLATE, FRONT SEAT CUSHION, NO.1
71131-37030

XZU302,307,342

 1
71236A - CLAMP, REAR SEAT CUSHION SPRING
71236-37010

XZU302,307,342

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-3V190B0

XZU302,307,342

W(FRONT THREE PERSONS SEAT) & SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

 1
71420-3V170B1

XZU302,307,342

W(FRONT THREE PERSONS SEAT) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71420-3V240B0

XZU302,307,342

W(FRONT TWO PERSONS SEAT & PASSENGER SEAT BELT WARNING) & SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

 1
71420-3V260B1

XZU302,307,342

W(FRONT TWO PERSONS SEAT & PASSENGER SEAT BELT WARNING) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71420-3V250B1

XZU302,307,342

W(FRONT TWO PERSONS SEAT) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71420-3V210B0

XZU302,307,342

SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#

 1
71420-3V200B0

XZU302,307,342

W(FRONT THREE PERSONS SEAT & PASSENGER SEAT BELT WARNING) & SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

 1
71420-3V230B0

XZU302,307,342

W(FRONT TWO PERSONS SEAT) & SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

 1
71420-3V220B0

XZU302,307,342

W(PASSENGER SEAT BELT WARNING) & SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#

 1
71420-3V180B1

XZU302,307,342

W(FRONT THREE PERSONS SEAT & PASSENGER SEAT BELT WARNING) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

 1
71491C - SPRING, REAR SEAT SET
71491-89101

XZU302,307,342

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71052-37040

XZU302,307,342..WT

W(FRONT TWO PERSONS SEAT & PASSENGER SEAT BELT WARNING)

 1
71052-37030

XZU302,307,342..WT

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-37100

XZU302,307,342

 1
71552-37090

XZU302,307,342

W(PASSENGER SEAT BENCH TYPE)

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71014-37100

XZU302,307,342

W(FRONT TWO PERSONS SEAT)

 1
71630-37080

XZU302,307,342..WT

PLANT NO.P11 & W(FRONT THREE PERSONS SEAT)

 1
71014-37070

XZU302,307,342

PLANT NO.C11,C21-C26,E11 & W(FRONT THREE PERSONS SEAT)

 1
71739 - CUSHION, SEAT SUPPORT
71739-37010

XZU30#,320,330,34#

 2
72641 - PIN, REAR SEAT BACK LOCK
72641-37010

XZU30#,320,330,34#

 1
Common parts
90119-08C25
90468-18071
93560-15030
96160-00800
