XZU302-TPMMS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9907-0212)

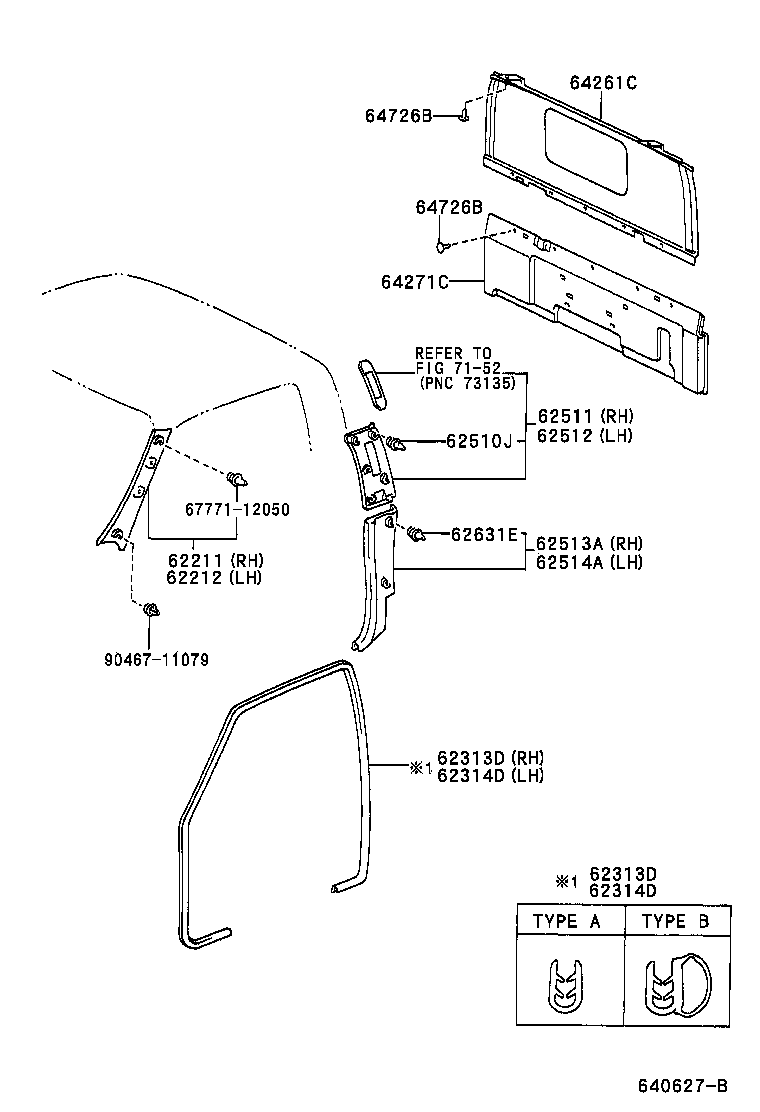

Click highlighted areas on diagram

diagram 62211 62212 62313D 62313D 62314D 62314D 62510J 62511 62512 62513A 62514A 62631E 64261C 64271C 64726B 64726B 6777112050 7152 9046711079
Part # Description Qty Price
62211 - GARNISH, FRONT PILLAR, RH
62211-37010B0

XZU30#,320,330,34#

MD.CHARCOAL,TRIM1#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-37010B0

XZU30#,320,330,34#

MD.CHARCOAL,TRIM1#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-37050B0

XZU302,307,342

TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

 1
62313-37040B0

XZU30#,320,330,34#

TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-37050B0

XZU302,307,342

TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

 1
62313-37040B0

XZU30#,320,330,34#

TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62314-37010B0

XZU302,307,342

TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

 1
62313-37040B0

XZU30#,320,330,34#

TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62314-37010B0

XZU302,307,342

TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

 1
62313-37040B0

XZU30#,320,330,34#

TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

 1
62510J - RETAINER, QUARTER TRIM
67771-12050

XZU30#,320,330,34#

 10
62511 - BOARD, QUARTER INSIDE TRIM, RH
62511-37010B0

XZU302,307,342

MD.CHARCOAL,TRIM1#

 1
62512 - BOARD, QUARTER INSIDE TRIM, LH
62512-37010B0

XZU30#,320,330,34#

MD.CHARCOAL,TRIM1#

 1
62513A - PANEL, QUARTER TRIM, LOWER RH
62513-37010B0

XZU30#,320,330,34#

MD.CHARCOAL,TRIM1#

 1
62514A - PANEL, QUARTER TRIM, LOWER LH
62514-37010B0

XZU30#,320,330,34#

MD.CHARCOAL,TRIM1#

 1
62631E - RETAINER, QUATER TRIM
67771-12050

XZU30#,320,330,34#

 4
64261C - GARNISH, BACK PANEL, UPPER
64261-37010B0

XZU302,307,342

MD.CHARCOAL,TRIM1#

 1
64271C - TRIM, BACK PANEL
64271-37100B0

XZU302,307,342

W(PASSENGER SEAT BENCH TYPE),MD.CHACOAL,TRIM1#

 1
64271-37011B0

XZU302,307,342

MD.CHARCOAL,TRIM1#

 1
64271-37020B0

XZU302,307,342

W(REAR BACK CONSOLE BOX),MD.CHARCOAL,TRIM1#

 1
64726B - CLIP, DECK REAR TRIM
64726-37010B0

XZU302,307,342

W(BACK PANEL GARNISH),MD.CHACOAL,TRIM1#

 9
64726-37010B0

XZU30#,320,330,34#

MD.CHACOAL,TRIM1#

 7
64726B - CLIP, DECK REAR TRIM
64726-37010B0

XZU302,307,342

W(BACK PANEL GARNISH),MD.CHACOAL,TRIM1#

 9
64726-37010B0

XZU30#,320,330,34#

MD.CHACOAL,TRIM1#

 7
Common parts
67771-12050
90467-11079
Linked diagrams
7152
