XZU302-TPMMS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

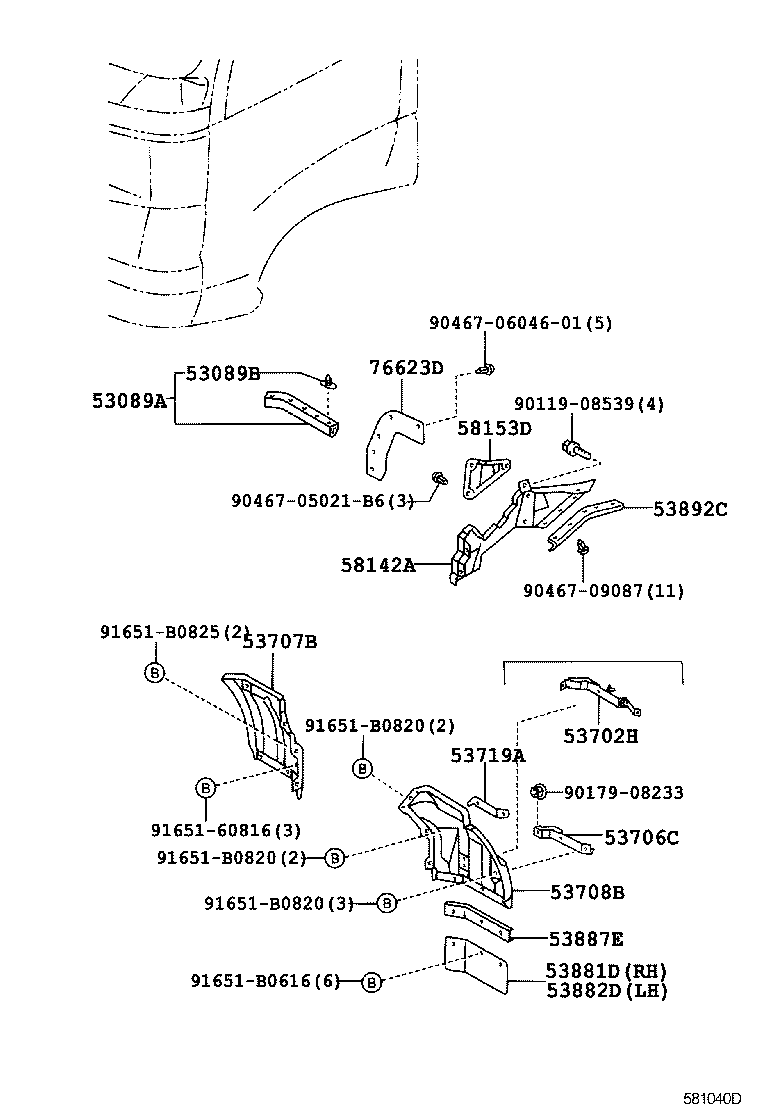

ILLUST NO. 2 OF 3(9907-0212)

Click highlighted areas on diagram

diagram 53089A 53089B 53702H 53706C 53707B 53708B 53719A 53881D 53882D 53887E 53892C 58142A 58153D 76623D 9011908539 9017908233 9046705021B6 904670604601 9046709087 9165160816 91651B0616 91651B0820 91651B0820 91651B0820 91651B0825
Part # Description Qty Price
53089A - MUDGUARD SUB-ASSY, FRONT
53089-25010

XZU30#,320,330,342..20T,30T

 2
53089B - CLIP, FRONT MUDGUARD
67868-95401

XZU302,307,342

 10
53706C - BRACE SUB-ASSY, FENDER APRON, LH
53706-37010

XZU30#,320,330,342..20T,30T

 1
53707B - APRON SUB-ASSY, FENDER SIDE, RH
53715-37110

XZU30#,320,330,342..20T,30T

 1
53708B - APRON SUB-ASSY, FENDER SIDE, LH
53716-37130

XZU30#,320,330,342..20T,30T

 1
53881D - MUDGUARD, FRONT RH
53881-37050

XZU30#,320,330,342..20T,30T

 1
53882D - MUDGUARD, FRONT LH
53881-37050

XZU30#,320,330,342..20T,30T

 1
53887E - PLATE, FRONT MUDGUARD
53887-37030

XZU30#,320,330,342..20T,30T

 2
53892C - SEAL, FRONT FENDER SPLASH SHIELD, FRONT LH
53892-37030

XZU30#,330,34#..20T,40T

 1
58142A - APRON, FRONT FLOOR SIDE, NO.1 LH
58142-37010

XZU30#,330,34#..20T,40T

 1
58153D - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-37010

XZU30#,320,330,34#

 1
76623D - MUDGUARD, FRONT FENDER, FRONT RH
76623-37031

XZU302,307,342

 1
Common parts
90119-08539
90179-08233
90467-05021B6
90467-0604601
90467-09087
91651-60816
91651-B0616
91651-B0820
91651-B0825

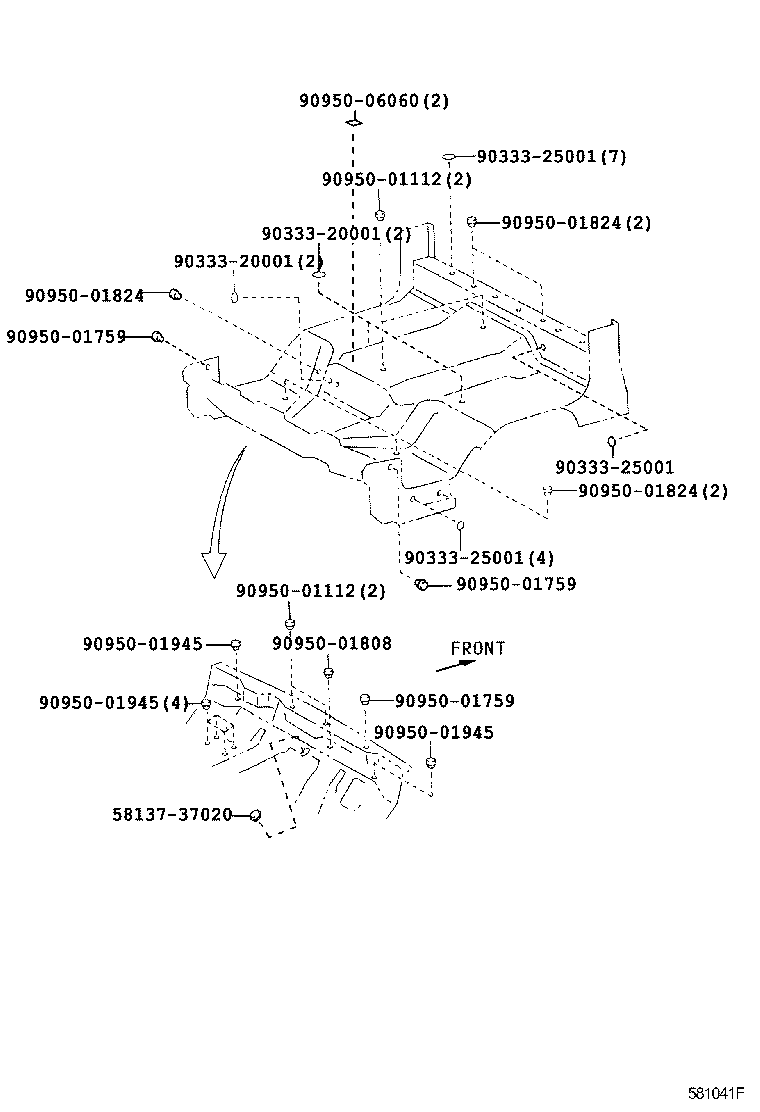

ILLUST NO. 3 OF 3(9907-0212)

Click highlighted areas on diagram

PLUG HOLE

diagram 5813737020 9033320001 9033320001 9033325001 9033325001 9033325001 9095001112 9095001112 9095001759 9095001759 9095001759 9095001808 9095001824 9095001824 9095001824 9095001945 9095001945 9095001945 9095006060
Part # Description Qty Price
Common parts
58137-37020
90333-20001
90333-25001
90950-01112
90950-01759
90950-01808
90950-01824
90950-01945
90950-06060

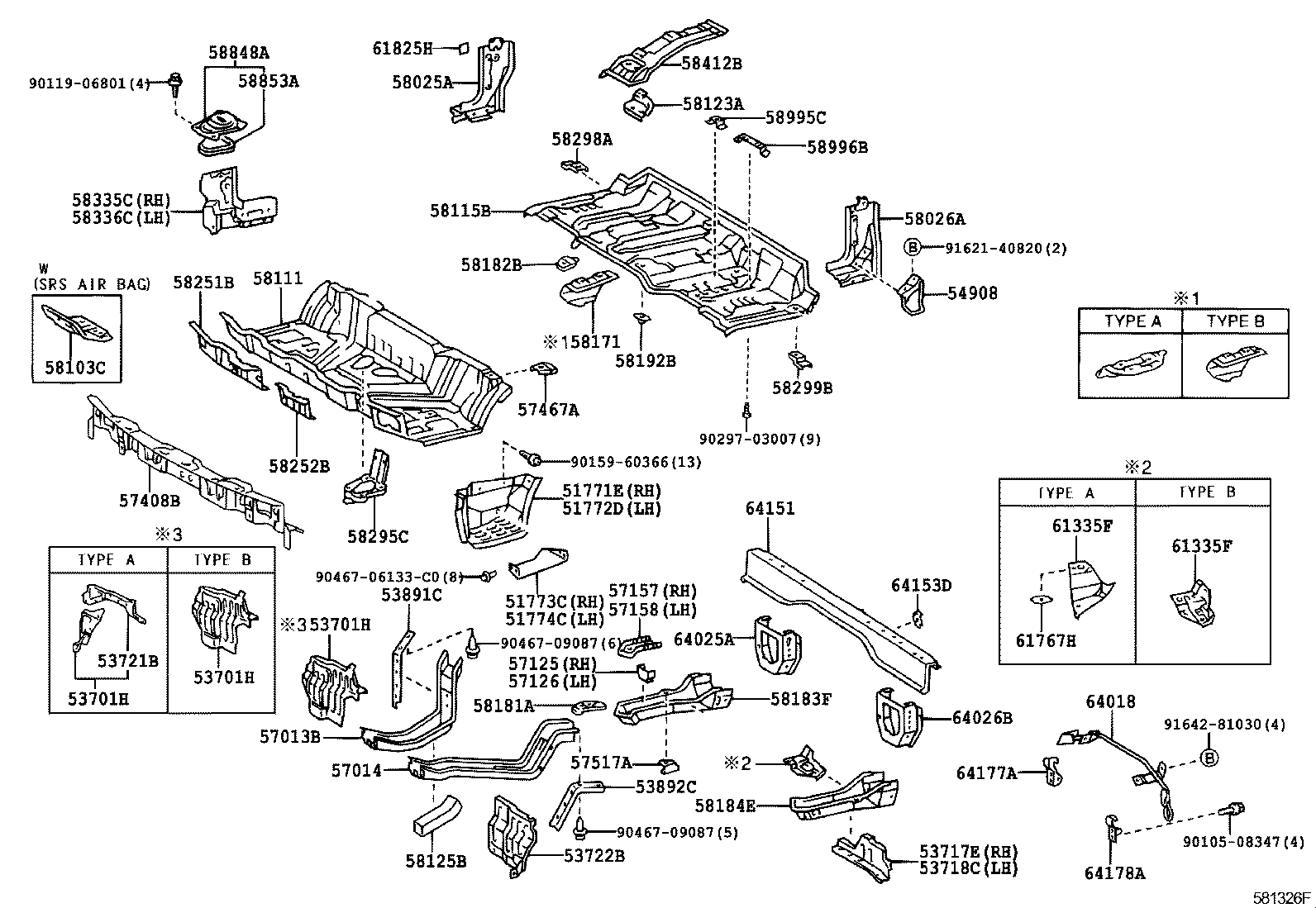

ILLUST NO. 1 OF 3(0010-0206)XZU302,307,342

Click highlighted areas on diagram

diagram 51771E 51772D 51773C 51774C 53701H 53701H 53701H 53717E 53718C 53721B 53722B 53891C 53892C 54908 57013B 57014 57125 57126 57157 57158 57408B 57467A 57517A 58025A 58026A 58103C 58111 58115B 58123A 58125B 58171 58181A 58182B 58183F 58184E 58192B 58251B 58252B 58295C 58298A 58299B 58335C 58336C 58412B 58848A 58853A 58995C 58996B 61335F 61335F 61767H 61825H 64018 64025A 64026B 64151 64153D 64177A 64178A 9010508347 9011906801 9015960366 9029703007 9046706133C0 9046709087 9046709087 9162140820 9164281030
Part # Description Qty Price
51771E - PLATE, STEP, RH
51771-37100

XZU302,307,342

 1
51771-37190

XZU302,307,342

 1
51772D - PLATE, STEP, LH
51772-37080

XZU302,307,342

 1
51773C - COVER, STEP PLATE, RH
51773-37020

XZU302,307,342

 1
51774C - COVER, STEP PLATE, LH
51774-37010

XZU302,307,342

 1
53701H - APRON SUB-ASSY, FRONT FENDER, RH
53701-37030

XZU302,307,342

TYPE B:REFER ILLUST.

 1
53701-37022

XZU302,307,342

TYPE A:REFER TO ILLUSTRATION

 1
53701H - APRON SUB-ASSY, FRONT FENDER, RH
53701-37030

XZU302,307,342

TYPE B:REFER ILLUST.

 1
53701-37022

XZU302,307,342

TYPE A:REFER TO ILLUSTRATION

 1
53701H - APRON SUB-ASSY, FRONT FENDER, RH
53701-37030

XZU302,307,342

TYPE B:REFER ILLUST.

 1
53701-37022

XZU302,307,342

TYPE A:REFER TO ILLUSTRATION

 1
53717E - APRON, FRONT FENDER, NO.2 RH
53717-37130

XZU30#,320,330,34#

 1
53718C - APRON, FRONT FENDER, NO.2 LH
53718-37110

XZU30#,320,330,34#

 1
53722B - APRON SUB-ASSY, FENDER SIDE, LH
53722-37030

XZU302,307,342

 1
53891C - SEAL, FRONT FENDER SPLASH SHEILD, FRONT
53891-37030

XZU30#,320,330,34#

 1
53892C - SEAL, FRONT FENDER SPLASH SHIELD, FRONT LH
53892-37030

XZU30#,330,34#..20T,40T

 1
54908 - BRACKET SUB-ASSY, TILT CAB GRIP
54908-37010

XZU30#,320,330,34#

 1
57013B - MEMBER SUB-ASSY, FLOOR, FRONT RH
57013-37150

XZU30#,320,330,34#

 1
57014 - MEMBER SUB-ASSY, FLOOR, FRONT LH
57014-37070

XZU30#,320,330,34#

 1
57125 - BRACKET, FRONT SIDE MEMBER, RH
57125-37010

XZU30#,320,330,34#

 1
57126 - BRACKET, FRONT SIDE MEMBER, LH
57126-37020

XZU30#,320,330,34#

 1
57157 - REINFORCEMENT, FRONT SIDE MEMBER, NO.4 RH
57157-37030

XZU30#,320,330,34#

 1
57158 - REINFORCEMENT, FRONT SIDE MEMBER, NO.4 LH
57158-37030

XZU30#,320,330,34#

 1
57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS
57408-37260

XZU302,307,342

 1
57467A - BRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH
57467-37010

XZU302,307,342

 1
57517A - RETAINER, FRONT FLOOR REINFORCEMENT, REAR
57517-37010

XZU302,307,342

 1
58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH
58043-37060

XZU302,307,342

 1
58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH
58044-37070

XZU30#,320,330,34#

 1
58103C - REINFORCEMENT SUB-ASSY, FRONT FLOOR, FRONT
58103-37031

XZU302,307,342

 1
58111 - PAN, FRONT FLOOR
58111-37301

XZU302,307,342

 1
58111-37171

XZU302,307,342

W(SRS AIR BAG)

 1
58115B - PANEL, FRONT FLOOR, REAR
58115-37011

XZU302,307,342

W(FRONT SEAT=03S)

 1
58115-37012

XZU302,307,342

W(FRONT SEAT=03S)

 1
58115-37022

XZU302,307,342

W(FRONT SEAT=02S)

 1
58115-37021

XZU302,307,342

W(FRONT SEAT=02S)

 1
58123A - SUPPORT, SHIFT & SELECT LEVER
58123-37010

XZU302,307,342

 1
58171 - REINFORCEMENT, PARKING BRAKE BASE
58107-37010

XZU302,307,342

TYPE A:REFER TO ILLUSTRATION

 1
58171-37010

XZU302,307,342

TYPE B:REFER TO ILLUSTRATION

 1
58181A - RETAINER, SEAT RAIL, FRONT
58181-37030

XZU302,307,342

 1
58182B - RETAINER, SEAT RAIL, FRONT LH
58182-37010

XZU302,307,342

 1
58183F - REINFORCEMENT, REAR MOUNTING, RH
58183-37060

XZU30#,320,330,34#

 1
58192B - PLATE, FRONT FLOOR, REAR
58192-37020

XZU302,307,342

 3
58251B - BRACE, FLOOR PANEL, FRONT
58251-37031

XZU302,307,342

 1
58252B - BRACE, FLOOR PANEL, FRONT LH
58252-37031

XZU302,307,342

 1
58295C - BRACKET, FLOOR SHIFT LEVER, NO.1
58295-37060

XZU302,307,342

 1
58298A - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH
58298-37010

XZU30#,320,330,34#

 1
58299B - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, LH
58298-37010

XZU30#,320,330,34#

 1
58335C - PLATE, FLOOR SIDE, FRONT RH
58335-37040

XZU30#,320,330,34#

 1
58336C - PLATE, FLOOR SIDE, FRONT LH
58336-37030

XZU30#,320,330,34#

 1
58412B - REINFORCEMENT, ENGINE SUB COVER
58412-37030

XZU302,307,342

 1
58848A - COVER, SHIFT LEVER HOLE
58840-37010

XZU302,307,342

 1
58853A - PACKING, SHIFT LEVER HOLE
58853-37020

XZU30#,320,330,34#

 1
58995C - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-37030

XZU302,307,342

 1
58996B - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-37020

XZU302,307,342

 1
61335F - RETAINER, SEAT BELT ANCHOR
61335-37010

XZU302,307,342

TYPE A:REFER TO ILLUSTRATION

 1
57405-37070

XZU302,307,342

TYPE A:REFER TO ILLUSTRATION & W(FRONT SEAT=02S)

 1
61335F - RETAINER, SEAT BELT ANCHOR
61335-37010

XZU302,307,342

TYPE A:REFER TO ILLUSTRATION

 1
57405-37070

XZU302,307,342

TYPE A:REFER TO ILLUSTRATION & W(FRONT SEAT=02S)

 1
61767H - ANCHOR, REAR SEAT BELT, LOWER
61753-95700

XZU302,307,342

 1
61825H - PAD, NOISE SHUTTER, NO.2
61825-34010

XZU30#,320,330,34#

 2
64018 - BAR SUB-ASSY, BODY
64018-37070

XZU302,307,342

 1
64025A - BRACKET SUB-ASSY, REAR MOUNTING, RH
64171-37010

XZU30#,320,330,34#

 1
64026B - BRACKET SUB-ASSY, REAR MOUNTING, LH
64026-37100

XZU302,307,342

W(CONSOLE BOX = FOR 02S)

 1
64172-37020

XZU302,307,342

 1
64172-37021

XZU302,307,342

 1
64151 - FRAME, BACK
64151-37180

XZU302,307,342

 1
64151-37181

XZU302,307,342

 1
64153D - REINFORCEMENT, BACK FRAME
64153-37020

XZU30#,320,330,34#

 1
64177A - STOPPER, REAR MOUNTING BRACKET, RH
64177-37030

XZU30#,320,330,34#

 1
64178A - STOPPER, REAR MOUNTING BRACKET, LH
64178-37030

XZU30#,320,330,34#

 1
Common parts
90105-08347
90119-06801
90159-60366
90297-03007
90467-06133C0
90467-09087
91621-40820
91642-81030
