XZU302-TPMMS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

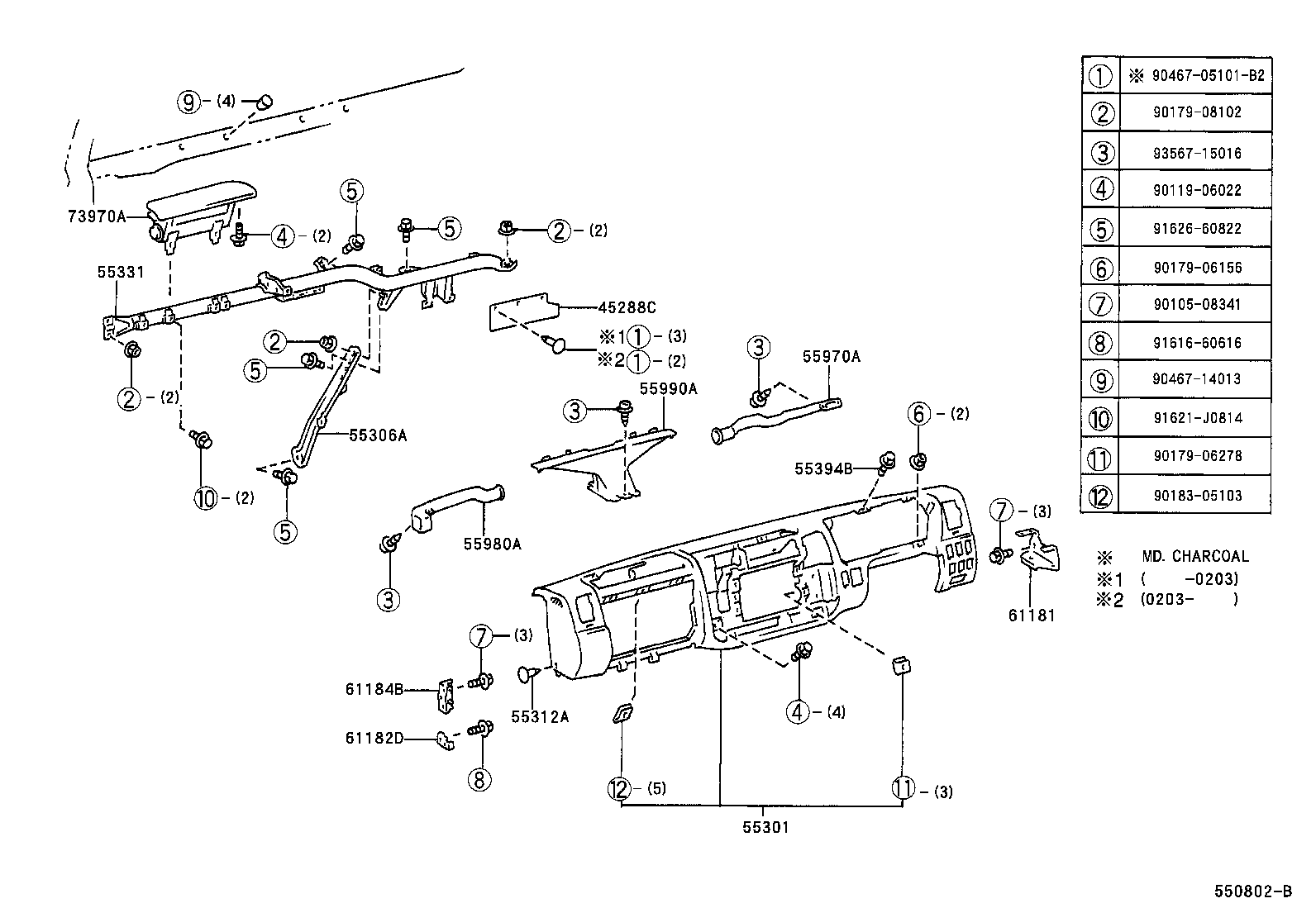

ILLUST NO. 1 OF 2(0010-0206)XZU302,307,342

Click highlighted areas on diagram

diagram 45288C 55301 55306A 55312A 55331 55394B 55970A 55980A 55990A 61181 61182D 61184B 73970A 9010508341 9011906022 9017906156 9017906278 9017908102 9018305103 9046705101B2 9046714013 9161660616 91621J0814 9162660822 9356715016
Part # Description Qty Price
45288C - PLATE, STEERING COLUMN COVER
45288-37010

XZU30#,320,330,34#

 1
55301 - PANEL SUB-ASSY, INSTRUMENT
55301-37021B0

XZU302,307,342

W(SRS AIR BAG,DRIVER SIDE & SRS AIR BAG,PASSENGER SIDE),MD.CHARCOAL,TRIM1#

 1
55301-25020B0

XZU302,307,342

W(SRS AIR BAG,DRIVER SIDE ONLY) OR W/O(SRS AIR BAG),MD.CHARCOAL,TRIM1#

 1
55301-37020B0

XZU302,307,342

W(SRS AIR BAG,DRIVER SIDE & SRS AIR BAG,PASSENGER SIDE),MD.CHARCOAL,TRIM1#

 1
55301-37011B0

XZU302,307,342

W(SRS AIR BAG,DRIVER SIDE ONLY) OR W/O(SRS AIR BAG),MD.CHARCOAL,TRIM1#

 1
55301-37010B0

XZU302,307,342

W(SRS AIR BAG,DRIVER SIDE ONLY) OR W/O(SRS AIR BAG),MD.CHARCOAL,TRIM1#

 1
55301-25030B0

XZU302,307,342

W(SRS AIR BAG,DRIVER SIDE & SRS AIR BAG,PASSENGER SIDE),MD.CHARCOAL,TRIM1#

 1
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-37011

XZU302,307,342

 1
55312A - CLIP, INSTRUMENT PANEL
90467-07041B8

XZU30#,320,330,34#

MD.CHARCOAL,TRIM1#

 2
55331 - REINFORCEMENT, INSTRUMENT PANEL
55330-37024

XZU302,307,342

W(SRS AIR BAG,DRIVER SIDE ONLY) OR W/O(SRS AIR BAG)

 1
55330-37023

XZU302,307,342

W(SRS AIR BAG,DRIVER SIDE ONLY) OR W/O(SRS AIR BAG)

 1
55330-37032

XZU302,307,342

W(SRS AIR BAG,DRIVER SIDE & SRS AIR BAG,PASSENGER SIDE)

 1
55394B - BOLT, INSTRUMENT PANEL
55394-37010

XZU30#,320,330,34#

 4
55970A - DUCT ASSY, SIDE DEFROSTER, RH
55971-37050

XZU302,307,342

 1
55980A - DUCT ASSY, SIDE DEFROSTER, LH
55972-37050

XZU302,307,342

 1
55990A - NOZZLE ASSY, DEFROSTER, LOWER
55990-37041

XZU302,307,342

 1
61181 - BRACKET, INSTRUMENT PANEL SIDE
55707-37010

XZU302,307,342

 1
61182D - BRACKET, INSTRUMENT PANEL SIDE
61181-37040

XZU302,307,342

 1
61184B - BRACKET, INSTRUMENT PANEL SIDE, NO.2 LH
61184-37010

XZU30#,320,330,34#

 1
73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER
73970-37010B0

XZU302,307,342

MD.CHARCOAL,TRIM1#

 1
Common parts
90105-08341
90119-06022
90179-06156
90179-06278
90179-08102
90183-05103
90467-05101B2
90467-14013
91616-60616
91621-J0814
91626-60822
93567-15016

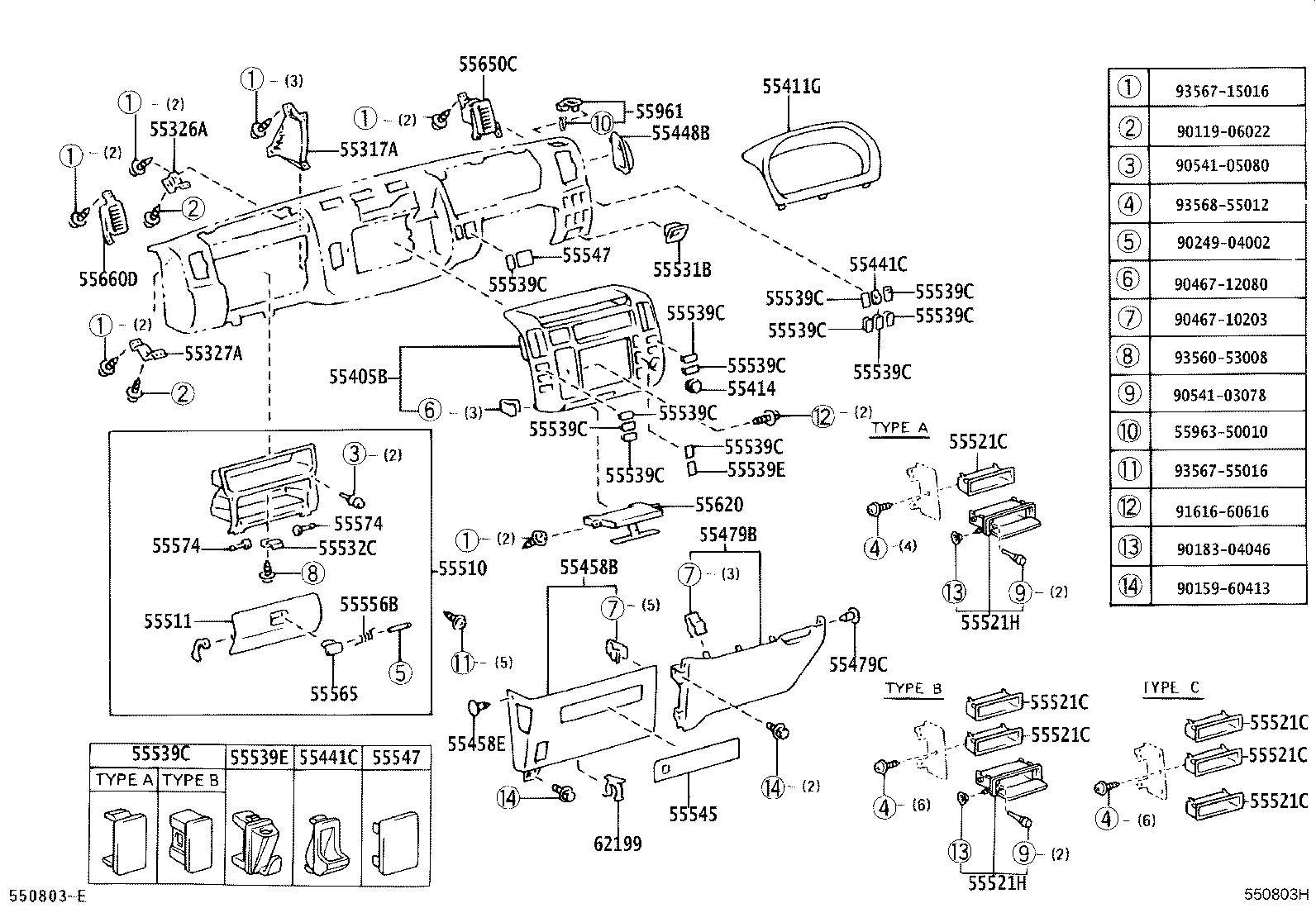

ILLUST NO. 2 OF 2(0010-0206)XZU302,307,342

Click highlighted areas on diagram

diagram 55317A 55326A 55327A 55405B 55411G 55414 55441C 55441C 55448B 55458B 55458E 55479B 55479C 55510 55511 55521C 55521C 55521C 55521C 55521C 55521C 55521H 55521H 55531B 55532C 55539C 55539C 55539C 55539C 55539C 55539C 55539C 55539C 55539C 55539C 55539C 55539C 55539C 55539E 55539E 55545 55547 55547 55556B 55565 55574 55574 55620 55650C 55660D 55961 5596350010 62199 9011906022 9015960413 9018304046 9024904002 9046710203 9046712080 9054103078 9054105080 9161660616 9356053008 9356715016 9356755016 9356855012
Part # Description Qty Price
55317A - PANEL, INSTRUMENT SIDE, RH
55317-37010

XZU302,307,342

 1
55326A - STAY, INSTRUMENT PANEL, NO.1
55326-37010

XZU302,307,342

 1
55327A - STAY, INSTRUMENT PANEL, NO.2
55327-37010

XZU302,307,342

 1
55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55405-37150

XZU302,307,342

WOOD GRAIN

 1
55405-37140

XZU302,307,342

 1
55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1
55411-37030B0

XZU302,307,342

MD.CHARCOAL,TRIM1#

 1
55414 - BEZEL, CIGAR LIGHTER HOLE
55477-37020

XZU30#,320,330,34#

 1
55441C - BOX, INSTRUMENT PANEL COIN
55441-20140B6

XZU302,307,342

MD.CHARCOAL,TRIM1#

 1
55441C - BOX, INSTRUMENT PANEL COIN
55441-20140B6

XZU302,307,342

MD.CHARCOAL,TRIM1#

 1
55448B - COVER, OIL RESERVOIR TANK, RH
55448-37020B0

XZU302,307,342

MD.CHARCOAL,TRIM1#

 1
55458B - COVER, INSTRUMENT, LWR
55458-37010B0

XZU302,307,342

MD.CHARCOAL,TRIM1#

 1
55458E - CLIP(FOR INSTRUMENT LOWER COVER)
90467-07041B8

XZU30#,320,330,34#

MD.CHARCOAL,TRIM1#

 1
55479B - COVER, INSTRUMENT, LOWER CENTER
55320-37010B0

XZU302,307,342

MD.CHARCOAL,TRIM1#

 1
55479C - CLIP(FOR INSTRUMENT LOWER COVER)
90467-07041B8

XZU30#,320,330,34#

MD.CHARCOAL,TRIM1#

 2
55510 - DOOR ASSY, GLOVE COMPARTMENT
55550-37010B0

XZU30#,320,330,34#

MD.CHARCOAL,TRIM1#

 1
55511 - DOOR, GLOVE COMPARTMENT
55511-37020B0

XZU30#,320,330,34#

MD.CHARCOAL,TRIM1#

 1
55521C - COVER, STEREO OPENING
55521-89102

XZU302,307,342

TYPE A:REFER TO ILLUSTRATION

 1
55521-89102

XZU302,307,342

TYPE B:REFER TO ILLUSTRATION

 2
55521C - COVER, STEREO OPENING
55521-89102

XZU302,307,342

TYPE A:REFER TO ILLUSTRATION

 1
55521-89102

XZU302,307,342

TYPE B:REFER TO ILLUSTRATION

 2
55521C - COVER, STEREO OPENING
55521-89102

XZU302,307,342

TYPE A:REFER TO ILLUSTRATION

 1
55521-89102

XZU302,307,342

TYPE B:REFER TO ILLUSTRATION

 2
55521C - COVER, STEREO OPENING
55521-89102

XZU302,307,342

TYPE A:REFER TO ILLUSTRATION

 1
55521-89102

XZU302,307,342

TYPE B:REFER TO ILLUSTRATION

 2
55521C - COVER, STEREO OPENING
55521-89102

XZU302,307,342

TYPE A:REFER TO ILLUSTRATION

 1
55521-89102

XZU302,307,342

TYPE B:REFER TO ILLUSTRATION

 2
55521C - COVER, STEREO OPENING
55521-89102

XZU302,307,342

TYPE A:REFER TO ILLUSTRATION

 1
55521-89102

XZU302,307,342

TYPE B:REFER TO ILLUSTRATION

 2
55521H - COVER ASSY, STEREO OPENING
55520-35040

XZU30#,320,330,34#

 1
55521H - COVER ASSY, STEREO OPENING
55520-35040

XZU30#,320,330,34#

 1
55531B - COVER, CHOKE KNOB HOLE
55531-37010B0

XZU302,307,342

MD.CHARCOAL,TRIM1#

 1
55532C - STOPPER, GLOVE DOOR
55532-37030

XZU30#,320,330,34#

 1
55539C - COVER, SPARE SWITCH HOLE
55539-37030

XZU30#,320,330,34#

TYPE B:REFER TO ILLUSTRATION,BLACK

 1
55539-37020B0

XZU30#,320,330,34#

TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

 1
55539C - COVER, SPARE SWITCH HOLE
55539-37030

XZU30#,320,330,34#

TYPE B:REFER TO ILLUSTRATION,BLACK

 1
55539-37020B0

XZU30#,320,330,34#

TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

 1
55539C - COVER, SPARE SWITCH HOLE
55539-37030

XZU30#,320,330,34#

TYPE B:REFER TO ILLUSTRATION,BLACK

 1
55539-37020B0

XZU30#,320,330,34#

TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

 1
55539C - COVER, SPARE SWITCH HOLE
55539-37030

XZU30#,320,330,34#

TYPE B:REFER TO ILLUSTRATION,BLACK

 1
55539-37020B0

XZU30#,320,330,34#

TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

 1
55539C - COVER, SPARE SWITCH HOLE
55539-37030

XZU30#,320,330,34#

TYPE B:REFER TO ILLUSTRATION,BLACK

 1
55539-37020B0

XZU30#,320,330,34#

TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

 1
55539C - COVER, SPARE SWITCH HOLE
55539-37030

XZU30#,320,330,34#

TYPE B:REFER TO ILLUSTRATION,BLACK

 1
55539-37020B0

XZU30#,320,330,34#

TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

 1
55539C - COVER, SPARE SWITCH HOLE
55539-37030

XZU30#,320,330,34#

TYPE B:REFER TO ILLUSTRATION,BLACK

 1
55539-37020B0

XZU30#,320,330,34#

TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

 1
55539C - COVER, SPARE SWITCH HOLE
55539-37030

XZU30#,320,330,34#

TYPE B:REFER TO ILLUSTRATION,BLACK

 1
55539-37020B0

XZU30#,320,330,34#

TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

 1
55539C - COVER, SPARE SWITCH HOLE
55539-37030

XZU30#,320,330,34#

TYPE B:REFER TO ILLUSTRATION,BLACK

 1
55539-37020B0

XZU30#,320,330,34#

TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

 1
55539C - COVER, SPARE SWITCH HOLE
55539-37030

XZU30#,320,330,34#

TYPE B:REFER TO ILLUSTRATION,BLACK

 1
55539-37020B0

XZU30#,320,330,34#

TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

 1
55539C - COVER, SPARE SWITCH HOLE
55539-37030

XZU30#,320,330,34#

TYPE B:REFER TO ILLUSTRATION,BLACK

 1
55539-37020B0

XZU30#,320,330,34#

TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

 1
55539C - COVER, SPARE SWITCH HOLE
55539-37030

XZU30#,320,330,34#

TYPE B:REFER TO ILLUSTRATION,BLACK

 1
55539-37020B0

XZU30#,320,330,34#

TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

 1
55539C - COVER, SPARE SWITCH HOLE
55539-37030

XZU30#,320,330,34#

TYPE B:REFER TO ILLUSTRATION,BLACK

 1
55539-37020B0

XZU30#,320,330,34#

TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

 1
55539E - COVER, SPARE SWITCH HOLE
55539-37010C0

XZU30#,320,330,34#

BLACK,TRIM1#

 1
55539E - COVER, SPARE SWITCH HOLE
55539-37010C0

XZU30#,320,330,34#

BLACK,TRIM1#

 1
55545 - COVER, FUSE BOX OPENING
55545-37010B0

XZU30#,320,330,34#

MD.CHARCOAL,TRIM1#

 1
55547 - COVER, REMOTE CONTROL MIRROR HOLE
55547-37010B0

XZU302,307,342

MD.CHARCOAL,TRIM1#

 1
55547 - COVER, REMOTE CONTROL MIRROR HOLE
55547-37010B0

XZU302,307,342

MD.CHARCOAL,TRIM1#

 1
55556B - SPRING, GLOVE COMPARTMENT DOOR CHECK
55518-37010

XZU30#,320,330,34#

 1
55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK
55565-37030B0

XZU30#,320,330,34#

MD.CHARCOAL,TRIM1#

 1
55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE
55574-38010

XZU30#,320,330,34#

 2
55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE
55574-38010

XZU30#,320,330,34#

 2
55620 - HOLDER ASSY, INSTRUMENT PANEL CUP
55620-37021

XZU30#,320,330,34#

 1
55650C - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-37030B0

XZU302,307,342

MD.CHARCOAL,TRIM1#

 1
55660D - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55660-37010B0

XZU302,307,342

MD.CHARCOAL,TRIM1#

 1
55961 - NOZZLE, SIDE DEFROSTER, NO.1
55961-37030B0

XZU302,307,342

MD.CHARCOAL,TRIM1#

 1
62199 - HOLDER, FUSEE
90468-25003

XZU302,307,342

 2
Common parts
55963-50010
90119-06022
90159-60413
90183-04046
90249-04002
90467-10203
90467-12080
90541-03078
90541-05080
91616-60616
93560-53008
93567-15016
93567-55016
93568-55012
