XZU302-TPMMS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )XZU302,307,342

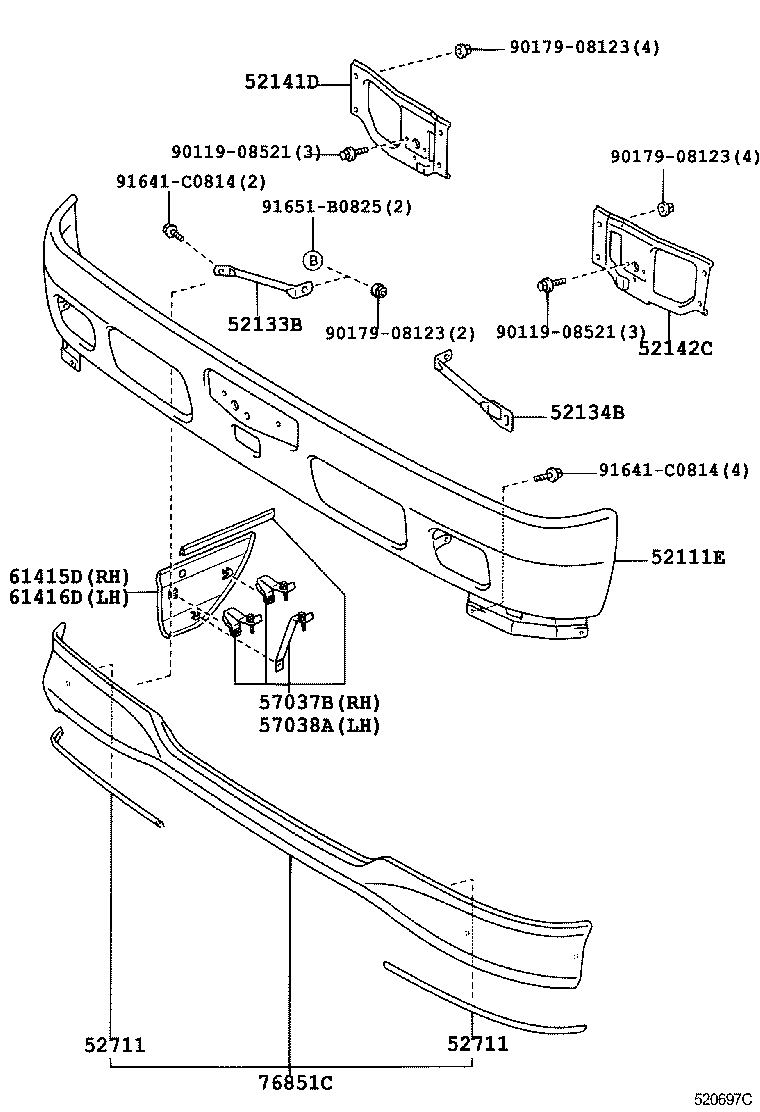

Click highlighted areas on diagram

W(FRONT SPOILER)

diagram 52111E 52133B 52134B 52141D 52142C 52711 52711 57037B 57038A 61415D 61416D 76851C 9011908521 9011908521 9017908123 9017908123 9017908123 91641C0814 91641C0814 91651B0825
Part # Description Qty Price
52111E - BAR, FRONT BUMPER
52101-37170J1

XZU30#,320,330,34#

BLUE,8P0

 1
52101-37130H0

XZU302,307,342

W(FRONT SPOILER),TURQUOISE,766

 1
52101-37130A0

XZU302,307,342

W(FRONT SPOILER),WHITE,058

 1
52101-37130B0

XZU302,307,342

W(FRONT SPOILER),SILVER ME.,199

 1
52101-37130J1

XZU302,307,342

W(FRONT SPOILER),BLUE,8P0

 1
52101-37170B0

XZU302,307,342

SILVER ME.,199

 1
52101-37180

XZU302,307,342

CHROME PLATED BUMPER

 1
52101-37140

XZU302,307,342

CHROME PLATED BUMPER & W(FRONT SPOILER)

 1
52101-37170H0

XZU302,307,342

TURQUOISE,766

 1
52101-37170A0

XZU30#,320,330,34#

WHITE,058

 1
52133B - BRACKET, FRONT BUMPER EXTENSION MOUNTING, RH
52133-37060

XZU302,307,342

 1
52134B - BRACKET, FRONT BUMPER EXTENSION MOUNTING, LH
52134-37060

XZU302,307,342

 1
52141D - STAY, FRONT BUMPER, RH
52141-37100

XZU302,307,342

MARK = R1

 1
52142C - STAY, FRONT BUMPER, LH
52142-37080

XZU302,307,342

MARK = L1

 1
52711 - MOULDING, FRONT BUMPER
52711-37020H0

XZU302,307,342

TURQUOISE,766

 2
52711-37020A0

XZU302,307,342

WHITE,058

 2
52711-37040

XZU302,307,342

 2
52711-37020B0

XZU302,307,342

SILVER ME,199

 2
52711-37020J0

XZU302,307,342

BLUE,8P0

 2
52711 - MOULDING, FRONT BUMPER
52711-37020H0

XZU302,307,342

TURQUOISE,766

 2
52711-37020A0

XZU302,307,342

WHITE,058

 2
52711-37040

XZU302,307,342

 2
52711-37020B0

XZU302,307,342

SILVER ME,199

 2
52711-37020J0

XZU302,307,342

BLUE,8P0

 2
57037B - STAY SUB-ASSY, FRONT STEP, RH
57037-37010

XZU302,307,342

 1
57038A - STAY SUB-ASSY, FRONT STEP, LH
57038-37060

XZU302,307,342

 1
61415D - PANEL, FRONT STEP UNDER, RH
61415-37020A0

XZU302,307,342

WHITE,058

 1
61415-37030

XZU302,307,342

 1
61415-37020H0

XZU302,307,342

TURQUOISE,766

 1
61415-37020J0

XZU302,307,342

BLUE,8P0

 1
61415-37020B0

XZU302,307,342

SILVER ME.,199

 1
61416D - PANEL, FRONT STEP UNDER, LH
61416-37020J0

XZU302,307,342

BLUE,8P0

 1
61416-37020H0

XZU302,307,342

TURQUOISE,766

 1
61416-37020A0

XZU302,307,342

WHITE,058

 1
61416-37030

XZU302,307,342

 1
61416-37020B0

XZU302,307,342

SILVER ME.,199

 1
76851C - FRONT SPOILER
52102-37010H1

XZU302,307,342

TURQUOISE,766

 1
52102-37010A1

XZU302,307,342

WHITE,058

 1
52102-37020

XZU302,307,342

 1
52102-37010J1

XZU302,307,342

BLUE,8P0

 1
52102-37010B1

XZU302,307,342

SILVER ME,199

 1
Common parts
90119-08521
90179-08123
91641-C0814
91651-B0825
