XZU302-TPMMS3 (2000)
Toyota Dyna
Production
Oct 2000
-
Jun 2002
Engine
S05C
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0010-0206)XZU302,307,342

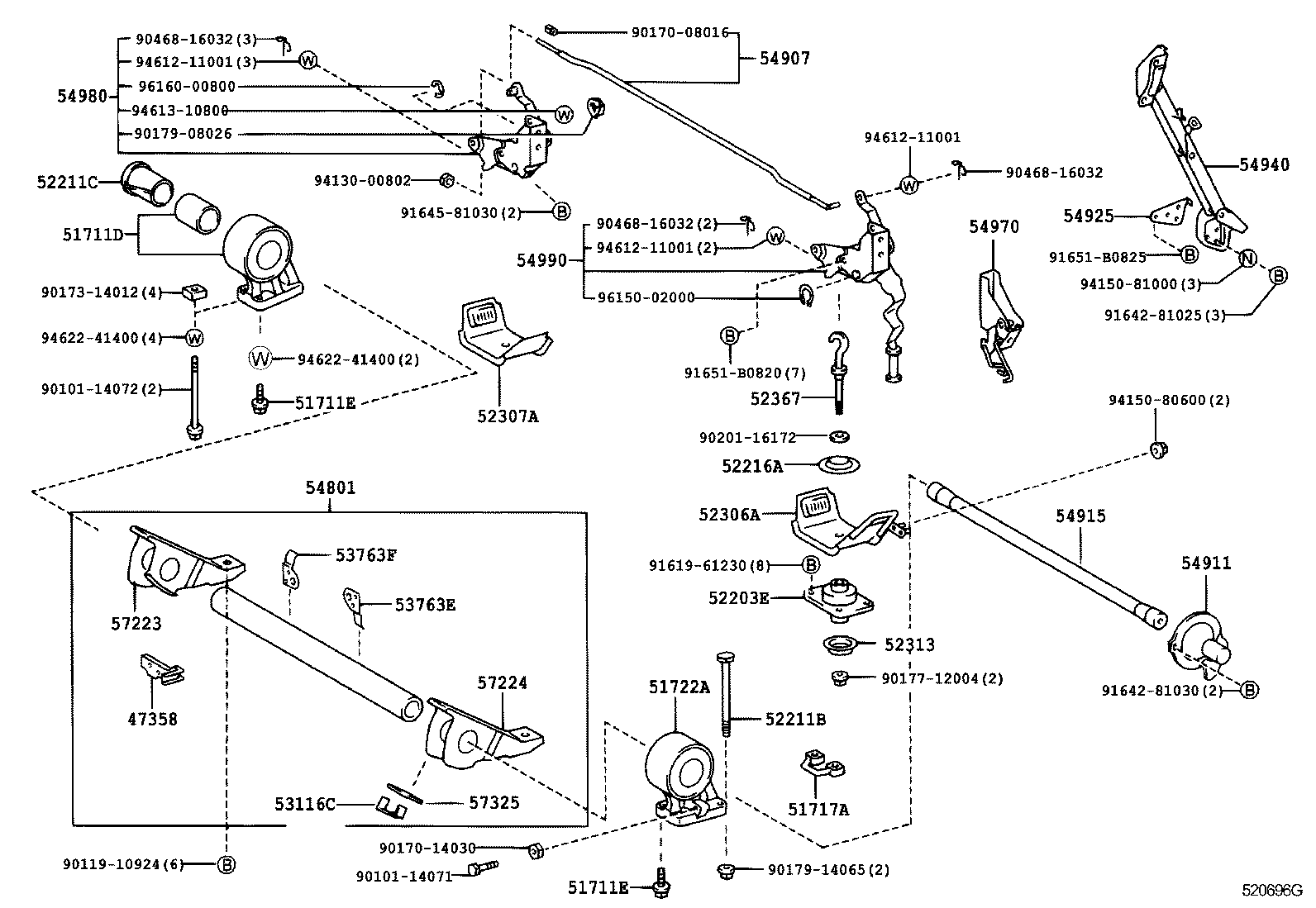

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47358 - TUBE, BOOSTER TO RESERVOIR, NO.2 | ||||
| 47358-37010 |
XZU30#,320,330,34# |
1 | ||
| 51711D - BRACKET, CAB FRONT MOUNTING | ||||
| 51701-37100 |
XZU302,307,342 |
1 | ||
| 51711E - BOLT, HEXAGON(FOR CAB MOUNTING BARACKET) | ||||
| 90101-14075 |
XZU30#,330,34# |
2 | ||
| 51711E - BOLT, HEXAGON(FOR CAB MOUNTING BARACKET) | ||||
| 90101-14075 |
XZU30#,330,34# |
2 | ||
| 51717A - PLATE, BODY SUPPORT BRACKET | ||||
| 51717-37100 |
XZU30#,320,330,34# |
1 | ||
| 51722A - BRACKET SUB-ASSY, CAB FRONT MOUNTING, LH | ||||
| 51702-37100 |
XZU302,307,342 |
1 | ||
| 52203E - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 | ||||
| 52203-37030 |
XZU30#,320,330,34# |
2 | ||
| 52211B - BOLT(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 90109-14011 |
XZU30#,320,330,34# |
2 | ||
| 52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION) | ||||
| 52211-37010 |
XZU30#,320,330,34# |
2 | ||
| 52216A - STOPPER, CAB MOUNTING CUSHION | ||||
| 52216-37030 |
XZU30#,320,330,34# |
2 | ||
| 52307A - BRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.2 | ||||
| 52307-37010 |
XZU30#,320,330,34# |
1 | ||
| 52313 - STOPPER, CAB REAR MOUNTING REBOUND | ||||
| 52313-37030 |
XZU30#,320,330,34# |
2 | ||
| 52367 - HOOK, CAB REAR MOUNTING | ||||
| 52367-37020 |
XZU30#,320,330,34# |
2 | ||
| 53116C - BRACKET, RADIATOR GRILLE, NO.2 | ||||
| 53116-37030 |
XZU30#,320,330,34# |
2 | ||
| 53763E - BRACKET, AIR CLEANER INLET | ||||
| 53763-37050 |
XZU302,307,342 |
1 | ||
| 53763F - BRACKET, AIR CLEANER INLET MOUNTING | ||||
| 53763-37050 |
XZU302,307,342 |
1 | ||
| 54801 - TUBE SUB-ASSY, TILT CAB, NO.1 | ||||
| 54801-37031 |
XZU302,307,342 |
1 | ||
| 54801-37032 |
XZU302,307,342 |
1 | ||
| 54907 - PIPE SUB-ASSY, TILT CAB LOCK CONNECTING | ||||
| 54907-37010 |
XZU30#,320,330,34# |
1 | ||
| 54911 - ARM, TILT CAB SPRING SUPPORT, NO.1 | ||||
| 54911-37030 |
XZU302,307,342 |
1 | ||
| 54915 - SPRING, TILT CAB, NO.1 | ||||
| 54915-37090 |
XZU302,307,342 |
1 | ||
| 54925 - RETAINER, TILT CAB SPRING | ||||
| 54925-37030 |
XZU30#,330,34# |
1 | ||
| 54940 - STAY ASSY, TILT CAB | ||||
| 54940-37042 |
XZU302,307,342 |
1 | ||
| 54940-37041 |
XZU302,307,342 |
1 | ||
| 54980 - LOCK ASSY, TILT CAB MOUNTING, RH | ||||
| 54980-37020 |
XZU302,307,342 W(CONSOLE BOX = FOR 02S) |
1 | ||
| 54980-37010 |
XZU30#,320,330,34# |
1 | ||
| 54980-37021 |
XZU302,307,342 W(CONSOLE BOX = FOR 02S) |
1 | ||
| 57325 - REINFORCEMENT, FRONT MOUNTING | ||||
| 57325-37010 |
XZU30#,320,330,34# |
2 | ||
| Common parts | ||||
| 90101-14071 | ||||
| 90101-14072 | ||||
| 90119-10924 | ||||
| 90170-08016 | ||||
| 90170-14030 | ||||
| 90173-14012 | ||||
| 90177-12004 | ||||
| 90179-08026 | ||||
| 90179-14065 | ||||
| 90201-16172 | ||||
| 90468-16032 | ||||
| 91619-61230 | ||||
| 91642-81025 | ||||
| 91642-81030 | ||||
| 91645-81030 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 94130-00802 | ||||
| 94150-80600 | ||||
| 94150-81000 | ||||
| 94612-11001 | ||||
| 94613-10800 | ||||
| 94622-41400 | ||||
| 96150-02000 | ||||
| 96160-00800 | ||||
