XZU302-TPMMS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )XZU302..WT

Click highlighted areas on diagram

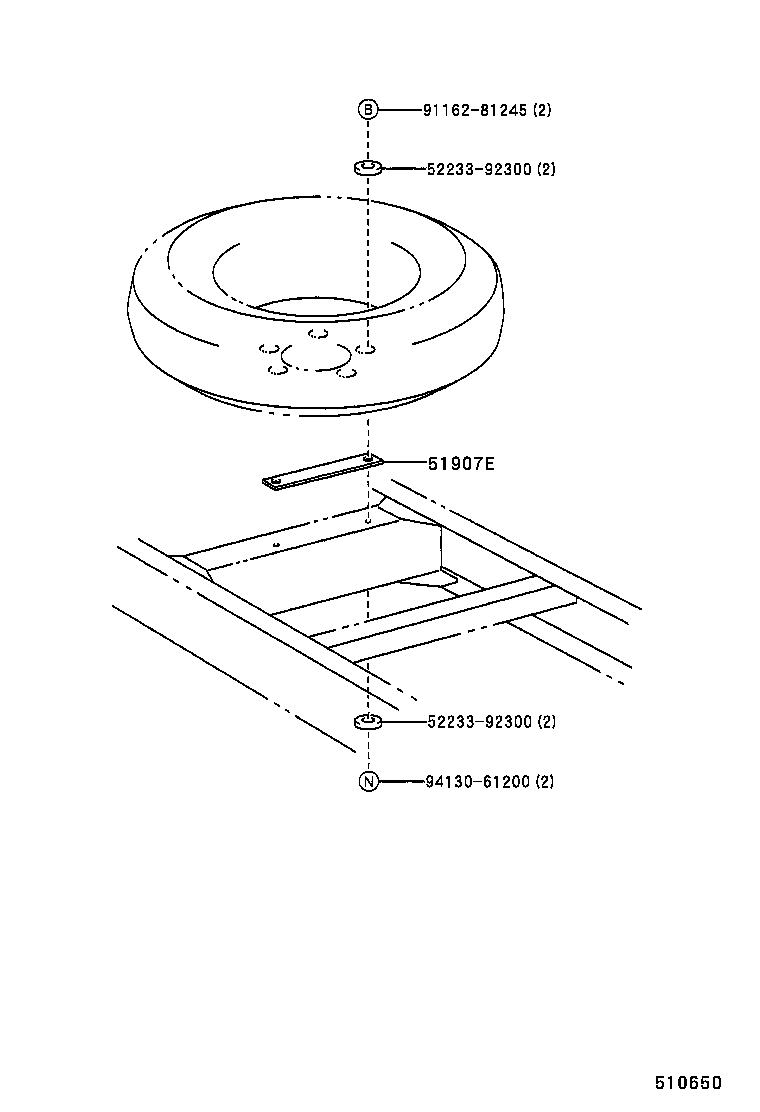

FOR TRANSFER

diagram 51907E 5223392300 5223392300 9116281245 9413061200
Part # Description Qty Price
51907E - RETAINER SUB-ASSY, SPARE TIRE CARRIER
51912-37010

XZU302..WT

 1
Common parts
52233-92300
91162-81245
94130-61200

(0010- )XZU302..WT

Click highlighted areas on diagram

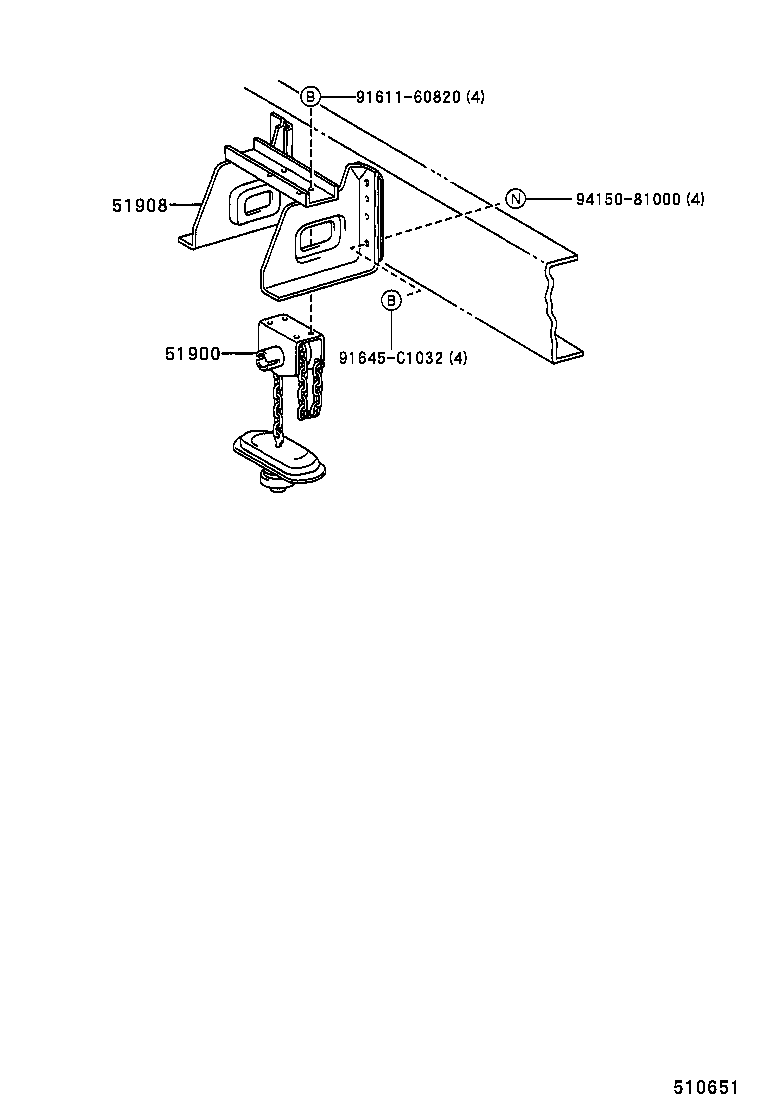

LH SIDE

diagram 51900 51908 9161160820 91645C1032 9415081000
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-37030

XZU300,302,330..20T,30T

 1
51908 - BRACKET SUB-ASSY, SPARE WHEEL CARRIER
51908-37050

XZU302,307..WT

 1
Common parts
91611-60820
91645-C1032
94150-81000
