XZU302-TPMMS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

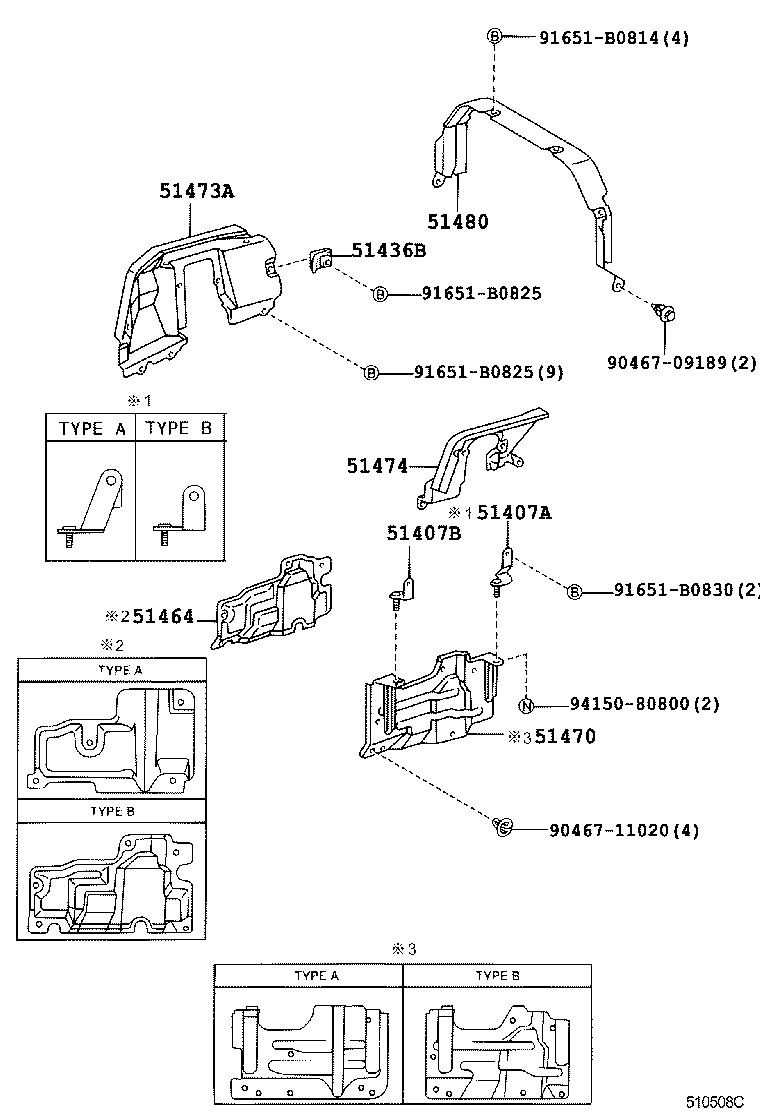

ILLUST NO. 1 OF 2(9907-0206)XZU300,302,330,34#

Click highlighted areas on diagram

diagram 51407A 51407B 51436B 51464 51470 51473A 51474 51480 9046709189 9046711020 91651B0814 91651B0825 91651B0825 91651B0830 9415080800
Part # Description Qty Price
51407A - COVER SUB-ASSY, ENGINE UNDER, NO.3
51407-37060

XZU302,307..WT

TYPE A:REFER TO ILLUSTRATION

 1
51407-37070

XZU30#,330,34#

TYPE B:REFER TO ILLUSTRATION

 1
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080

XZU30#,320,330,34#

 2
51464 - SILENCER, TRANSMISSION UNDER, LH
51464-37040

XZU30#,330,34#

TYPE A:REFER TO ILLUSTRATION

 1
51464-37050

XZU302,307..WT

TYPE B:REFER TO ILLUSTRATION

 1
51470 - COVER ASSY, TRANSMISSION UNDER
51470-37100

XZU302,307..WT

TYPE B:REFER TO ILLUSTRATION

 1
51470-37070

XZU302,307,342

TYPE A:REFER TO ILLUSTRATION

 1
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-37180

XZU302,342

 1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-37120

XZU302,342

 1
51480 - SHUTTER ASSY, ENGINE REAR SIDE, RH
51480-37010

XZU30#

 1
Common parts
90467-09189
90467-11020
91651-B0814
91651-B0825
91651-B0830
94150-80800
