XZU302-TPMMS3 (2000)
Toyota Dyna

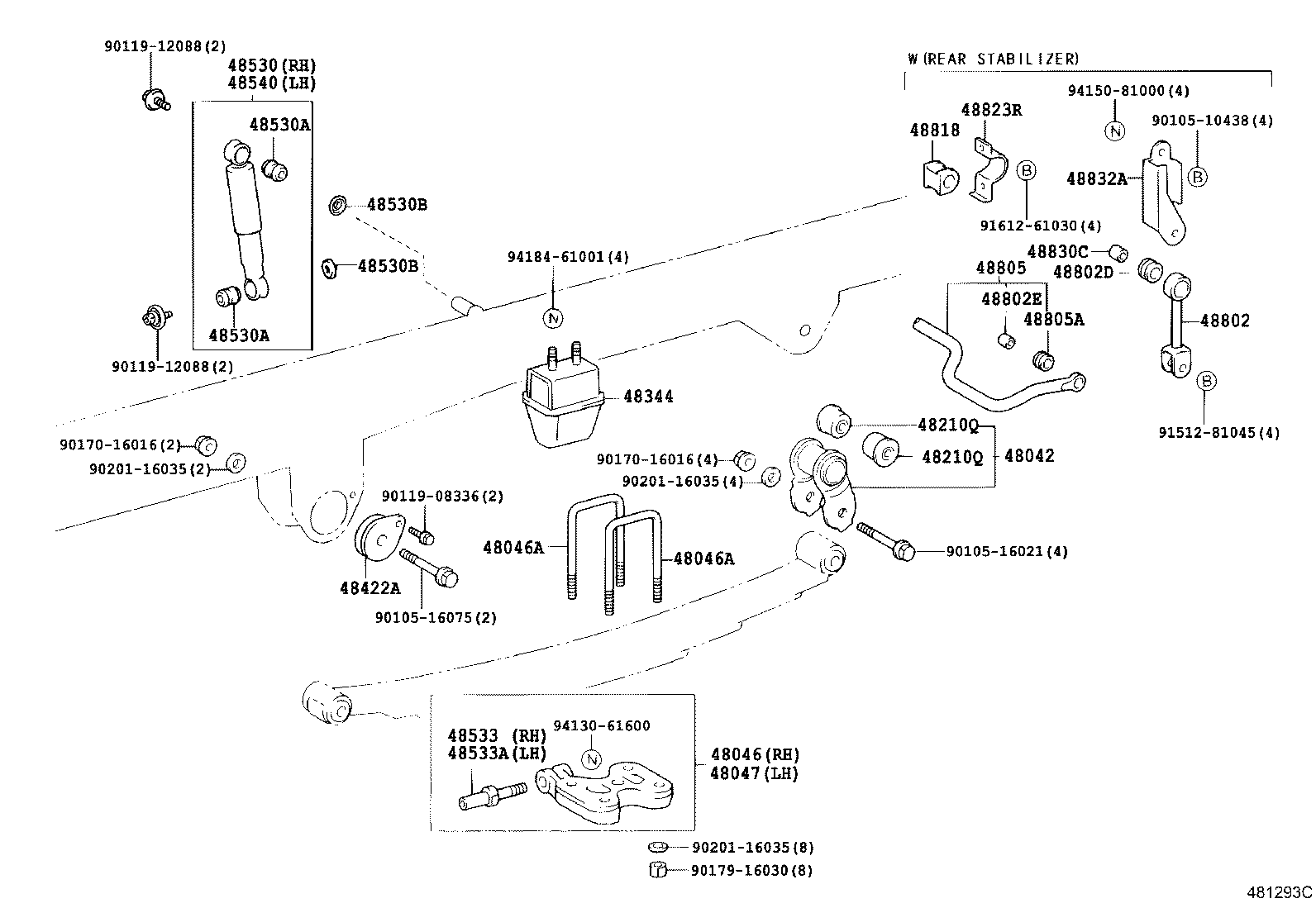

ILLUST NO. 1 OF 2(0010- )XZU302,307..WT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37020 |
XZU30#,320,330,342..20T,30T |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-37120 |
XZU302..WT |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16051 |
XZU302..WT L=230 |
4 | ||
| 90117-16014 |
XZU302..WT L=225 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16051 |
XZU302..WT L=230 |
4 | ||
| 90117-16014 |
XZU302..WT L=225 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-37120 |
XZU302..WT |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
XZU30#,320,330,342..20T,30T |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
XZU30#,320,330,342..20T,30T |
4 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37100 |
XZU302..WT |
2 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-36090 |
XZU302,307,320 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80676 |
XZU302,307..WT MARK 48531-37070 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
XZU30#,320,330,34# |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
XZU30#,320,330,34# |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZU30#,320,330,34# |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZU30#,320,330,34# |
4 | ||
| 48533 - PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH | ||||
| 48522-37030 |
XZU302,307,320 |
1 | ||
| 48533A - PIN, REAR SHOCK ABSORBER LOWER PIVOT, LH | ||||
| 48522-37030 |
XZU302,307,320 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80676 |
XZU302,307..WT MARK 48531-37070 |
1 | ||
| 48802 - LINK SUB-ASSY, STABILIZER | ||||
| 48802-37010 |
XZU302,307..WT |
2 | ||
| 48802D - BUSH, STABILIZER LINK | ||||
| 90385-13009 |
XZU302,307..WT |
2 | ||
| 48802E - SPACER(FOR REAR STABILIZER BAR) | ||||
| 90560-10044 |
XZU302,307..WT |
2 | ||
| 48805 - BAR SUB-ASSY, REAR STABILIZER | ||||
| 48805-37030 |
XZU302,307..WT |
1 | ||
| 48805A - BUSH(FOR REAR STABILIZER BAR) | ||||
| 90385-13009 |
XZU302,307..WT |
2 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-37010 |
XZU302,307..WT |
2 | ||
| 48815-37060 |
XZU302,307..WT |
2 | ||
| 48823R - COVER, STABILIZER LINK(FOR REAR) | ||||
| 48823-37020 |
XZU302,307..WT |
2 | ||
| 48823-37011 |
XZU302,307..WT |
2 | ||
| 48830C - SPACER(FOR REAR STABILIZER LINK) | ||||
| 90560-10044 |
XZU302,307..WT |
2 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-37020 |
XZU302,307..WT |
2 | ||
| Common parts | ||||
| 90105-10438 | ||||
| 90105-16021 | ||||
| 90105-16075 | ||||
| 90119-08336 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 91512-81045 | ||||
| 91612-61030 | ||||
| 94130-61600 | ||||
| 94150-81000 | ||||
| 94184-61001 | ||||

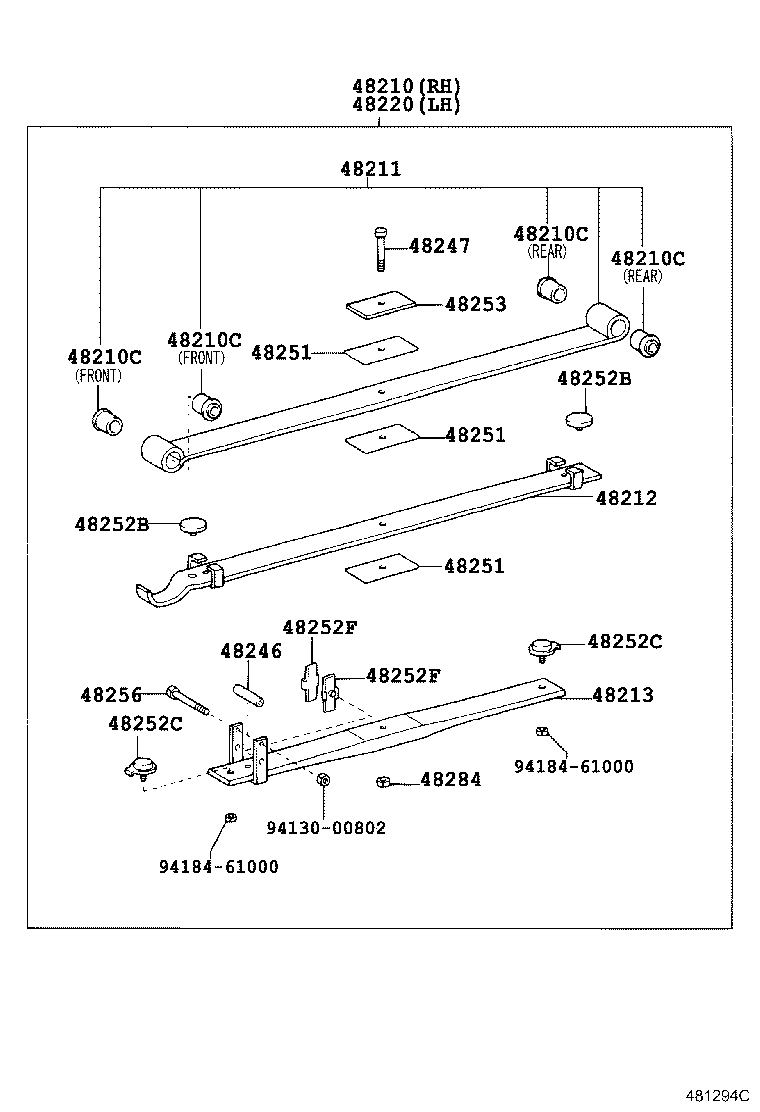

ILLUST NO. 2 OF 2(0010- )XZU302,307..WT
3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37690 |
XZU302..WT 3-LEAF,HEAVY DUTY SPRING |
1 | ||
| 48210-37630 |
XZU302..WT 3-LEAF |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16027 |
XZU302,307..WT REAR |
4 | ||
| 90389-16024 |
XZU302,307,320 FRONT |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16027 |
XZU302,307..WT REAR |
4 | ||
| 90389-16024 |
XZU302,307,320 FRONT |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16027 |
XZU302,307..WT REAR |
4 | ||
| 90389-16024 |
XZU302,307,320 FRONT |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16027 |
XZU302,307..WT REAR |
4 | ||
| 90389-16024 |
XZU302,307,320 FRONT |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37630 |
XZU302..WT |
2 | ||
| 48201-37690 |
XZU302..WT HEAVY DUTY SPRING |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37630 |
XZU302..WT |
2 | ||
| 48202-37690 |
XZU302..WT HEAVY DUTY SPRING |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-37690 |
XZU302..WT HEAVY DUTY SPRING |
2 | ||
| 48203-37630 |
XZU302..WT |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37690 |
XZU302..WT 3-LEAF,HEAVY DUTY SPRING |
1 | ||
| 48210-37630 |
XZU302..WT 3-LEAF |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48246-36052 |
XZU302,307 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3V010 |
XZU302..WT |
2 | ||
| 48247-37690 |
XZU302..WT HEAVY DUTY SPRING |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-36530 |
XZU302,307..WT |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-36530 |
XZU302,307..WT |
6 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-36530 |
XZU302,307..WT |
6 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
XZU302,307,342..WT |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
XZU302,307,342..WT |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
XZU302,307..WT |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
XZU302,307..WT |
4 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-37380 |
XZU302 NO.2 |
8 | ||
| 48252-37630 |
XZU302..WT NO.1 |
4 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-37380 |
XZU302 NO.2 |
8 | ||
| 48252-37630 |
XZU302..WT NO.1 |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-25670 |
XZU302,307..WT |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-3B770 |
XZU302,307 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48299-27620 |
XZU302,307..WT |
2 | ||
| Common parts | ||||
| 94130-00802 | ||||
| 94184-61000 | ||||
