XZU302-TPMMS3 (2000)
Toyota Dyna
Production
Oct 2000
-
Jun 2002
Engine
S05C
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0010- )XZU302,307,342

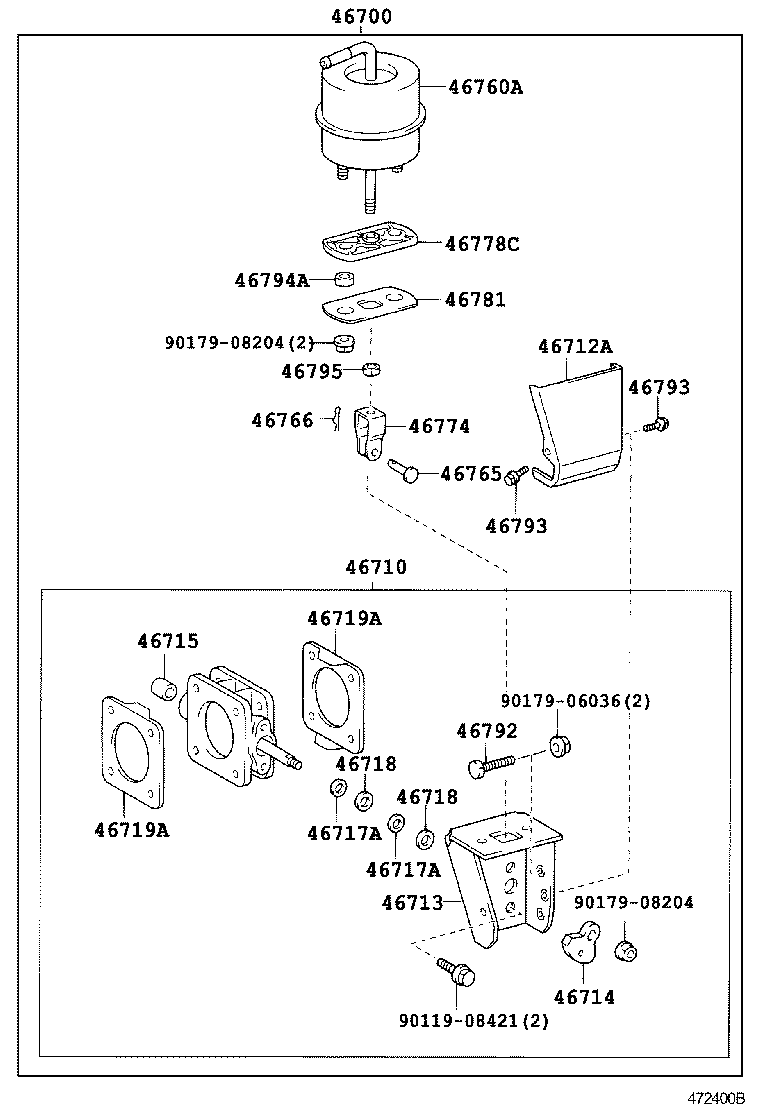

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46700 - RETARDER ASSY, EXHAUST | ||||
| 46700-37031 |
XZU302,307,342 |
1 | ||
| 46700-37030 |
XZU302,307,342 |
1 | ||
| 46710 - VALVE ASSY, EXHAUST BRAKE | ||||
| 46710-37031 |
XZU302,307,342 |
1 | ||
| 46710-37030 |
XZU302,307,342 |
1 | ||
| 46712A - COVER, EXHAUST BRAKE BRACKET | ||||
| 46712-37030 |
XZU302,307,342 |
1 | ||
| 46713 - BRACKET, EXHAUST VALVE | ||||
| 46713-37030 |
XZU302,307,342 |
1 | ||
| 46714 - LEVER, EXHAUST VALVE | ||||
| 46714-37030 |
XZU302,307,342 |
1 | ||
| 46715 - BUSH, EXHAUST VALVE, NO.1 | ||||
| 46715-37030 |
XZU302,307,342 L=14,OD=18 |
2 | ||
| 46715-37031 |
XZU302,307,342 L=14,OD=18 |
2 | ||
| 46717A - RING, EXHAUST VALVE SEAL, NO.1 | ||||
| 46717-37030 |
XZU302,307,342 |
2 | ||
| 46717A - RING, EXHAUST VALVE SEAL, NO.1 | ||||
| 46717-37030 |
XZU302,307,342 |
2 | ||
| 46718 - RING, EXHAUST VALVE SEAL, NO.2 | ||||
| 46718-37030 |
XZU302,307,342 |
2 | ||
| 46718 - RING, EXHAUST VALVE SEAL, NO.2 | ||||
| 46718-37030 |
XZU302,307,342 |
2 | ||
| 46719A - GASKET, EXHAUST RETARDER | ||||
| 46719-37030 |
XZU302,307,342 |
2 | ||
| 46719A - GASKET, EXHAUST RETARDER | ||||
| 46719-37030 |
XZU302,307,342 |
2 | ||
| 46760A - CHAMBER ASSY, EXHAUST BRAKE | ||||
| 46760-37030 |
XZU302,307,342 |
1 | ||
| 46765 - PIN, VACUUM CYLINDER CLEVIS | ||||
| 46765-37030 |
XZU302,307,342 |
1 | ||
| 46766 - PIN, VACUUM CYLINDER CLEVIS SNAP | ||||
| 46766-37030 |
XZU302,307,342 |
1 | ||
| 46774 - CLEVIS, EXHAUST BRAKE ROD | ||||
| 46774-37030 |
XZU302,307,342 |
1 | ||
| 46778C - GUIDE, EXHAUST RETARDER ACTUATOR ROD | ||||
| 46778-37030 |
XZU302,307,342 |
1 | ||
| 46781 - INSULATOR, EXHAUST BRAKE CHAMBER, NO.1 | ||||
| 46781-37030 |
XZU302,307,342 |
1 | ||
| 46792 - BOLT, EXHAUST VALVE STOPPER | ||||
| 46792-37030 |
XZU302,307,342 |
2 | ||
| 46793 - BOLT, EXHAUST VALVE LINK COVER | ||||
| 93381-16008 |
XZU302,307,342 |
2 | ||
| 46793 - BOLT, EXHAUST VALVE LINK COVER | ||||
| 93381-16008 |
XZU302,307,342 |
2 | ||
| 46794A - COLLAR, ACTUATOR ROD GUIDE | ||||
| 46794-37030 |
XZU302,307,342 |
2 | ||
| 46795 - NUT, EXHAUST VALVE BRACKET | ||||
| 46795-37030 |
XZU302,307,342 |
1 | ||
| Common parts | ||||
| 90119-08421 | ||||
| 90179-06036 | ||||
| 90179-08204 | ||||
