XZU302-TPMMS3 (2000)
Toyota Dyna

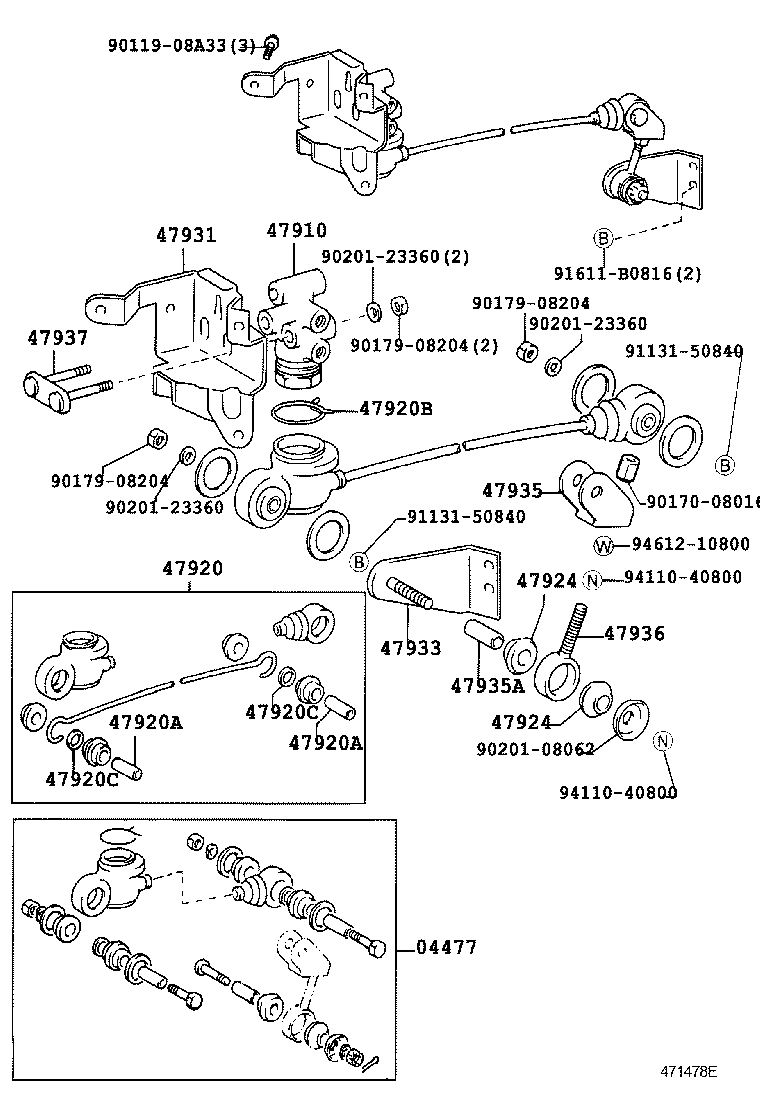

ILLUST NO. 4 OF 4(9907-0011) ; (0011- )ST ; (0011- )XZU300,320,330,340
W(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04477 - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-37010 |
XZU30#,320,330,34# |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-37090 |
XZU30#,320,330,34# |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-37070 |
XZU30#,330,34#..WT |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
XZU30#,320,330,34# |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
XZU30#,320,330,34# |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
XZU30#,320,330,34# |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
XZU30#,320,330,34# |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
XZU30#,320,330,34# |
2 | ||
| 47924 - BUSH, LOAD SENSING VALVE | ||||
| 47924-35010 |
XZU30#,320,330,34# |
2 | ||
| 47924 - BUSH, LOAD SENSING VALVE | ||||
| 47924-35010 |
XZU30#,320,330,34# |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-37020 |
XZU30#,330,34# |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-37060 |
XZU30#,330,34# |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35030 |
XZU30#,320,330,34# |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
XZU30#,320,330,34# |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-26020 |
XZU30#,320,330,34# |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-60010 |
XZU30#,320,330,34# |
1 | ||
| Common parts | ||||
| 90119-08A33 | ||||
| 90170-08016 | ||||
| 90179-08204 | ||||
| 90201-08062 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91611-B0816 | ||||
| 94110-40800 | ||||
| 94612-10800 | ||||

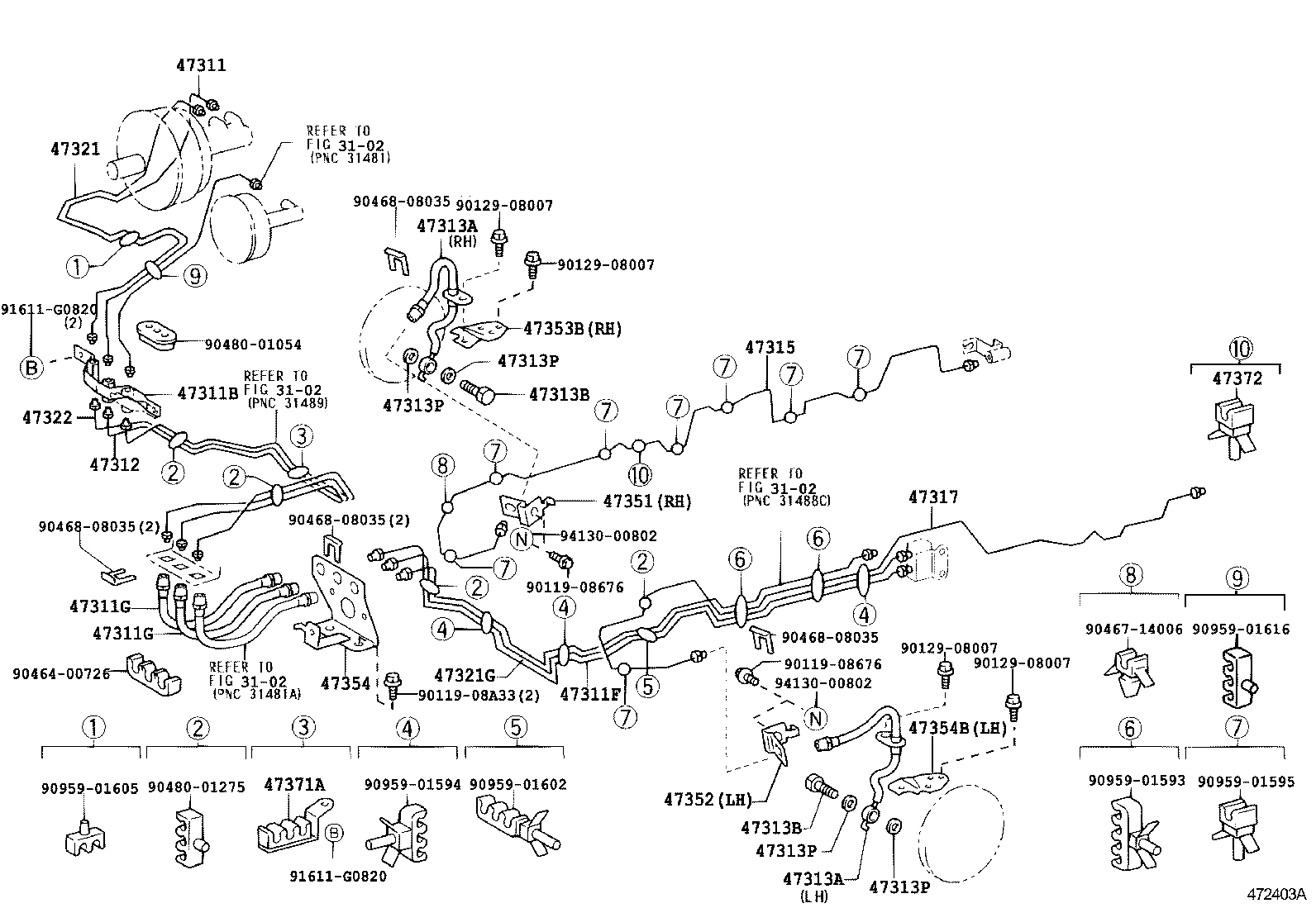

ILLUST NO. 1 OF 4(0010- )XZU302,342
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37160 |
XZU302,307,342 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-37010 |
XZU30#,320,330,34# |
1 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-37180 |
XZU302,307,342 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02A79 |
XZU30#,320,330,34# |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02A79 |
XZU30#,320,330,34# |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-37060 |
XZU302,307,342 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02B27 |
XZU302,342 LH |
1 | ||
| 90947-02A72 |
XZU302,342 RH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02B27 |
XZU302,342 LH |
1 | ||
| 90947-02A72 |
XZU302,342 RH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZU30#,320,330,34# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
XZU30#,320,330,34# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU30#,320,330,34# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU30#,320,330,34# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU30#,320,330,34# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
XZU30#,320,330,34# |
4 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-37071 |
XZU302,342 |
1 | ||
| 47315-37072 |
XZU302,342 |
1 | ||
| 47315-37070 |
XZU302,342 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-37040 |
XZU302,342 |
1 | ||
| 47317-37041 |
XZU302,342 |
1 | ||
| 47317-37042 |
XZU302,342 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-37160 |
XZU302,307,342 |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-37180 |
XZU302,307,342 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-37200 |
XZU302,307,342 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37130 |
XZU302,342 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37050 |
XZU302,342 |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-37150 |
XZU302,342 |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47354-37110 |
XZU302,307,342 |
1 | ||
| 47354-37111 |
XZU302,307,342 |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-37160 |
XZU302,342 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-37030 |
XZU302,307,342 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-37050 |
XZU302,307,342 |
1 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90119-08A33 | ||||
| 90129-08007 | ||||
| 90464-00726 | ||||
| 90467-14006 | ||||
| 90468-08035 | ||||
| 90480-01054 | ||||
| 90480-01275 | ||||
| 90959-01593 | ||||
| 90959-01594 | ||||
| 90959-01595 | ||||
| 90959-01602 | ||||
| 90959-01605 | ||||
| 90959-01616 | ||||
| 91611-G0820 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 3102 | ||||

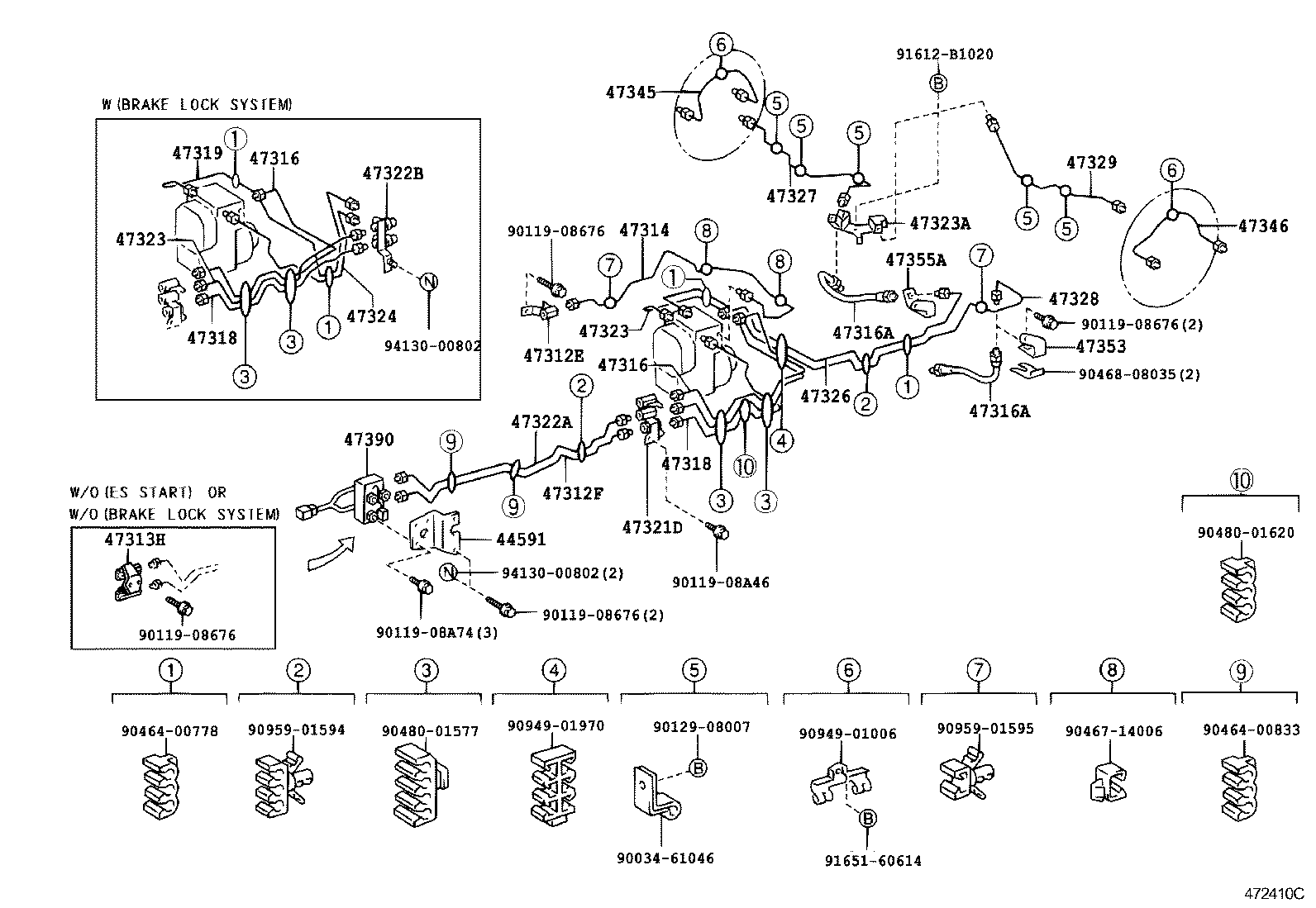

ILLUST NO. 2 OF 4(0010-0011)XZU302..WT
W(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-37050 |
XZU302,307,320,342 |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-12060 |
XZU302,307 |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37080 |
XZU302,307 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37140 |
XZU302,307,342..WT |
1 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90904-12076 |
XZU302,307,342 |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37170 |
XZU302,307,342..WT |
1 | ||
| 47314-37171 |
XZU302,307,342..WT |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-37110 |
XZU302,307,342..WT |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-37110 |
XZU302,307,342..WT |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B29 |
XZU302,307,342..WT |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B29 |
XZU302,307,342..WT |
2 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-37070 |
XZU302..WT W(BRAKE LOCK SYSTEM) |
1 | ||
| 47318-37050 |
XZU302,307,342..WT |
1 | ||
| 47318-37140 |
XZU302,307,342..WT |
1 | ||
| 47318-37140 |
XZU302,307,342..WT AUSTRIA SPEC |
1 | ||
| 47318-37230 |
XZU302..WT W(BRAKE LOCK SYSTEM) |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-37070 |
XZU302..WT W(BRAKE LOCK SYSTEM) |
1 | ||
| 47318-37050 |
XZU302,307,342..WT |
1 | ||
| 47318-37140 |
XZU302,307,342..WT |
1 | ||
| 47318-37140 |
XZU302,307,342..WT AUSTRIA SPEC |
1 | ||
| 47318-37230 |
XZU302..WT W(BRAKE LOCK SYSTEM) |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-37060 |
XZU302..WT |
1 | ||
| 47319-37050 |
XZU302..WT |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-12059 |
XZU302,307,342..WT |
1 | ||
| 90413-12009 |
XZU302,307,342..WT |
1 | ||
| 90412-12059 |
XZU302,307,342..WT AUSTRIA SPEC |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37220 |
XZU30# |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90904-13055 |
XZU302..WT |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37050 |
XZU302,307,342..WT |
1 | ||
| 47323-37070 |
XZU302..WT W(BRAKE LOCK SYSTEM) |
1 | ||
| 47323-37140 |
XZU302,307,342..WT |
1 | ||
| 47323-37140 |
XZU302,307,342..WT AUSTRIA SPEC |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37050 |
XZU302,307,342..WT |
1 | ||
| 47323-37070 |
XZU302..WT W(BRAKE LOCK SYSTEM) |
1 | ||
| 47323-37140 |
XZU302,307,342..WT |
1 | ||
| 47323-37140 |
XZU302,307,342..WT AUSTRIA SPEC |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90412-12051 |
XZU302,307,342..WT |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37310 |
XZU302..WT |
1 | ||
| 47324-37290 |
XZU302..WT |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-37150 |
XZU302,307,342..WT |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-37170 |
XZU302,307,342..WT |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37210 |
XZU302..WT |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-37010 |
XZU302,307,342..WT |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-37070 |
XZU302..WT |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-36050 |
XZU300,302,320,330,342..(20T,30T)..WT |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-36050 |
XZU300,302,320,330,342..(20T,30T)..WT |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-37110 |
XZU302,307,342..WT |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47353-37240 |
XZU30#,330,34#..WT |
1 | ||
| 47390 - VALVE ASSY, HILL HOLDER BRAKE LOCK | ||||
| 47390-37011 |
XZU302,307,342 |
1 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-37020 |
XZU30#,330,34# |
1 | ||
| Common parts | ||||
| 90034-61046 | ||||
| 90119-08676 | ||||
| 90119-08A33 | ||||
| 90119-08A46 | ||||
| 90119-08A74 | ||||
| 90129-08007 | ||||
| 90464-00778 | ||||
| 90464-00833 | ||||
| 90467-14006 | ||||
| 90468-08035 | ||||
| 90480-01578 | ||||
| 90949-01006 | ||||
| 90949-01970 | ||||
| 90959-01594 | ||||
| 90959-01595 | ||||
| 91612-B1020 | ||||
| 91651-60614 | ||||
| 94130-00802 | ||||

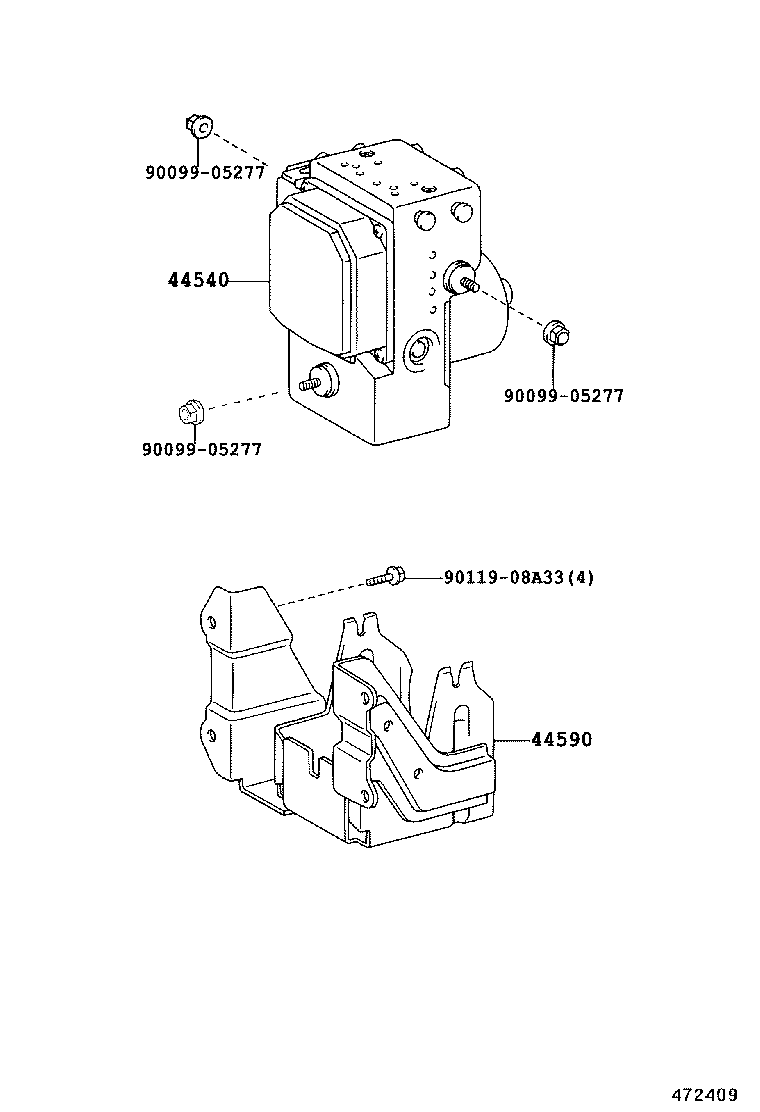

ILLUST NO. 3 OF 4(0010- )XZU302,307,342
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44540 - ACTUATOR ASSY, ABS & TRACTION | ||||
| 44050-37010 |
XZU302,307,342 |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-37010 |
XZU302,307,342 |
1 | ||
| Common parts | ||||
| 90099-05277 | ||||
| 90119-08A33 | ||||

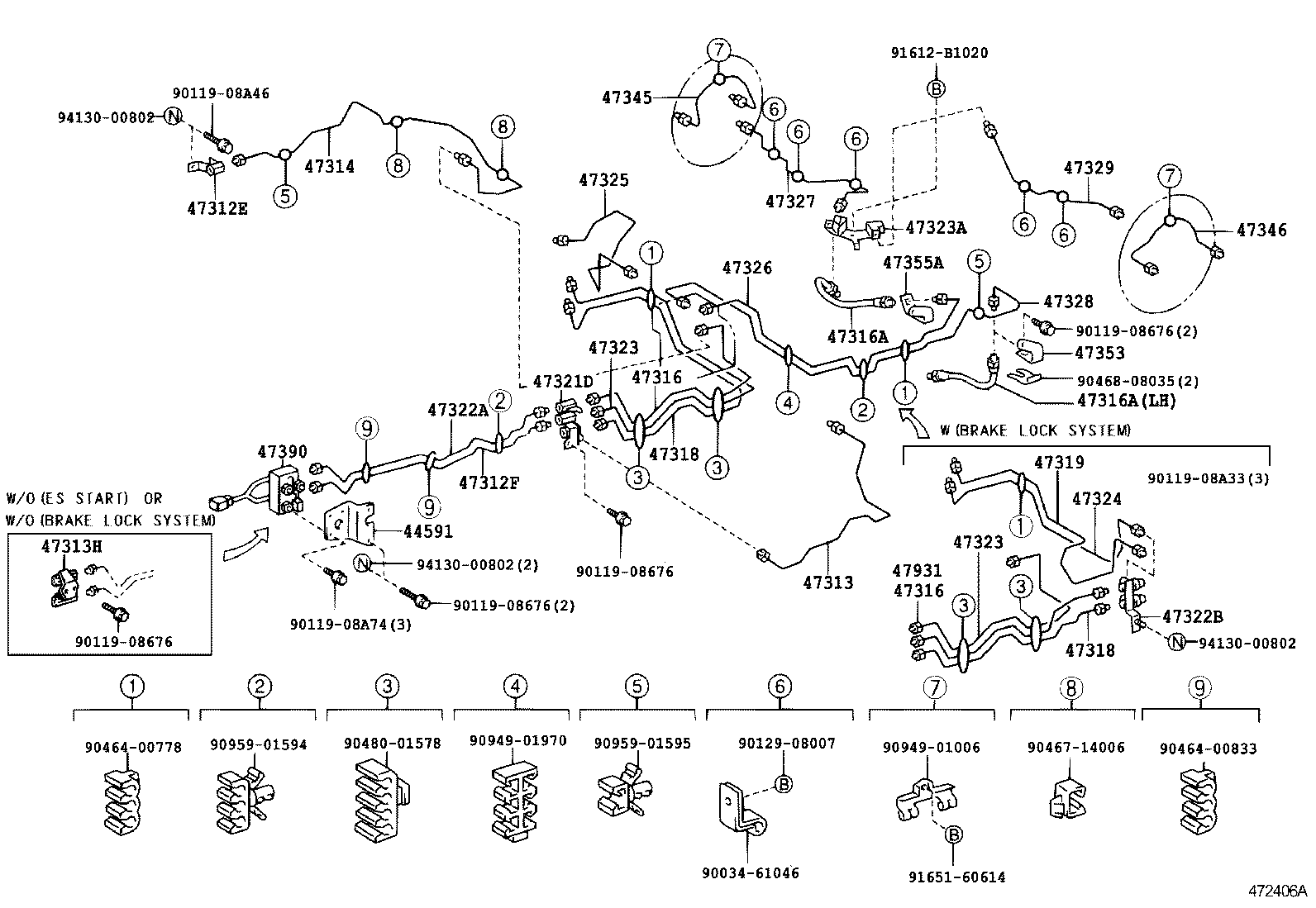

ILLUST NO. 2 OF 4(0010- )XZU302..WT
W/O(LSPV)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-37050 |
XZU302,307,320,342 |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-12060 |
XZU302,307 |
1 | ||
| 47312F - TUBE, FRONT BRAKE, FRAME, NO.2 | ||||
| 47312-37080 |
XZU302,307 |
1 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90904-12076 |
XZU302,307,342 |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-37170 |
XZU302,307,342..WT |
1 | ||
| 47314-37171 |
XZU302,307,342..WT |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-37110 |
XZU302,307,342..WT |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-37110 |
XZU302,307,342..WT |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B29 |
XZU302,307,342..WT |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02B29 |
XZU302,307,342..WT |
2 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-37070 |
XZU302..WT W(BRAKE LOCK SYSTEM) |
1 | ||
| 47318-37050 |
XZU302,307,342..WT |
1 | ||
| 47318-37140 |
XZU302,307,342..WT |
1 | ||
| 47318-37140 |
XZU302,307,342..WT AUSTRIA SPEC |
1 | ||
| 47318-37230 |
XZU302..WT W(BRAKE LOCK SYSTEM) |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-37070 |
XZU302..WT W(BRAKE LOCK SYSTEM) |
1 | ||
| 47318-37050 |
XZU302,307,342..WT |
1 | ||
| 47318-37140 |
XZU302,307,342..WT |
1 | ||
| 47318-37140 |
XZU302,307,342..WT AUSTRIA SPEC |
1 | ||
| 47318-37230 |
XZU302..WT W(BRAKE LOCK SYSTEM) |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-37060 |
XZU302..WT |
1 | ||
| 47319-37050 |
XZU302..WT |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-12059 |
XZU302,307,342..WT |
1 | ||
| 90413-12009 |
XZU302,307,342..WT |
1 | ||
| 90412-12059 |
XZU302,307,342..WT AUSTRIA SPEC |
1 | ||
| 47322A - TUBE, REAR BRAKE, FRAME NO.2 | ||||
| 47322-37220 |
XZU30# |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90904-13055 |
XZU302..WT |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37050 |
XZU302,307,342..WT |
1 | ||
| 47323-37070 |
XZU302..WT W(BRAKE LOCK SYSTEM) |
1 | ||
| 47323-37140 |
XZU302,307,342..WT |
1 | ||
| 47323-37140 |
XZU302,307,342..WT AUSTRIA SPEC |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-37050 |
XZU302,307,342..WT |
1 | ||
| 47323-37070 |
XZU302..WT W(BRAKE LOCK SYSTEM) |
1 | ||
| 47323-37140 |
XZU302,307,342..WT |
1 | ||
| 47323-37140 |
XZU302,307,342..WT AUSTRIA SPEC |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90412-12051 |
XZU302,307,342..WT |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-37310 |
XZU302..WT |
1 | ||
| 47324-37290 |
XZU302..WT |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-37170 |
XZU302,307,342..WT |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-37210 |
XZU302..WT |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-37010 |
XZU302,307,342..WT |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-37070 |
XZU302..WT |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-36050 |
XZU300,302,320,330,342..(20T,30T)..WT |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-36050 |
XZU300,302,320,330,342..(20T,30T)..WT |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-37110 |
XZU302,307,342..WT |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47353-37240 |
XZU30#,330,34#..WT |
1 | ||
| 47390 - VALVE ASSY, HILL HOLDER BRAKE LOCK | ||||
| 47390-37011 |
XZU302,307,342 |
1 | ||
| Common parts | ||||
| 90034-61046 | ||||
| 90119-08676 | ||||
| 90119-08A46 | ||||
| 90119-08A74 | ||||
| 90129-08007 | ||||
| 90464-00778 | ||||
| 90464-00833 | ||||
| 90467-14006 | ||||
| 90468-08035 | ||||
| 90480-01577 | ||||
| 90480-01620 | ||||
| 90949-01006 | ||||
| 90949-01970 | ||||
| 90959-01594 | ||||
| 90959-01595 | ||||
| 91612-B1020 | ||||
| 91651-60614 | ||||
| 94130-00802 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
